Toyota YARIS 前保险杠及附件 — Figure 5201

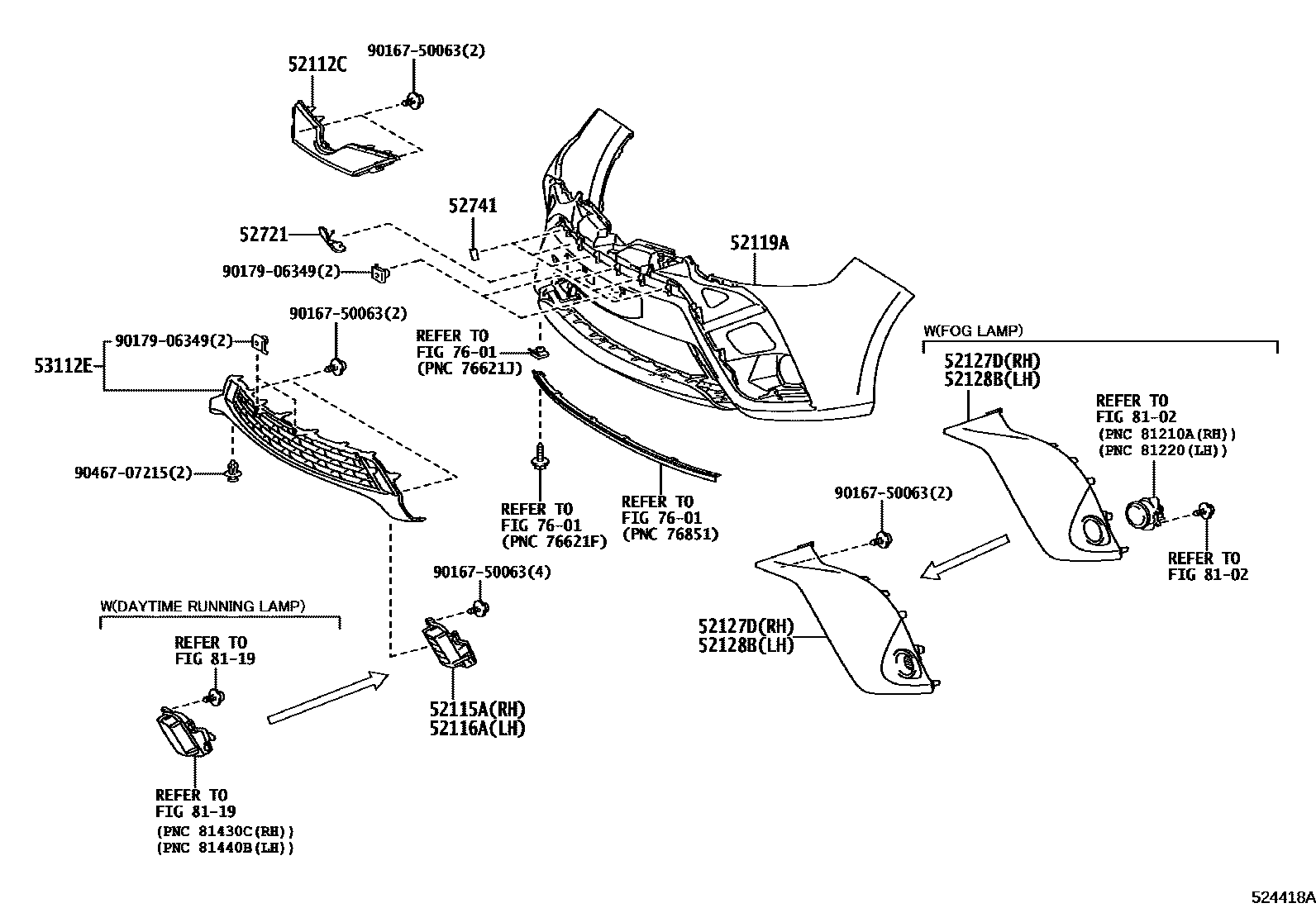

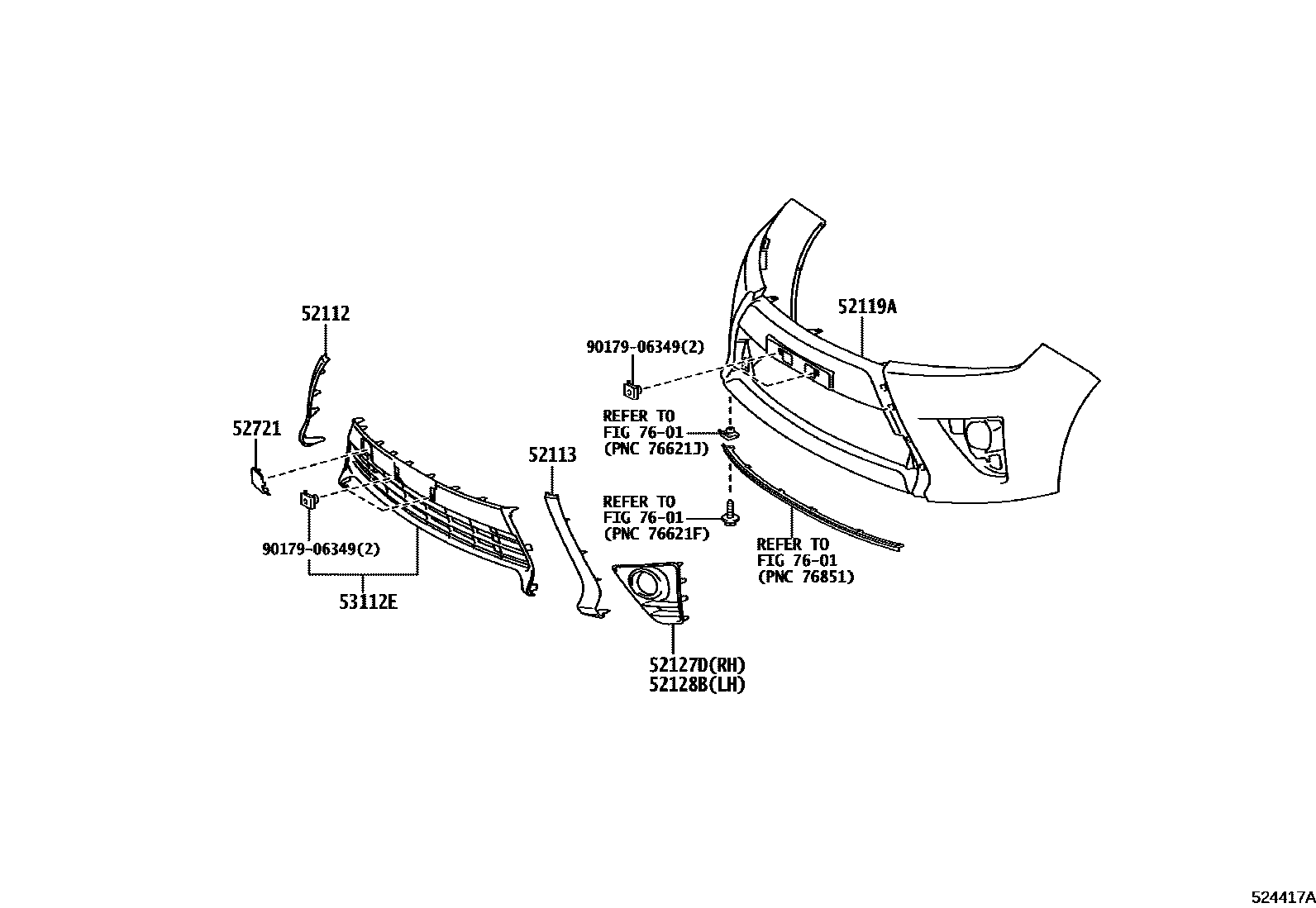

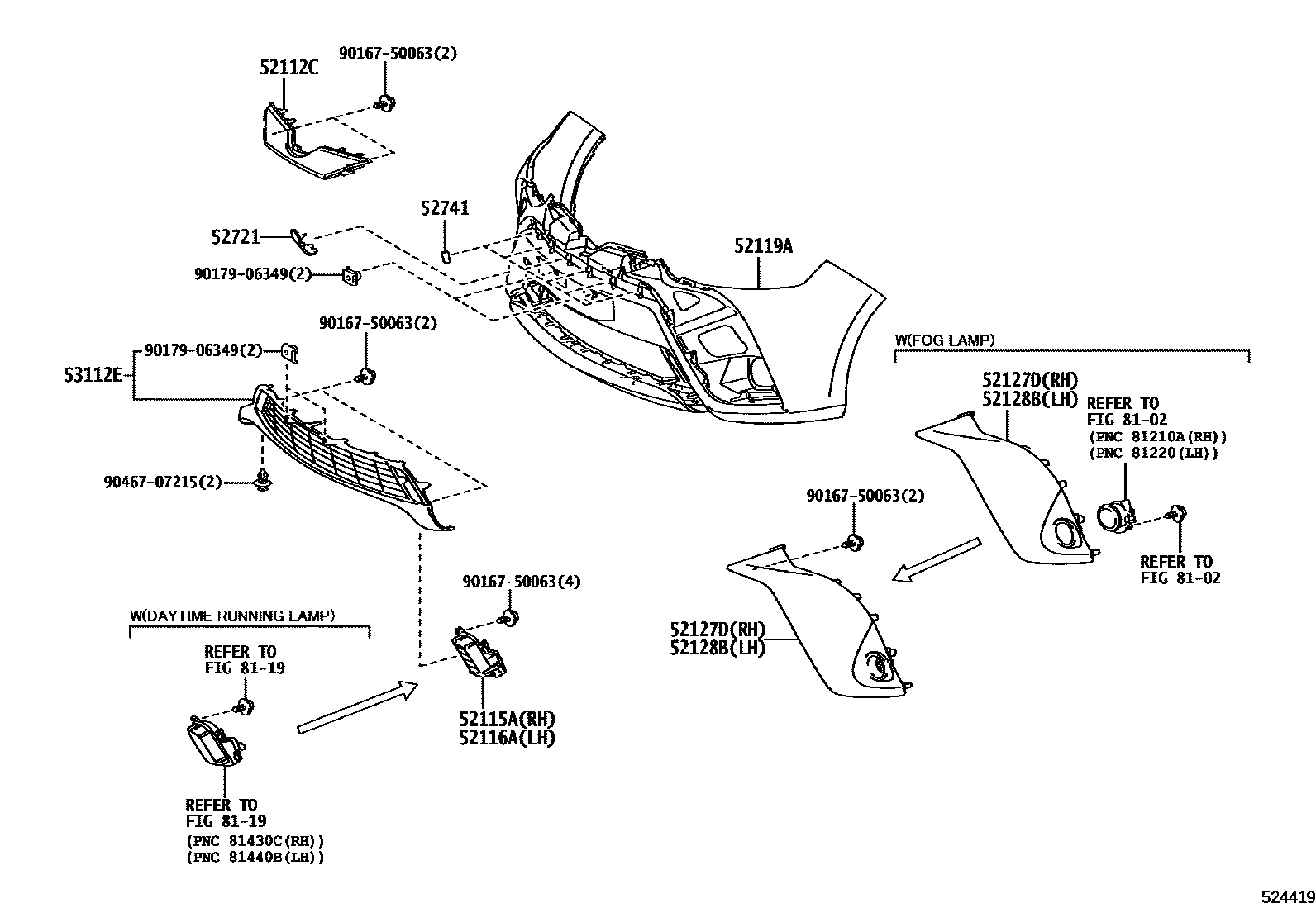

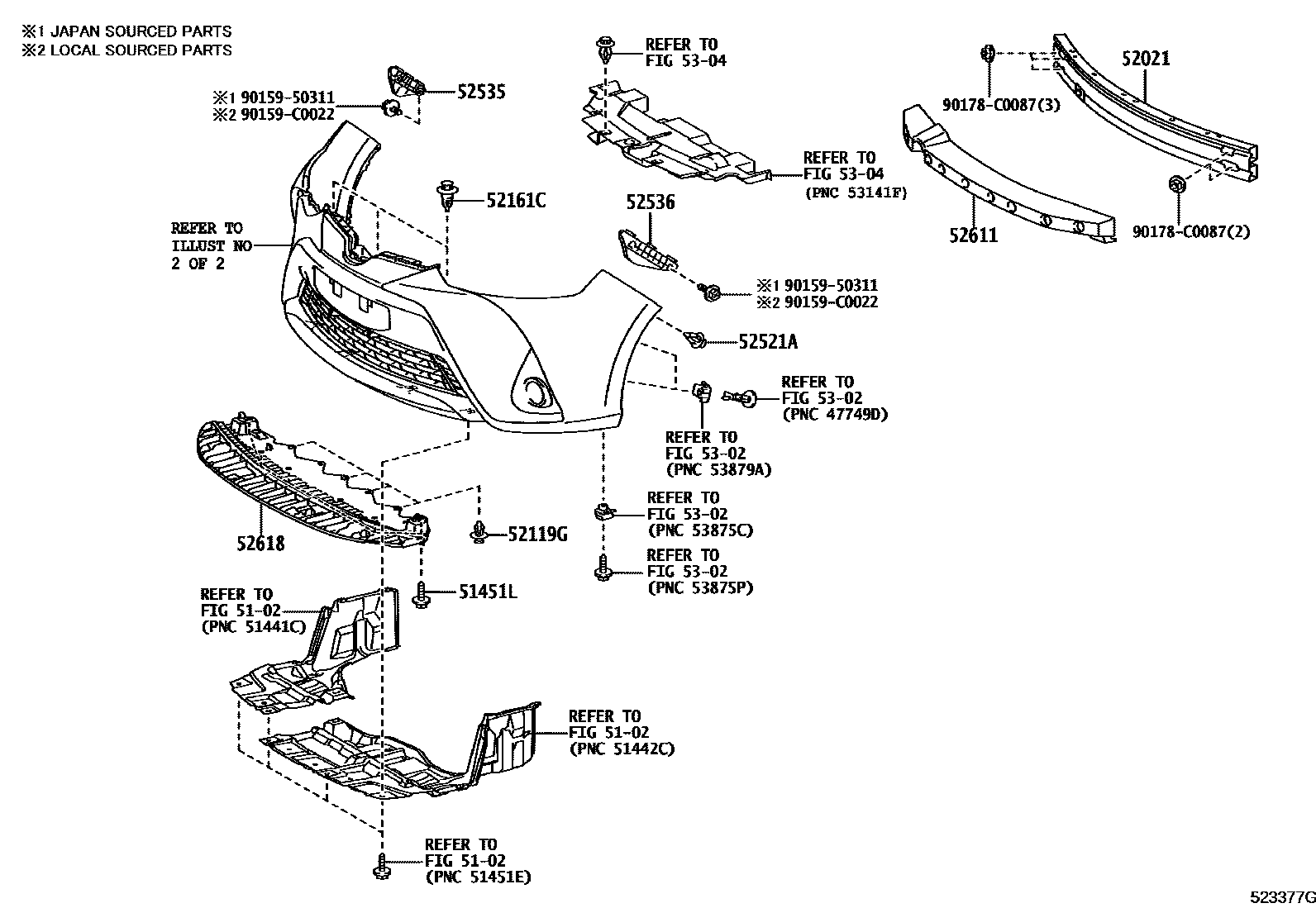

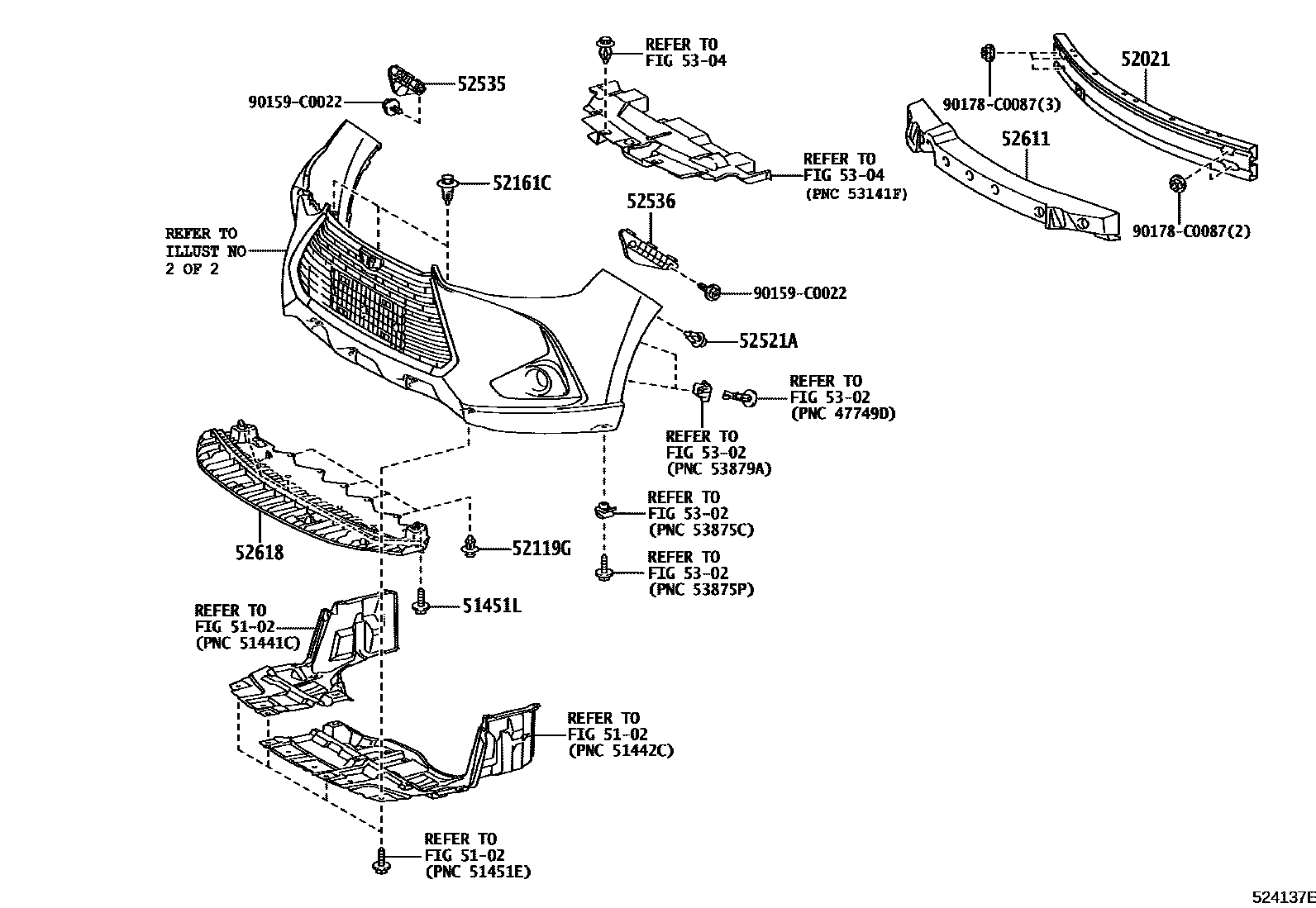

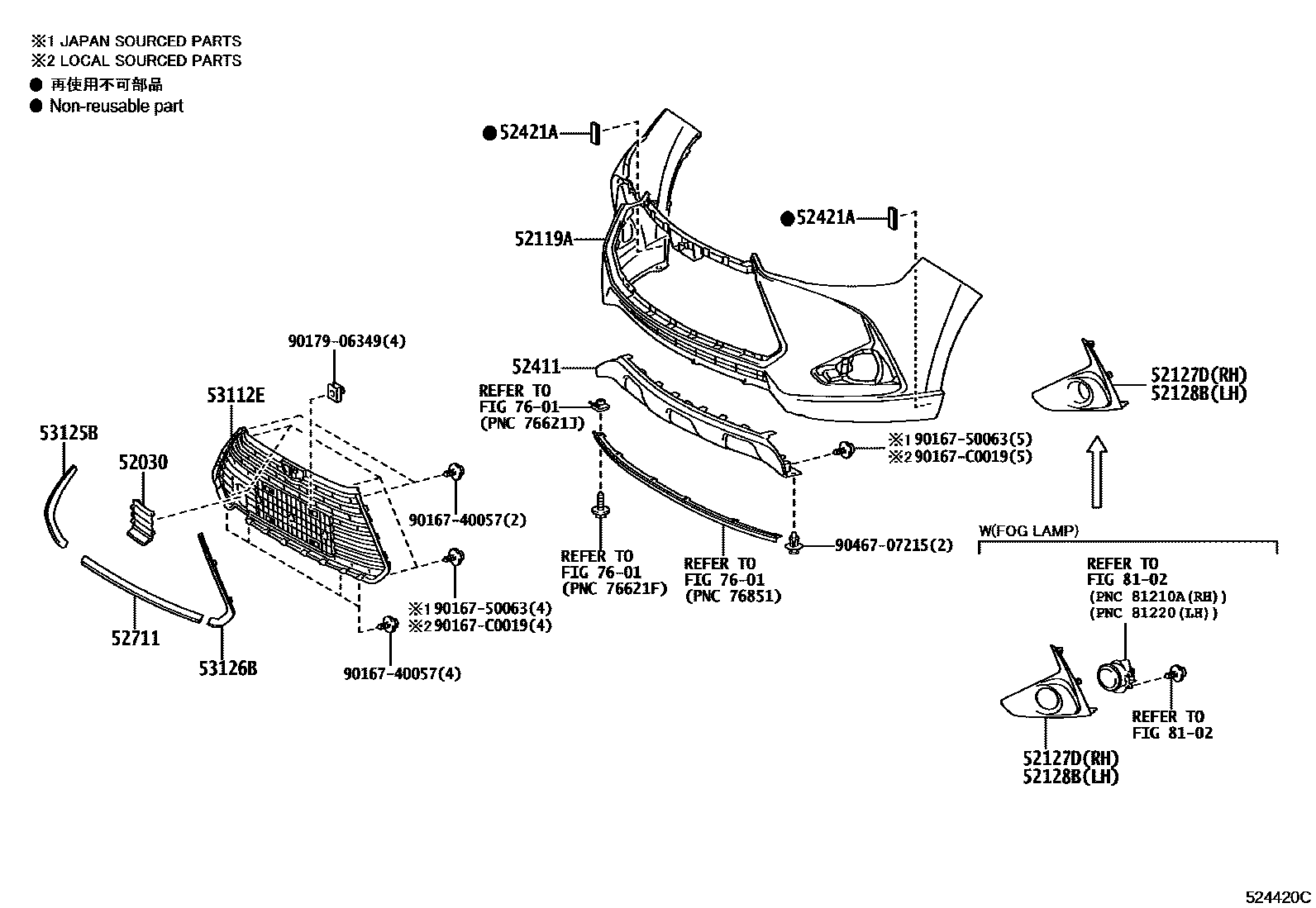

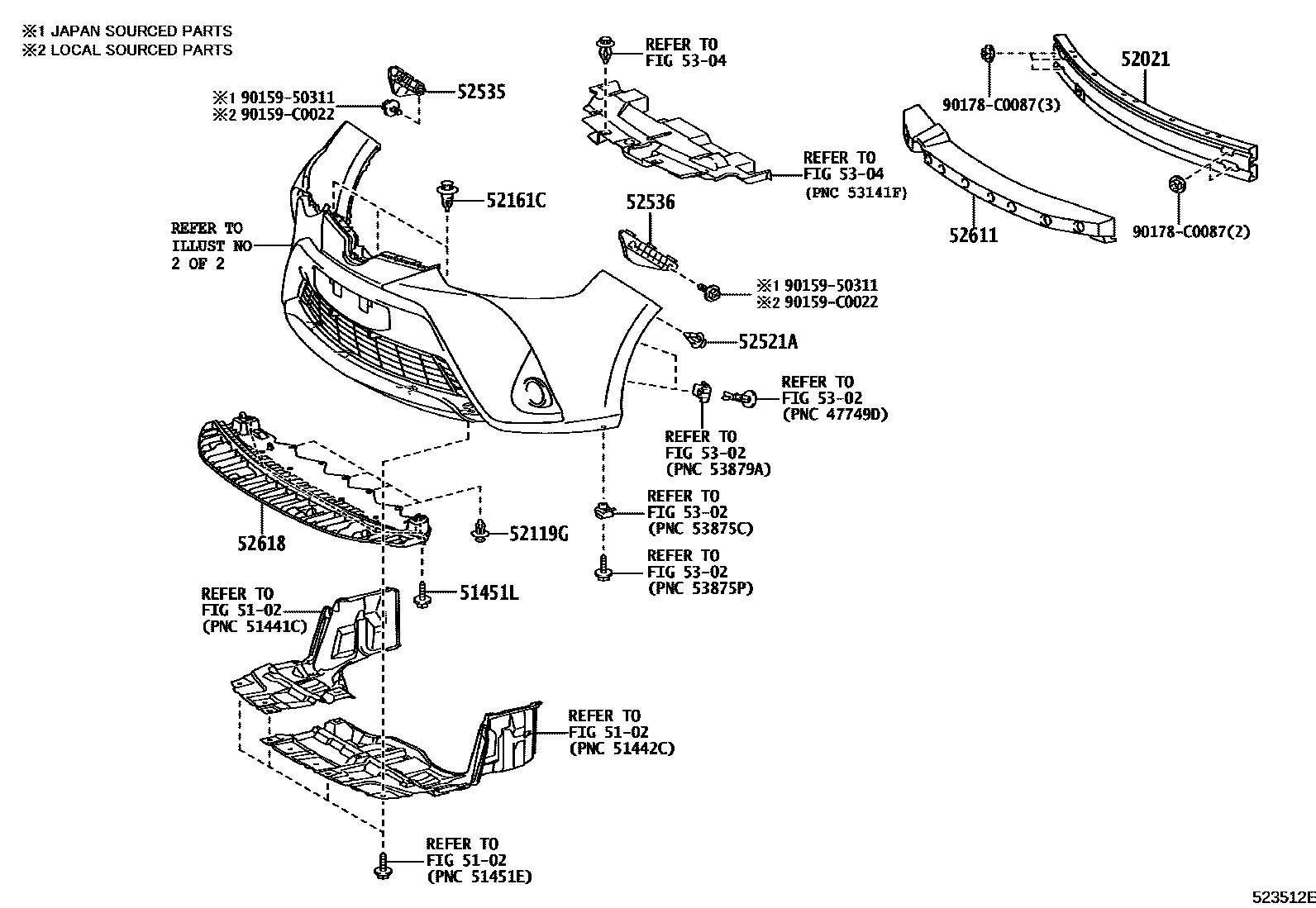

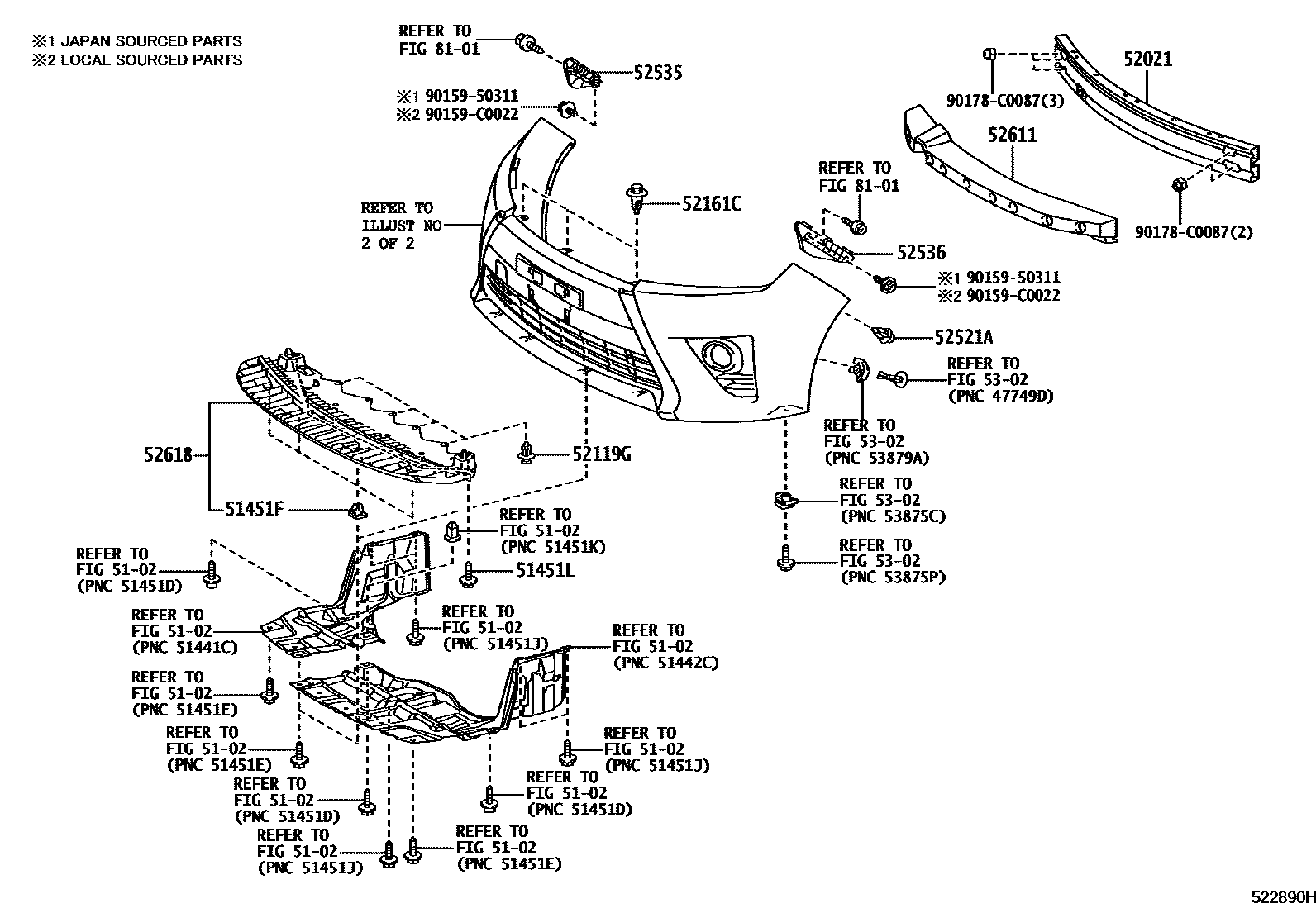

Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 8 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51451F | Gasket No. 1 | 90189-06193 · 90189-C0006 |
| 51451L | Bolt No. 1 | 90119-C0183 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-0D130 |
| 52030 | Front bumper right hole cover assembly | 52030-YL020 |
| 52112 | Front bumper right side stay | 52112-0D110 · 52112-0D120 |
| 52112C | Front bumper extension | 52112-0D090 · 52112-0D100 · 52112-0D900 |
| 52113 | Front bumper left stay | 52113-0D090 · 52113-0D100 |
| 52115A | Front bumper right side bracket | 52115-0D100 |
| 52116A | Front bumper left bracket | 52116-0D100 |
| 52119A | front bumper cover | 52119-0U925 · 52119-0Z979 · 52119-YL900 |
| 52119G | No. 1 clip | 90467-10216 · 90467-C0024 |
| 52127D | Front bumper right hole cover | 52127-0D320 · 52127-0D330 · 52127-0D640 · 52127-0D650 · 52127-0D660 · 52127-0D923 · 52127-0D924 · 81481-YL010 · 81481-YL020 |
| 52128B | Front bumper left hole cover | 52128-0D140 · 52128-0D150 · 52128-0D400 · 52128-0D410 · 52128-0D420 · 52128-0D901 · 52128-0D902 · 81482-YL010 · 81482-YL020 |
| 52161C | front bumper insert | 52161-02040 · 52161-16010 |
| 52411 | Front bumper anti-collision bar | 52411-YL010 |
| 52421A | front bumper lining | 52421-YL010 |
| 52521A | Clip (for front bumper mount) | 90467-05170 · 90467-C0032 |
| 52535 | Front bumper right side fixing bracket | 52535-0D120 · 52535-0D310 |
| 52536 | Front bumper left fixed bracket | 52536-0D120 · 52536-0D310 |
| 52611 | front bumper energy absorber | 52611-0D040 · 52611-0D050 · 52611-YL010 |
| 52618 | Front bumper lower shock absorber | 52618-0D060 · 52618-0D100 |
| 52711 | Front bumper protection strip | 52711-YL010 |
| 52721 | Front bumper right extension protection strip | 52721-0D060 · 52721-0D907 |
| 52741 | Front bumper decorative part No. 1 | 52741-0D010 |
| 53112E | No. 1 radiator lower grille | 53112-0D280 · 53112-0D500 · 53112-0D510 · 53112-YL020 |
| 53125B | Radiator grille right center protective strip | 53125-YL010 |
| 53126B | Radiator grille left middle protective strip | 53126-YL010 |
