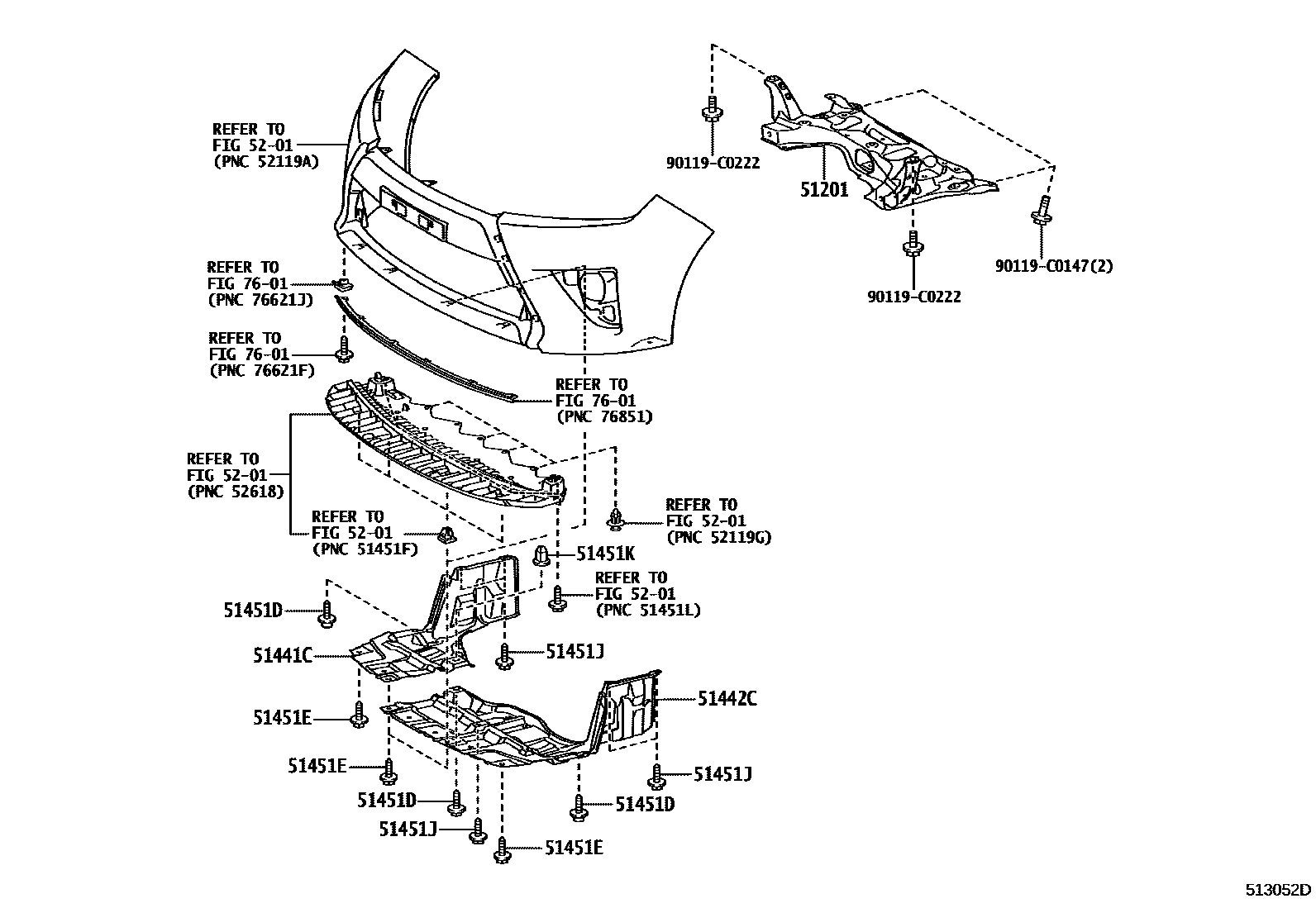

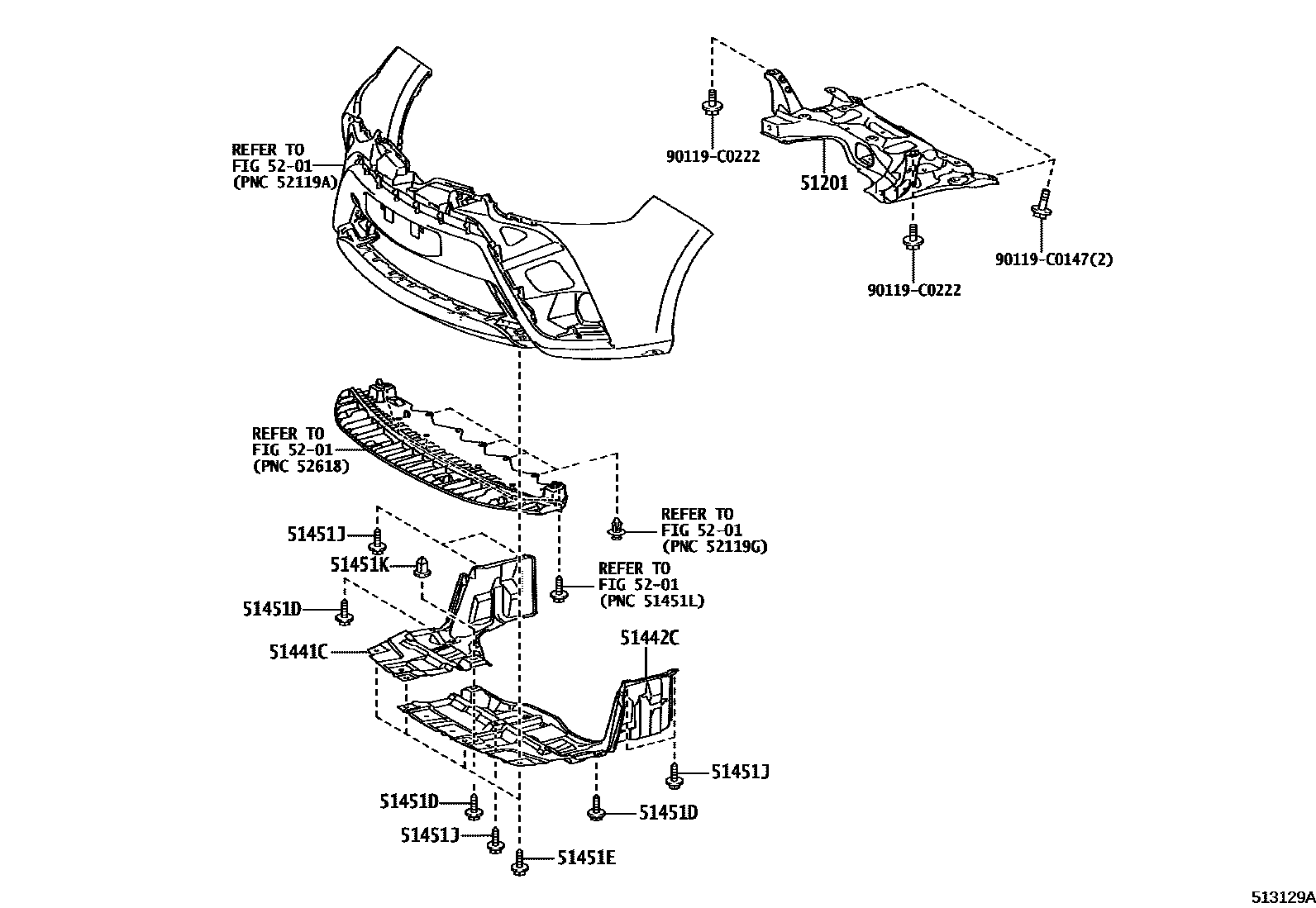

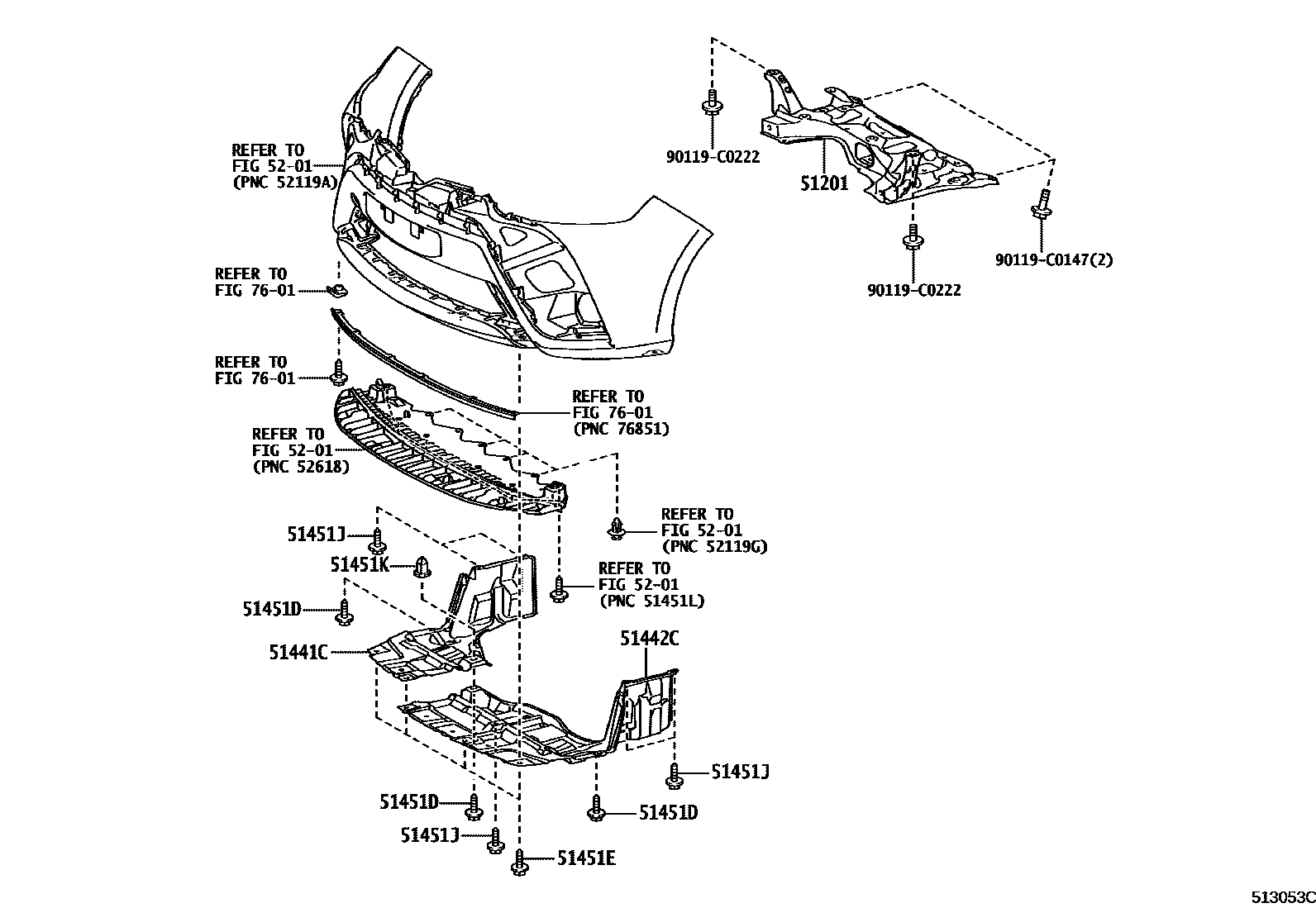

Toyota YARIS 悬架横梁和发动机底罩 — Figure 5102
Toyota YARIS EPC diagram 5102, 悬架横梁和发动机底罩, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-0D113 |
| 51441C | Engine right bottom cover | 51441-0D300 |
| 51442C | Engine left bottom cover | 51442-0D180 |
| 51451D | Screw No. 1 | 90159-C0007 |
| 51451E | No. 2 screw | 90159-60477 · 90159-C0049 |
| 51451J | Bolt No. 1 | 90119-C0186 |
| 51451K | No. 1 screw seal | 90189-06076 |
