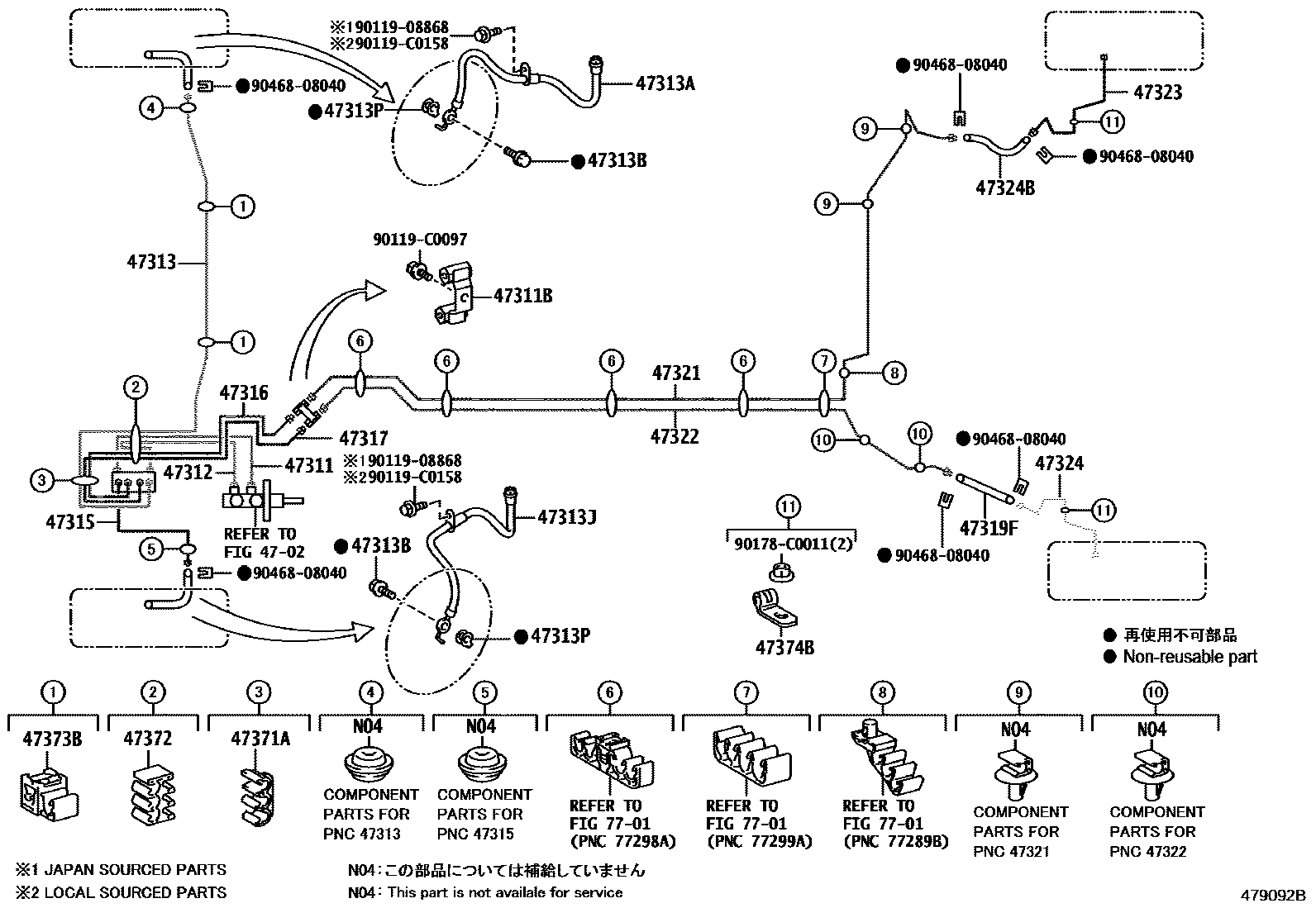

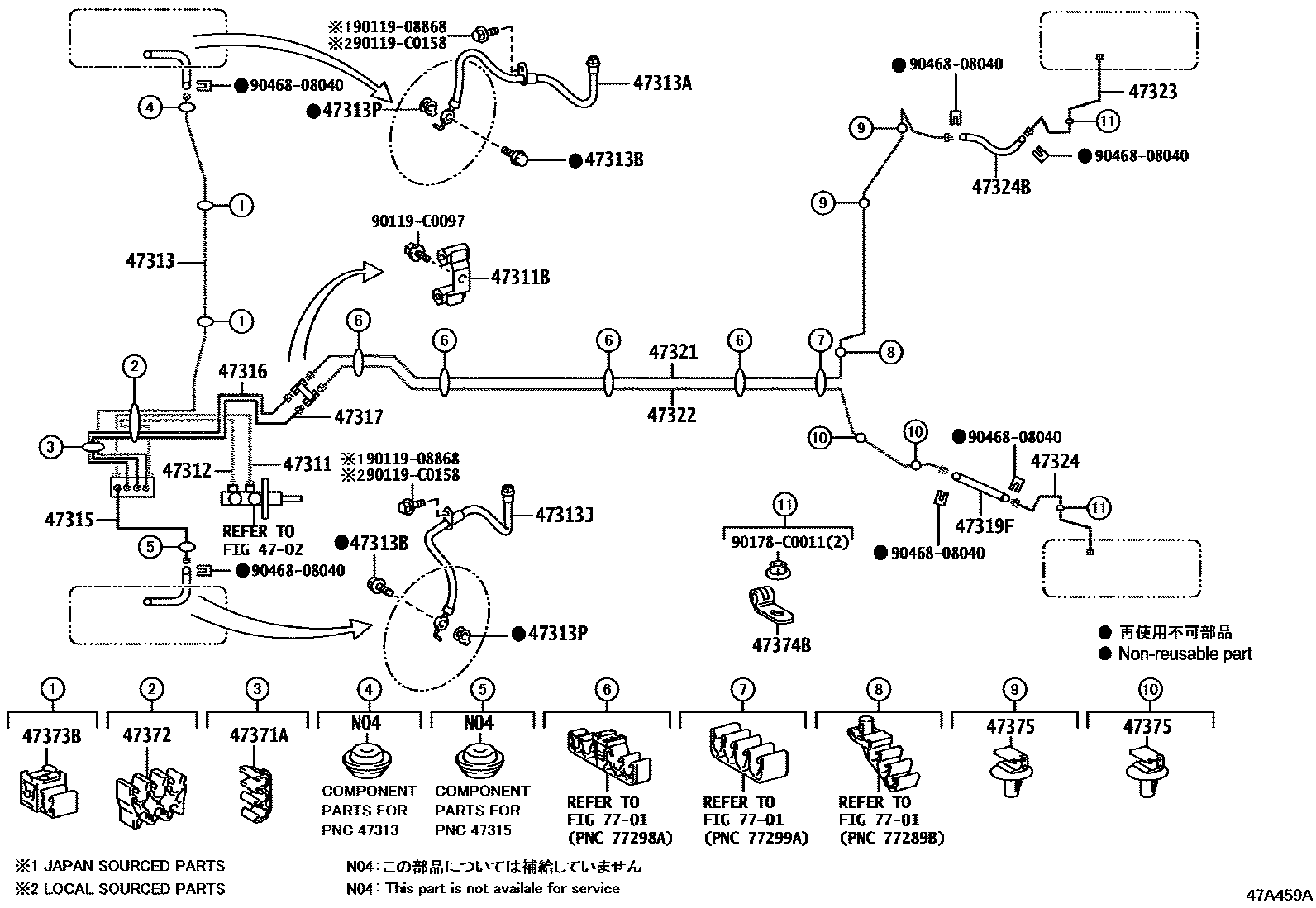

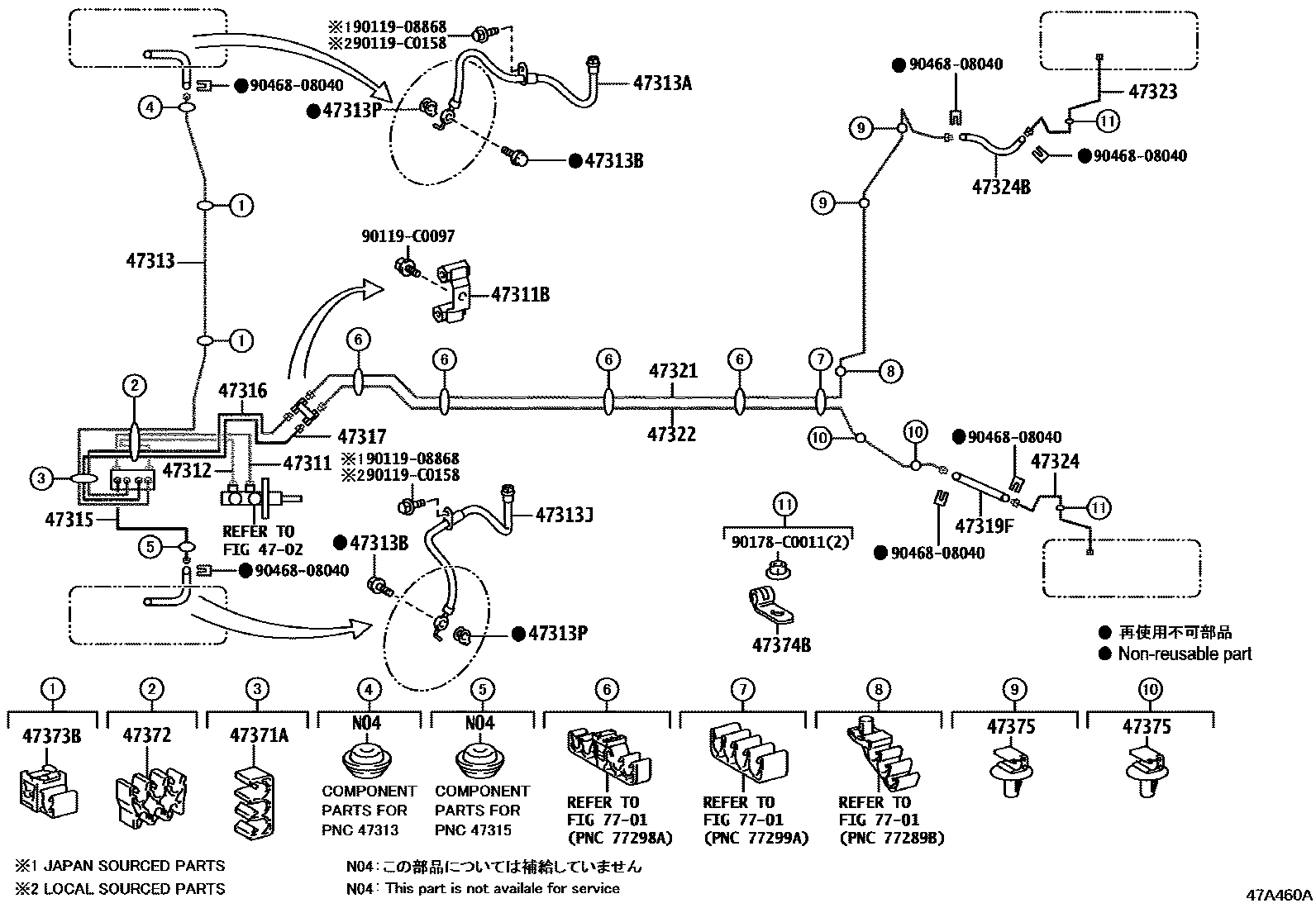

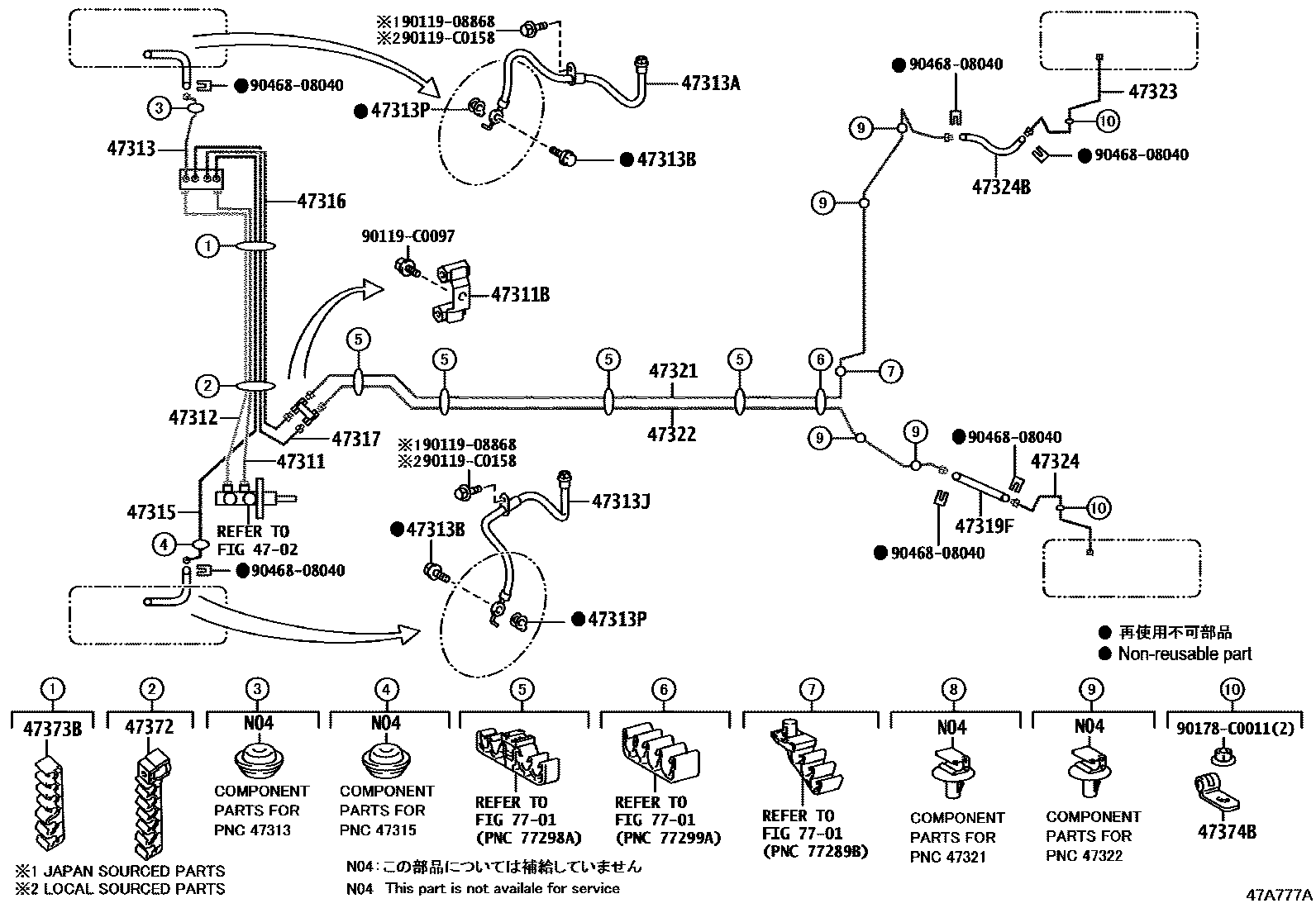

Toyota YARIS 制动配管和卡箍 — Figure 4708
Toyota YARIS EPC diagram 4708, 制动配管和卡箍, with 7 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

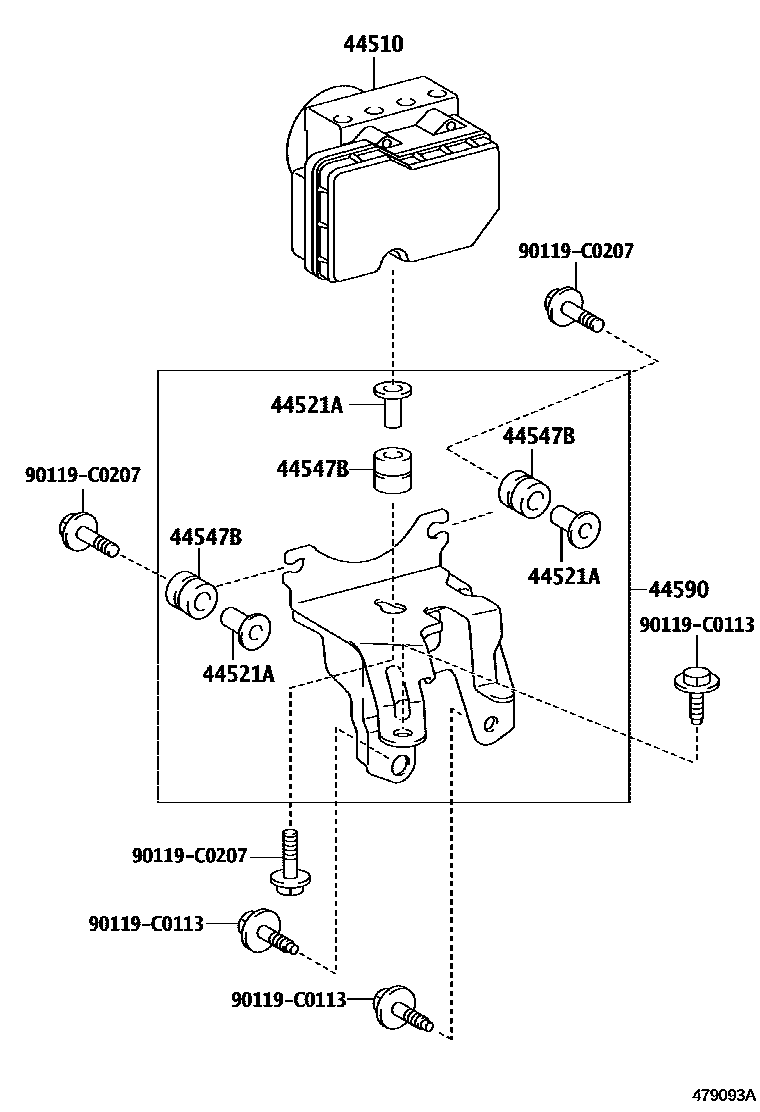

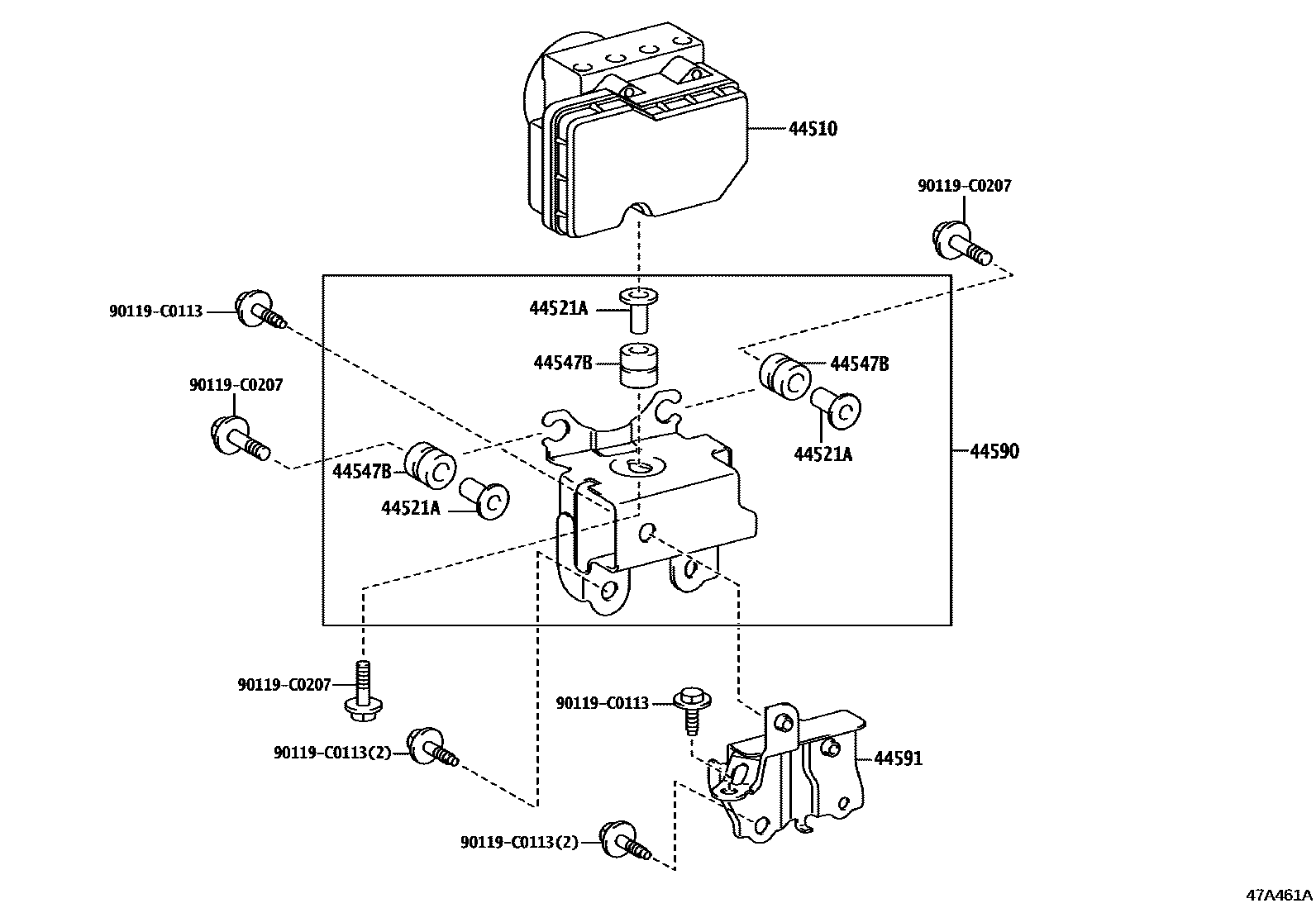

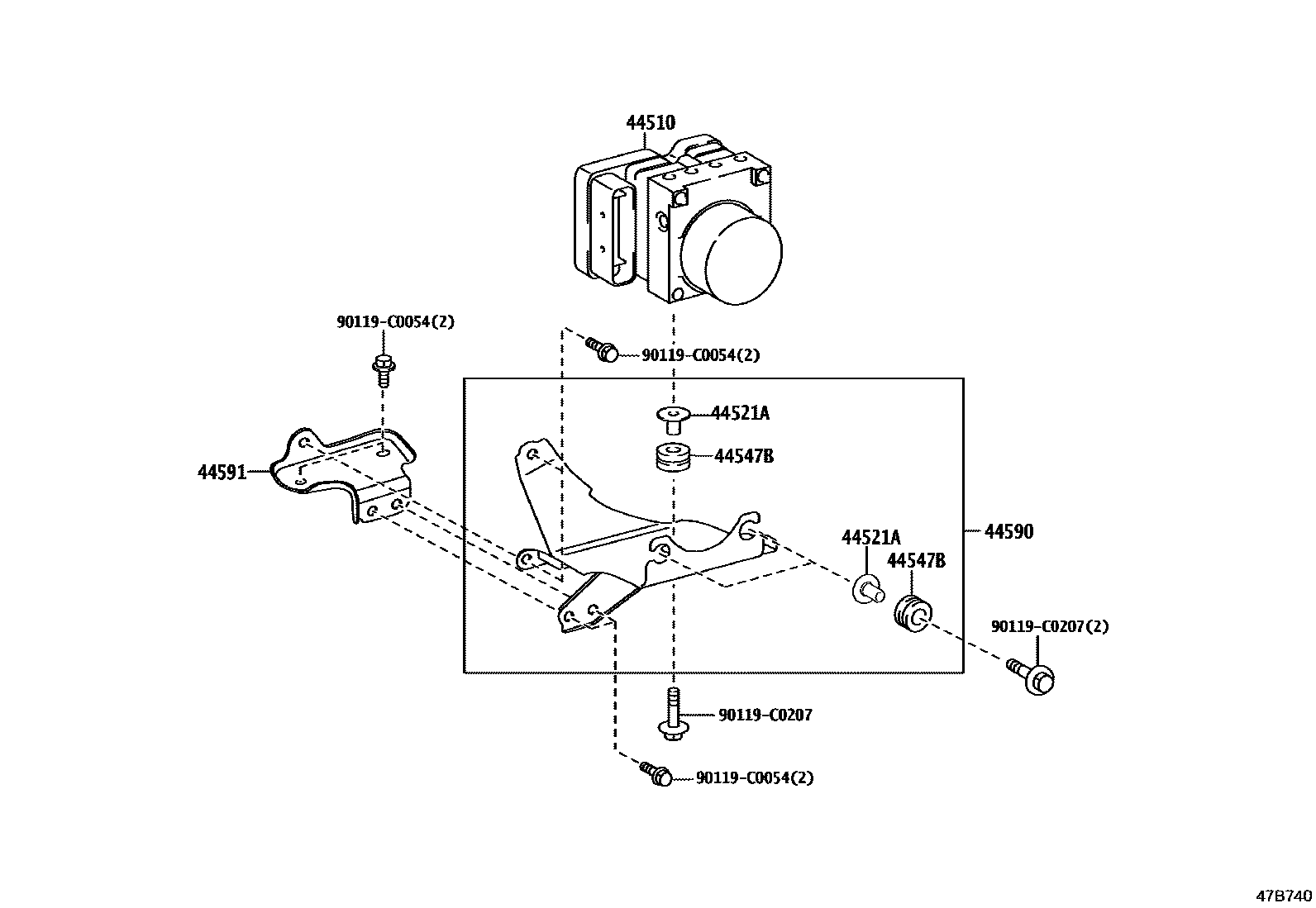

| 44510 | brake actuator assembly | 44050-0D340 · 44050-0D620 · 44050-0D680 · 44050-0D760 · 44050-0DA20 · 44050-0DA30 |
| 44521A | No. 1 brake actuator housing collar | 44521-12050 |
| 44547B | brake actuator bracket cushion | 44547-02040 |
| 44590 | Brake actuator bracket assembly | 44590-0D210 · 44590-0D290 · 44590-0D390 · 44590-0D400 |
| 44591 | No. 1 brake actuator bracket | 44591-0D260 · 44591-0D420 |
| 47311 | No. 1 front brake pipe | 47311-0D590 · 47311-0D760 · 47311-0D770 · 47311-0DB30 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-C0001 · 90412-C0004 |
| 47312 | No. 2 front brake pipe | 47312-0D520 · 47312-0D690 · 47312-0D700 · 47312-0DA60 |
| 47313 | No. 3 front brake pipe | 47313-0D510 · 47313-0D680 · 47313-0D880 |
| 47313A | No. 1 front flexible hose | 90947-C2055 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 · 90401-C0001 |
| 47313J | No. 2 front flexible hose | 90947-C2056 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47315 | No. 5 front brake pipe | 47315-0D510 · 47315-0D660 · 47315-0D860 |
| 47316 | No. 6 front brake pipe | 47316-0D400 · 47316-0D420 · 47316-0D770 |
| 47317 | No. 7 front brake pipe | 47317-0D410 · 47317-0D570 · 47317-0D770 |
| 47319F | Left rear flexible hose | 90947-C2060 |
| 47321 | No. 1 rear brake pipe | 47321-0D380 |
| 47322 | No. 2 rear brake pipe | 47322-0D380 · 47322-0D470 |
| 47323 | No. 3 rear brake pipe | 47323-0D260 |
| 47324 | No. 4 rear brake pipe | 47324-0D260 |
| 47324B | Flexible hose (for No. 2 rear brake pipe) | 90947-C2059 |
| 47371A | No. 1 brake pipe clamp | 90464-00857 · 90464-00868 · 90464-00892 |
| 47372 | No. 2 brake pipe clamp | 90464-00925 · 90949-01969 · 90949-01D34 |
| 47373B | No. 3 brake pipe clamp | 90949-01D18 |
| 47374B | No. 4 brake pipe clamp | 90461-C0002 · 90461-C0003 |
| 47375 | No. 5 brake pipe clamp | 90949-01D17 |
