Toyota YARIS 后鼓式制动器分泵和底板 — Figure 4706

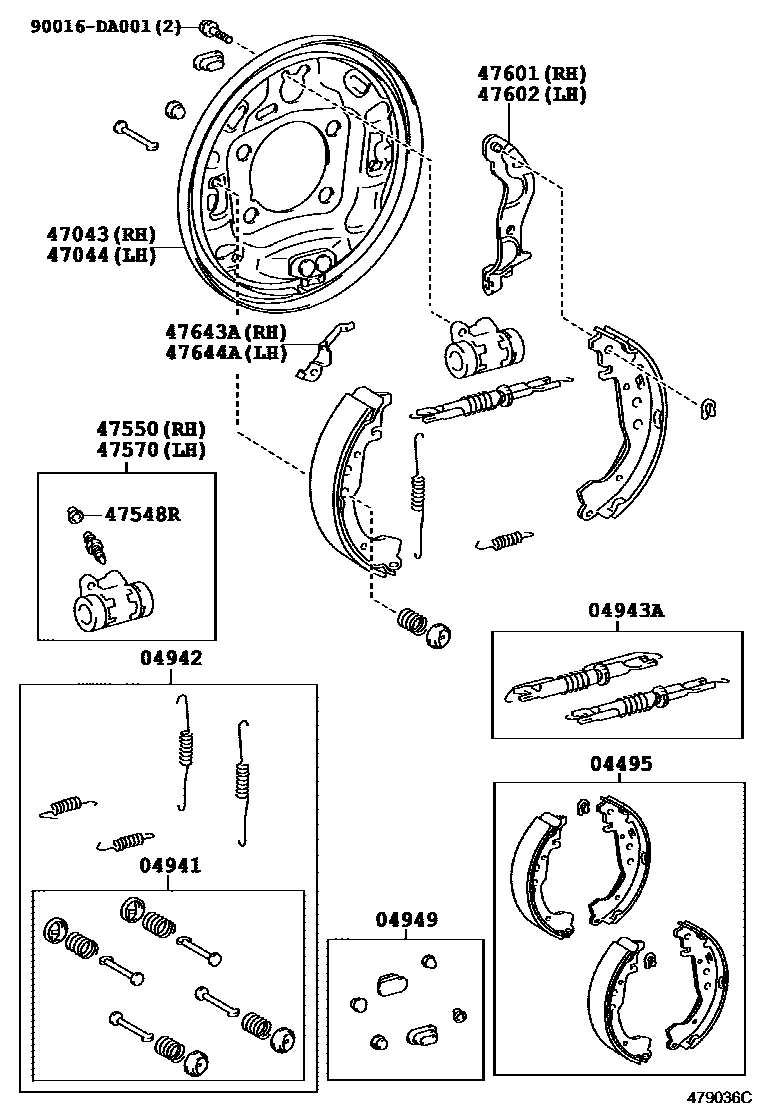

Toyota YARIS EPC diagram 4706, 后鼓式制动器分泵和底板, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04495 | Rear brake shoe assembly | 04495-0D070 · 04495-0D081 |
| 04941 | Rear brake shoe limit spring assembly | 04941-0D070 |
| 04942 | Rear brake spring assembly | 04942-0D080 |
| 04943A | Rear brake bracket assembly | 04943-0D050 |
| 04949 | Rear brake plug assembly | 04949-0D040 |
| 47043 | Right rear brake base plate sub-assembly | 47043-0D070 |
| 47044 | Left rear brake base plate sub-assembly | 47044-0D070 |
| 47548R | Bleeder plug cap (for rear drum brake) | 31478-0D040 · 31478-30010 |
| 47550 | Rear wheel brake cylinder assembly (for front right or upper right) | 47550-52040 · 47550-52050 |
| 47570 | Rear wheel brake cylinder assembly (for front left or upper left) | 47570-52040 · 47570-52050 |
| 47601 | Right parking brake shoe lever sub-assembly (for rear wheel brake) | 47601-0D070 |
| 47602 | Left parking brake shoe lever sub-assembly (for rear wheel brake) | 47602-0D070 |
| 47643A | Right rear wheel brake automatic adjustment lever | 47643-0D070 · 47643-52102 |
| 47644A | Left rear wheel brake automatic adjustment lever | 47644-0D070 · 47644-52102 |
