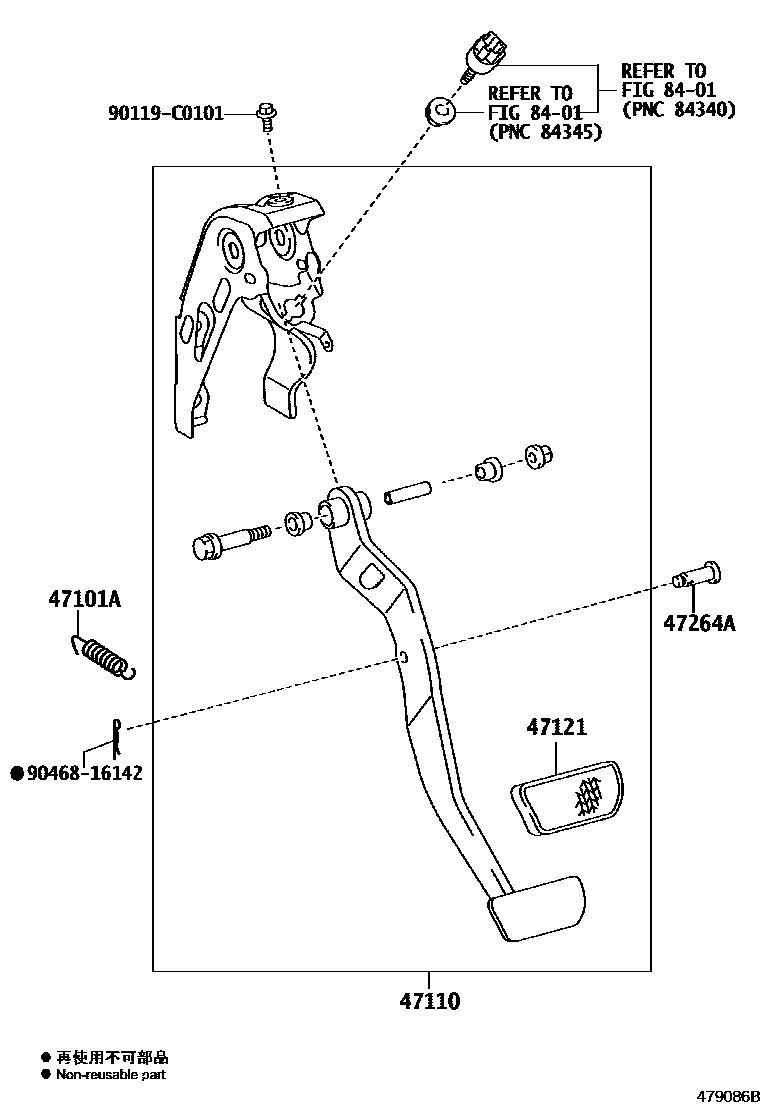

Toyota YARIS Brake Pedal & Bracket — Figure 4701
Toyota YARIS EPC diagram 4701, Brake Pedal & Bracket, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101A | Spring (for brake pedal return) | 90506-14077 · 90506-14088 |
| 47110 | Brake pedal bracket assembly | 47110-0D340 · 47110-0D350 |
| 47121 | brake pedal pad | 31321-52010 · 47121-52010 |
| 47264A | Pin (for push rod) | 90249-08051 · 90249-C0004 |
