Toyota YARIS Front Drive Shaft — Figure 4302

Toyota YARIS EPC diagram 4302, Front Drive Shaft, with 4 images and 30 PNC and OE references.

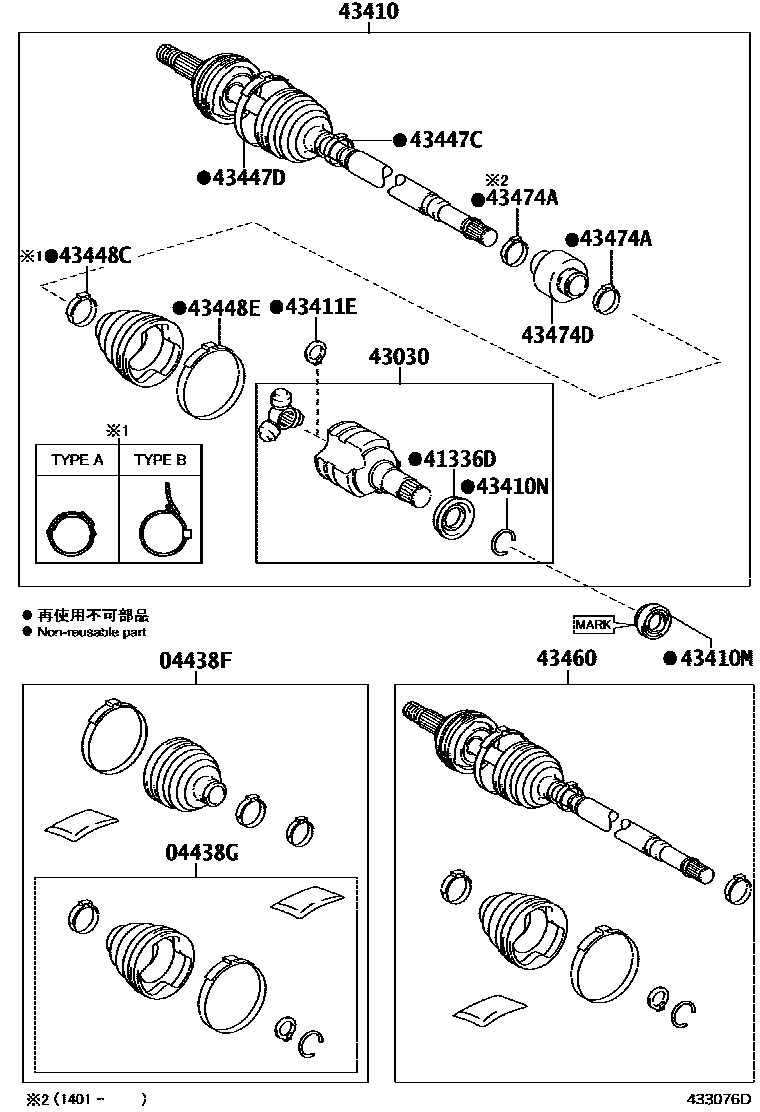

Toyota YARIS Front Drive Shaft EPC diagram — 433076D
Front Drive Shaft — 433076D (201312 – 201904)

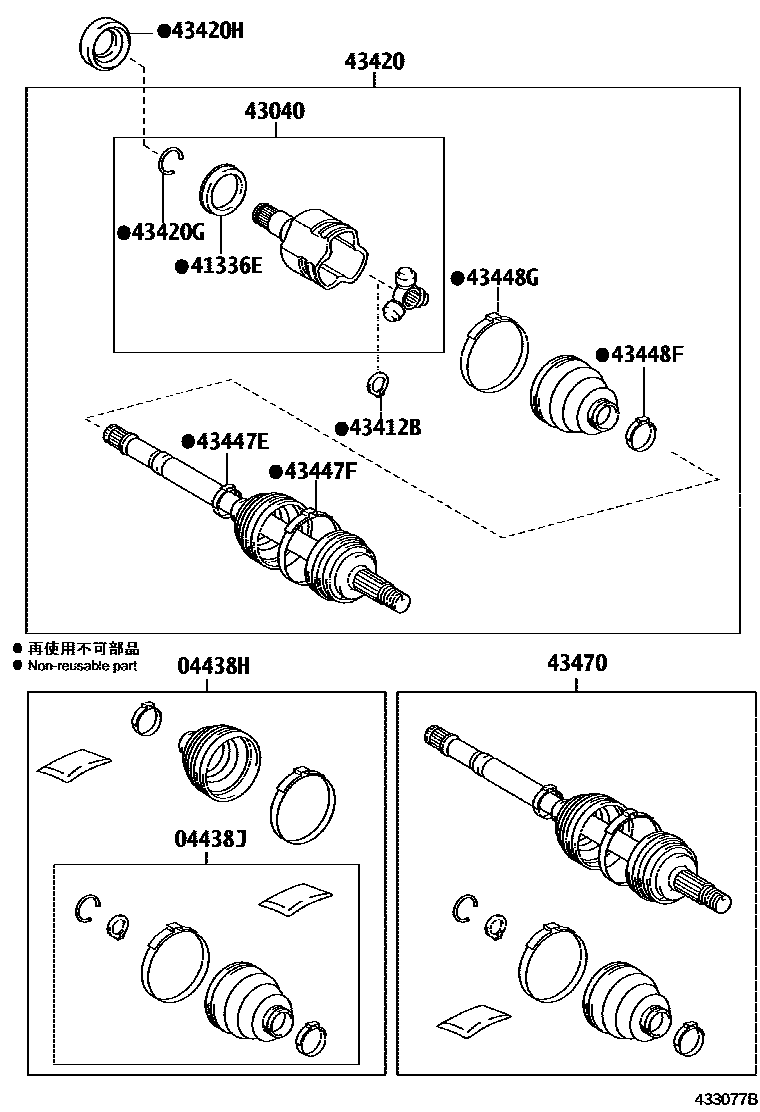

Toyota YARIS Front Drive Shaft EPC diagram — 433077B
Front Drive Shaft — 433077B (201312 – 999999)

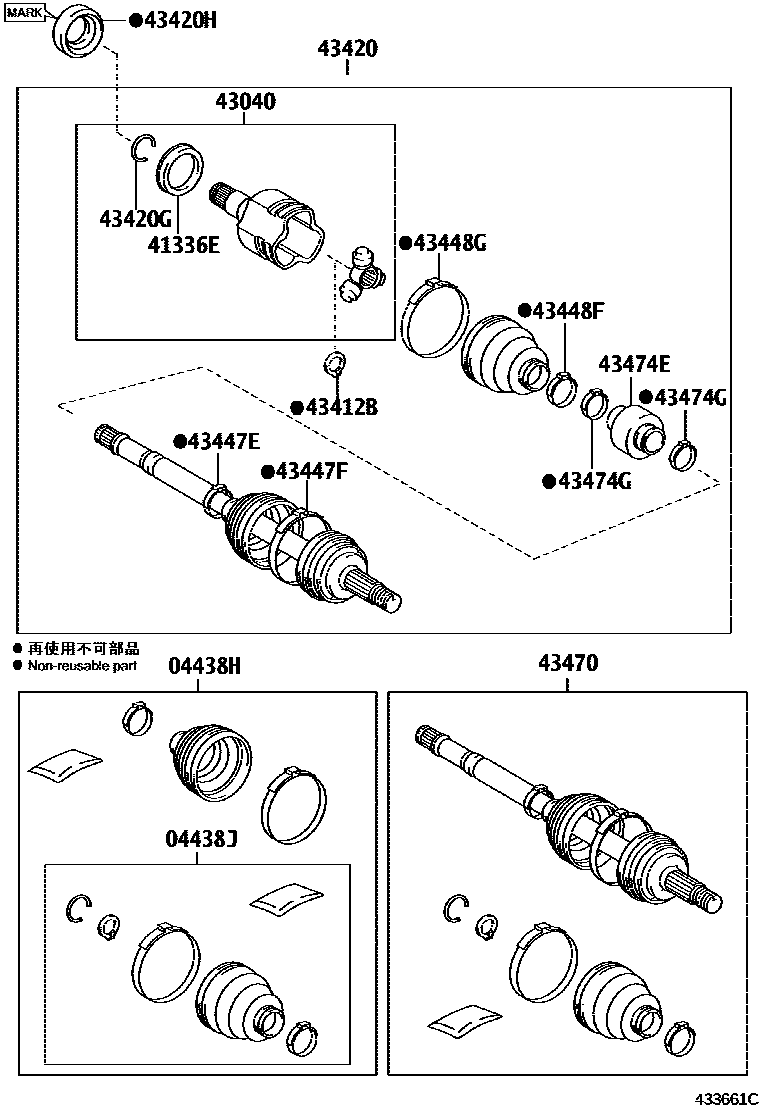

Toyota YARIS Front Drive Shaft EPC diagram — 433661C
Front Drive Shaft — 433661C (201608 – 999999)

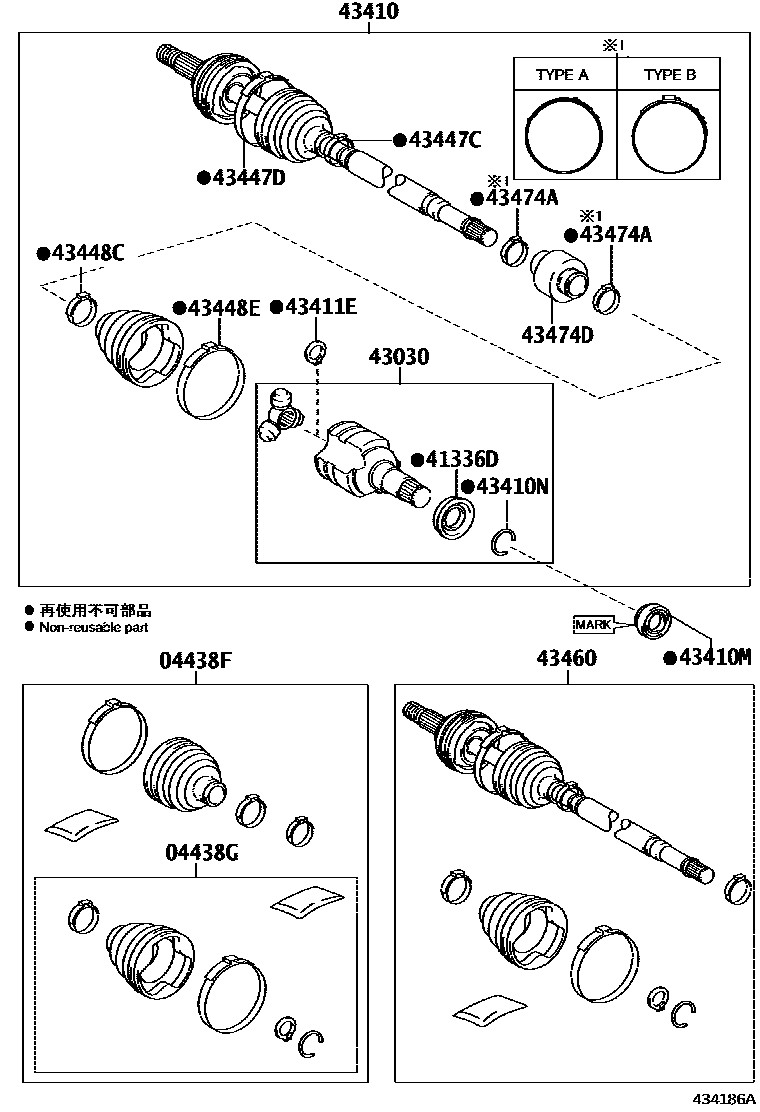

Toyota YARIS Front Drive Shaft EPC diagram — 434186A
Front Drive Shaft — 434186A (201904 – 999999)

PNC and OE references

PNCPart nameOE numbers
04438FRight front driveshaft inboard and outboard dust boot assembly04427-0D182 · 04427-0D184 · 04427-0D185
04438GRight front drive shaft inner universal joint dust boot assembly04437-0D140 · 04437-0D142 · 04437-0D143
04438HLeft front driveshaft inboard and outboard dust boot assembly04428-0D172 · 04428-0D174 · 04428-0D175
04438JLeft front drive shaft inner universal joint dust boot assembly04437-0D140 · 04437-0D142 · 04437-0D143
41336DRight front driveshaft dust cover41336-0D160 · 41336-12010
41336ELeft front driveshaft dust cover41336-0D160 · 41336-12010
43030Right front drive shaft inner universal joint assembly43403-10011
43040Left front drive shaft inner universal joint assembly43403-0W031 · 43403-10011
43410Right front driveshaft assembly43410-0D430 · 43410-0D432 · 43410-0D433
43410MFront drive shaft right oil seal90311-34050 · 90311-C0005 · 90311-C0027 · 90311-C0043
43410NHole snap ring (for right front driveshaft)90520-C0038 · 90521-26004
43411EInner shaft snap ring (for right front axle inner drive shaft)90520-22001 · 90520-22029 · 90520-C0028 · 90520-C0033
43412BInner shaft snap ring (for left front axle inner drive shaft)90520-22001 · 90520-22029 · 90520-C0028 · 90520-C0033
43420Left front drive shaft assembly43420-0D420 · 43420-0D422 · 43420-0D423 · 43420-0D530 · 43420-0D532 · 43420-0D533
43420GHole snap ring (for left front driveshaft)90520-C0038 · 90521-26004
43420HFront drive shaft left oil seal90311-C0006 · 90311-C0028 · 90311-C0042 · 90311-C0047 · 90311-C0049
43447CClamp (for the outer universal joint dust cover of the right front axle)42345-52260
43447DNo. 2 clip (for the universal joint dust cover on the outside of the right front axle)42345-52250
43447EClamp (for left front axle outer universal joint dust cover)42345-52260
43447FNo. 2 clip (for left front axle outer universal joint dust cover)42345-52250
43448CClamp (for the universal joint dust cover inside the right front axle)42345-0D420 · 90949-01078
43448ENo. 2 clip (for the universal joint dust cover inside the right front axle)90949-01146
43448FClamp (for left front axle inner universal joint dust cover)42345-0D420 · 90949-01078
43448GClamp No. 2 (for the universal joint dust cover inside the left front axle)90949-01146
43460Right front outer drive universal joint shaft assembly43460-09X10 · 43460-09X13 · 43460-09X14
43470Left front outer drive universal joint shaft assembly43470-8Z210 · 43470-8Z845 · 43470-8Z846
43474AClamp (for securing driveshaft damper)42345-06420 · 42345-12090
43474DRight front driveshaft shock absorber43474-0D240
43474ELeft front driveshaft shock absorber43474-0D280
43474GClamp (for left front driveshaft shock absorber)42345-06420 · 42345-12090
