Toyota YARIS 前桥壳和差速器 — Figure 4301

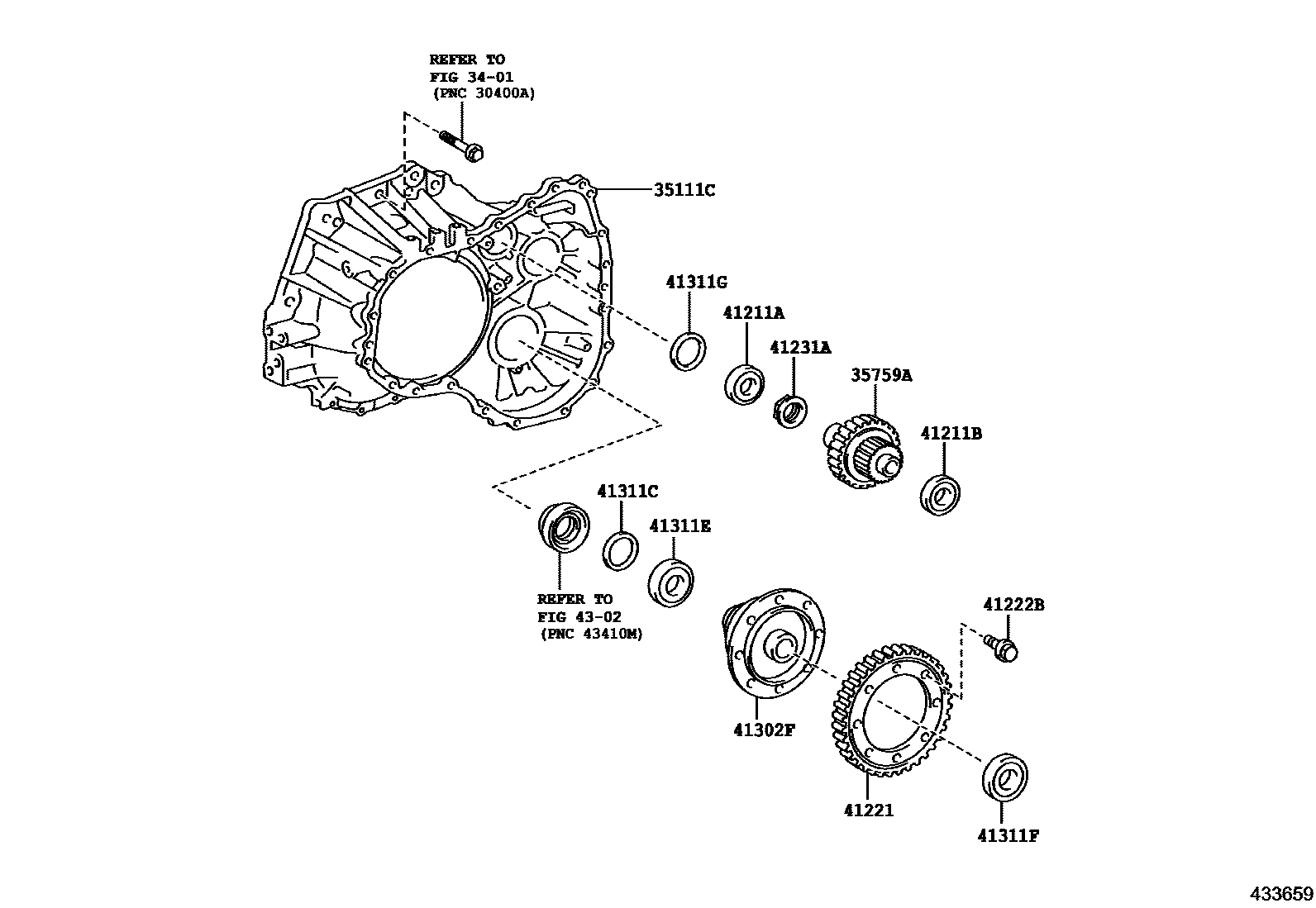

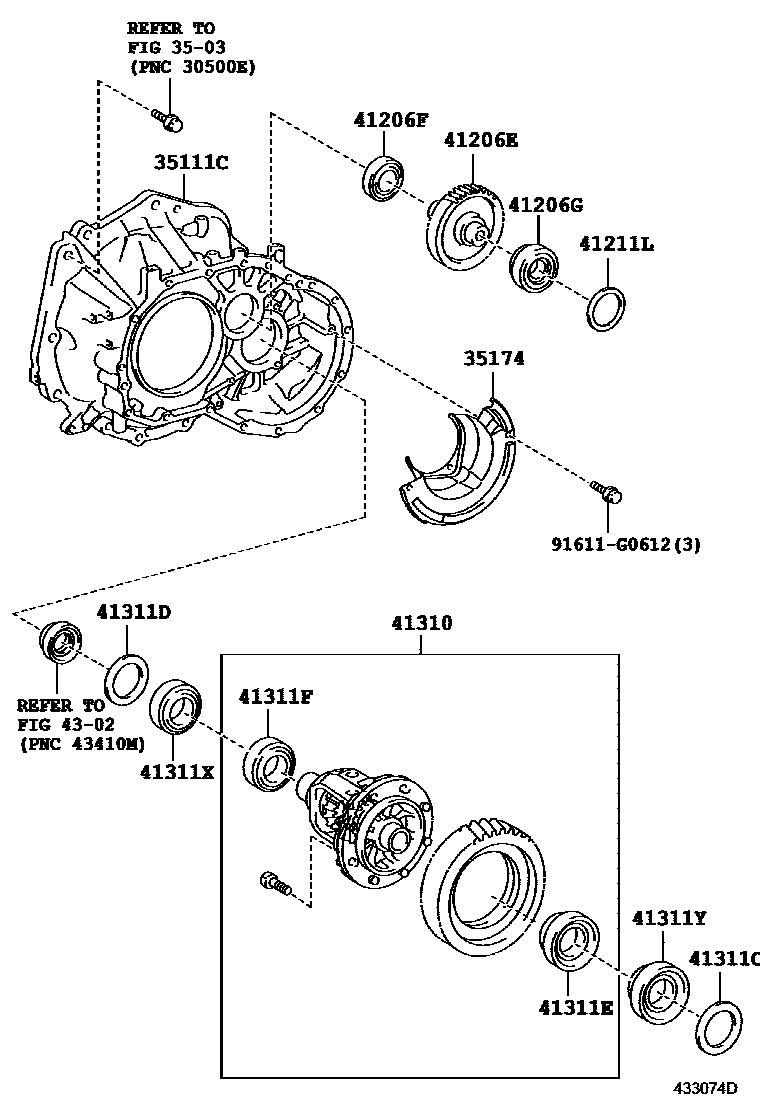

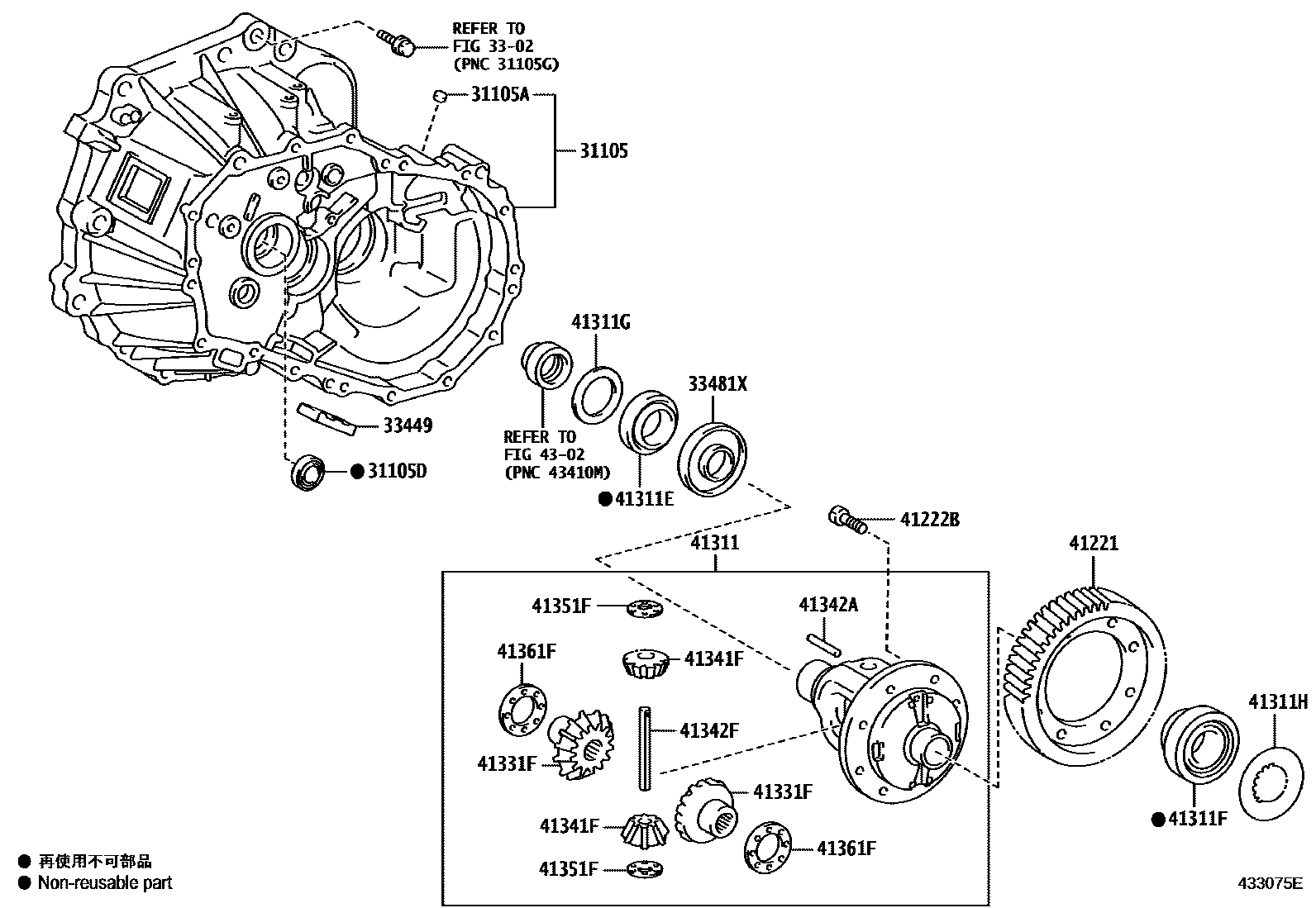

Toyota YARIS EPC diagram 4301, 前桥壳和差速器, with 3 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105 | Transmission axle housing sub-assembly (MTM) | 31105-0D060 · 31105-0D061 |
| 31105A | Sealing plug (for front transaxle housing) | 90331-08002 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-C0009 |
| 33449 | derailleur magnet | 33449-0D030 |
| 33481X | speedometer drive gear | 33481-0D050 · 33481-0D051 |
| 35111C | Transmission axle housing | 35105-0D010 · 35111-0D010 |
| 35174 | Transmission axle housing oil separator | 35174-52080 |
| 35759A | Reduction driven gear | 35705-0D010 · 35705-0D020 |
| 41206E | Gear and countershaft driven gear sub-assembly | 41206-0D020 · 41206-0D021 |
| 41206F | Right roller tapered bearing outer race | 90366-C0034 |
| 41206G | Left side roller tapered bearing outer race | 90366-C0032 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90366-C0045 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-C0048 |
| 41211L | Spacer (for differential drive pinion) | 90564-51039 · 90564-51040 · 90564-51041 · 90564-51042 · 90564-51043 · 90564-51044 · 90564-51045 · 90564-51046 · 90564-51047 · 90564-51048 · 90564-51049 · 90564-51050 · 90564-51051 · 90564-51052 · 90564-51053 · 90564-51054 · 90564-51055 · 90564-51056 · 90564-51057 · 90564-51058 · 90564-51059 · 90564-51060 · 90564-51061 · 90564-51062 · 90564-51063 |
| 41221 | Front differential ring gear | 41221-0D160 · 41221-0D170 · 41221-0D250 · 41221-0D260 · 41221-0D290 · 41221-0D300 |
| 41222B | Bolt (for front differential ring gear assembly) | 90105-C0221 · 90105-C0301 |
| 41231A | Drive pinion lock nut | 90179-32006 |
| 41302F | Front differential housing sub-assembly | 41301-0D110 · 41301-0D111 |
| 41310 | Differential case assembly | 41310-0D010 · 41310-0D011 · 41310-0D020 · 41310-0D021 |
| 41311 | front differential case | 41301-0D030 · 41301-0D140 |
| 41311C | Rear gasket (for front differential case) | 90564-42080 · 90564-42081 · 90564-42082 · 90564-42083 · 90564-42084 · 90564-42085 · 90564-42086 · 90564-42087 · 90564-42088 · 90564-42089 · 90564-42090 · 90564-42091 · 90564-42092 · 90564-42093 · 90564-42094 · 90564-42095 · 90564-42096 · 90564-42097 · 90564-42098 · 90564-42099 · 90564-42100 · 90564-42101 · 90564-42102 · 90564-48001 · 90564-48002 · 90564-48003 · 90564-48004 · 90564-48005 · 90564-48006 · 90564-48007 · 90564-48008 · 90564-48009 · 90564-48010 · 90564-48011 · 90564-48012 · 90564-48013 · 90564-48014 · 90564-48015 · 90564-48016 · 90564-48017 · 90564-48018 · 90564-48019 · 90564-48020 |
| 41311D | Front gasket (for front differential case) | 90564-42103 |
| 41311E | Roller cone bearing (for front differential housing) | 90366-C0013 · 90366-C0037 · 90366-C0051 · 90366-C0063 · 90366-C0090 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-C0016 · 90366-C0037 · 90366-C0054 · 90366-C0060 · 90366-C0093 |
| 41311G | Front flat washer (for front differential case) | 90560-41003 · 90560-C0008 · 90564-47001 · 90564-47002 · 90564-47003 · 90564-47004 · 90564-47005 · 90564-47006 · 90564-47007 · 90564-47008 · 90564-47009 · 90564-47010 · 90564-47011 · 90564-47012 · 90564-47013 · 90564-47014 · 90564-47015 · 90564-47016 · 90564-47017 · 90564-47018 · 90564-47019 |
| 41311H | Rear flat washer (for front differential case) | 90564-41014 · 90564-41015 · 90564-41016 · 90564-41017 · 90564-41018 · 90564-41019 · 90564-41020 · 90564-41021 · 90564-41022 · 90564-41023 · 90564-41024 · 90564-41025 · 90564-41026 · 90564-41027 · 90564-41028 · 90564-41029 · 90564-41030 · 90564-41031 · 90564-41032 |
| 41311X | Roller cone bearing outer race (for front differential) | 90366-C0036 |
| 41311Y | Roller cone bearing outer race (for rear differential) | 90366-C0038 |
| 41331F | Front differential side gear | 41331-0D040 |
| 41341F | Front differential planetary gear | 41341-0D040 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-0D020 |
| 41351F | Front differential planetary gear thrust washer | 41351-12020 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 |
