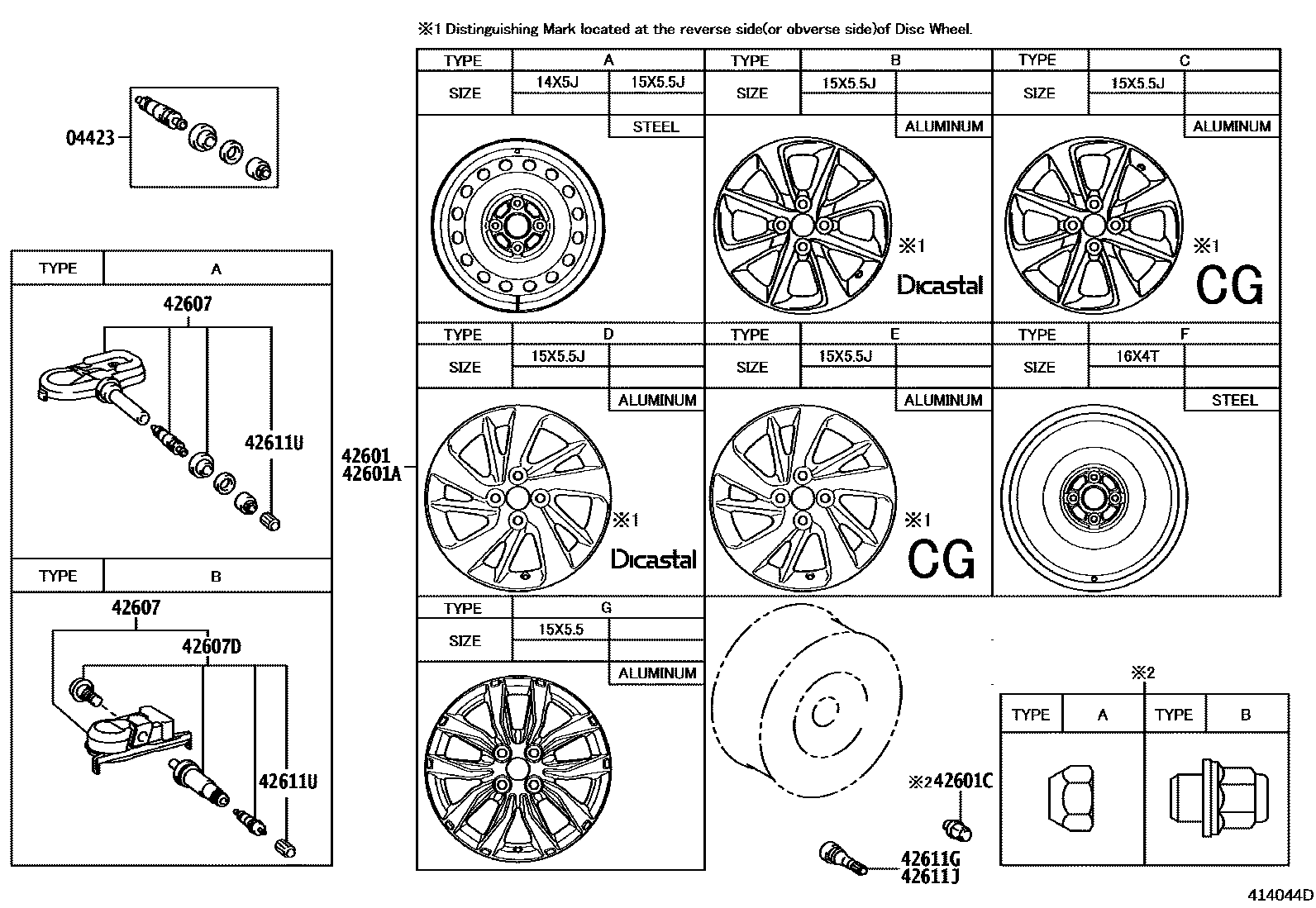

Toyota YARIS 车轮和车轮盖 — Figure 4103
Toyota YARIS EPC diagram 4103, 车轮和车轮盖, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-0N010 |
| 42601 | spoke wheel | 42611-0D810 · 42611-0D811 · 42611-0D820 · 42611-0D821 · 42611-0D830 · 42611-0D860 · 42611-0DA20 · 42611-0DA21 · 42611-0DA40 · 42611-0DA41 · 42611-YL010 · 42611-YY580 |
| 42601A | Spoke wheel (for spare tire) | 42611-0D810 · 42611-0D820 · 42611-0DB60 · 42611-0DB61 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 · 90942-C1001 · 90942-C1002 |

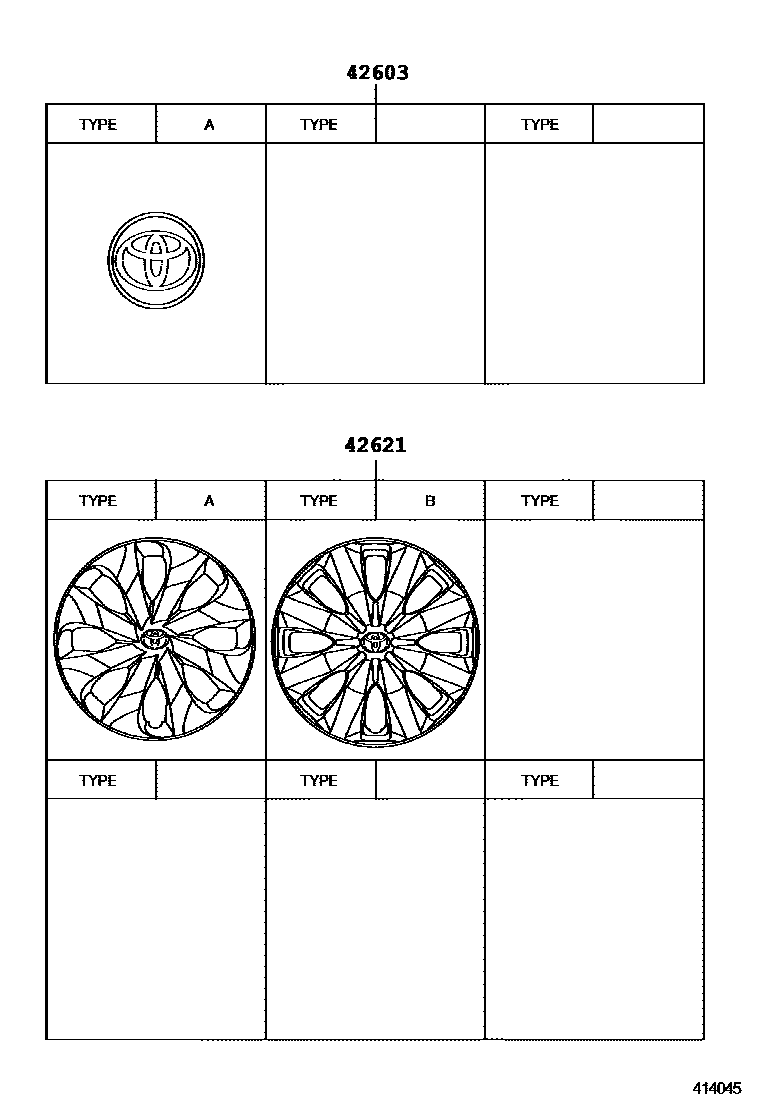

| 42603 | Wheel hub decorative parts sub-assembly | 42603-0D190 · 42603-0D210 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-06080 · 42607-0D020 |
| 42607D | tire pressure monitoring valve | 90942-C5002 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42611U | tire valve cover | 90942-C5001 |
| 42621 | wheel cover | 42602-0D270 · 42602-0D280 |
