Toyota YARIS 行星齿轮、倒档活塞和中间轴齿轮(ATM) — Figure 3510

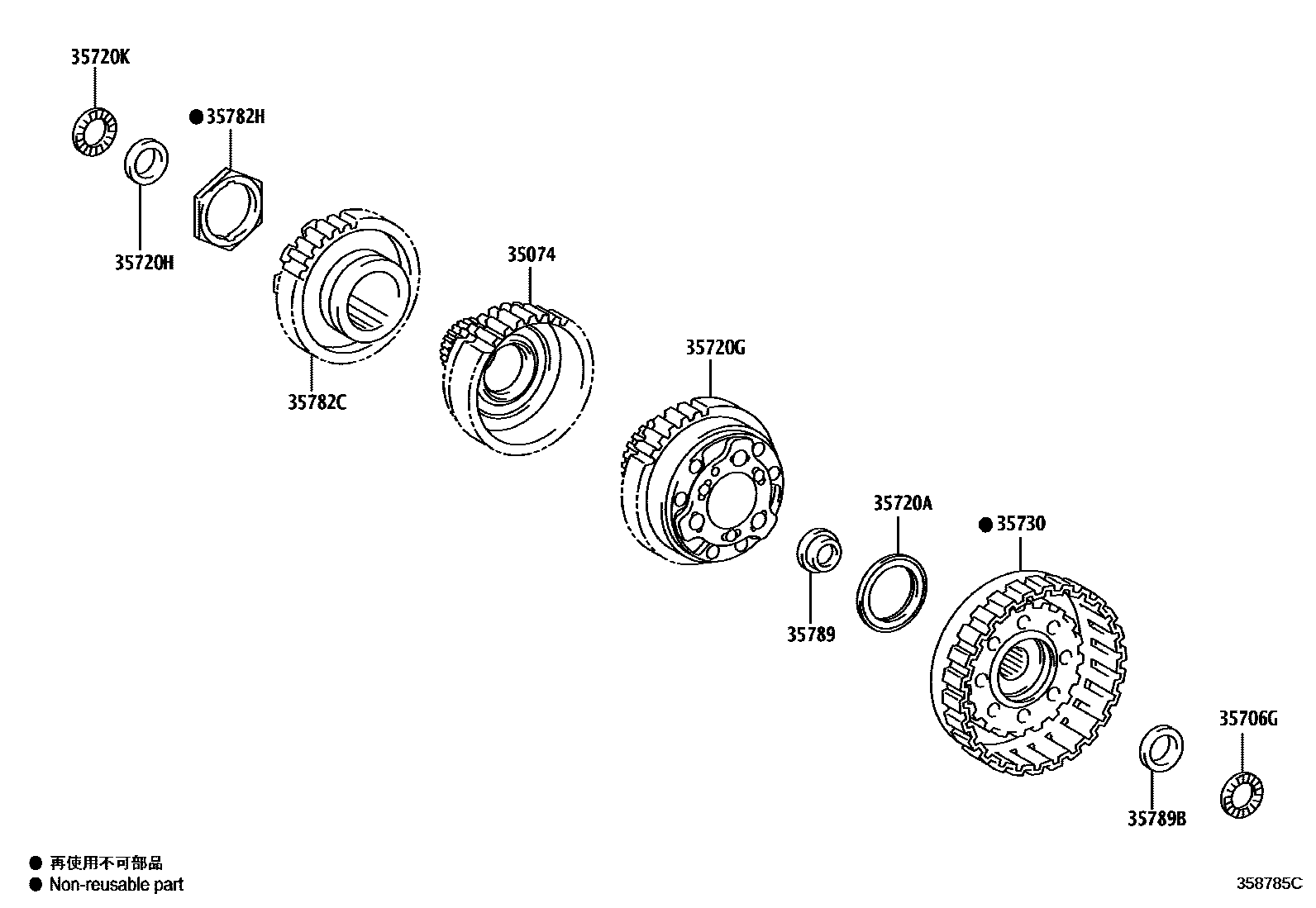

Toyota YARIS EPC diagram 3510, 行星齿轮、倒档活塞和中间轴齿轮(ATM), with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35074 | Rear planetary ring gear sub-assembly | 35074-0D020 |
| 35706G | Rear thrust bearing (for sun gear) | 90374-C0014 |
| 35720A | Thrust needle roller bearing (for front planetary gear) | 90374-C0015 |
| 35720G | Planetary gear assembly | 35720-0D010 · 35720-0D020 |
| 35720H | Thrust bearing race (for planetary gears) | 35789-0D010 |
| 35720K | Rear thrust needle roller bearing (for planetary gears) | 90374-C0009 |
| 35730 | Rear planetary gear train sun gear assembly | 35730-0D010 · 35730-0D011 |
| 35782C | countershaft driving gear | 35782-0D010 · 35782-0D011 |
| 35782H | Nut (for countershaft drive gear) | 90179-44001 |
| 35789 | Front thrust bearing race (for front planetary gear flange) | 35789-0D020 |
| 35789B | Rear thrust bearing race (for front planetary gear flange) | 35789-0D030 · 35789-0D060 |
