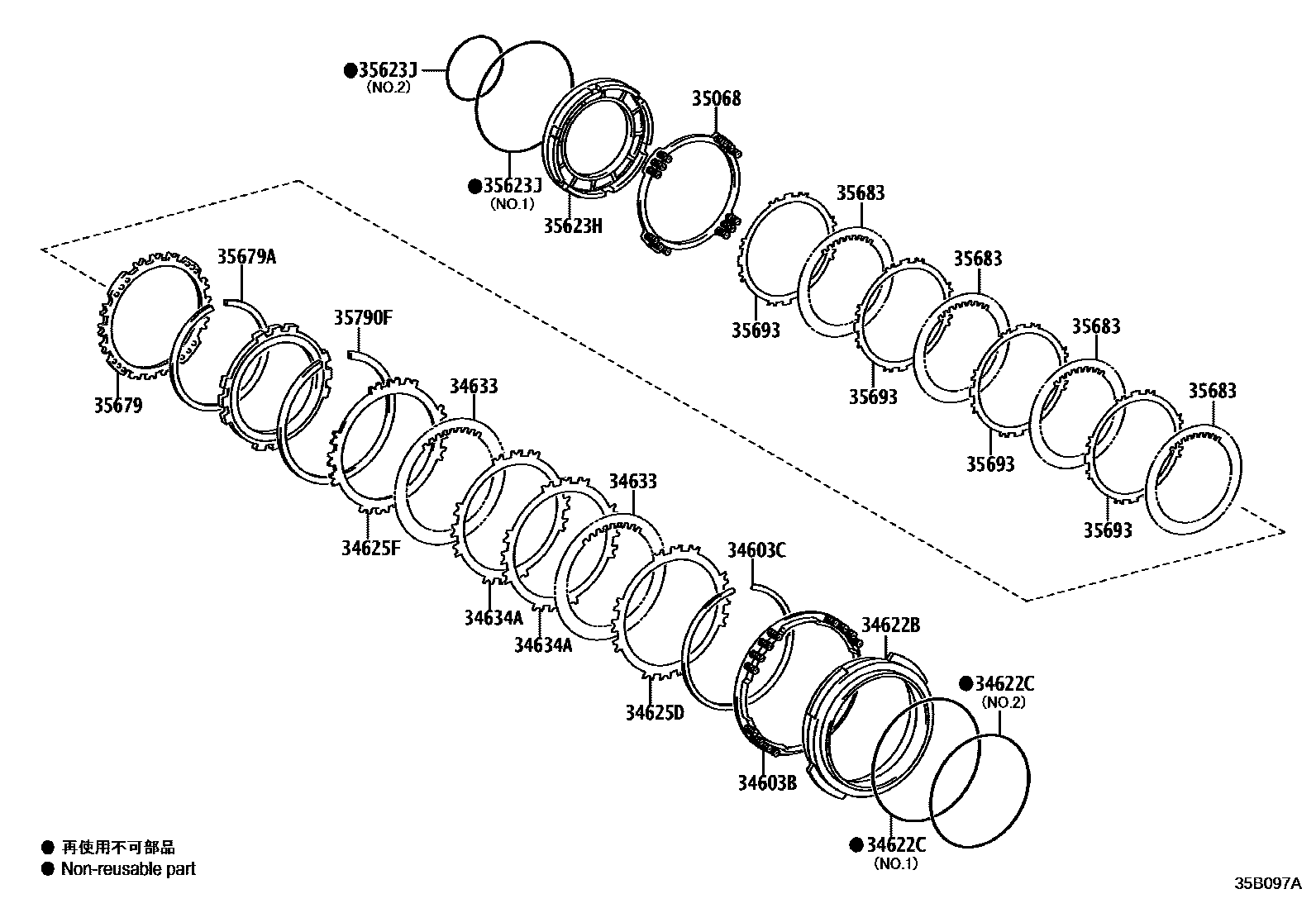

Toyota YARIS 3号制动器、一档和倒档制动器(ATM) — Figure 3509
Toyota YARIS EPC diagram 3509, 3号制动器、一档和倒档制动器(ATM), with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34603B | Overdrive brake return spring sub-assembly | 34603-0D010 · 34603-52030 |
| 34603C | Hole snap ring (for overdrive brake return spring) | 90520-C0010 |
| 34622B | Second gear coast and overdrive brake piston | 34622-0D010 |
| 34622C | O-ring (for second gear coasting and overdrive) | 90301-C0051 · 90301-C0054 |
| 34625D | Second gear coast and overdrive brake flange | 34625-52010 · 34625-52020 · 34625-52030 · 34625-52040 · 34625-52050 |
| 34625F | No. 2 second gear coast and overdrive brake flange | 34625-52100 |
| 34633 | Second gear coast and overdrive brake disc | 34633-0D010 |
| 34634A | Second gear coast and overdrive brake pads | 34634-0D010 |
| 35068 | First and reverse brake return spring sub-assembly | 35068-0D010 · 35068-52070 |
| 35623H | First and reverse brake piston | 35623-0D010 |
| 35623J | O-ring (for first and reverse brakes) | 90301-C0042 · 90301-C0046 |
| 35679 | Brake flange (for first and reverse gears) | 35679-52010 |
| 35679A | Hole snap ring (for brake flange) | 90520-C0005 |
| 35683 | Brake disc (for first and reverse gears) | 35683-0D010 |
| 35693 | Brake pads (for first and reverse gears) | 35693-0D010 |
| 35790F | Hole snap ring (for one-way clutch) | 90520-C0005 |
