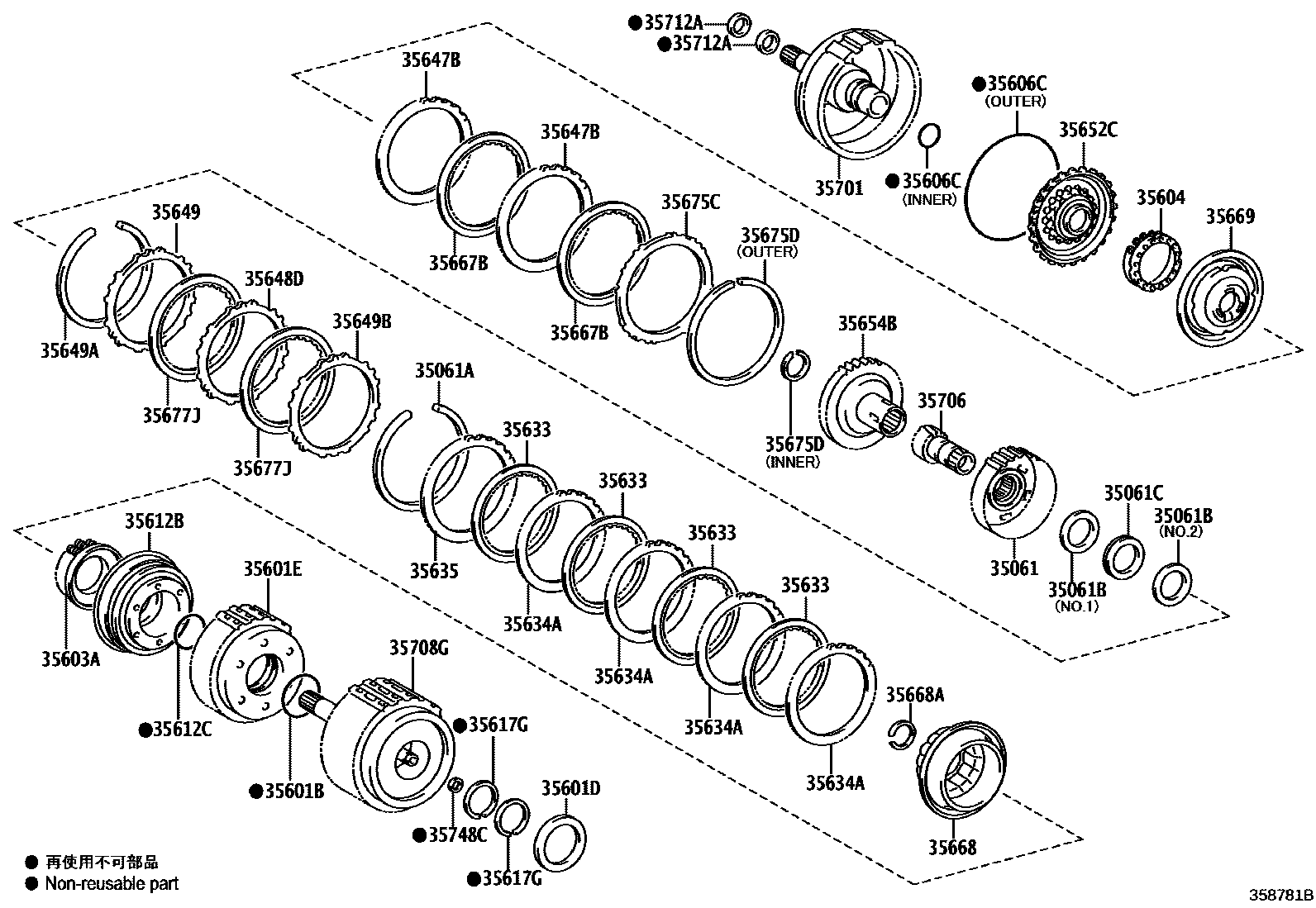

Toyota YARIS 制动带和多片式离合器(ATM) — Figure 3507
Toyota YARIS EPC diagram 3507, 制动带和多片式离合器(ATM), with 1 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35061 | Forward gear clutch hub sub-assembly | 35061-0D010 · 35061-0D020 |
| 35061A | Hole snap ring (for forward clutch flange) | 90520-C0009 |
| 35061B | Thrust bearing race (for forward clutch hub) | 35789-0D040 · 35789-0D050 |
| 35061C | Thrust needle roller bearing (for forward clutch hub) | 90374-C0010 |
| 35601B | O-ring (for front clutch drum) | 90301-C0049 |
| 35601D | Thrust needle roller bearing (for front clutch drum) | 90374-C0016 · 90374-C0029 |
| 35601E | Forward gear clutch drum sub-assembly | 35601-0D010 |
| 35603A | Forward gear clutch return spring sub-assembly | 35603-0D010 · 35603-52050 |
| 35604 | Direct clutch return spring sub-assembly | 35604-0D010 · 35604-52030 |
| 35606C | O-ring (for direct clutch piston) | 90301-C0050 · 90301-C0053 |
| 35612B | forward clutch piston | 35612-0D010 |
| 35612C | O-ring (for forward clutch piston) | 90301-C0045 |
| 35617G | Clutch drum oil ring | 35617-0D020 |
| 35633 | Clutch disc (for front clutch) | 35633-0D010 |
| 35634A | Clutch plate (for forward multi-plate clutch) | 35634-0D010 |
| 35635 | forward clutch flange | 35635-0D010 · 35635-0D020 · 35635-0D030 · 35635-0D040 · 35635-0D050 · 35635-0D060 · 35635-0D070 · 35635-0D080 · 35635-0D090 |
| 35647B | Clutch plate No. 2 | 35647-0D010 |
| 35648D | Clutch plate No. 3 | 35648-0D010 |
| 35649 | Reverse clutch flange | 35649-0D010 · 35649-0D020 · 35649-0D030 · 35649-0D040 |
| 35649A | Hole snap ring (for reverse clutch flange) | 90520-C0008 |
| 35649B | Reverse clutch flange | 35649-0D020 |
| 35652C | direct clutch piston | 35652-0D010 |
| 35654B | Direct clutch hub | 35654-0D010 |
| 35667B | No. 2 clutch disc | 35667-0D010 · 35667-0D020 |
| 35668 | No. 1 clutch balancer | 35668-0D010 |
| 35668A | Snap ring (for clutch balancer) | 90520-26070 |
| 35669 | No. 2 clutch balancer | 35669-0D010 |
| 35675C | Direct clutch flange | 35675-0D010 · 35675-0D020 · 35675-0D030 |
| 35675D | Hole snap ring (for direct clutch flange) | 90520-25089 · 90520-C0007 |
| 35677J | Clutch disc No. 3 | 35677-0D010 |
| 35701 | Input shaft sub-assembly | 35701-0D010 · 35701-0D011 · 35701-0D020 · 35701-0D021 |
| 35706 | Planetary gear train sun gear sub-assembly | 35706-52030 · 35706-52040 · 35706-52041 |
| 35708G | Intermediate shaft sub-assembly | 35708-0D010 · 35708-0D011 · 35708-0D020 · 35708-0D021 |
| 35712A | Input shaft oil ring | 35712-0D010 |
| 35748C | Intermediate shaft oil ring | 35748-0D010 · 35748-0D011 |
