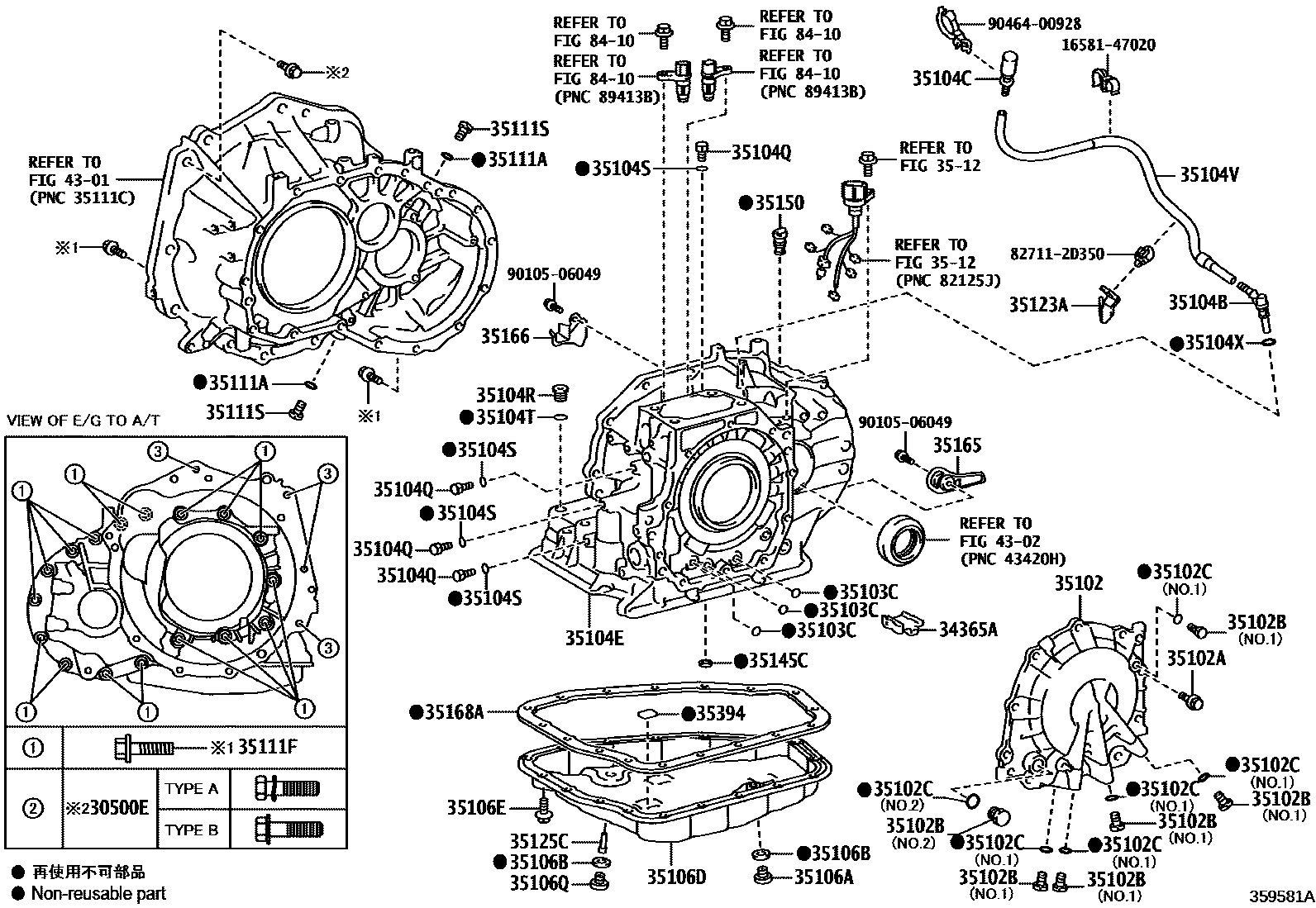

Toyota YARIS 变速器壳和油底壳(ATM) — Figure 3503
Toyota YARIS EPC diagram 3503, 变速器壳和油底壳(ATM), with 1 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30500E | Bolts (for securing transaxle and engine) | 90105-C0216 · 90119-C0229 · 91619-61245 |
| 34365A | Outer race retainer | 34365-52020 |
| 35102 | Transmission axle rear cover sub-assembly | 35102-0D010 · 35102-0D020 |
| 35102A | Bolts (for fixing the transmission axle rear cover) | 90105-08375 |
| 35102B | Screw plug (for transmission axle rear cover) | 90341-08001 · 90341-18059 |
| 35102C | O-ring (for transmission axle rear cover screw plug) | 90301-C0008 · 90301-C0010 |
| 35103C | O-ring | 90301-C0044 |
| 35104B | Ventilation plug No. 1 (ATM) | 90930-C3015 |
| 35104C | Ventilation plug No. 2 (ATM) | 90930-C3016 |
| 35104E | Automatic transmission axle housing sub-assembly | 35104-0D010 |
| 35104Q | No. 1 screw plug (for transmission axle housing) | 90341-08001 |
| 35104R | No. 2 screw plug (for transmission axle housing) | 90341-10023 |
| 35104S | O-ring (for transmission axle housing plug No. 1) | 90301-C0008 |
| 35104T | O-ring (for transmission axle housing plug No. 2) | 90301-C0009 |
| 35104V | Hoses (for breather plug) | 90447-11074 |
| 35104X | O-ring (for breather plug) | 90301-C0048 |
| 35106A | Drain plug sub-assembly (ATM) | 90341-10011 |
| 35106B | Drain plug gasket (ATM) | 35178-30010 |
| 35106D | Automatic transmission axle oil pan sub-assembly | 35106-0D010 |
| 35106E | Bolts (for transaxle oil pan) | 90119-06173 |
| 35106Q | Screw plug (for automatic transmission oil pan) | 90341-14017 |
| 35111A | O-ring (for automatic transmission housing) | 90301-C0008 |
| 35111F | Bolts (for securing transaxle housing and transaxle housing) | 90105-08071 |
| 35111S | Screw plug (for transmission housing) | 90341-08001 |
| 35123A | Transmission breather skirt | 35123-0D020 |
| 35125C | No. 1 transmission oil pipe | 35125-0D130 |
| 35145C | Transmission axle housing gasket | 35145-60020 |
| 35150 | gearbox plug assembly | 35150-44010 |
| 35165 | No. 1 gearbox block | 35165-52050 |
| 35166 | No. 3 gearbox block | 35156-52010 |
| 35168A | Automatic transaxle oil pan gasket | 35168-52050 |
| 35394 | Oil filter magnet (for transmission) | 35394-0P010 |
