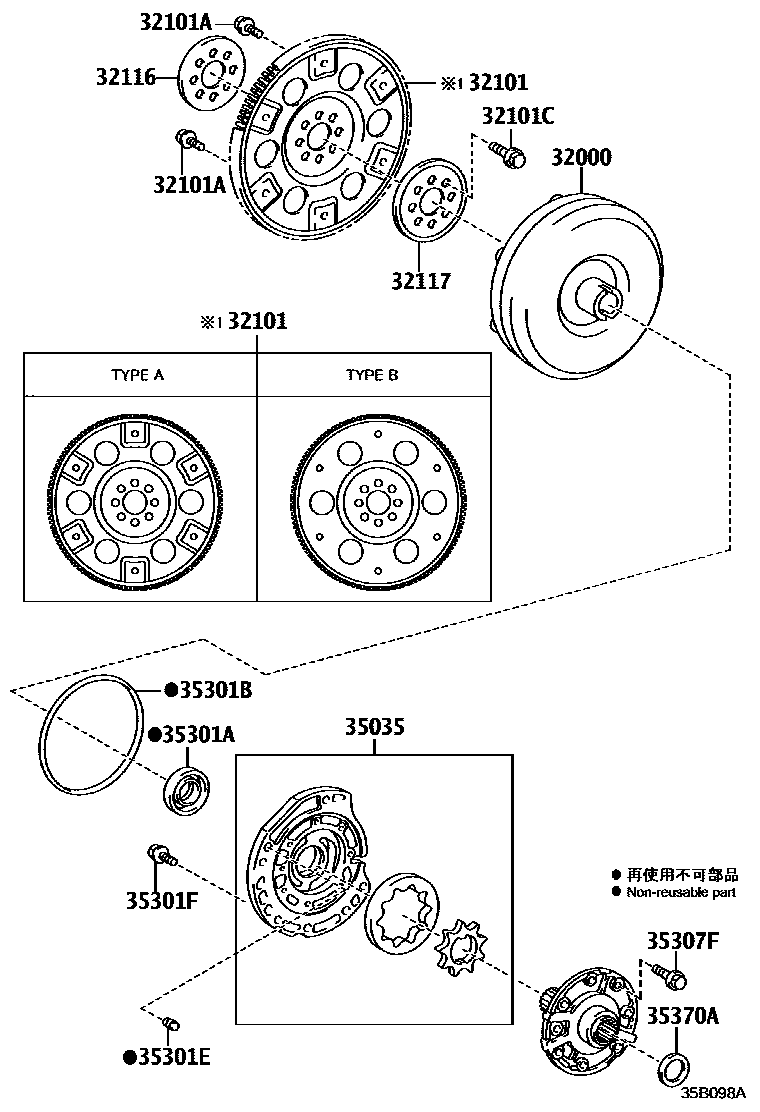

Toyota YARIS 变矩器、前油泵和链条(ATM) — Figure 3502
Toyota YARIS EPC diagram 3502, 变矩器、前油泵和链条(ATM), with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32000 | Torque converter assembly | 32000-0D010 |
| 32101 | Transmission plate and ring gear sub-assembly | 32101-0D040 · 32111-52120 |
| 32101A | Bolts (for securing transmission plate and torque converter) | 90109-08113 · 90119-08498 |
| 32101C | Hexagonal bolts (used to fix the transmission plate) | 90105-10048 · 90105-A0022 |
| 32116 | Front transmission plate spacer | 32116-02020 |
| 32117 | Rear transmission plate spacer | 32117-02020 |
| 35035 | Front oil pump and gear body sub-assembly | 35035-0D010 |
| 35301A | Oil seal (for front oil pump) | 90311-C0026 |
| 35301B | O-ring (for front oil pump body) | 90301-C0052 |
| 35301E | Direct sales (for front oil pump) | 90250-10034 |
| 35301F | Bolt (used to secure the front oil pump) | 90105-08376 |
| 35307F | Bolt (for stator shaft) | 90119-06559 |
| 35370A | Thrust needle roller bearing (for stator shaft) | 90374-C0012 · 90374-C0013 · 90374-C0027 · 90374-C0028 |
