Toyota YARIS 变矩器、前油泵(CVT) — Figure 3402

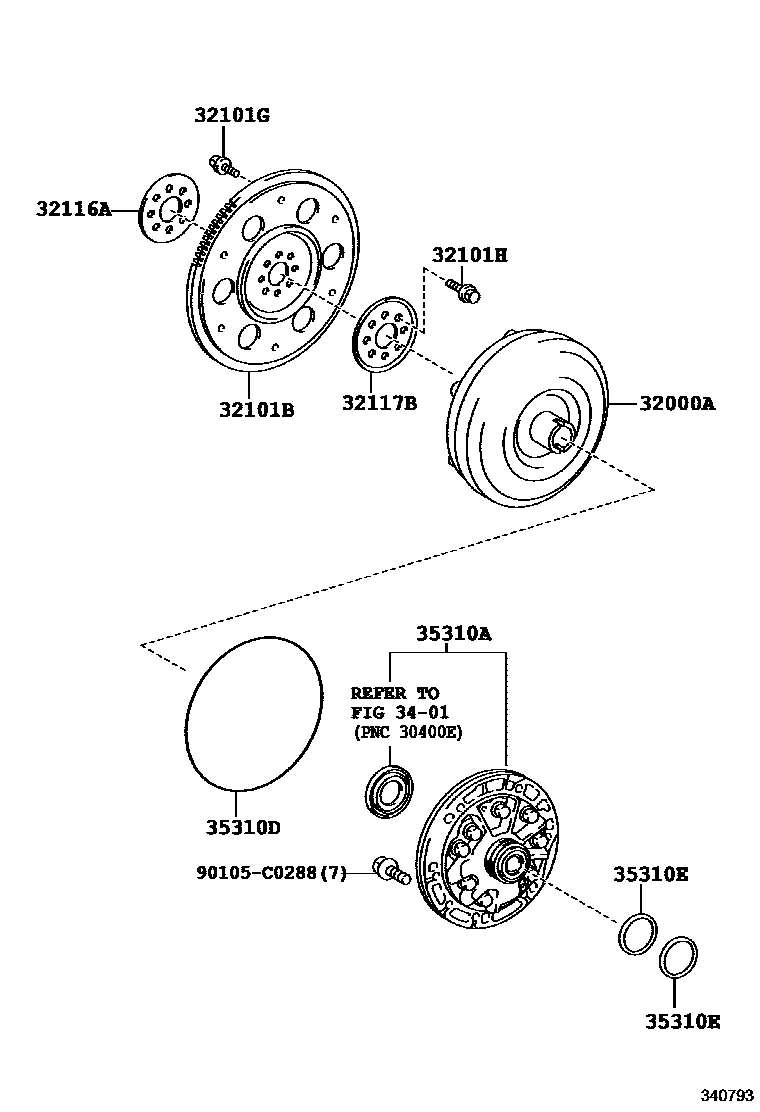

Toyota YARIS EPC diagram 3402, 变矩器、前油泵(CVT), with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32000A | Torque converter assembly | 32000-0D020 · 32000-0D021 · 32000-0D030 · 32000-0D031 · 32000-0D040 |
| 32101B | Transmission plate and ring gear sub-assembly | 32101-0D040 |
| 32101G | Bolts (for securing transmission plate and torque converter) | 90109-08113 · 90119-08498 |
| 32101H | Hexagonal bolts (used to fix the transmission plate) | 90105-10048 |
| 32116A | Front transmission plate spacer | 32116-02020 |
| 32117B | Rear transmission plate spacer | 32117-02020 |
| 35310A | Front oil pump assembly | 35310-02020 |
| 35310D | O-ring (for front oil pump) | 90301-C0067 |
| 35310E | T-type oil seal (for front oil pump) | 35617-02020 · 35617-02030 |
