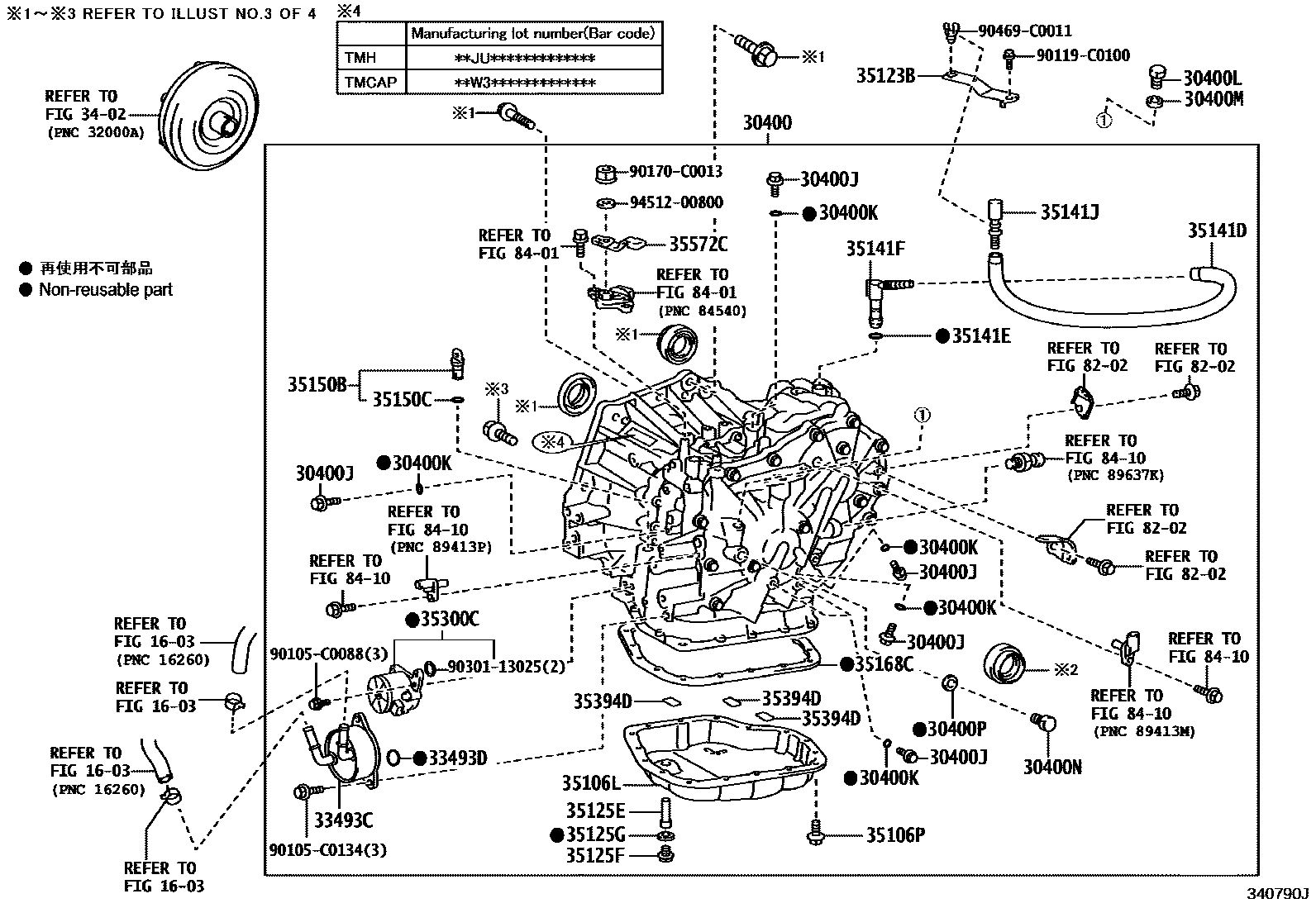

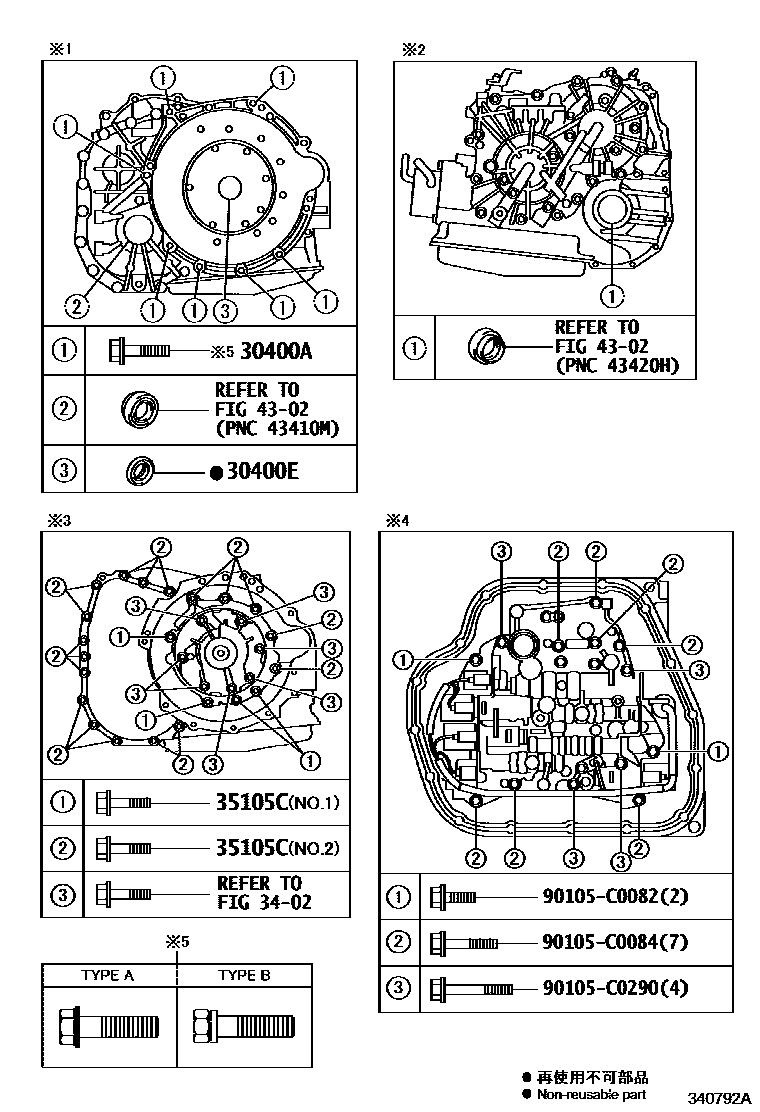

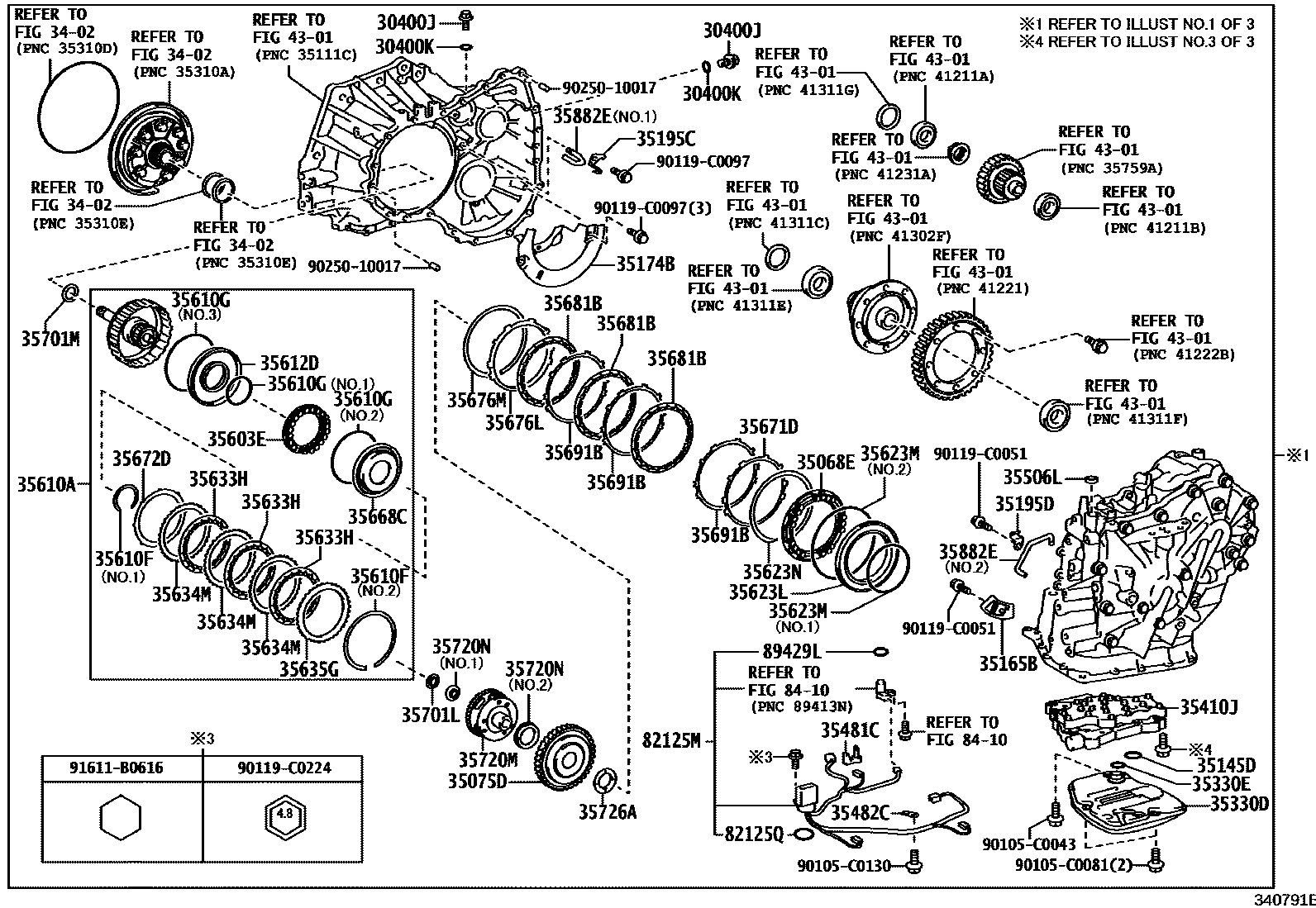

Toyota YARIS 传动桥总成(CVT) — Figure 3401
Toyota YARIS EPC diagram 3401, 传动桥总成(CVT), with 4 images and 69 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

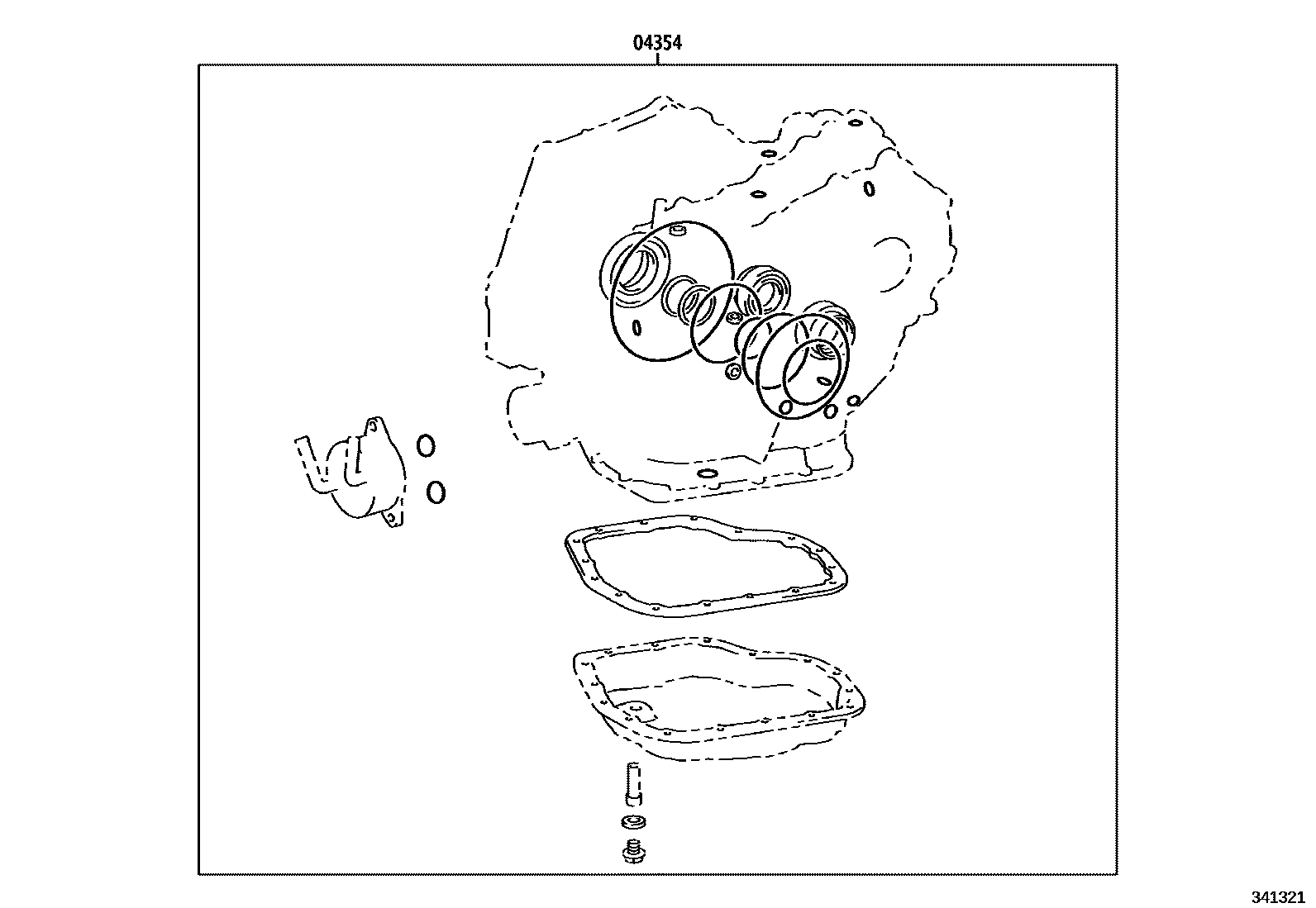

| 04354 | CVT Transaxle Overhaul Kit | 04354-0D010 · 04354-0D011 |
| 30400 | Continuously variable transmission axle assembly | 30400-0D010 · 30400-0D020 |
| 30400A | Bolts (for securing transaxle and engine) | 90105-C0216 · 90119-C0229 |
| 30400E | T-type oil seal (for CVT oil pump) | 90311-C0032 |
| 30400J | Transmission axle hole plug | 90341-08001 |
| 30400K | Transaxle hole plug gasket | 90301-C0061 |
| 30400L | Oil filling plug (CVT) | 90341-C0007 |
| 30400M | Oil filling plug gasket (CVT) | 90430-12221 |
| 30400N | Oil filling plug (CVT) | 90341-C0011 |
| 30400P | Oil filling plug gasket (CVT) | 90430-18008 |
| 33493C | Transmission oil cooler | 33493-02010 |
| 33493D | O-ring (for transmission oil cooler) | 90301-C0028 |
| 35068E | First and reverse brake return spring sub-assembly | 35068-02010 |
| 35075D | Front planetary ring gear sub-assembly | 35075-02010 |
| 35105C | Bolts (for transaxle housing and transaxle housing) | 90105-C0285 · 90105-C0289 |
| 35106L | Transmission axle oil pan sub-assembly (CVT) | 35106-02020 |
| 35106P | Bolts (for transaxle oil pan) | 90119-06173 |
| 35123B | Transmission breather skirt | 35123-0D050 |
| 35125E | Overflow pipe (CVT) | 35125-02160 |
| 35125F | Overflow plug (CVT) | 90341-12034 |
| 35125G | Overflow plug gasket (CVT) | 90430-12008 |
| 35141D | Hoses (for breather plug) | 35121-0D020 |
| 35141E | O-ring (for breather plug) | 90301-C0060 |
| 35141F | No. 1 vent plug (CVT) | 90930-C3019 |
| 35141J | No. 2 vent plug (CVT) | 90930-C3022 |
| 35145D | Transmission axle housing gasket | 35145-33010 |
| 35150B | gearbox plug assembly | 35150-02010 |
| 35150C | O-ring (for gearbox plug) | 90301-C0056 |
| 35165B | No. 1 gearbox block | 35165-02020 |
| 35168C | Transaxle oil pan gasket (CVT) | 35168-02020 |
| 35174B | Oil storage tank locking plate | 35174-02010 |
| 35195C | No. 1 transmission axle fuel supply pipe clamp | 35195-02020 |
| 35195D | No. 2 transmission axle fuel supply pipe clamp | 35195-02030 |
| 35300C | Oil pump assembly with motor | 35300-12011 |
| 35330D | Oil filter assembly | 35330-02020 |
| 35330E | O-ring (for oil filter) | 90301-C0066 |
| 35394D | Oil filter magnet (CVT) | 35394-02010 |
| 35410J | Transmission valve body assembly | 35410-02040 |
| 35481C | Valve body wiring harness clip | 35481-02010 |
| 35482C | temperature sensor clip | 35482-02010 |
| 35506L | Oil seal (for manual valve stem shaft) | 90311-C0033 |
| 35572C | transmission control lever | 35572-12160 |
| 35603E | Forward gear clutch return spring sub-assembly | 35603-02010 |
| 35610A | Forward gear multi-plate clutch assembly | 35610-02020 |
| 35610F | Snap ring (for forward multi-plate clutch) | 90520-44041 · 90520-99087 · 90520-C0014 · 90520-C0022 |
| 35610G | O-ring (for forward multi-plate clutch) | 90301-C0017 · 90301-C0055 · 90301-C0068 |
| 35612D | forward clutch piston | 35612-02010 |
| 35623L | Reverse brake piston | 35623-02020 |
| 35623M | O-ring (for reverse brake piston) | 90301-C0057 · 90301-C0058 |
| 35623N | Snap ring (for reverse brake piston) | 90520-99090 · 90520-C0013 |
| 35633H | Clutch disc (for forward multi-plate clutch) | 35633-02020 |
| 35634M | No. 1 clutch plate (for forward multi-plate clutch) | 35634-02010 |
| 35635G | forward clutch flange | 35635-02010 · 35635-02020 · 35635-02030 |
| 35668C | No. 1 clutch balancer | 35668-02010 |
| 35671D | brake cushion | 35671-02010 |
| 35672D | clutch cushion | 35672-02010 |
| 35676L | brake flange | 35676-02010 · 35676-12110 |
| 35676M | Snap ring (for brake flange) | 90520-99086 · 90520-C0012 |
| 35681B | No. 1 brake disc | 35681-02010 · 35681-02020 · 35681-12050 |
| 35691B | No. 1 brake pad | 35691-02010 · 35691-12040 |
| 35701L | Thrust bearing race (for input shaft) | 35789-02020 |
| 35701M | Thrust needle roller bearing (for input shaft) | 90374-C0018 |
| 35720M | Planetary gear assembly | 35720-02011 |
| 35720N | Thrust needle roller bearings (for planetary gears) | 90374-C0019 · 90374-C0020 |
| 35726A | Planetary ring gear thrust washer | 35726-12010 |
| 35882E | Differential gear lubricant oil supply pipe | 35882-02040 · 35882-02050 |
| 82125M | Transmission wiring harness | 82125-02440 · 82125-12642 |
| 82125Q | O-ring (for transmission wiring harness) | 90301-21009 |
| 89429L | O-ring (for oil temperature sensor) | 90301-06004 |
