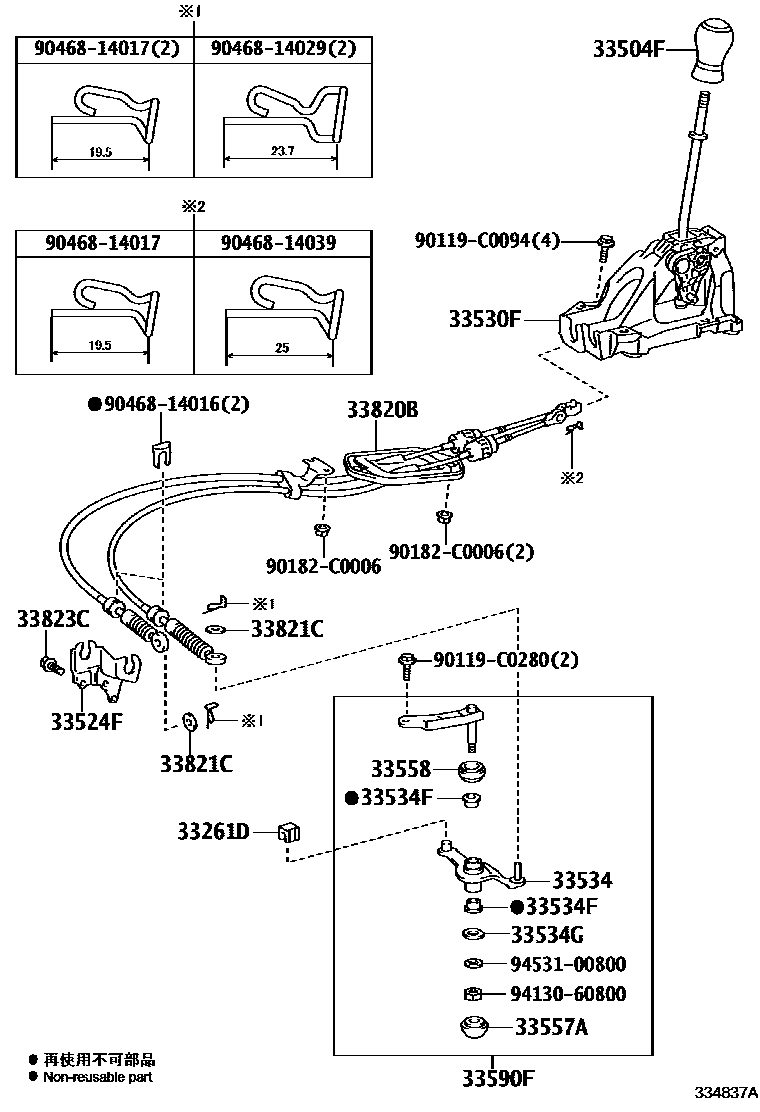

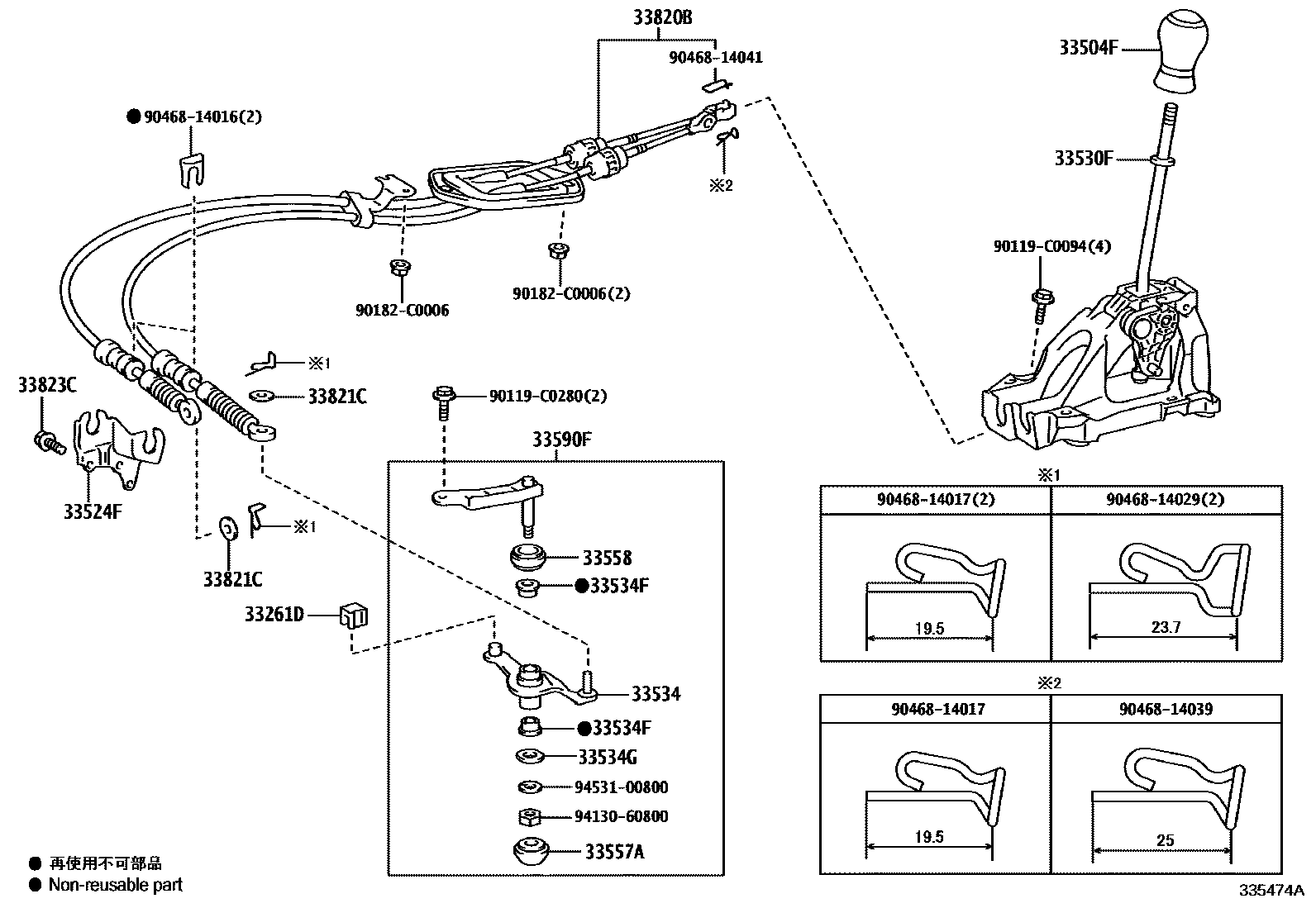

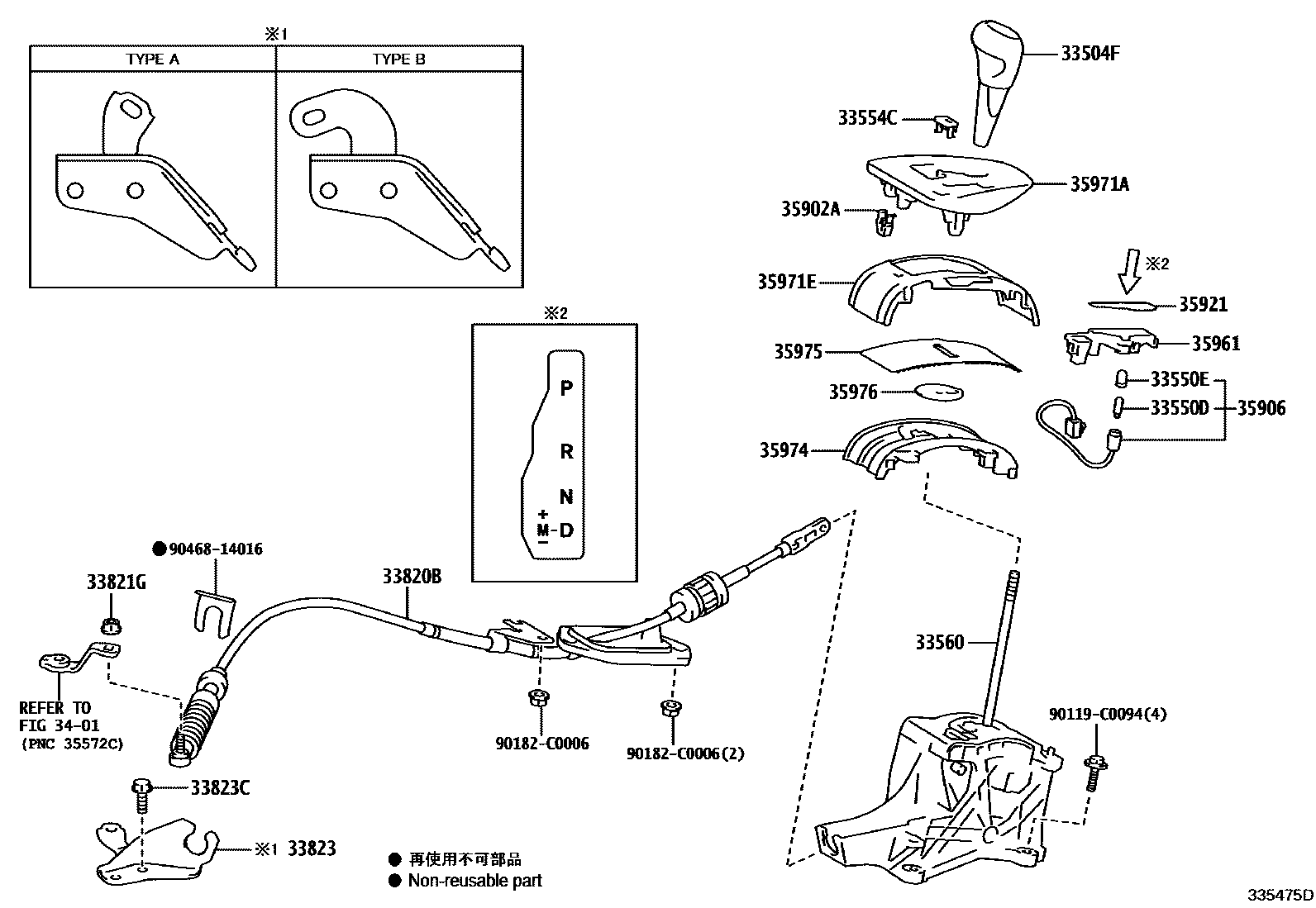

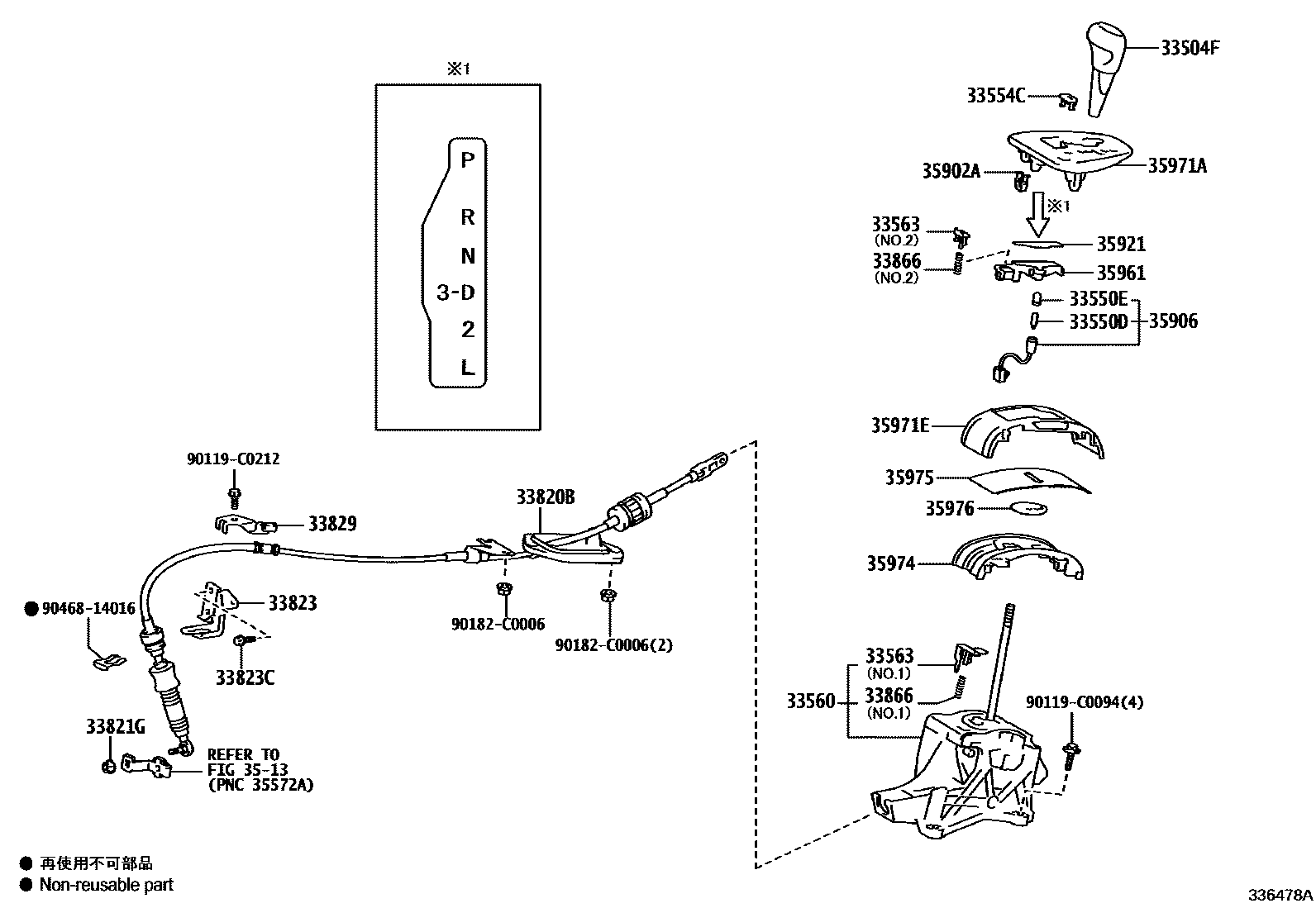

Toyota YARIS Shift Lever & Retainer — Figure 3312
Toyota YARIS EPC diagram 3312, Shift Lever & Retainer, with 4 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33261D | Bushing (for shift lever) | 33557-0D040 · 33557-0D041 |
| 33524F | Lever housing bracket (for floor shift) | 33524-0D140 |
| 33530F | Shift lever assembly (for floor shift) | 33530-0D160 |
| 33534 | Gear selection right angle lever | 33534-0D020 · 33534-0D021 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-C0002 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33550D | position indicator light bulb | 90981-11018 |
| 33550E | position indicator cover | 90339-04049 |
| 33554C | Shift lock release button cover | 33554-0D020 · 33554-0D100 · 33554-0D210 · 33554-0D220 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-0D030 · 33557-0D031 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-0D010 · 33558-0D011 |
| 33560 | Shift lock control unit assembly | 33560-0D170 · 33560-0D260 |
| 33563 | Shift lock release button | 33563-0D070 · 33563-0D100 |
| 33590F | Gear selection right-angle lever assembly (for floor shift) | 33590-0D020 · 33590-0D021 |
| 33820B | Transmission control cable assembly | 33820-0D450 · 33820-0D460 · 33820-0D700 · 33820-0D780 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08267 |
| 33821G | Nut (for transmission control cable) | 90178-C0014 |
| 33823 | No. 1 transmission control cable bracket | 33823-0D080 · 33823-0D220 · 33823-0D250 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-C0212 · 90119-C0278 |
| 33829 | Transmission control cable bracket | 33829-0D110 |
| 33866 | Shift lock release spring | 33866-02020 · 33866-0R010 |
| 35902A | Position indicator light housing cover sub-assembly clip | 90467-10201 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-0D170 |
| 35921 | control position indicator board | 35921-0D050 · 35921-0D140 |
| 35961 | position indicator housing | 35961-0D010 · 35961-0D090 |
| 35971A | Position indicator light upper shell | 35971-0D280 · 35971-0D290 · 35971-0D510 · 35971-0D530 |
| 35971E | position indicator housing | 35971-0D180 · 35971-0D520 |
| 35974 | Position indicator light lower shell | 35974-0D010 · 35974-0D070 |
| 35975 | Slide cover (for position indicator light) | 35975-0D060 · 35975-0D090 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-0D090 · 35976-0D110 |
