Toyota YARIS 换档拨叉和换档杆轴(MTM) — Figure 3307

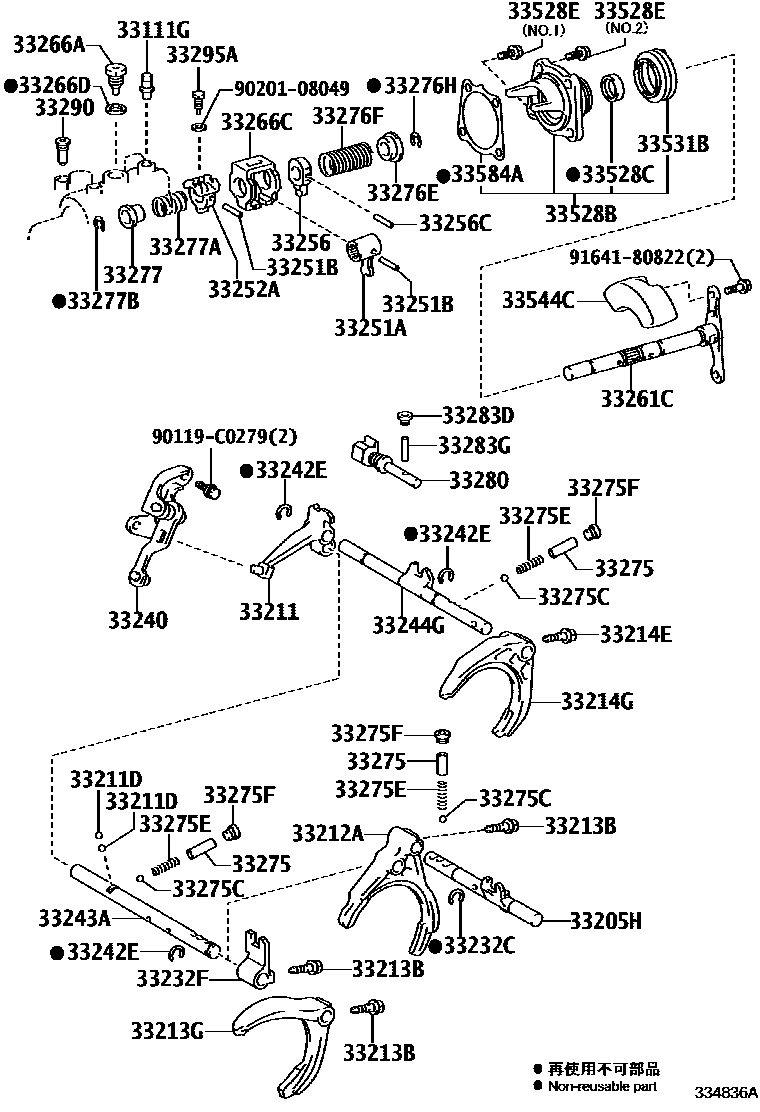

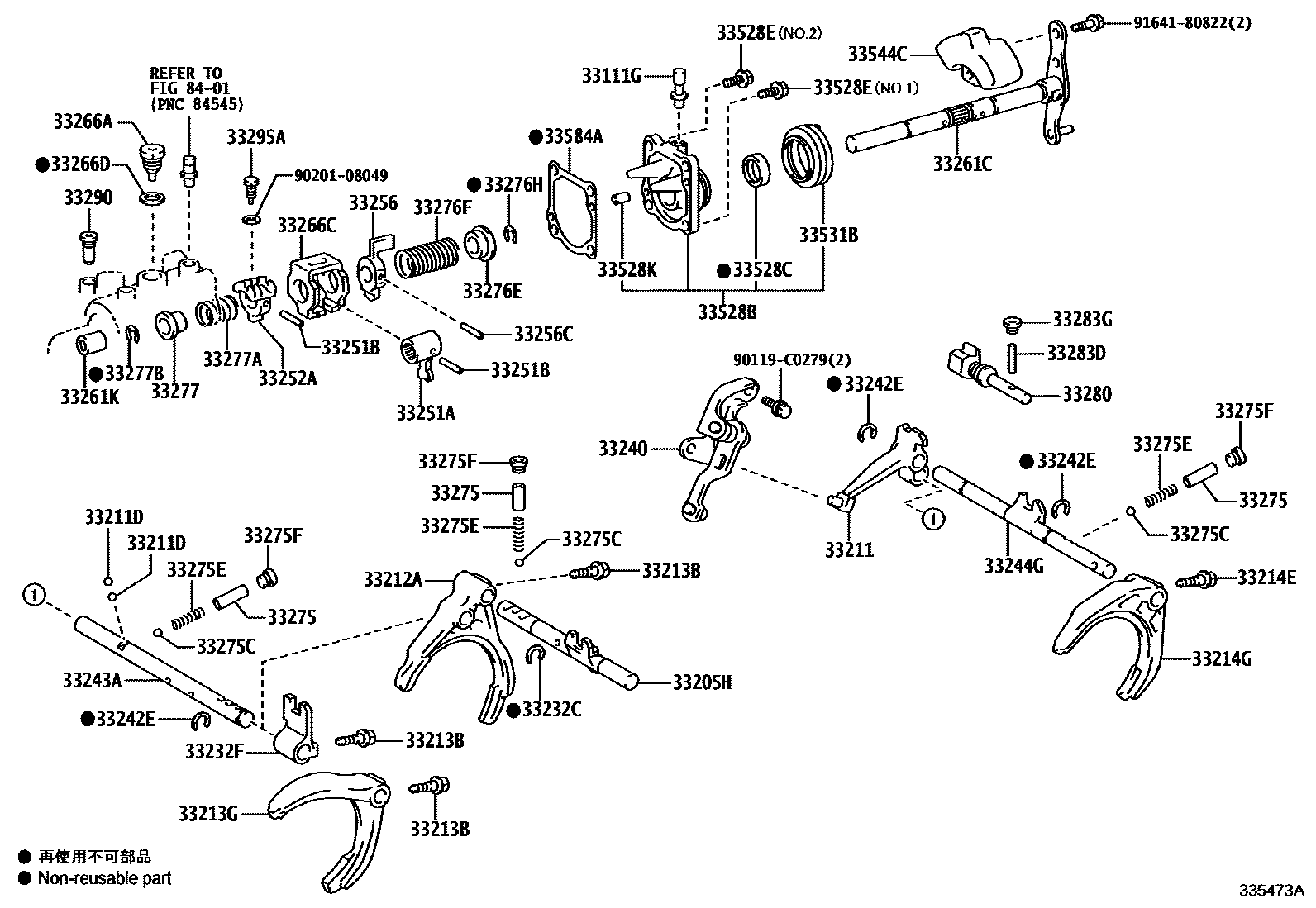

Toyota YARIS EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 2 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33111G | Breather plug (for manual transmission) | 90930-C3009 |
| 33205H | No. 1 shift fork shaft sub-assembly | 33205-0D020 · 33205-0D040 |
| 33211 | Reverse Shift Fork | 33211-0D050 · 33211-0D080 |
| 33211D | Steel ball (for reverse shift fork) | 90360-C0005 |
| 33212A | No. 1 shift fork | 33212-0D030 · 33212-10013 |
| 33213B | Bolt (for securing shift fork) | 90109-C0009 |
| 33213G | No. 2 shift fork | 33213-0D040 · 33213-20050 |
| 33214E | Bolt (for shift fork lock) | 90109-C0009 |
| 33214G | No. 3 shift fork | 33214-0D050 · 33214-20050 |
| 33232C | Snap ring (for first and second gear shift guide blocks) | 90520-12003 |
| 33232F | No. 1 transmission guide block | 33232-0D020 |
| 33240 | Reverse shift arm bracket assembly | 33240-0D040 · 33240-0D070 |
| 33242E | Shaft snap ring (for shift fork shaft) | 90520-12003 |
| 33243A | No. 2 shift fork shaft | 33243-0D060 |
| 33244G | No. 3 shift fork shaft | 33244-0D050 · 33244-0D070 |
| 33251A | Internal shift lever No. 1 | 33251-0D030 |
| 33251B | Slotted spring pin (for inner shift lever) | 90254-C0001 |
| 33252A | Internal shift lever No. 2 | 33252-0D011 |
| 33256 | Internal gear selector | 33256-0D020 · 33256-0D070 |
| 33256C | Slotted spring pin (for interior selector lever) | 90254-C0001 |
| 33261C | shift lever shaft | 33261-0D070 · 33261-0D100 |
| 33261K | Needle roller bearing (for gear selector shaft) | 90369-C0008 |
| 33266A | Bolt (for shift interlock plate) | 90109-18005 |
| 33266C | shift interlock plate | 33266-0D030 |
| 33266D | Pad (for shift interlock plate) | 90430-18008 · 90430-C0011 |
| 33275 | No. 1 shift lock steel ball spring seat | 33275-12041 |
| 33275C | Steel ball (for shift lock) | 90360-C0007 |
| 33275E | Compression spring (for shift lock steel ball) | 90501-C0023 |
| 33275F | Screw plug (for gear shift lock steel ball) | 90341-12004 |
| 33276E | No. 1 gear selector spring seat | 33276-0D010 · 33276-0D030 |
| 33276F | No. 1 compression spring (for gear selector return) | 90501-C0013 |
| 33276H | Shaft snap ring (for No. 1 gear selector spring seat) | 90520-C0003 · 90520-C0034 |
| 33277 | No. 2 gear selector spring seat | 33277-0D020 · 33277-0D050 |
| 33277A | No. 2 compression spring (for gear selector return) | 90501-C0012 |
| 33277B | E-ring (for No. 2 gear selector spring seat) | 90523-C0001 |
| 33280 | Reverse gear positioning pin assembly | 33280-0D020 |
| 33283D | Screw plug (for reverse gear positioning pin) | 90341-C0004 |
| 33283G | Slotted spring pin (for reverse gear locating pin) | 90254-05003 |
| 33290 | No. 1 locking steel ball assembly | 33290-0D020 |
| 33295A | Reverse gear positioning shaft | 33295-0D010 |
| 33528B | control shaft cover | 33506-0D040 · 33506-0D070 |
| 33528C | Oil seal (for control shaft cover) | 90310-C0001 |
| 33528E | Bolt (for control shaft cover) | 90119-C0281 · 90119-C0282 |
| 33528K | Ring pin (for controlling shaft housing retaining bolts) | 90250-08074 |
| 33531B | Dust boot (for shift lever shaft) | 33531-0D020 |
| 33544C | Gear shifter damper | 33544-0D080 · 33544-0D120 |
| 33584A | Shift lever stopper gasket | 33584-0D010 · 33584-52010 |
