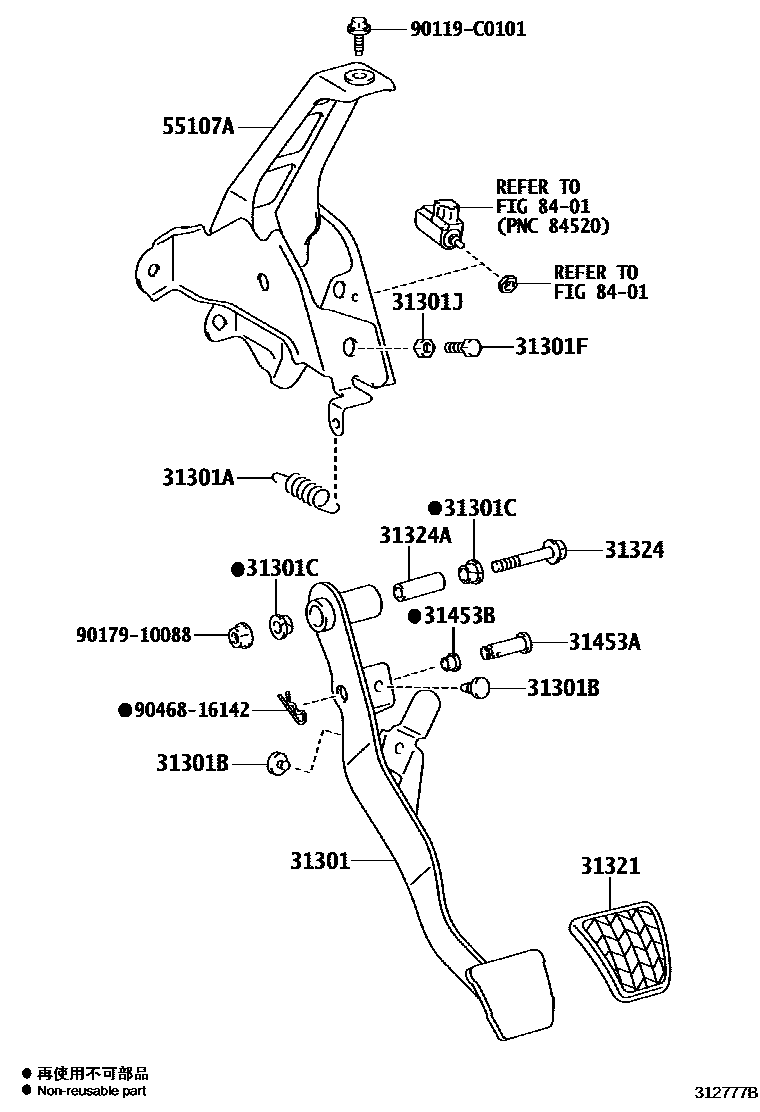

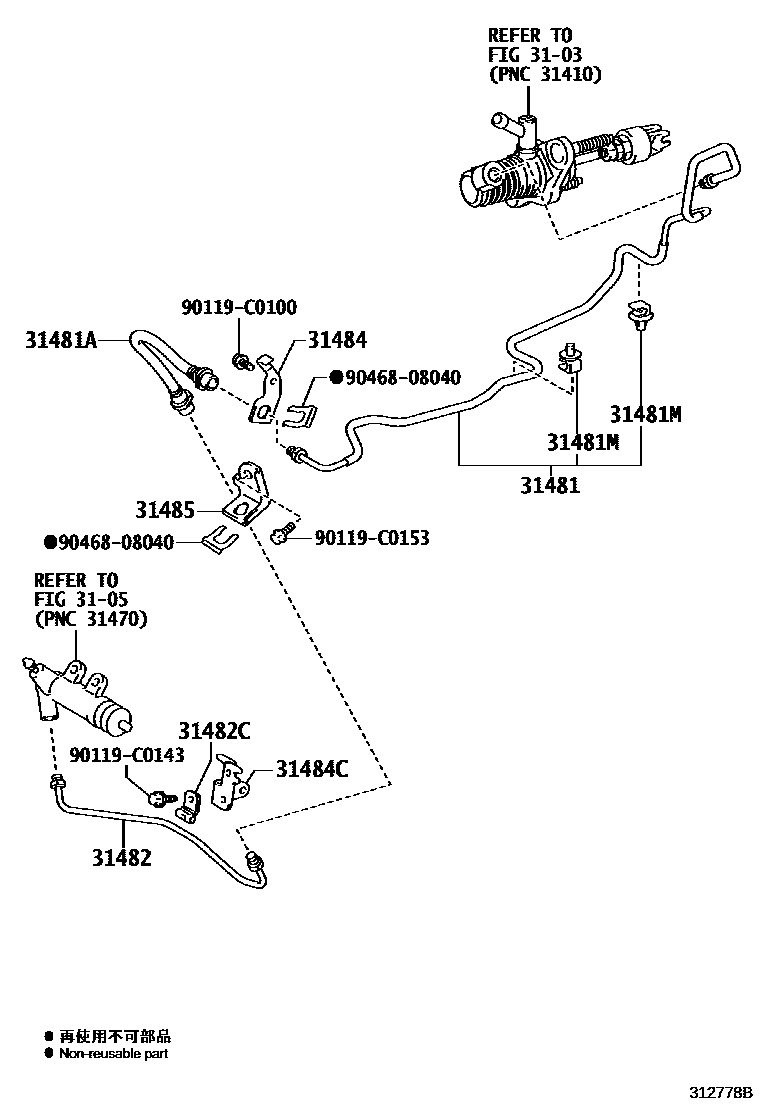

Toyota YARIS 离合器踏板和挠性软管 — Figure 3102
Toyota YARIS EPC diagram 3102, 离合器踏板和挠性软管, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-0D210 · 31301-0D250 |
| 31301A | Spring (for clutch pedal) | 90507-14018 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10369 |
| 31301J | Nut (for clutch pedal stop) | 90170-10017 |
| 31321 | clutch pedal pad | 31321-0D080 · 31321-52010 |
| 31324 | clutch pedal shaft | 90101-10081 |
| 31324A | clutch pedal collar | 90387-10004 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90249-08051 · 90249-C0004 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08002 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-0D230 |
| 31481A | No. 1 clutch hose | 90947-C2054 |
| 31481M | Clamp (for clutch master cylinder tube) | 90949-01D17 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-0D220 |
| 31482C | Clamp (for clutch tube) | 90461-08652 |
| 31484 | Flexible hose bracket (for clutch) | 31484-0D170 |
| 31484C | No. 1 clutch tube bracket | 31484-0D130 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-0D180 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-0D260 · 55107-0D390 |
