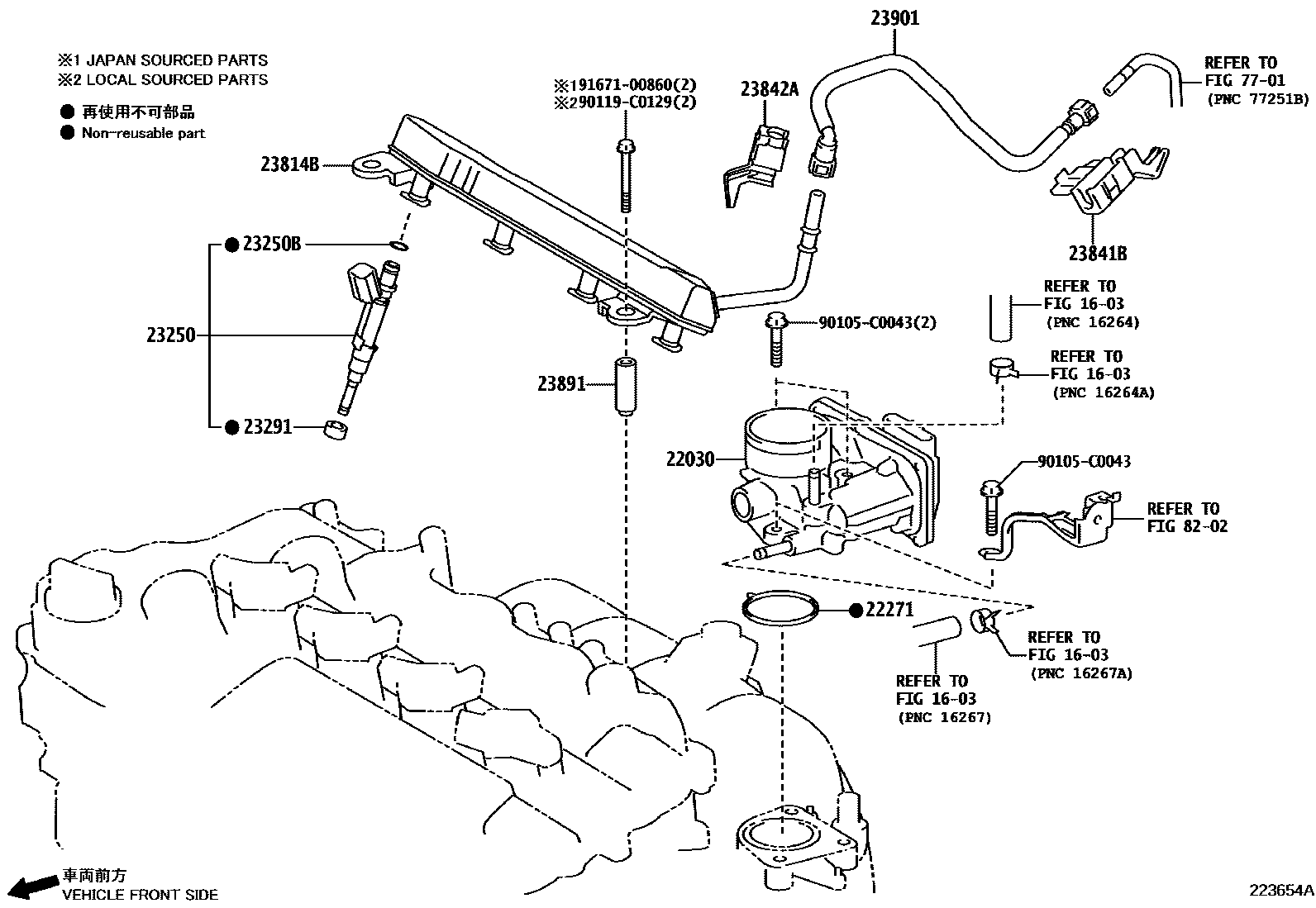

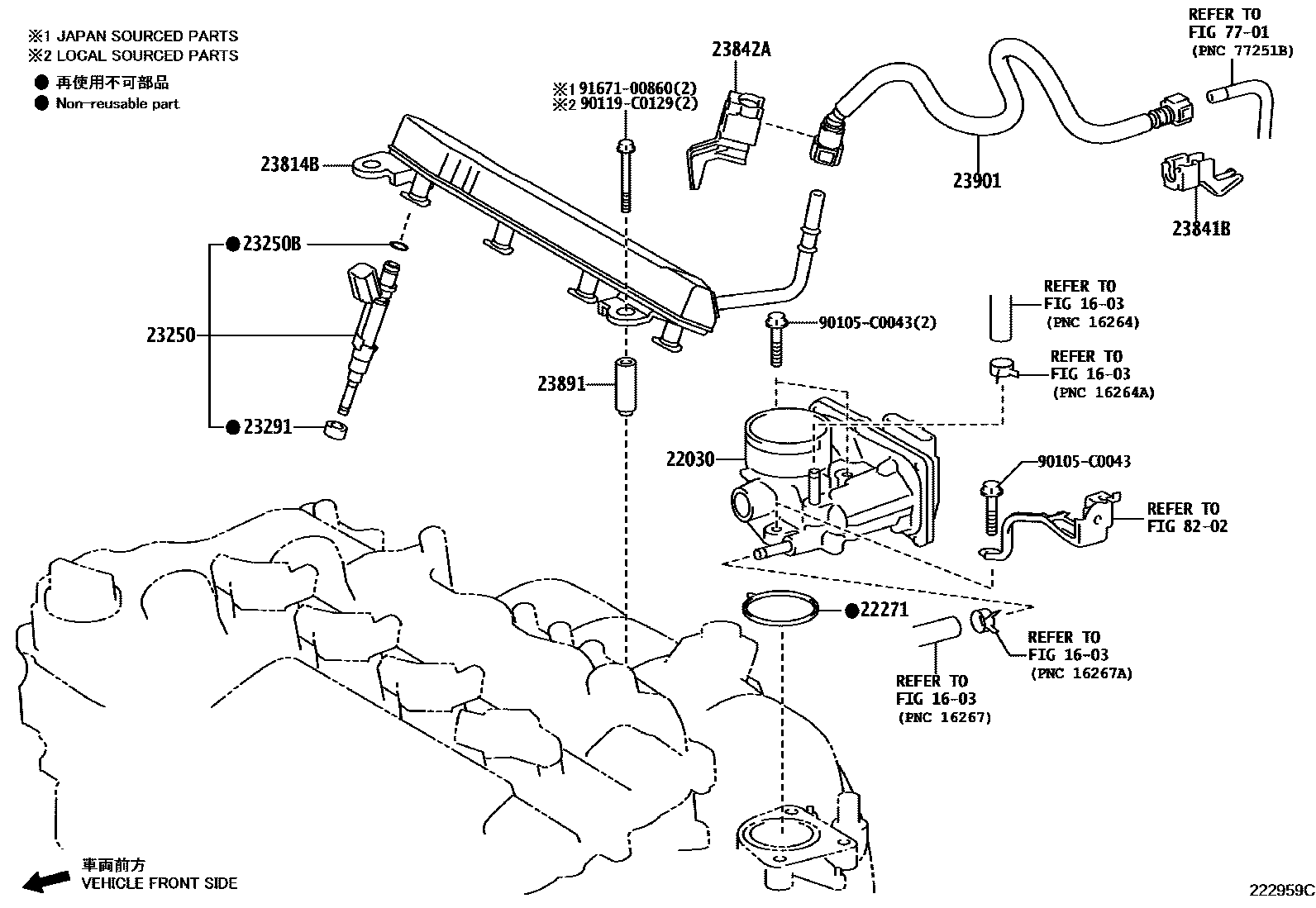

Toyota YARIS 燃油喷射系统 — Figure 2211
Toyota YARIS EPC diagram 2211, 燃油喷射系统, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Throttle valve body assembly with throttle position sensor | 22030-0Y040 · 22030-0Y090 |
| 22271 | Throttle body gasket | 22271-0Y010 |
| 23250 | Fuel injector assembly | 23209-09250 |
| 23250B | O-ring (for fuel injector) | 90301-07037 · 90301-C0072 |
| 23291 | Injector vibration isolation pad | 23291-0P020 |
| 23814B | oil pipeline | 23814-0Y020 · 23814-0Y021 · 23814-47050 · 23814-47051 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-0Y030 · 23841-37081 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23842-0Y030 |
| 23891 | oil pipe septum | 23891-47030 |
| 23901 | Fuel pipe sub-assembly | 23901-0Y080 · 23901-0Y180 · 23901-0Y250 · 23901-0Y260 |
