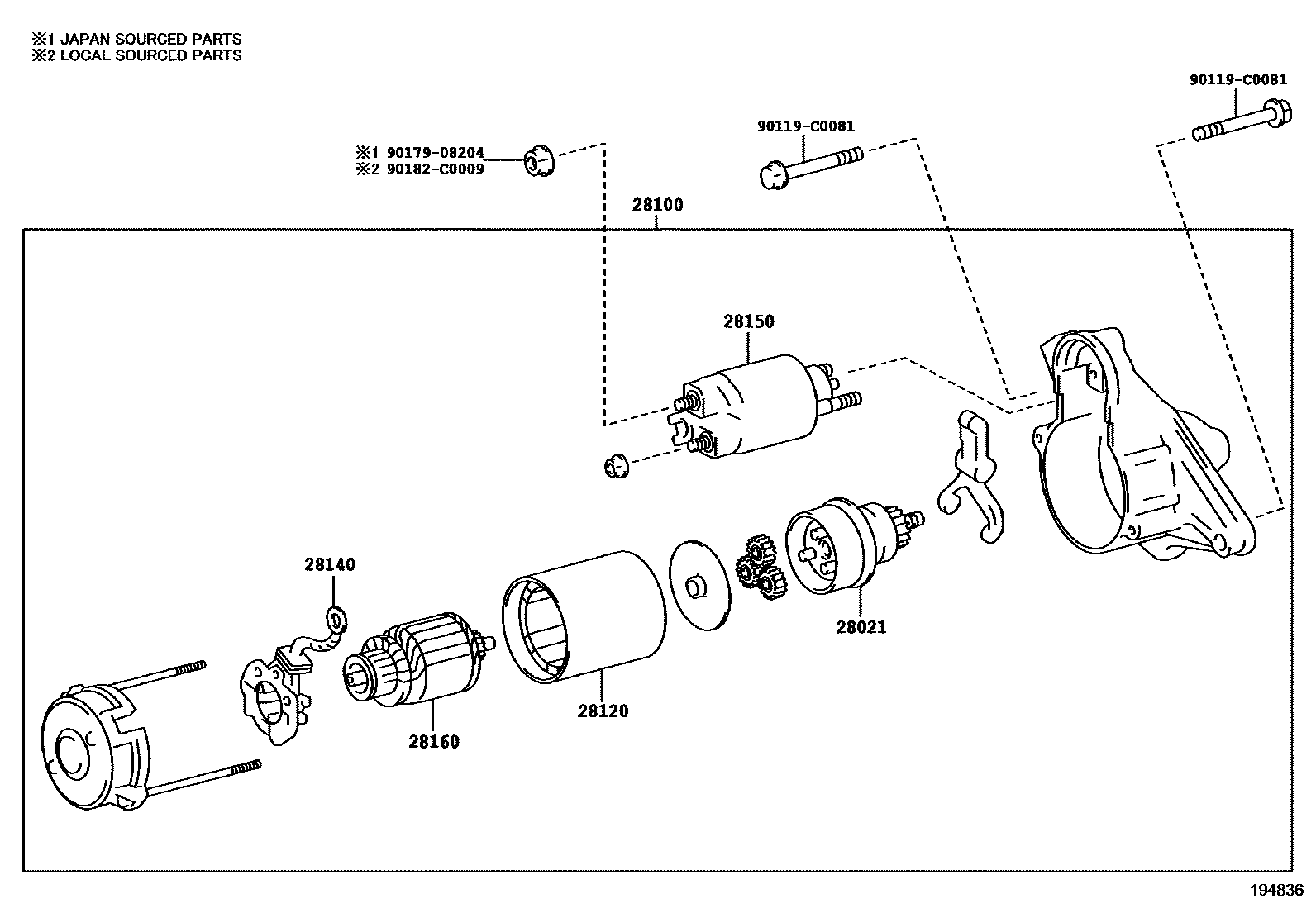

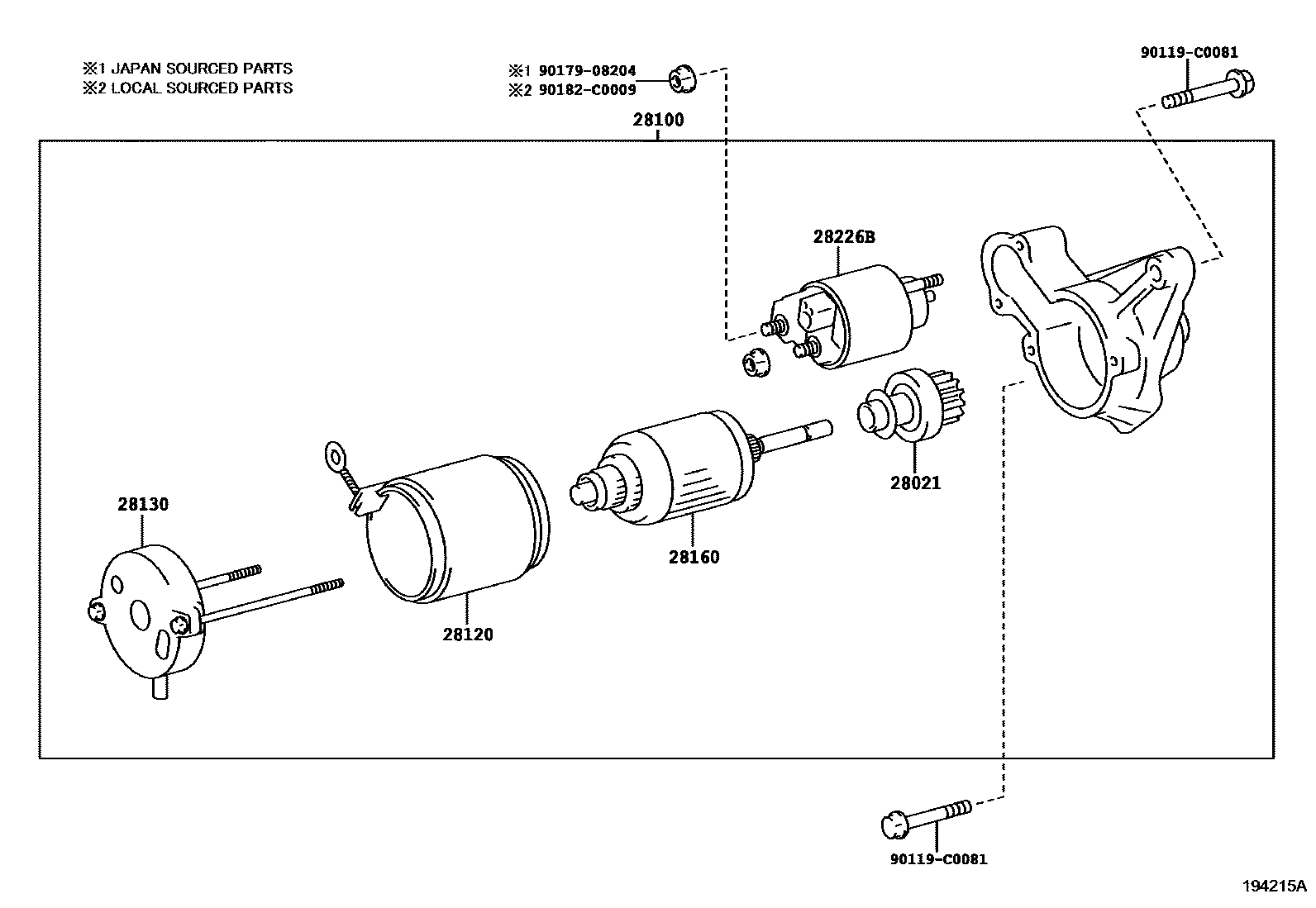

Toyota YARIS 起动机 — Figure 1904
Toyota YARIS EPC diagram 1904, 起动机, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-0T360 · 28021-21060 |
| 28100 | Starter assembly | 28100-0Y120 · 28100-0Y330 · 28100-0Y331 |
| 28120 | Starter yoke assembly | 28120-0Y330 · 28120-28060 |
| 28130 | Starter commutator end frame assembly | 28130-0Y120 |
| 28140 | Starter brush holder assembly | 28140-0V040 |
| 28150 | Starter electromagnetic switch assembly | 28150-0Y330 · 28150-0Y331 |
| 28160 | Starter armature assembly | 28160-0S050 · 28160-21060 |
| 28226B | starter magnetic switch | 28226-22061 |
