Toyota YARIS Alternator — Figure 1903

Toyota YARIS EPC diagram 1903, Alternator, with 1 images and 13 PNC and OE references.

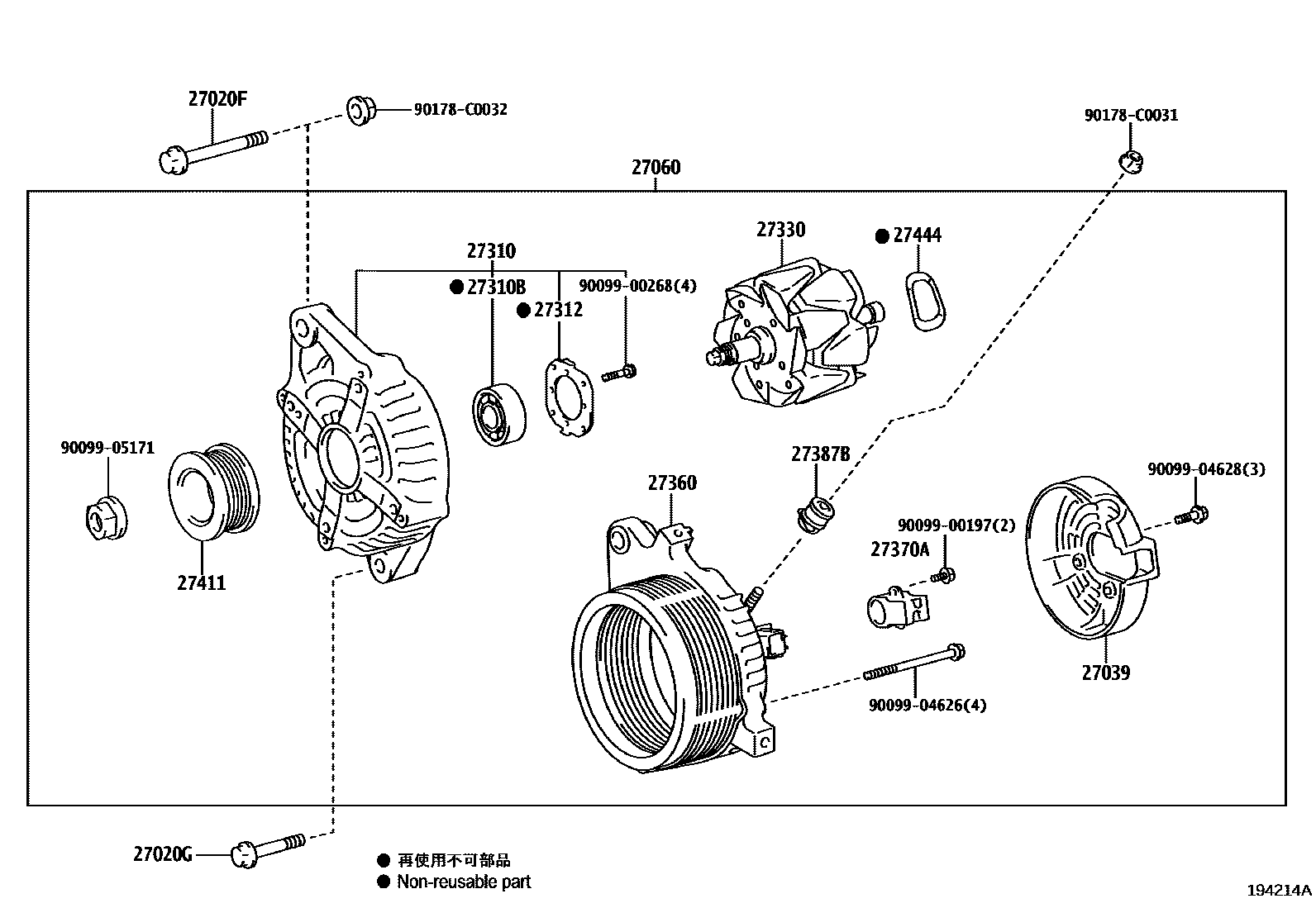

Toyota YARIS Alternator EPC diagram — 194214A
Alternator — 194214A (201312 – 999999)

PNC and OE references

PNCPart nameOE numbers
27020FBolt No. 1 (for generator)90105-C0028
27020GBolt No. 2 (for generator)90105-C0215
27039Alternator Rear End Cover27039-0Y180
27060Generator assembly with regulator27060-0Y190 · 27060-0Y290
27310Alternator Drive End Frame Assembly27310-0Y180 · 27310-0Y270
27310BBearing (for Alternator Drive End Frame)90068-10029 · 90068-10040 · 90068-10052
27312Retainer Plate27312-0M070
27330Alternator Rotor Assembly27330-0Y180
27360Alternator Stator Coil Assembly27360-0Y180 · 27360-0Y270
27370AAlternator Brush Holder Assembly27370-0T030
27387BGenerator terminal insulation pad27387-0H110
27411Alternator Pulley27411-0Y180
27444Generator bearing cap seals27444-0Y180
