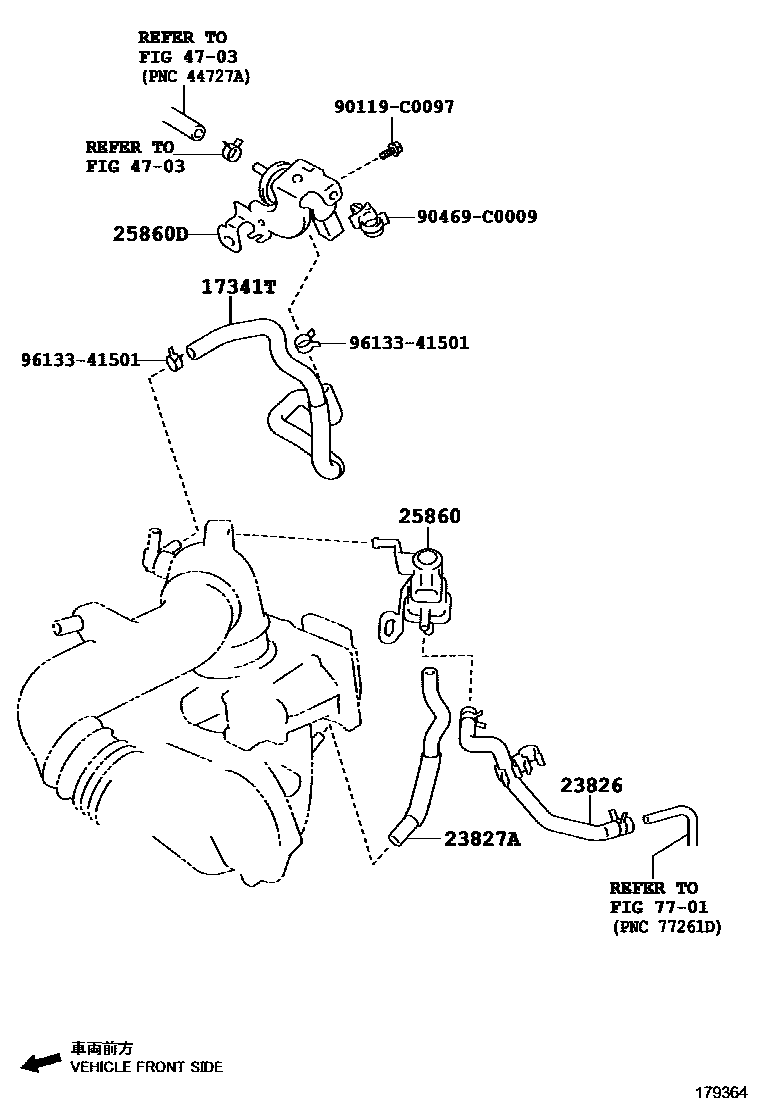

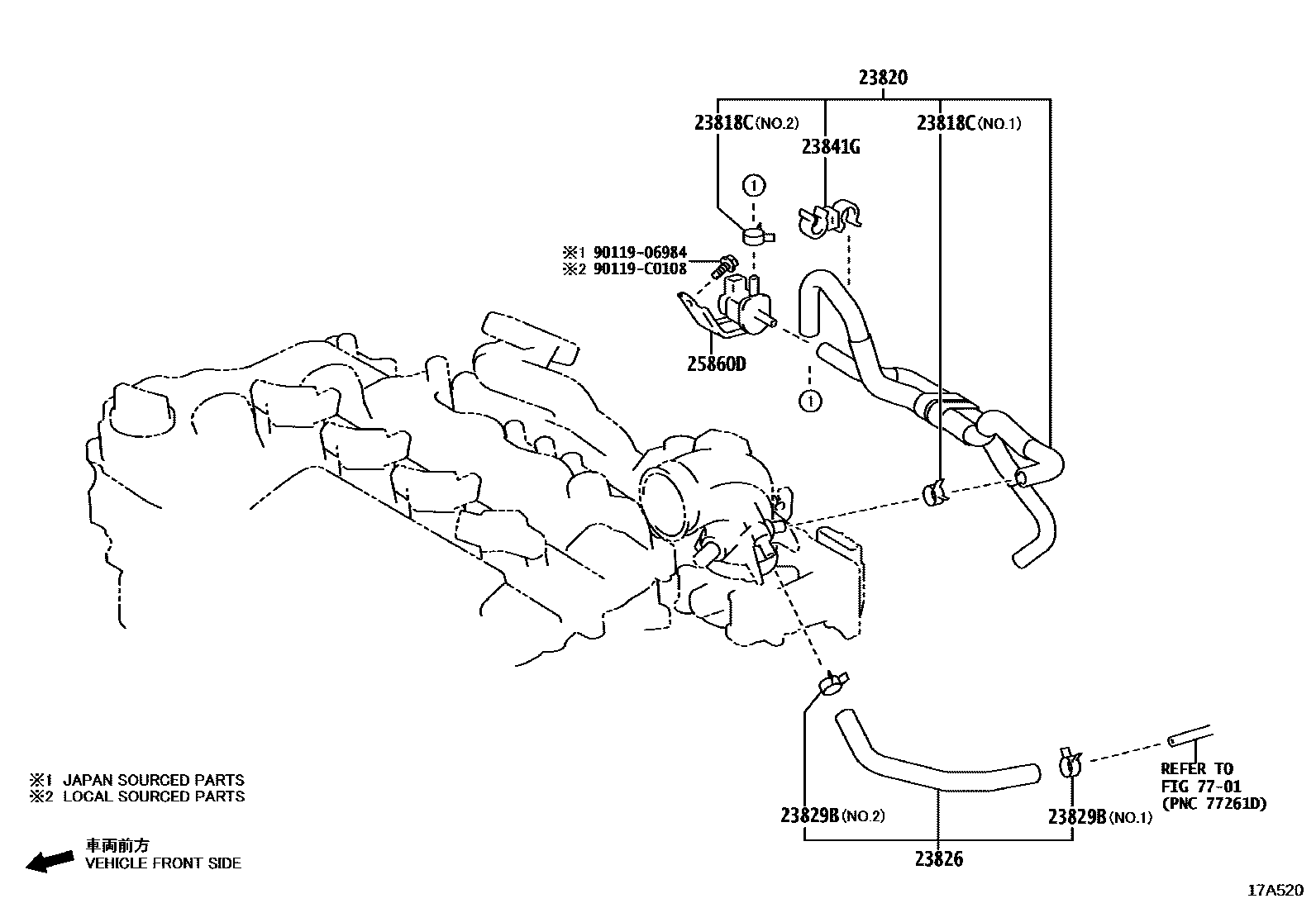

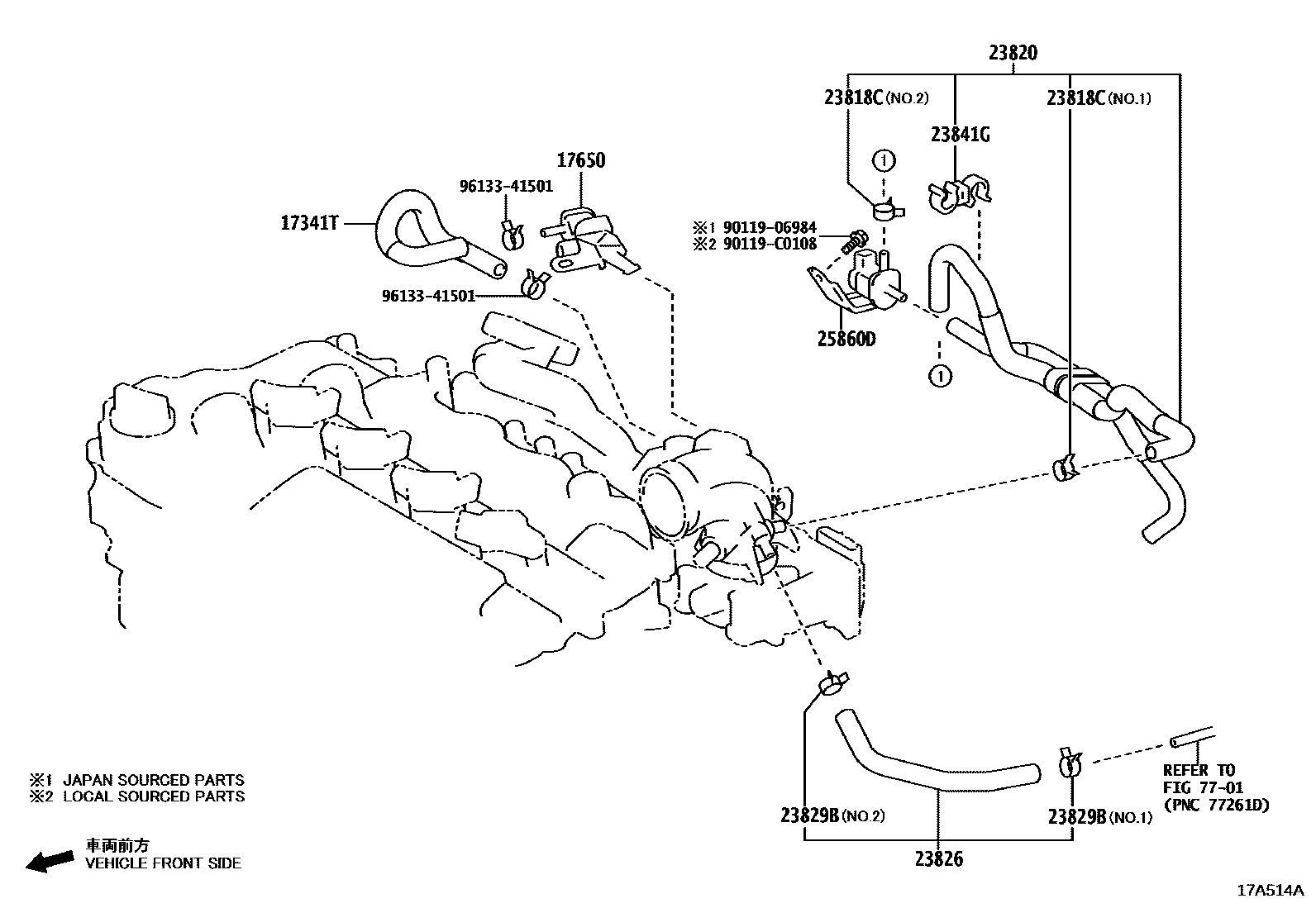

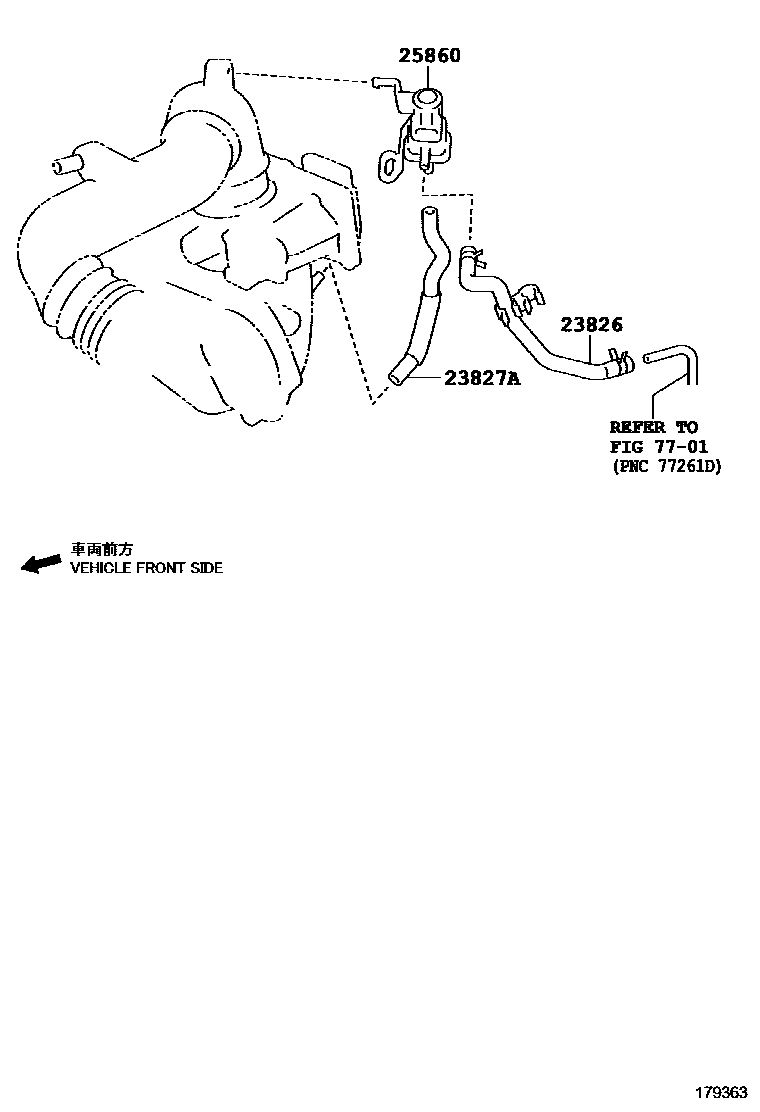

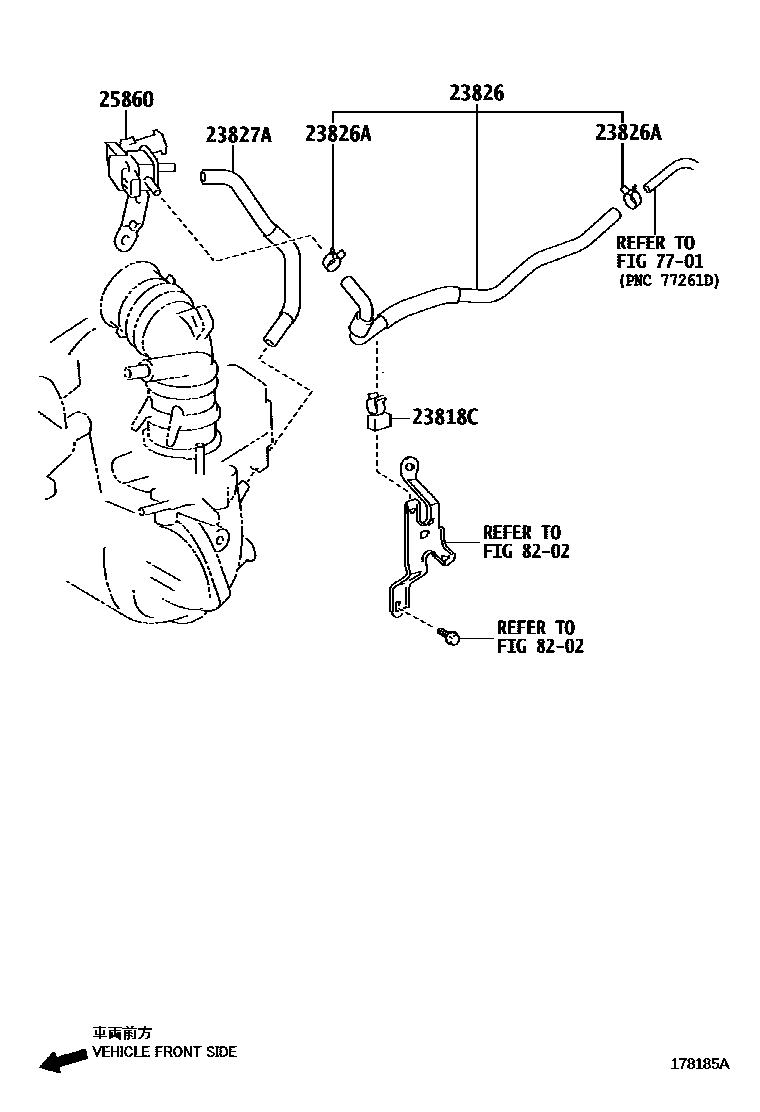

Toyota YARIS vacuum tube — Figure 1708
Toyota YARIS EPC diagram 1708, vacuum tube, with 5 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341T | Air hose No. 1 | 17341-0Y040 · 44726-0D020 |
| 17650 | Vacuum switch valve assembly | 25860-0Y130 |
| 23818C | Clamp (for fuel vapor supply hose) | 23847-0Y020 · 90467-16014 · 96132-51300 |
| 23820 | Fuel vapor supply hose assembly | 23820-0Y080 · 23820-0Y090 |
| 23826 | No. 1 fuel vapor supply hose | 23826-0Y100 · 23826-0Y160 · 23826-0Y270 · 23826-0Y280 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-11003 |
| 23827A | No. 2 fuel vapor supply hose | 23827-0Y090 · 23827-0Y160 |
| 23829B | Clamp (for fuel vapor supply hose) | 90467-16014 · 96132-51300 |
| 23841G | fuel hose clamp | 23841-0Y011 · 23841-0Y081 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0Y060 · 25860-0Y070 |
| 25860D | No. 2 vacuum switch valve assembly | 25860-0Y050 · 25860-0Y140 · 25860-0Y220 · 25860-47090 |
