Toyota YARIS Air Cleaner — Figure 1703

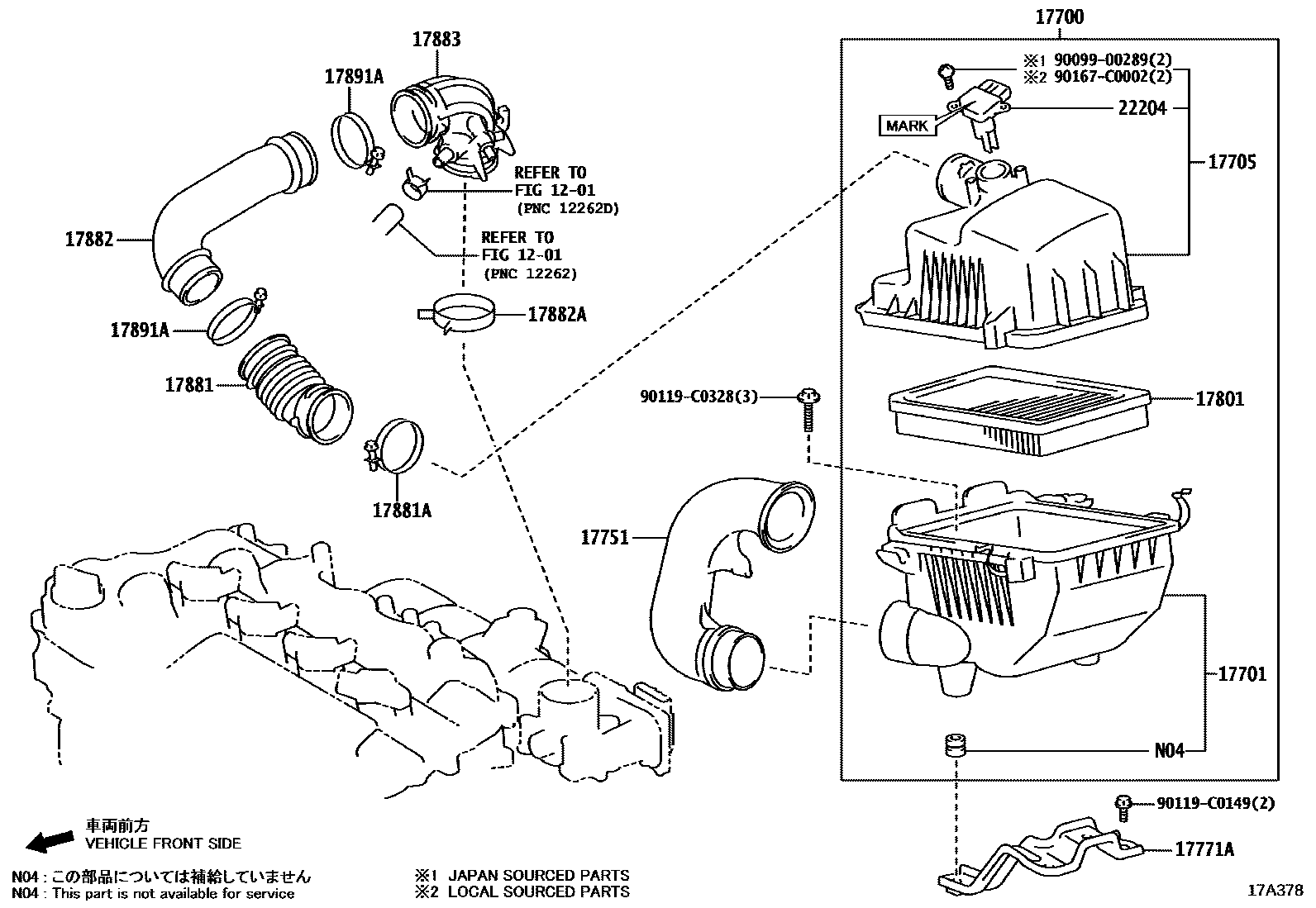

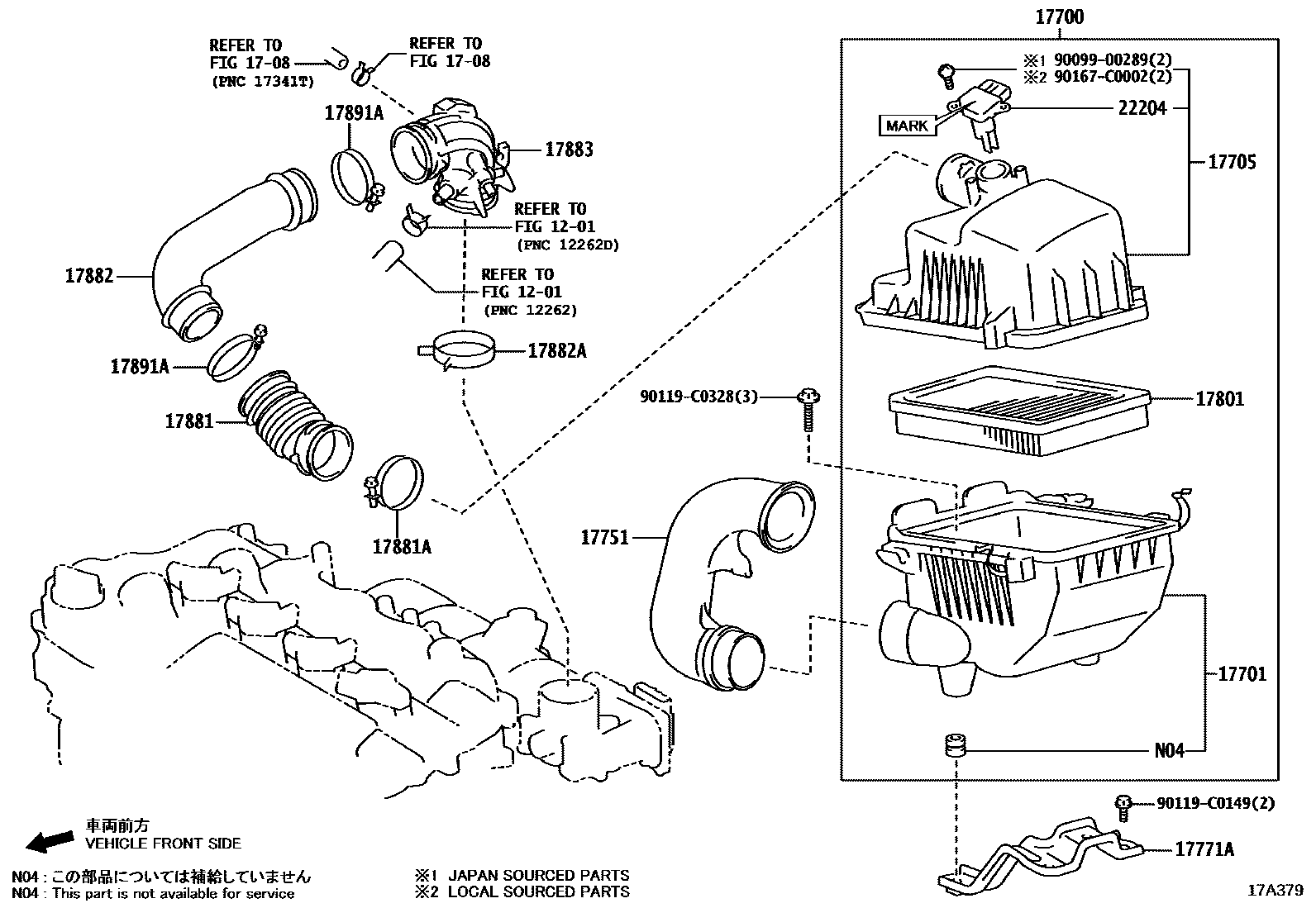

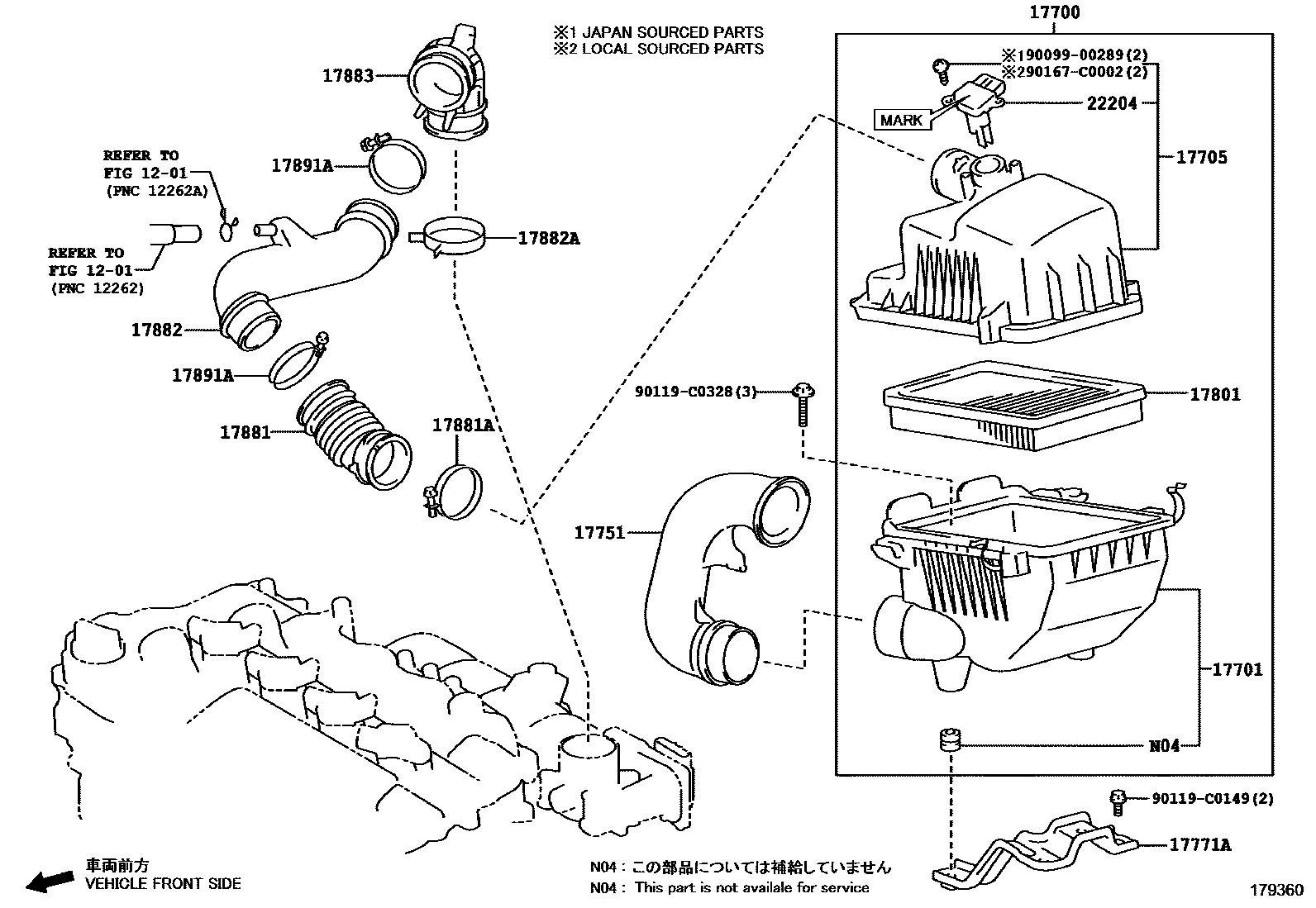

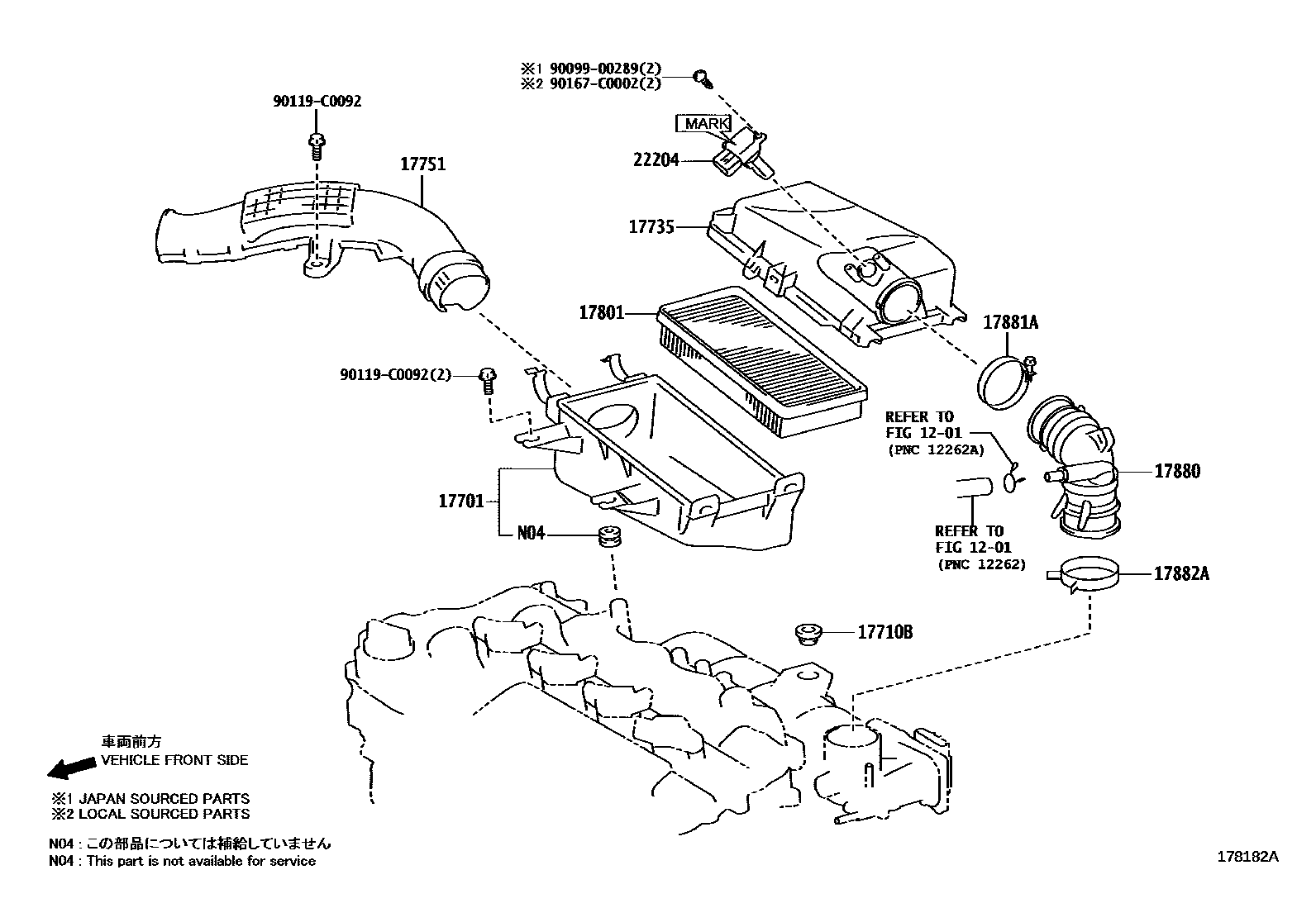

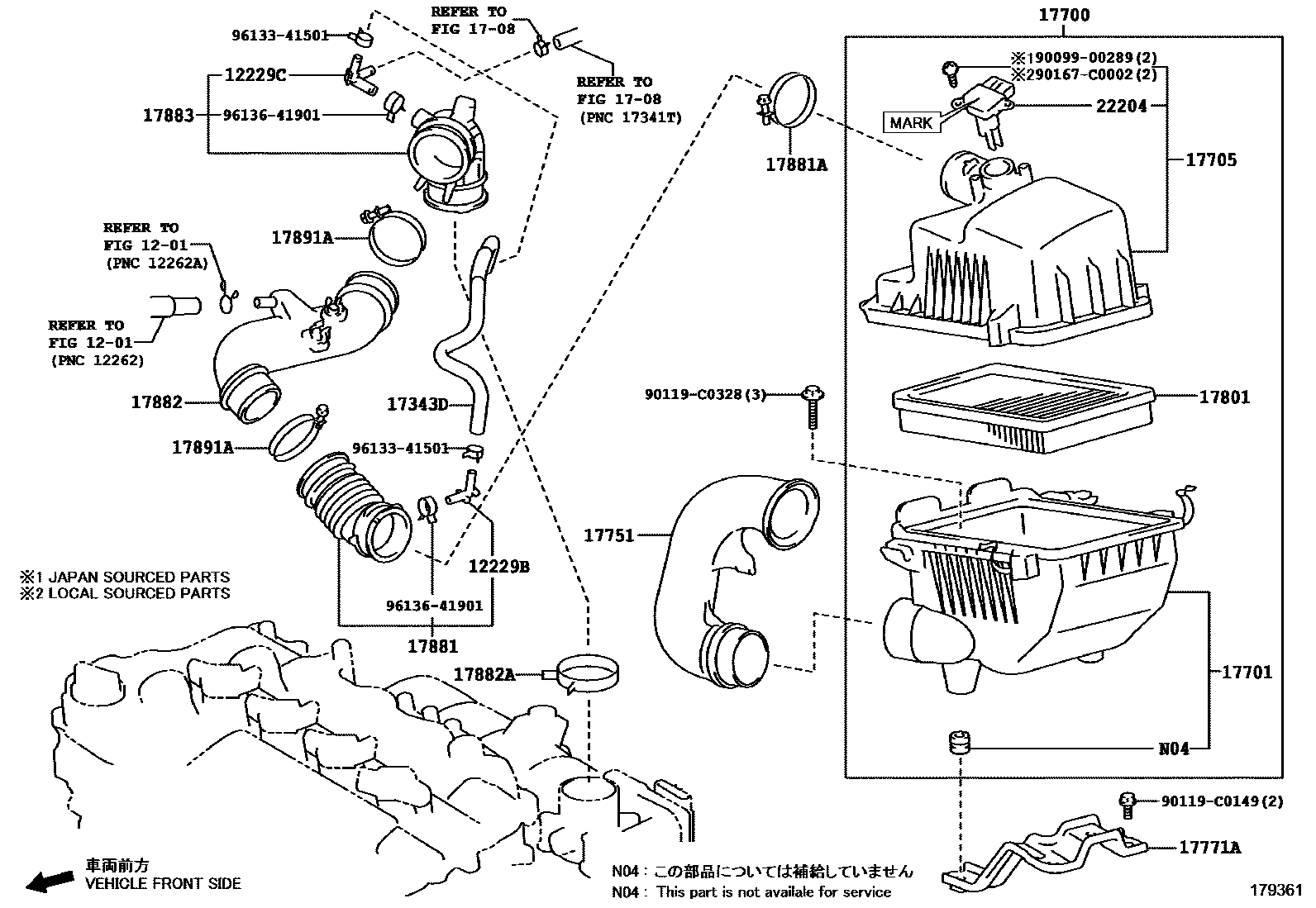

Toyota YARIS EPC diagram 1703, Air Cleaner, with 5 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12229B | Ventilation duct No. 1 | 12229-0Y200 |
| 12229C | Ventilation duct No. 2 | 12229-0Y140 |
| 17343D | No. 3 air hose | 17343-0Y060 |
| 17700 | air filter assembly | 17700-0Y130 |
| 17701 | Air filter housing sub-assembly | 17701-0Y090 · 17701-0Y170 |
| 17705 | Air filter cover sub-assembly | 17705-0Y220 · 17705-0Y310 |
| 17710B | gasket | 90480-15036 · 90480-C0003 |
| 17735 | air filter cover | 17735-0Y060 |
| 17751 | No. 1 air filter air inlet | 17751-0Y110 · 17751-0Y111 · 17751-0Y220 |
| 17771A | air filter bracket | 17771-0Y020 |
| 17801 | Air filter element sub-assembly | 17801-0Y060 |
| 17880 | Air cleaner hose assembly | 17880-0Y070 |
| 17881 | No. 1 air cleaner hose | 17881-0Y190 · 17881-0Y260 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10690 |
| 17882 | No. 2 air cleaner hose | 17882-0Y050 · 17882-0Y100 · 17882-0Y180 · 17882-0Y190 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-62002 · 90466-C0019 |
| 17883 | No. 3 air cleaner hose | 17883-0Y080 · 17883-0Y090 · 17883-0Y150 · 17883-0Y160 |
| 17891A | Air filter hose clamp | 96111-10730 |
| 22204 | Intake air flow meter assembly | 22204-0T040 · 22204-0V020 · 22204-28010 |
