Toyota YARIS Exhaust Pipe — Figure 1702

Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 2 images and 5 PNC and OE references.

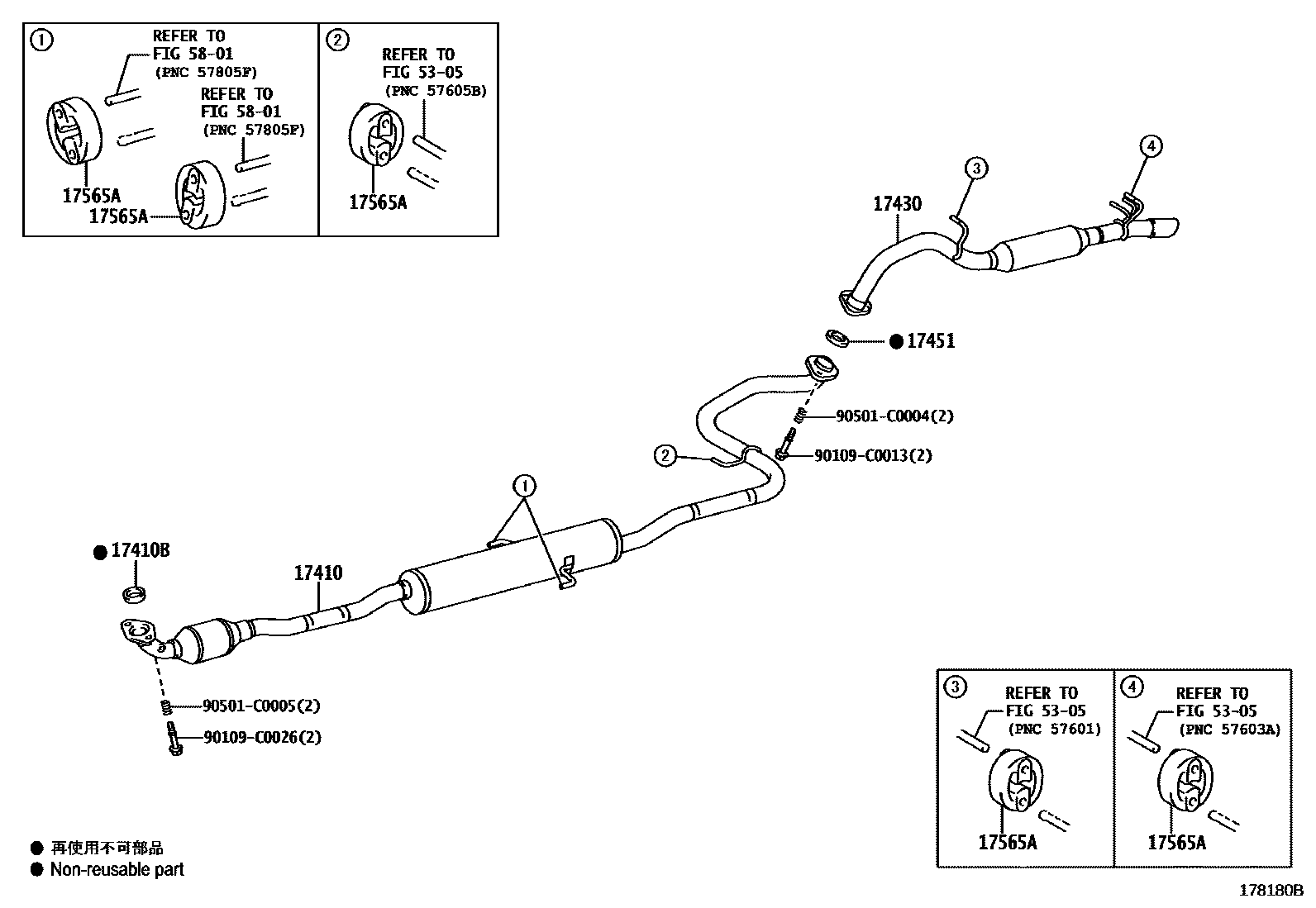

Toyota YARIS Exhaust Pipe EPC diagram — 178180B — Exhaust Pipe — 178180B (201312 – 201608)

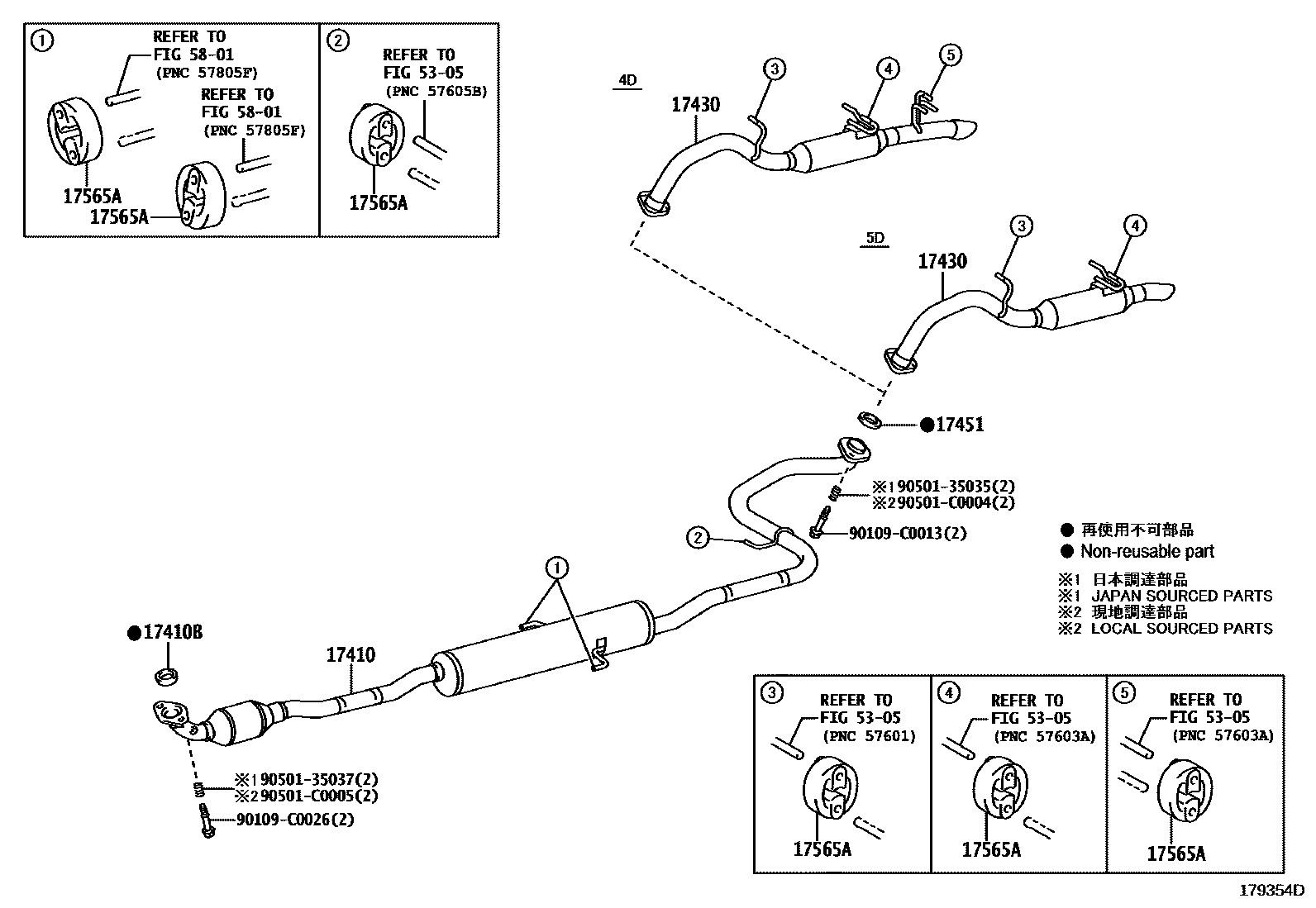

Toyota YARIS Exhaust Pipe EPC diagram — 179354D — Exhaust Pipe — 179354D (201608 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17410	Front exhaust pipe assembly	17410-0Y240 · 17410-0Y250 · 17410-0Y750 · 17410-0Y751 · 17410-0Y830
17410B	Exhaust pipe gasket	17451-0J050
17430	Exhaust tailpipe assembly	17430-0Y100 · 17430-0Y310 · 17430-0Y370
17451	Exhaust pipe gasket	17451-0T031
17565A	No. 4 exhaust pipe lifting lug	17565-0T060
