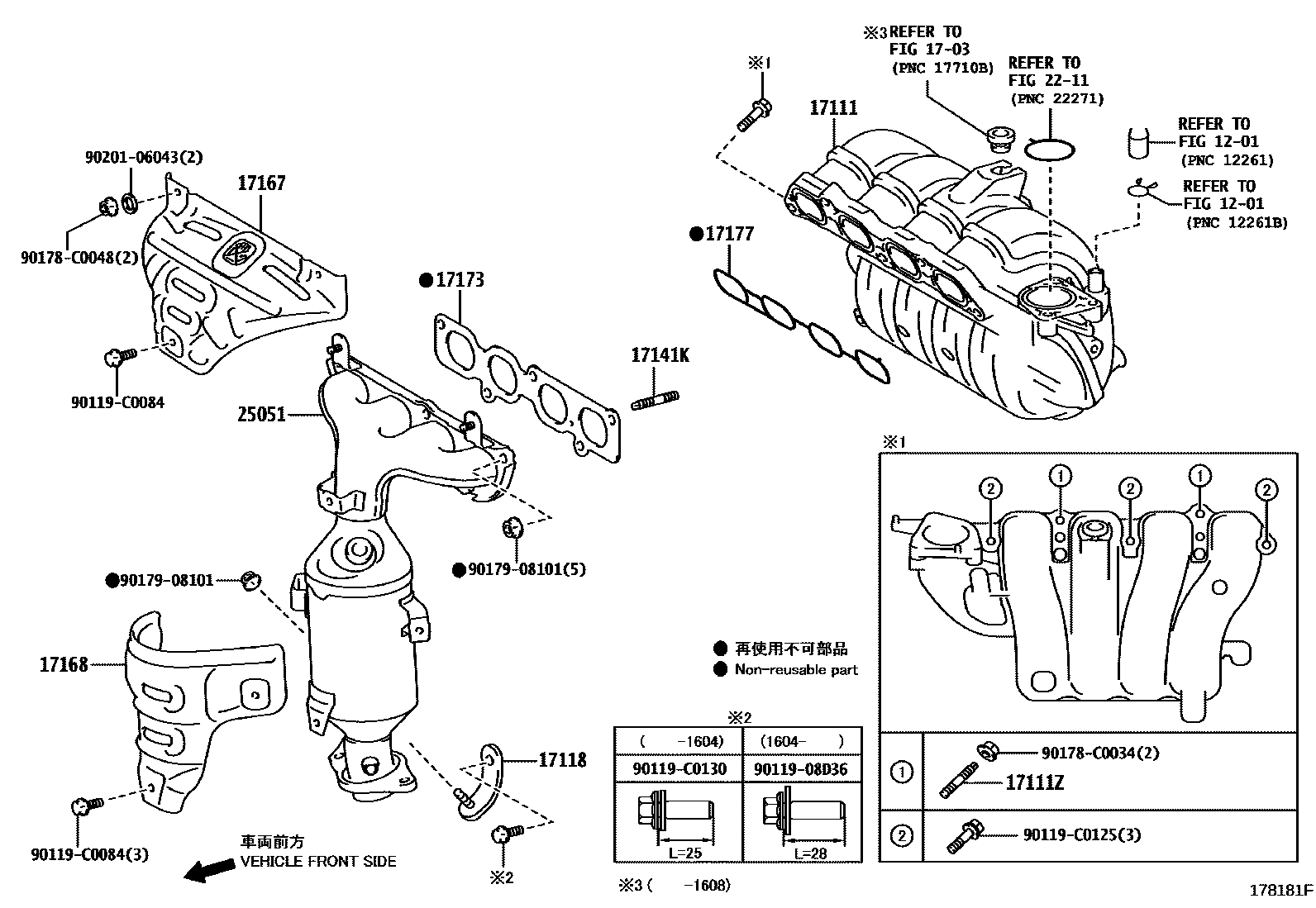

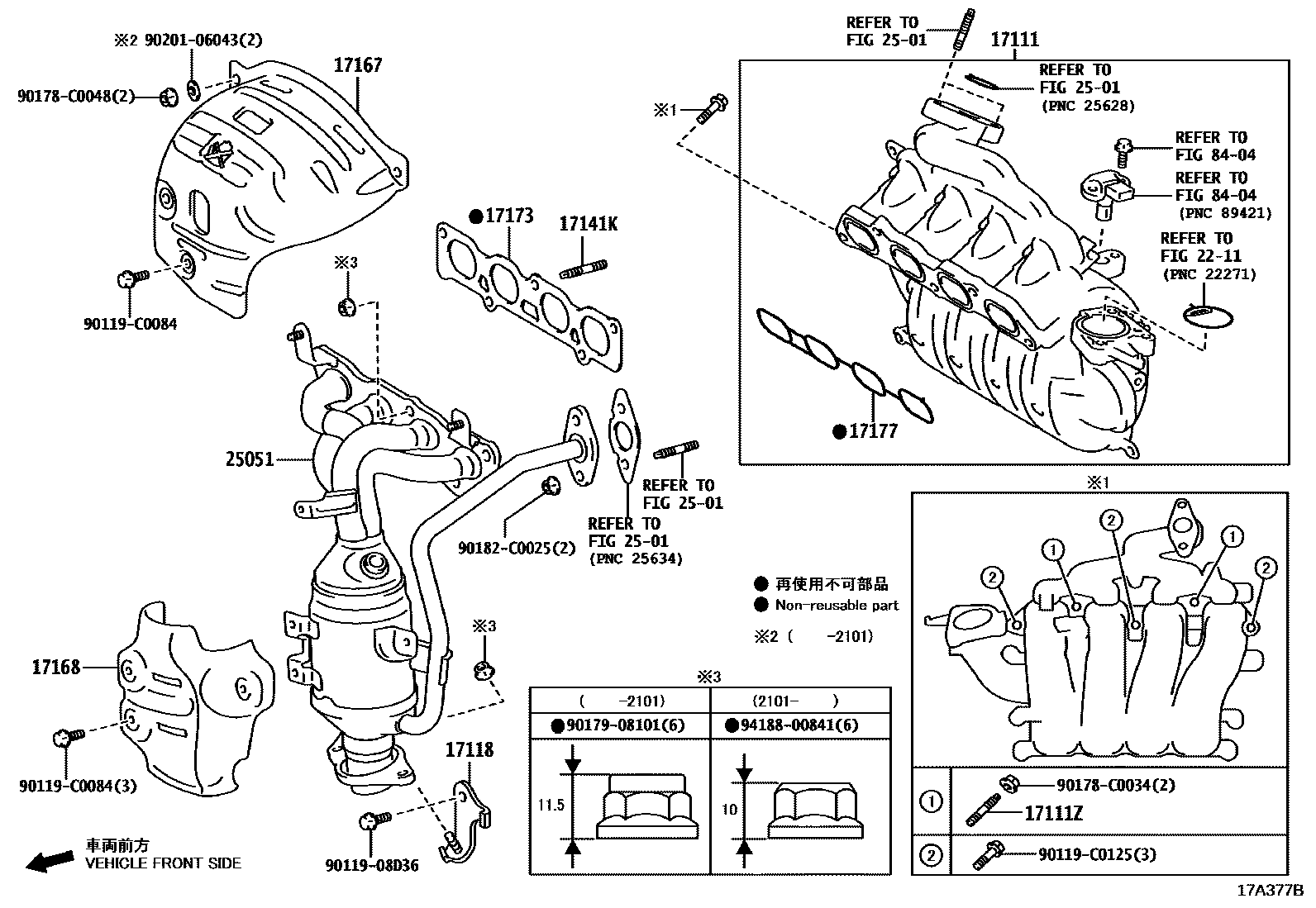

Toyota YARIS Manifold — Figure 1701
Toyota YARIS EPC diagram 1701, Manifold, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17111 | Intake Manifold | 17101-0Y030 · 17101-0Y080 · 17101-0Y120 |
| 17111Z | Stud bolts (for intake manifold to cylinder head) | 90126-C0005 |
| 17118 | Manifold stays | 17118-0Y190 · 17118-47010 · 17118-47011 |
| 17141K | Stud bolts (for exhaust manifold to cylinder head) | 90126-C0004 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-0Y010 · 17167-0Y080 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-0Y010 · 17168-0Y070 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-0Y020 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-0Y010 |
| 25051 | Exhaust manifold three-way catalytic converter sub-assembly | 25051-0Y030 · 25051-0Y040 · 25051-0Y200 |
