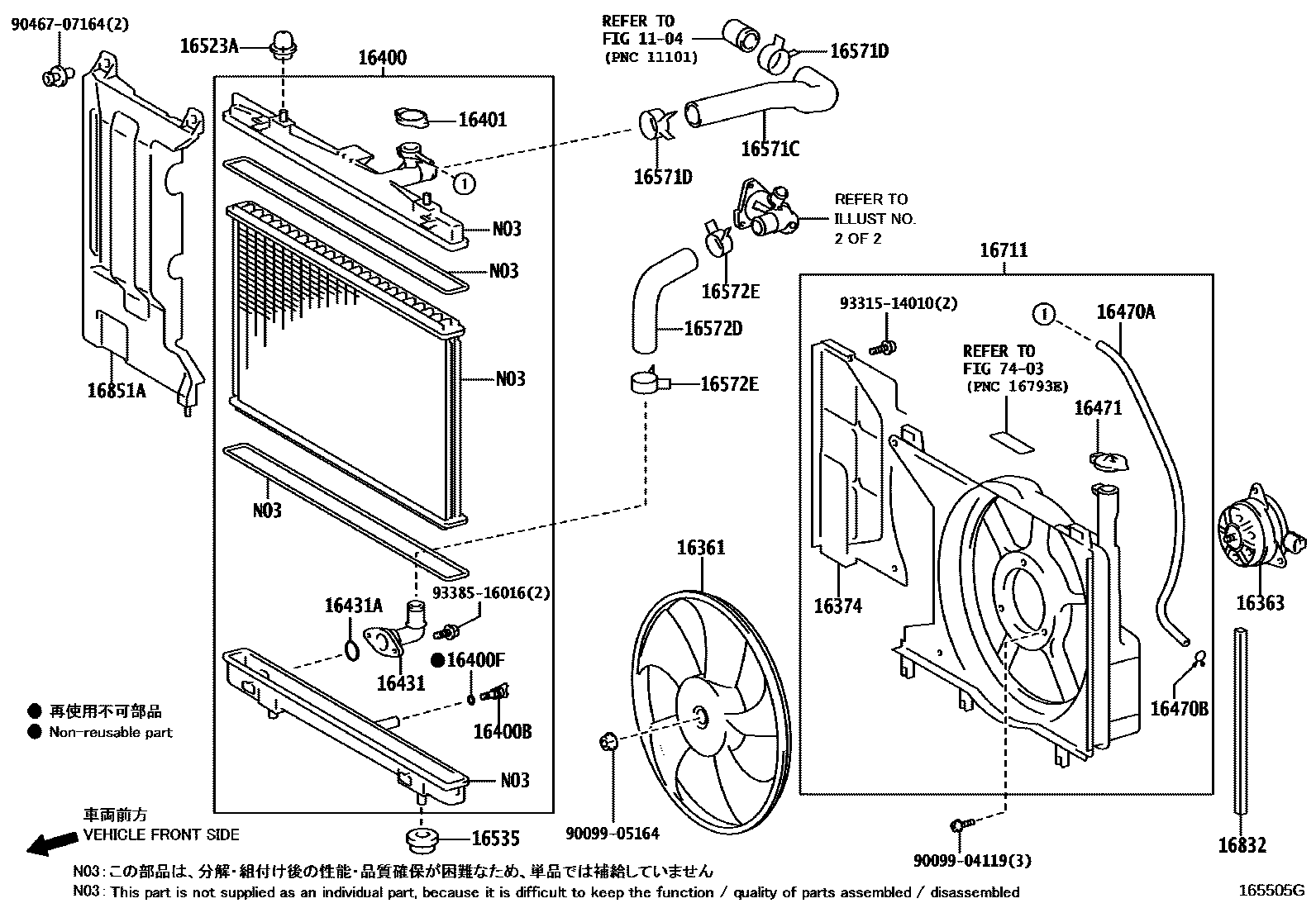

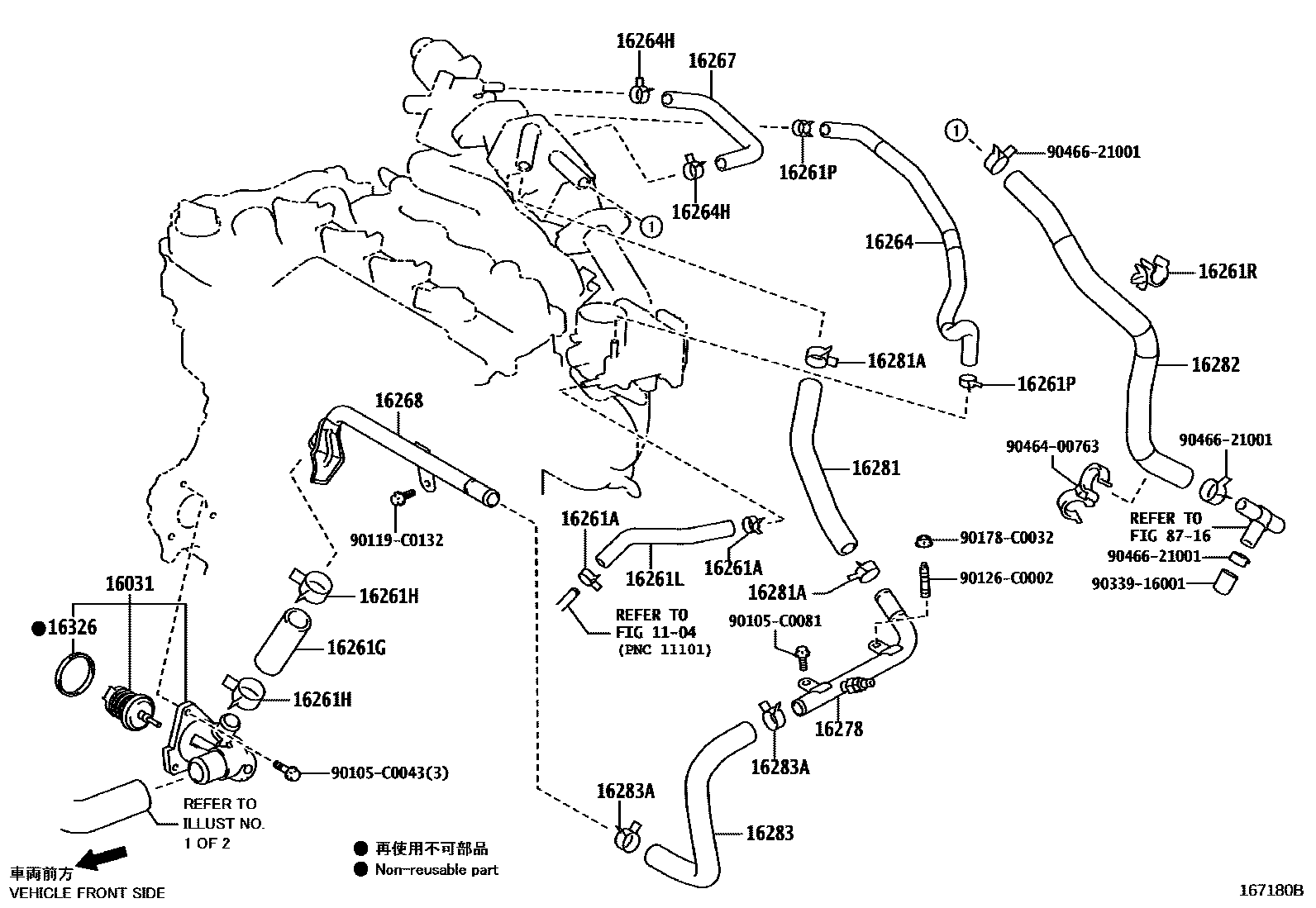

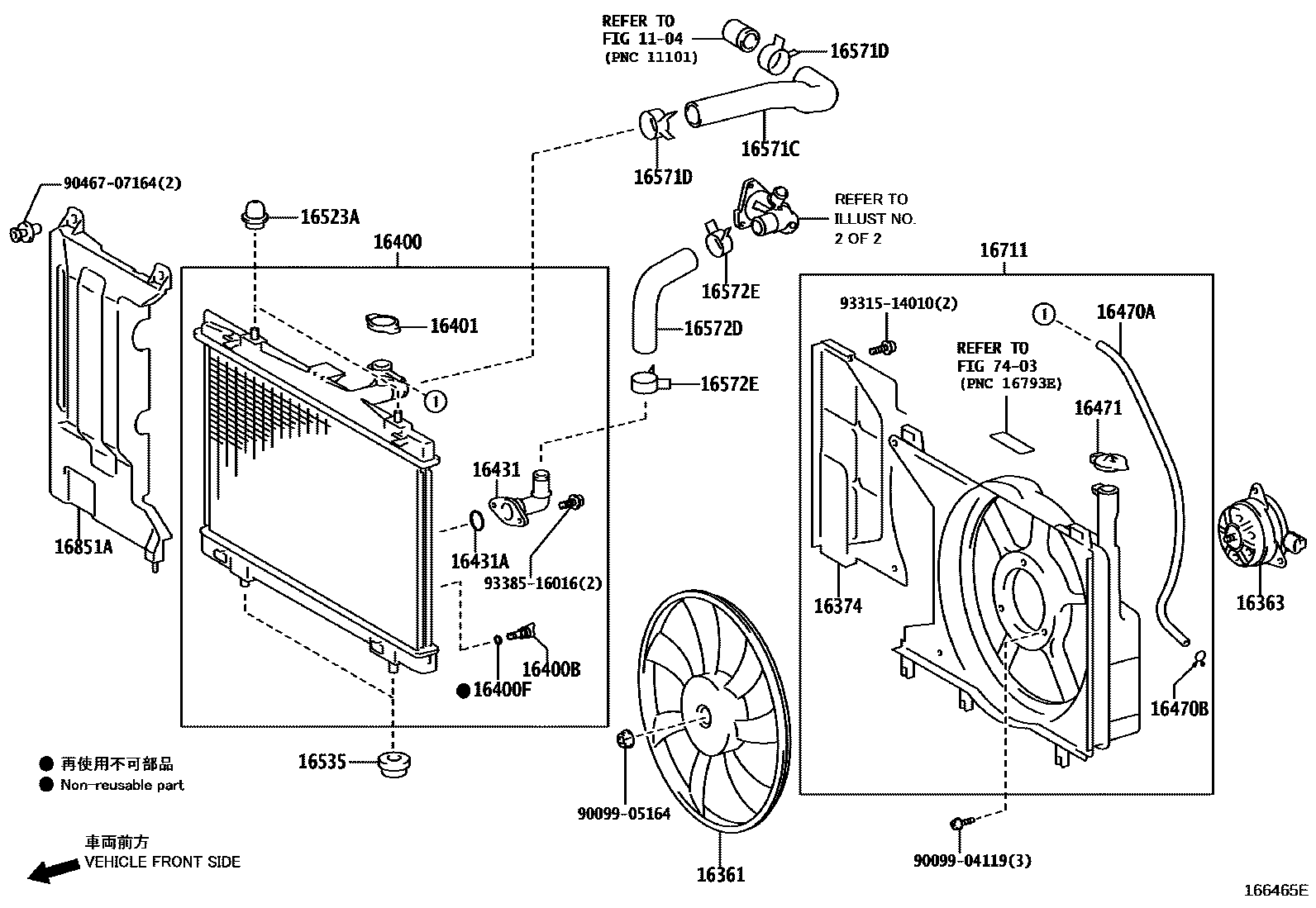

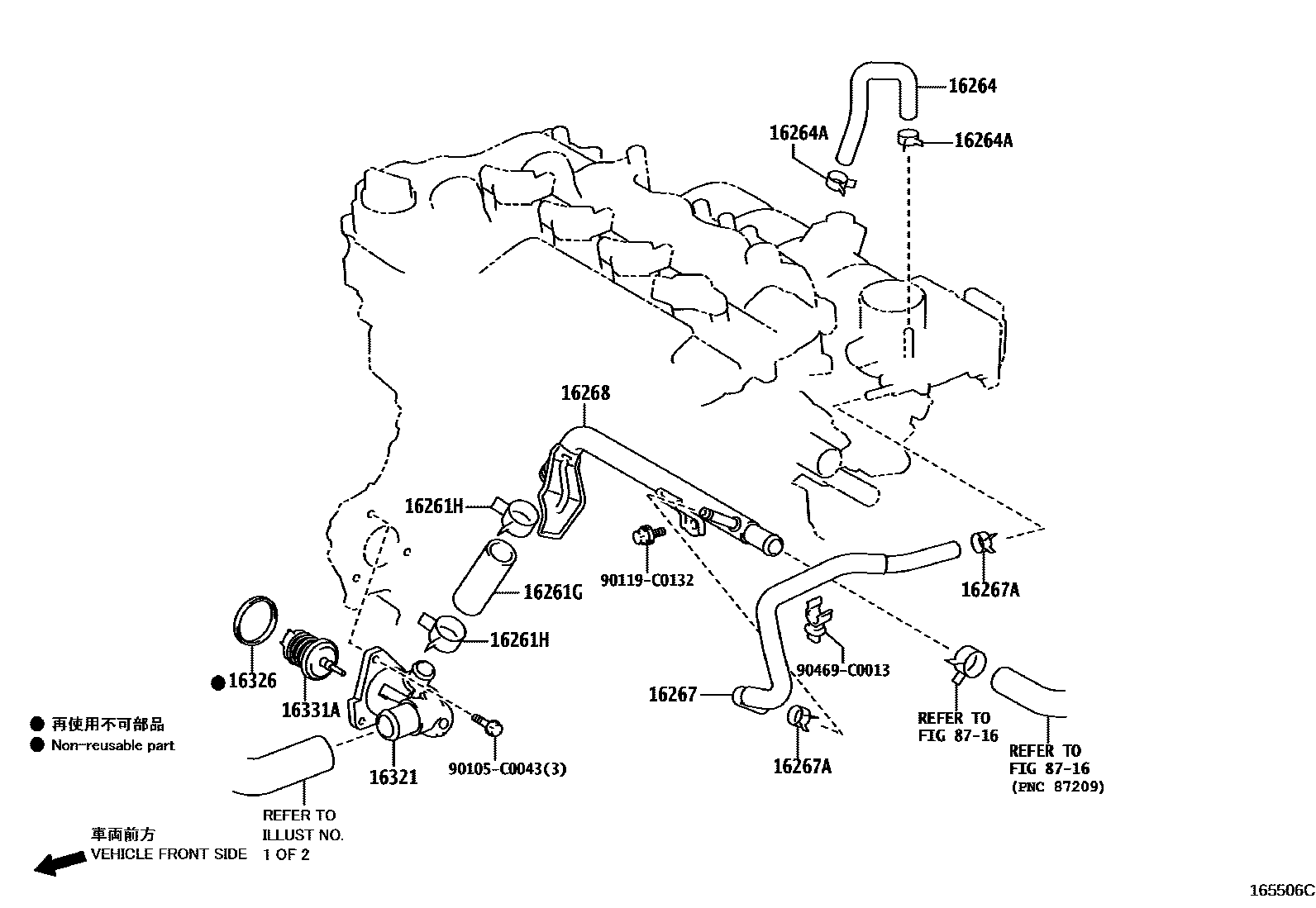

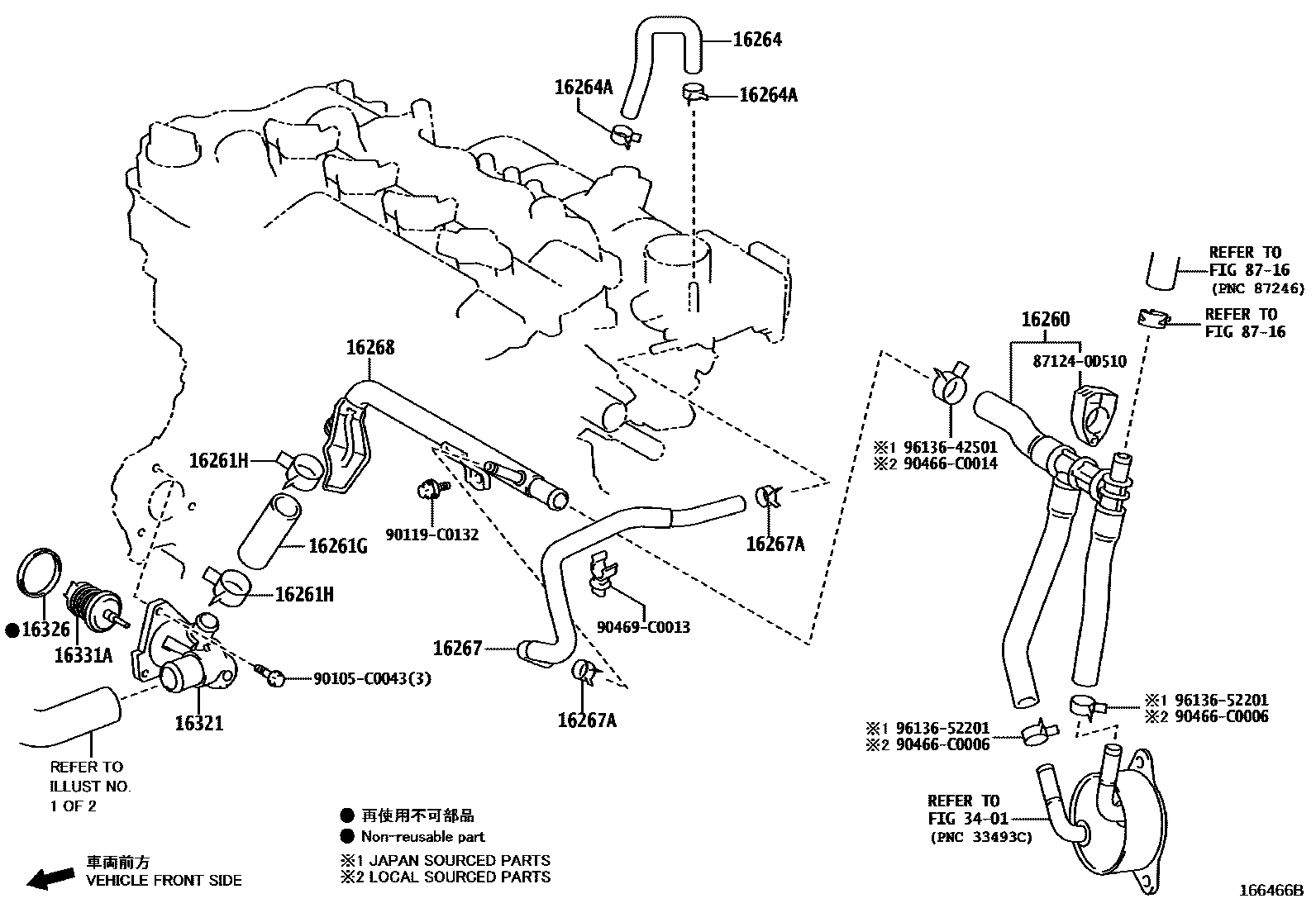

Toyota YARIS RADIATOR & WATER OUTLET — Figure 1603
Toyota YARIS EPC diagram 1603, RADIATOR & WATER OUTLET, with 7 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-47041 |
| 16260 | Water bypass hose assembly | 16260-0Y090 |
| 16261 | HOSE, WATER BY-PASS | 16261-0Y170 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-C0044 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-0Y080 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 96136-42901 |
| 16261L | HOSE, WATER BY-PASS | 16261-0Y190 |
| 16261N | HOSE, WATER BY-PASS, NO.2 | 16262-0Y010 |
| 16261P | CLIP, WATER BY-PASS HOSE NO.2 | 90466-C0044 |
| 16261R | Clip or clip (for water bypass hose) | 12251-0Y010 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0Y060 · 16264-0Y190 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-C0044 · 96136-41501 |
| 16264H | Clamp (for No. 3 water bypass hose) | 90466-C0044 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0Y020 · 16267-0Y170 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-C0044 · 96136-41501 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0Y030 · 16268-0Y100 · 16268-0Y120 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16270-0Y020 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-0Y140 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90466-C0014 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-0Y030 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-0Y020 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 90466-C0014 |
| 16321 | water inlet | 16321-47011 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-47010 · 16326-47020 |
| 16331A | thermostat | 90916-03147 |
| 16361 | Fan | 16361-0Y050 · 16361-0Y160 |
| 16363 | cooling fan motor | 16363-0Y030 |
| 16374 | Cooling fan motor vibration isolation pad | 16366-0Y060 |
| 16400 | Radiator assembly | 16400-0Y110 · 16400-0Y120 |
| 16400B | Radiator drain switch screw plug | 16417-0H290 |
| 16400F | Seal (for radiator drain switch) | 16492-0T270 · 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-0Y060 |
| 16431 | Radiator water inlet | 16431-0Y120 |
| 16431A | O-ring (for radiator water inlet) | 16492-0Y120 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16377-0Y060 · 16377-0Y220 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16471-0T010 |
| 16523A | Radiator bracket cushion | 16523-0M070 |
| 16535 | Radiator lower support | 90480-22025 |
| 16571C | Radiator hose No. 1 | 16571-0Y110 · 16571-0Y160 |
| 16571D | No. 1 radiator hose clip | 90466-C0008 · 96136-43901 |
| 16572D | Radiator hose No. 2 | 16572-0Y090 |
| 16572E | No. 2 radiator hose clip | 90466-C0008 · 96136-43901 |
| 16581 | Hose clamp (for water hose) | 16581-47060 |
| 16711 | fan cover | 16711-0Y070 · 16711-0Y140 |
| 16832 | fan cover seal | 16561-0Y030 |
| 16851A | Fan cover side cover | 16851-0Y020 |
