Toyota YARIS Water Pump — Figure 1601

Toyota YARIS EPC diagram 1601, Water Pump, with 2 images and 3 PNC and OE references.

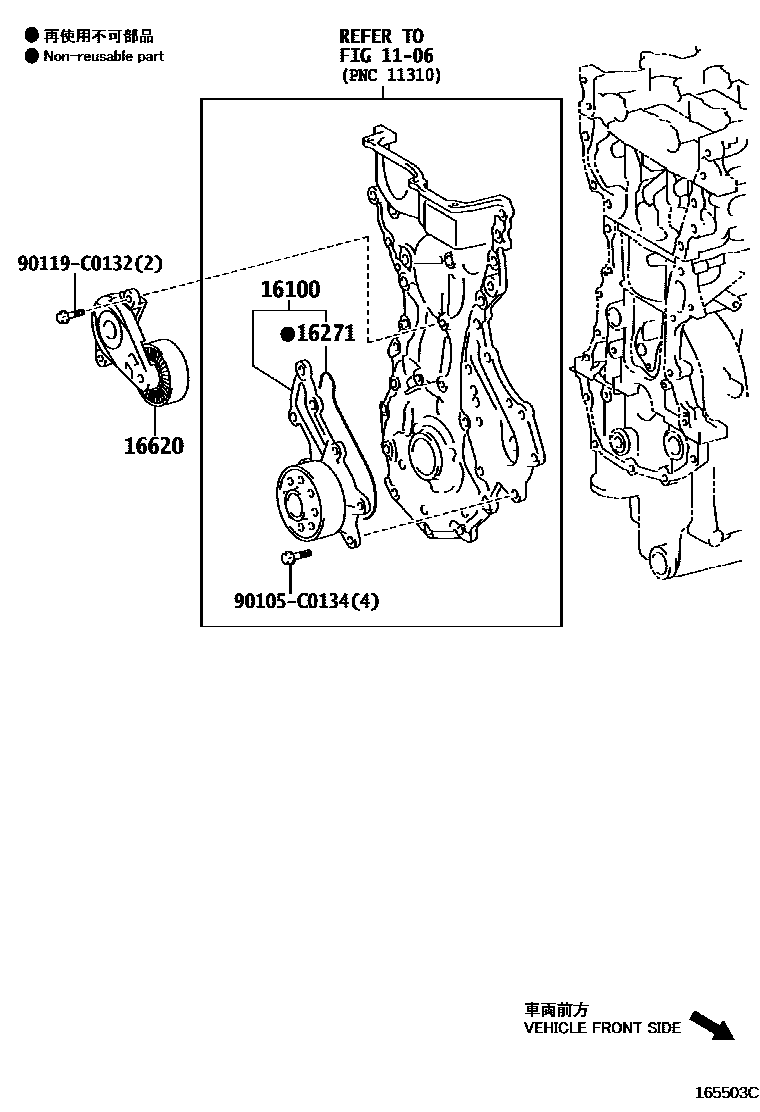

Toyota YARIS Water Pump EPC diagram — 165503C
Water Pump — 165503C (201312 – 999999)

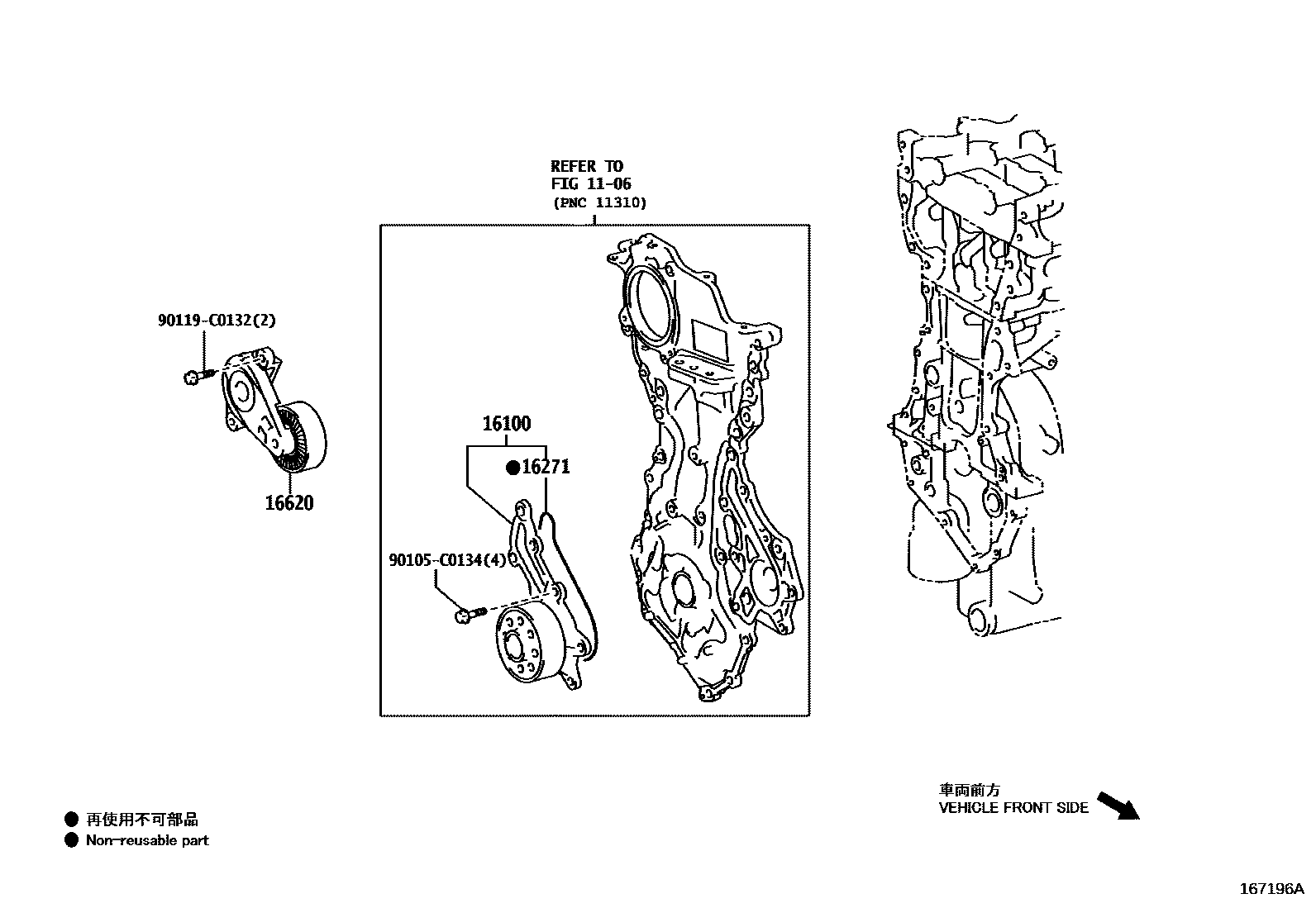

Toyota YARIS Water Pump EPC diagram — 167196A
Water Pump — 167196A (201812 – 999999)

PNC and OE references

PNCPart nameOE numbers
16100Engine water pump assembly16100-09630 · 16100-09790
16271water pump gasket16271-0Y020
16620Poly V-belt tensioner assembly16620-0Y010 · 16620-0Y040 · 16620-0Y042 · 16620-0Y043 · 16620-0Y044
