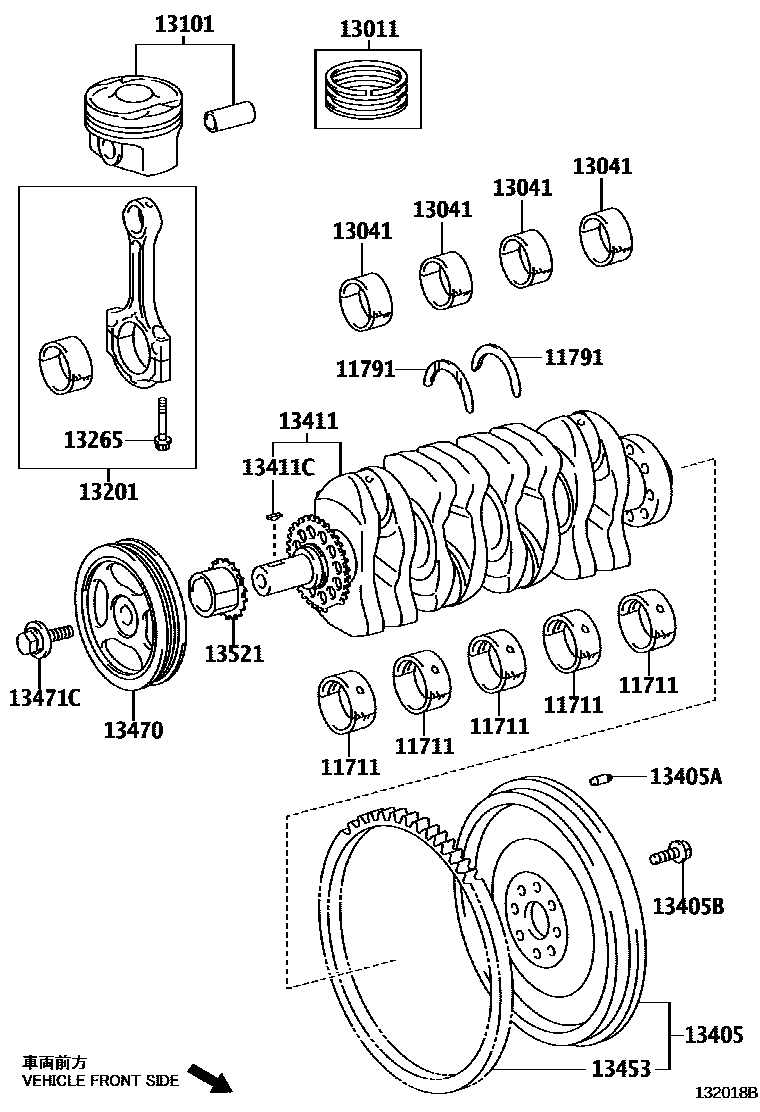

Toyota YARIS Crankshaft & Piston — Figure 1301
Toyota YARIS EPC diagram 1301, Crankshaft & Piston, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11791 | Thrust washer on crankshaft | 11791-0Y030 · 11791-0Y050 |
| 13011 | Piston ring assembly | 13011-0Y020 · 13011-0Y060 · 13011-0Y120 |
| 13101 | Piston sub-assembly with pin | 13101-0Y040 · 13101-0Y050 · 13101-0Y060 · 13101-0Y140 · 13101-0Y150 |
| 13201 | Connecting rod sub-assembly | 13201-09B20 · 13201-09B21 · 13201-09B30 · 13201-09B31 |
| 13265 | Connecting rod bolts | 13265-0Y030 · 13265-21020 |
| 13405 | Flywheel sub-assembly | 13405-0Y060 · 13405-0Y070 |
| 13405A | Direct sales (for flywheel) | 90250-C0011 |
| 13405B | Flywheel fixing bolt | 90913-01029 · 90913-C1001 |
| 13411 | crankshaft | 13401-0Y070 · 13401-0Y080 |
| 13411C | Direct sales (for crankshaft) | 90280-04001 · 90280-C0002 |
| 13453 | flywheel ring gear | 13453-0T010 |
| 13470 | Crankshaft wheel assembly | 13470-0Y010 · 13470-0Y060 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-C0124 · 90119-C0465 · 90119-C0499 |
| 13521 | Crankshaft timing gear or sprocket | 13521-0Y030 |
