Toyota YARIS Ventilation Hose — Figure 1201

Toyota YARIS EPC diagram 1201, Ventilation Hose, with 3 images and 10 PNC and OE references.

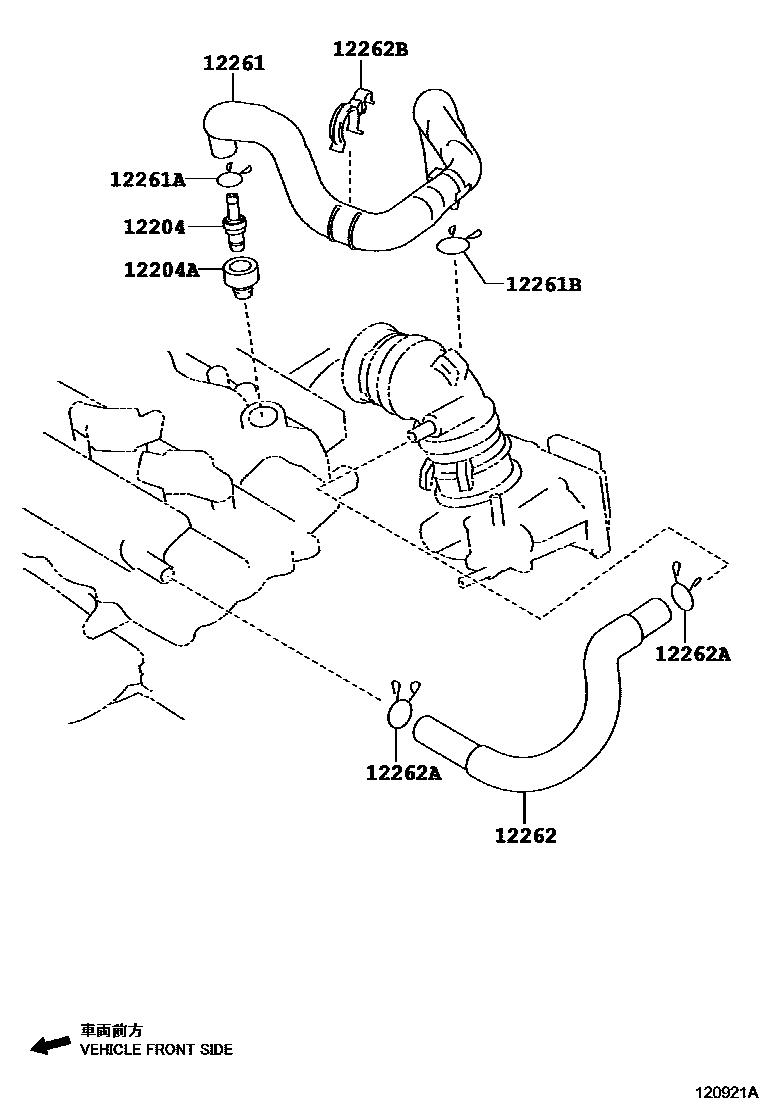

Toyota YARIS Ventilation Hose EPC diagram — 120921A
Ventilation Hose — 120921A (201312 – 201608)

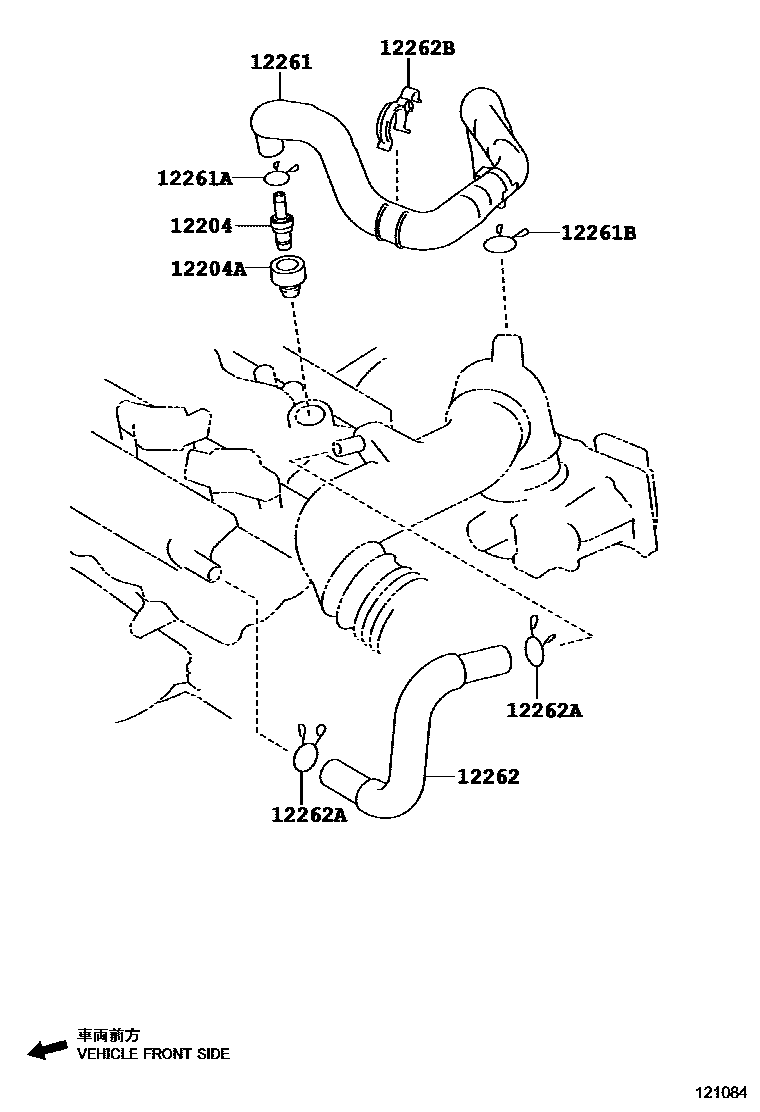

Toyota YARIS Ventilation Hose EPC diagram — 121084
Ventilation Hose — 121084 (201608 – 999999)

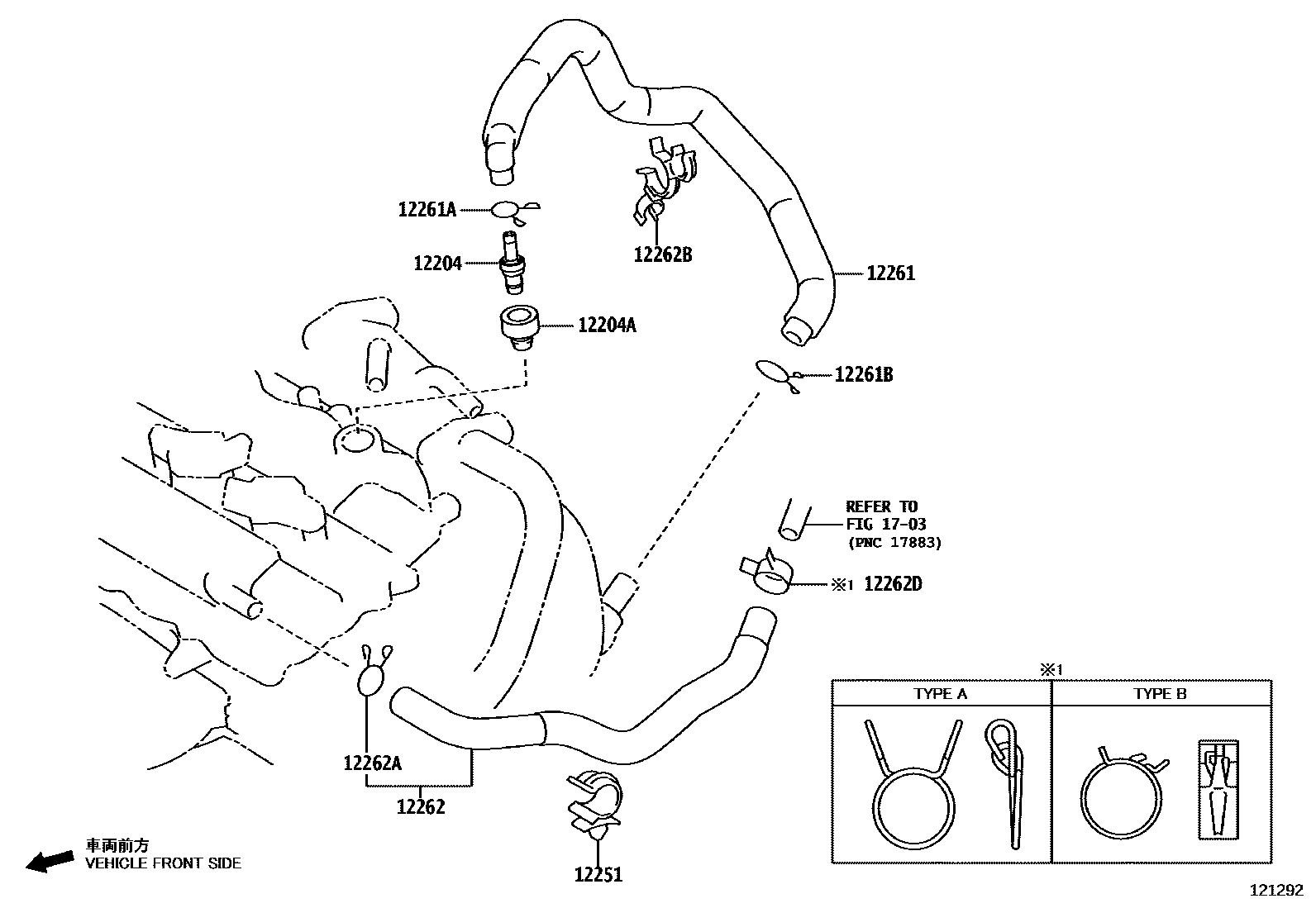

Toyota YARIS Ventilation Hose EPC diagram — 121292
Ventilation Hose — 121292 (201812 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-47070 · 12204-47090 · 12204-47110
12204AGasket (for ventilation system)11249-47020 · 90480-18016
12251Ventilation duct clamp12251-0Y010
12261Ventilation Hose12261-0Y030 · 12261-0Y090
12261AClip or clip (for vent hose)90467-16035
12261BClip or clip (for vent hose)90467-23002
12262Ventilation hose No. 212262-0Y070 · 12262-0Y120 · 12262-0Y160
12262AClamp (for vent hose No. 2)90467-21004
12262BClamp (for ventilation hose)16581-0Y060 · 16581-0Y070 · 16581-47040
12262DClamp (for vent hose No. 2)90467-21004 · 96136-42201
