Toyota YARIS Timing Gear Cover & Rear End Plate — Figure 1106

Toyota YARIS EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 3 PNC and OE references.

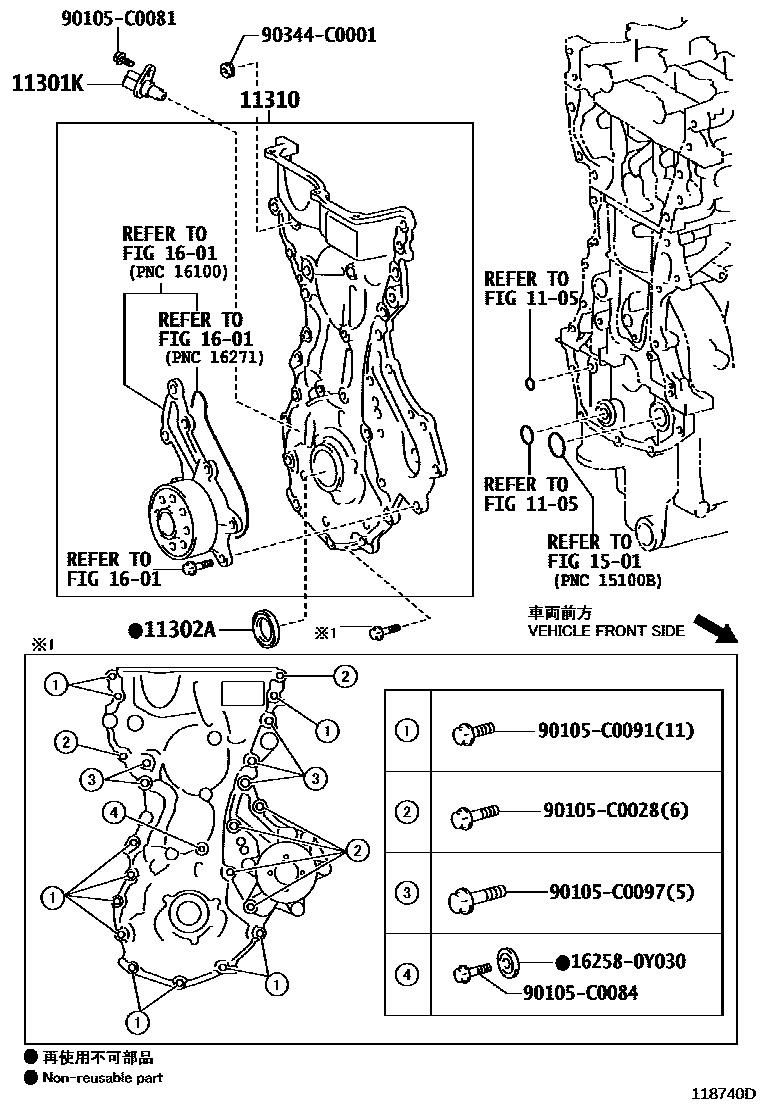

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 118740D
Timing Gear Cover & Rear End Plate — 118740D (201312 – 999999)

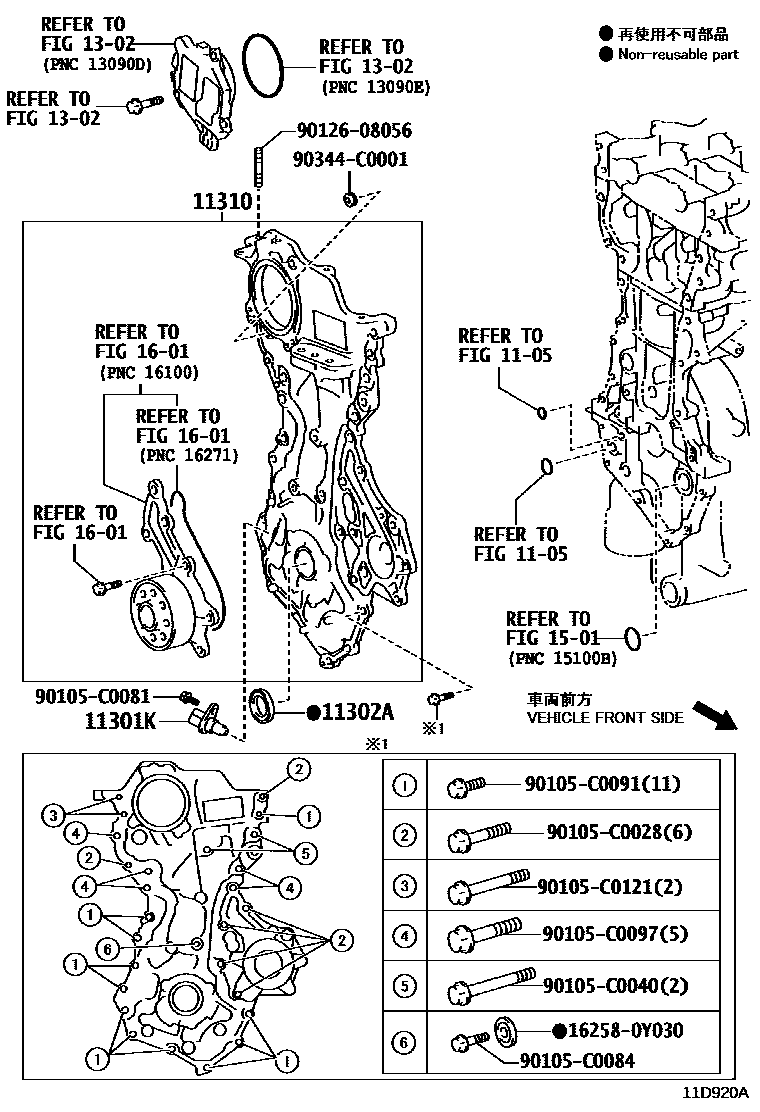

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 11D920A
Timing Gear Cover & Rear End Plate — 11D920A (201812 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301Kcrankshaft position sensor90919-05073 · 90919-05079 · 90919-C5003
11302AOil seal (for timing chain or timing belt cover)90311-C0020
11310Timing chain cover assembly11310-0Y030 · 11310-0Y120
