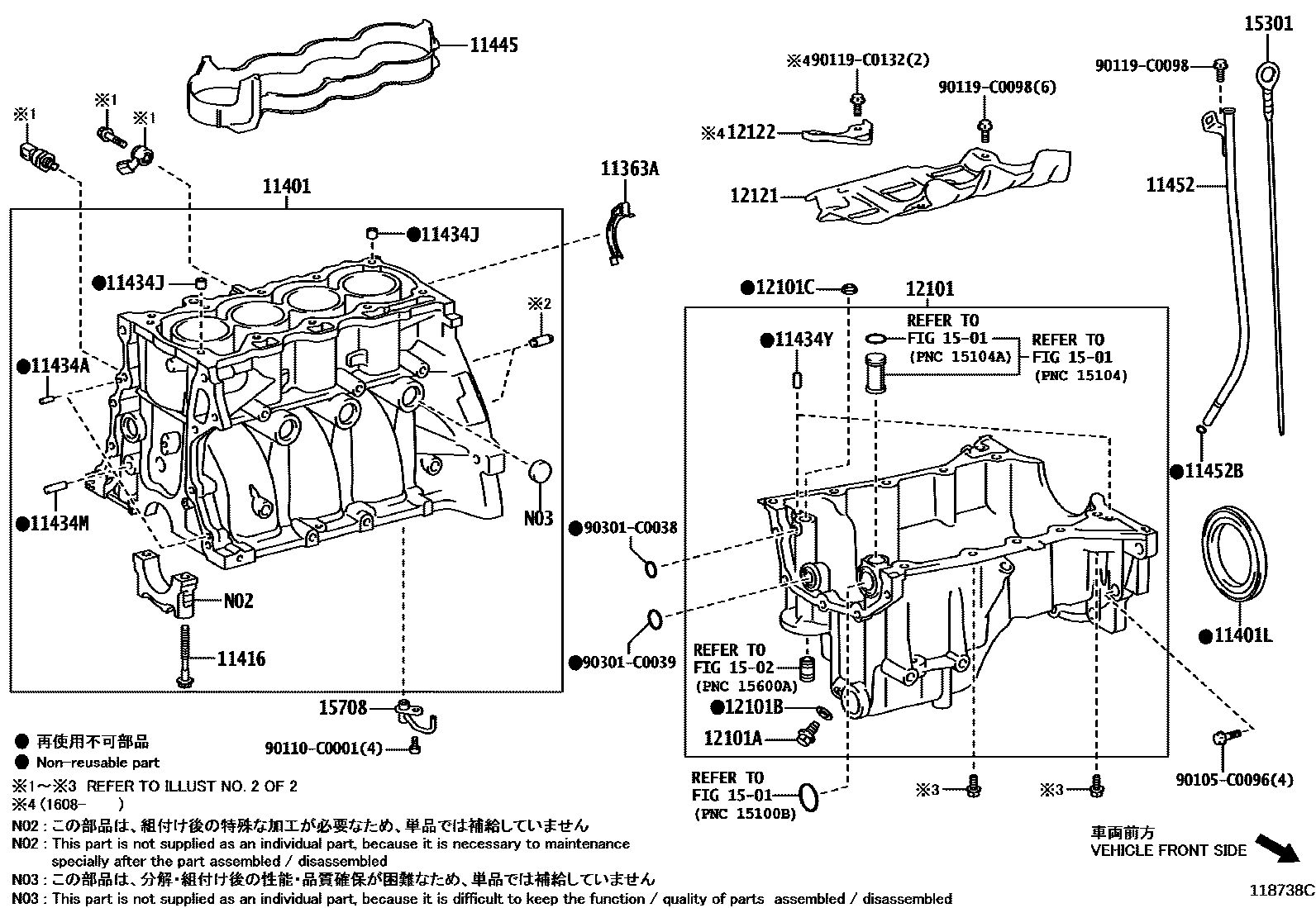

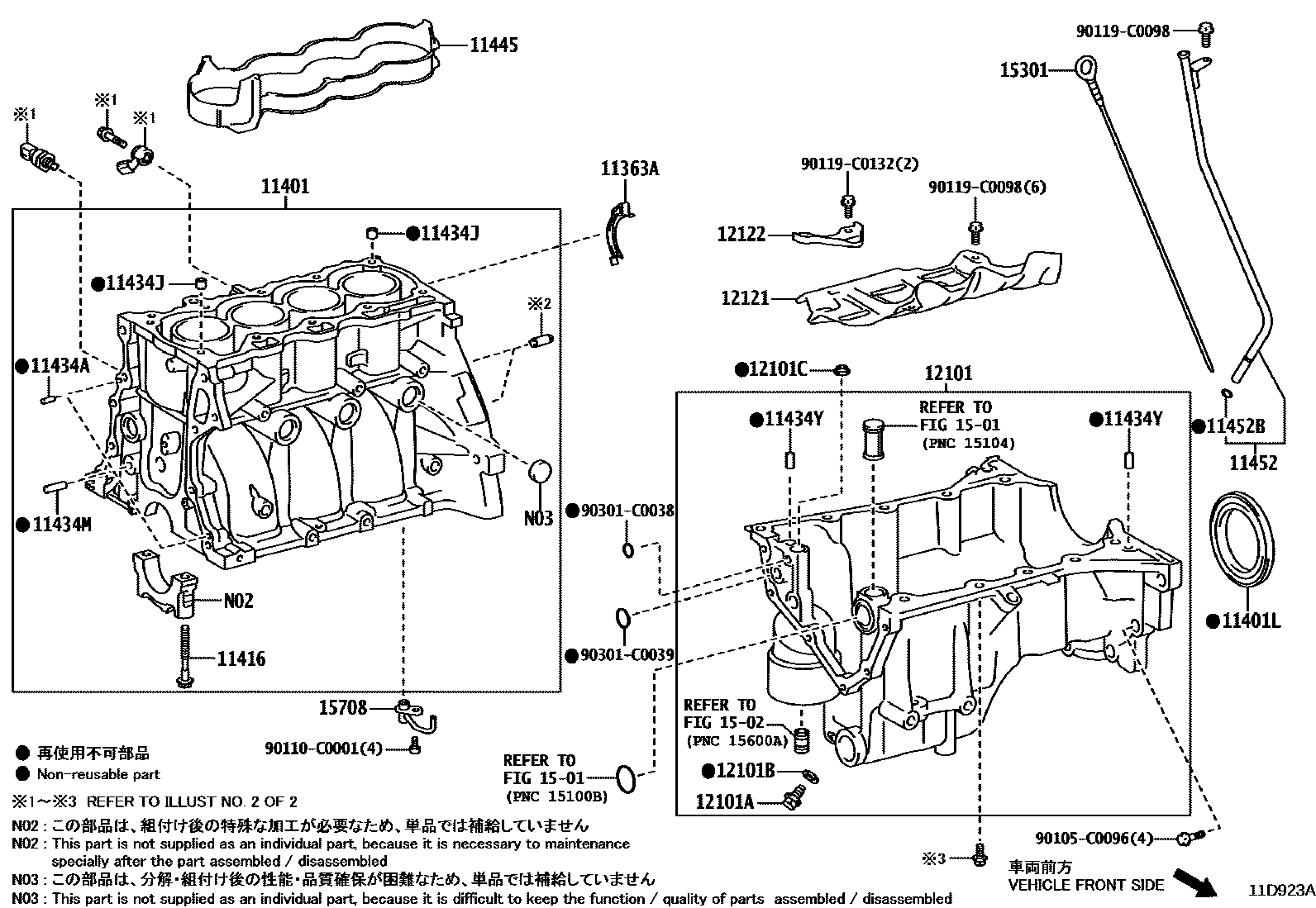

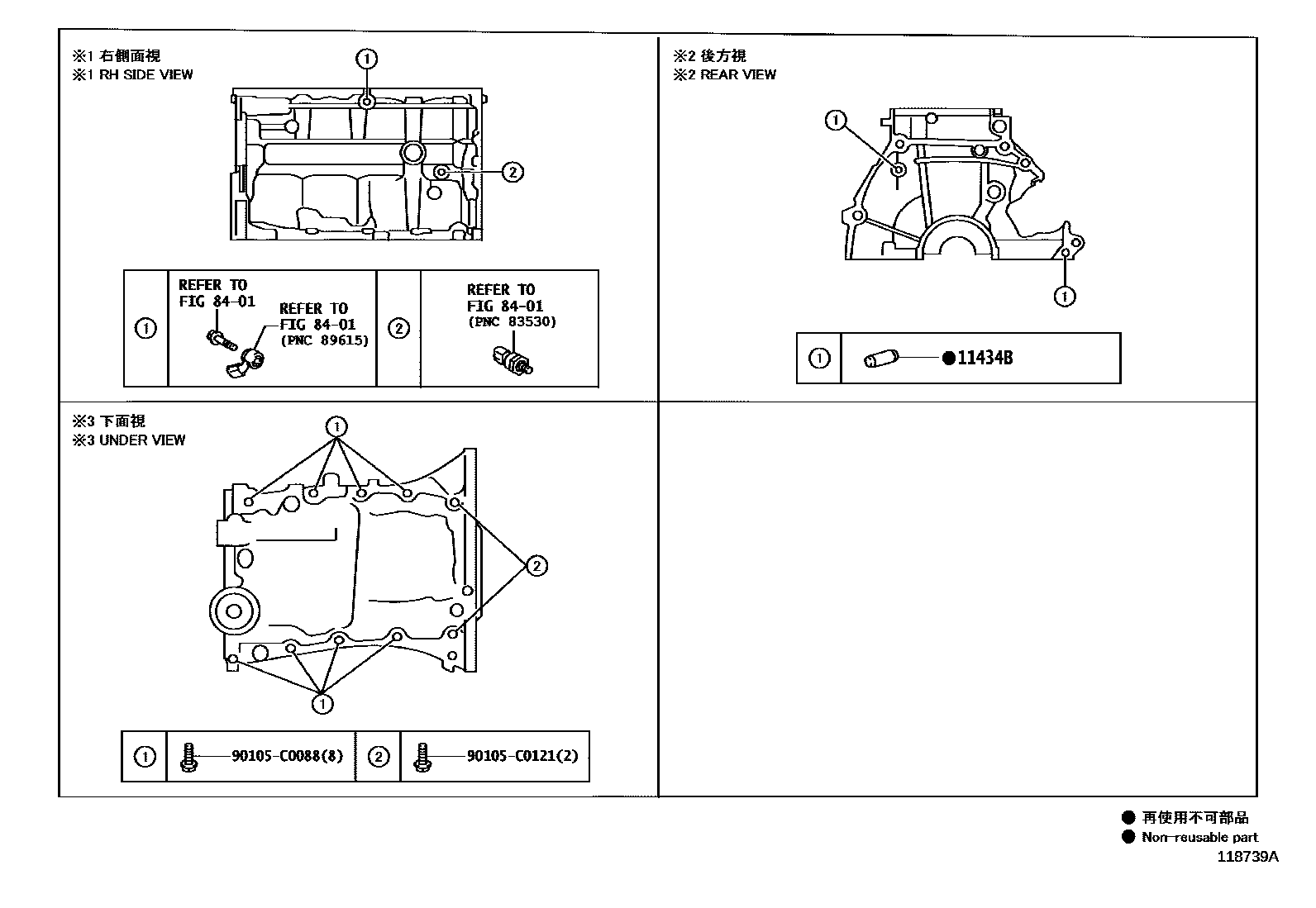

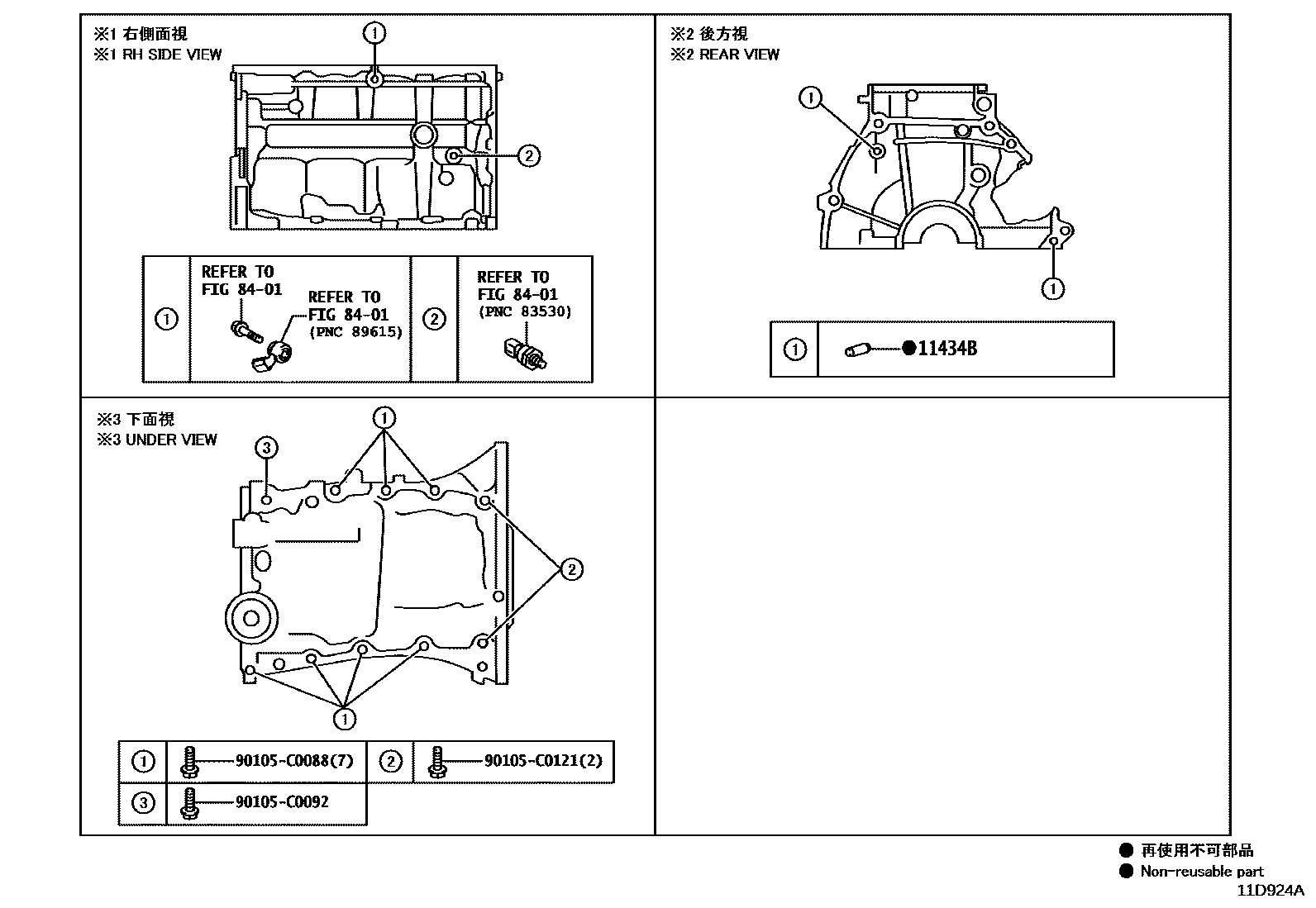

Toyota YARIS Cylinder Block — Figure 1105
Toyota YARIS EPC diagram 1105, Cylinder Block, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11363A | Flywheel housing side cover | 11363-40010 |
| 11401 | Cylinder block sub-assembly | 11410-09610 · 11410-09611 · 11410-09620 · 11410-09621 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-C0019 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02175 · 90910-C2008 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-C0009 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-C0012 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-C0006 |
| 11434M | Direct pin (for chain tensioner) | 90250-C0006 |
| 11434Y | Direct sales (for oil pan) | 90250-C0011 |
| 11445 | Cylinder block water jacket spacer | 11445-0Y010 |
| 11452 | Engine oil level gauge guide | 11452-0Y010 · 11452-0Y070 |
| 11452B | O-ring (for oil level gauge guide) | 90301-C0007 |
| 12101 | Oil pan sub-assembly | 12101-0Y030 · 12101-0Y120 · 12101-0Y140 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12032 |
| 12101B | Gasket (for oil pan drain plug) | 90430-C0005 |
| 12101C | O-ring (for oil pan) | 90430-C0003 |
| 12121 | No. 1 oil pan baffle | 12121-0Y020 · 12121-0Y080 |
| 12122 | No. 2 oil pan baffle | 12122-0Y040 |
| 15301 | Engine oil level scoring assembly | 15301-0Y030 · 15301-0Y100 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-47031 · 15708-47080 · 15708-47081 |
