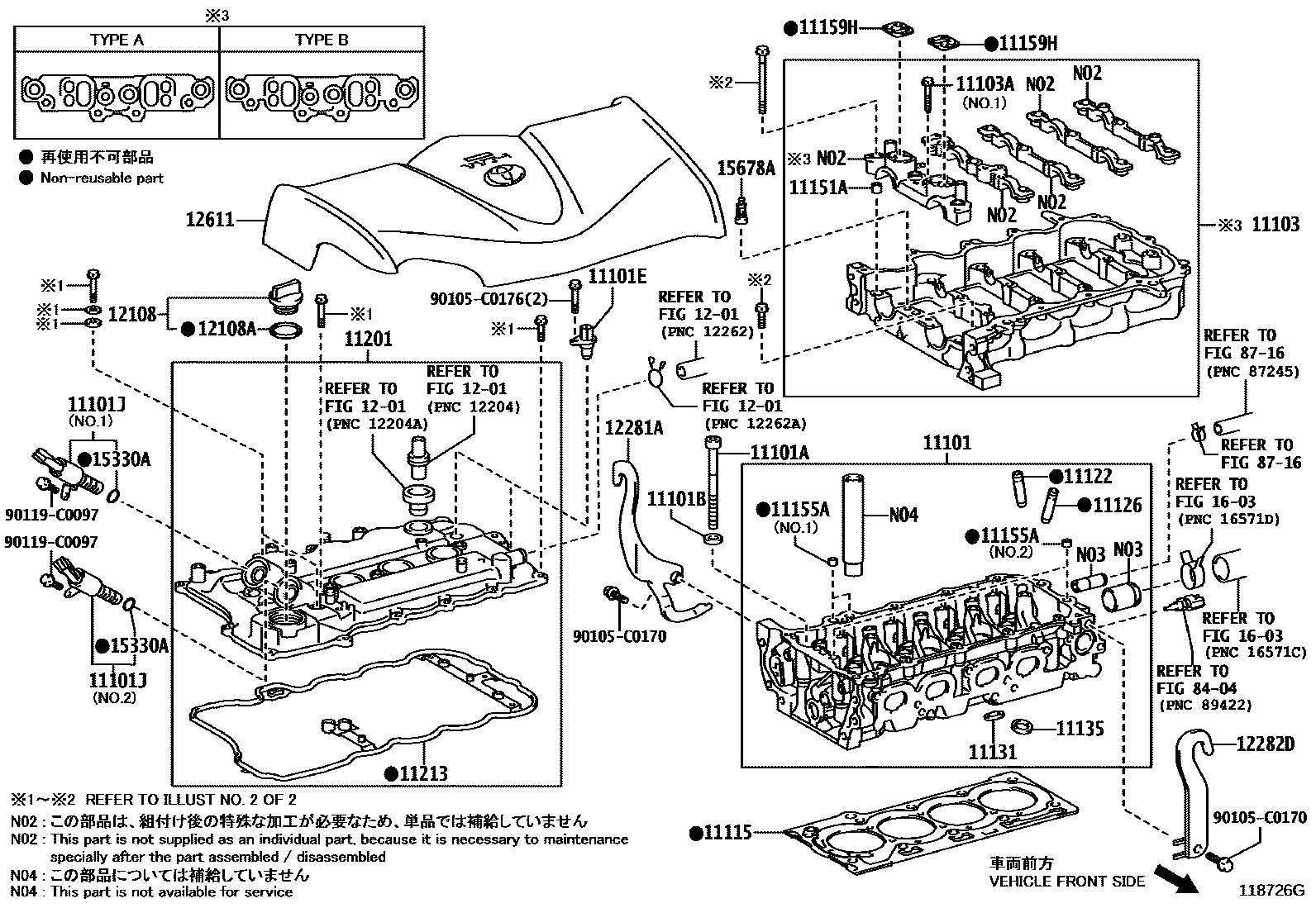

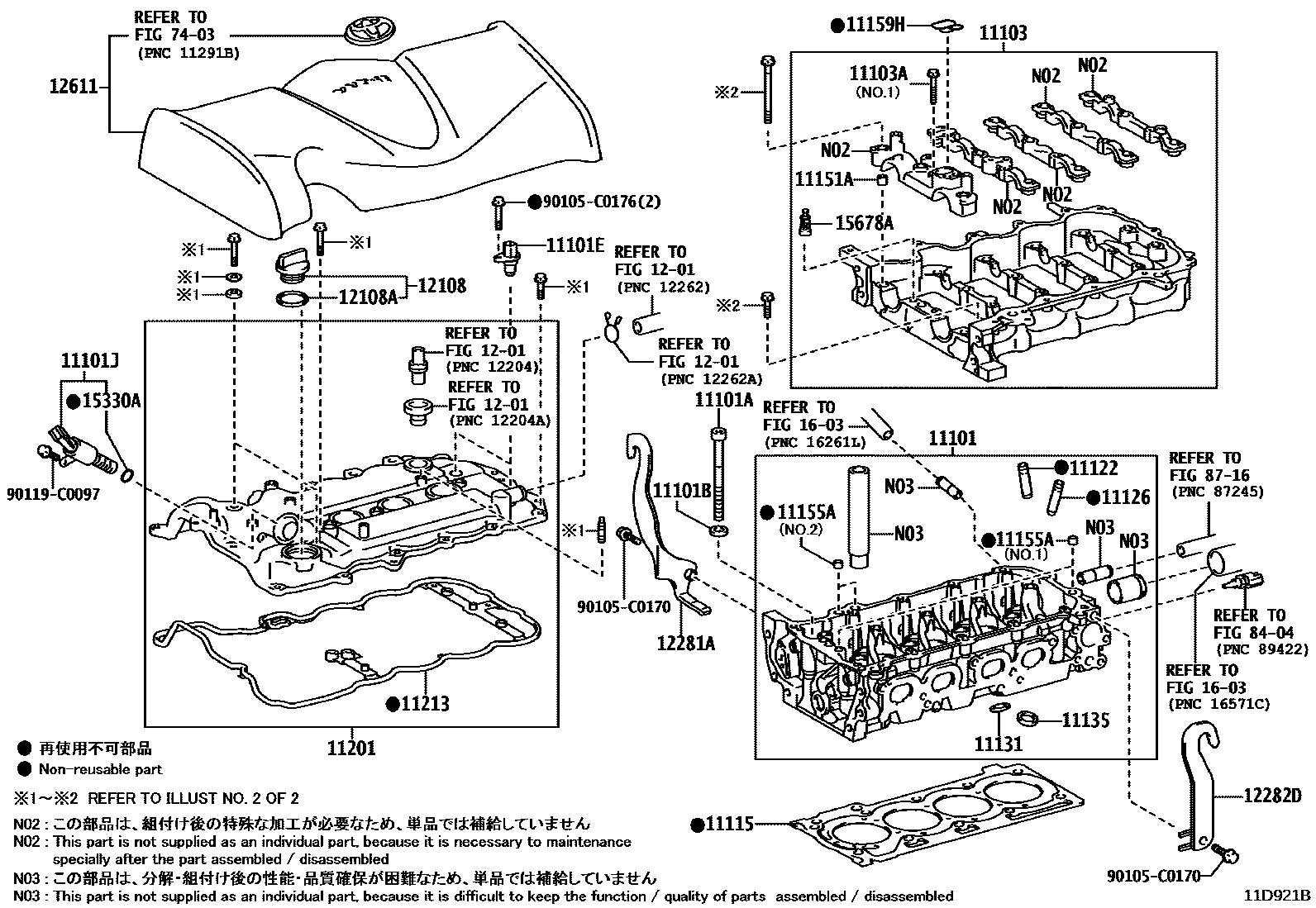

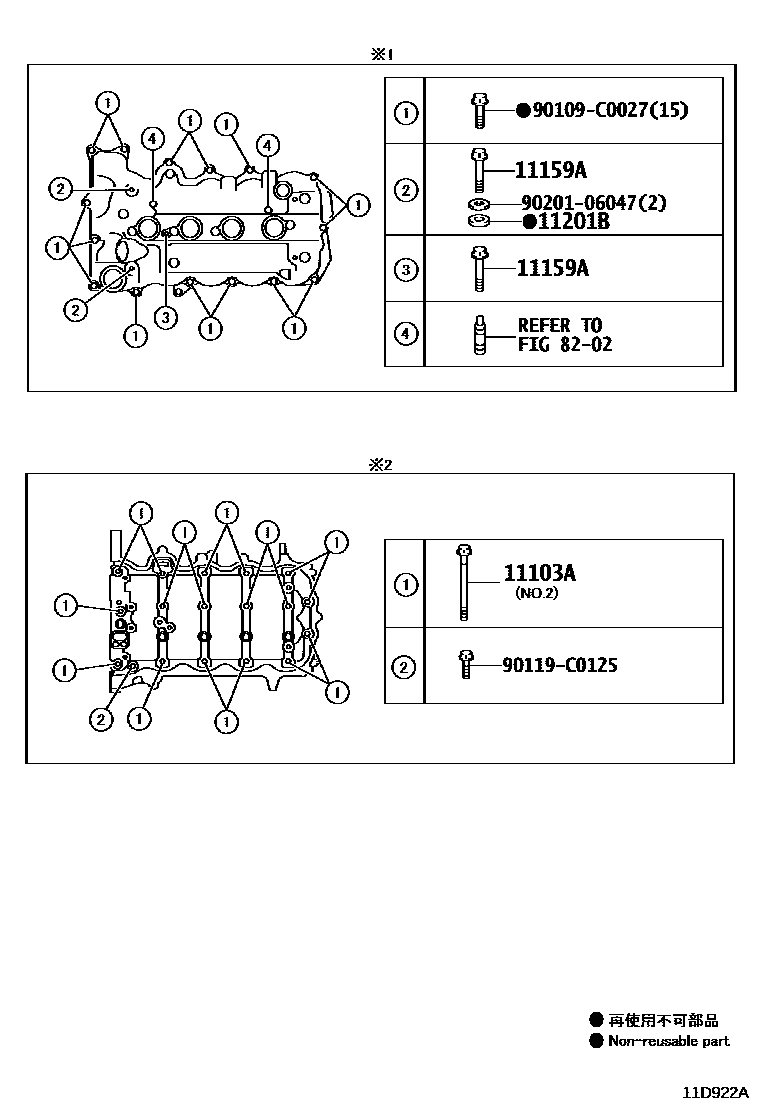

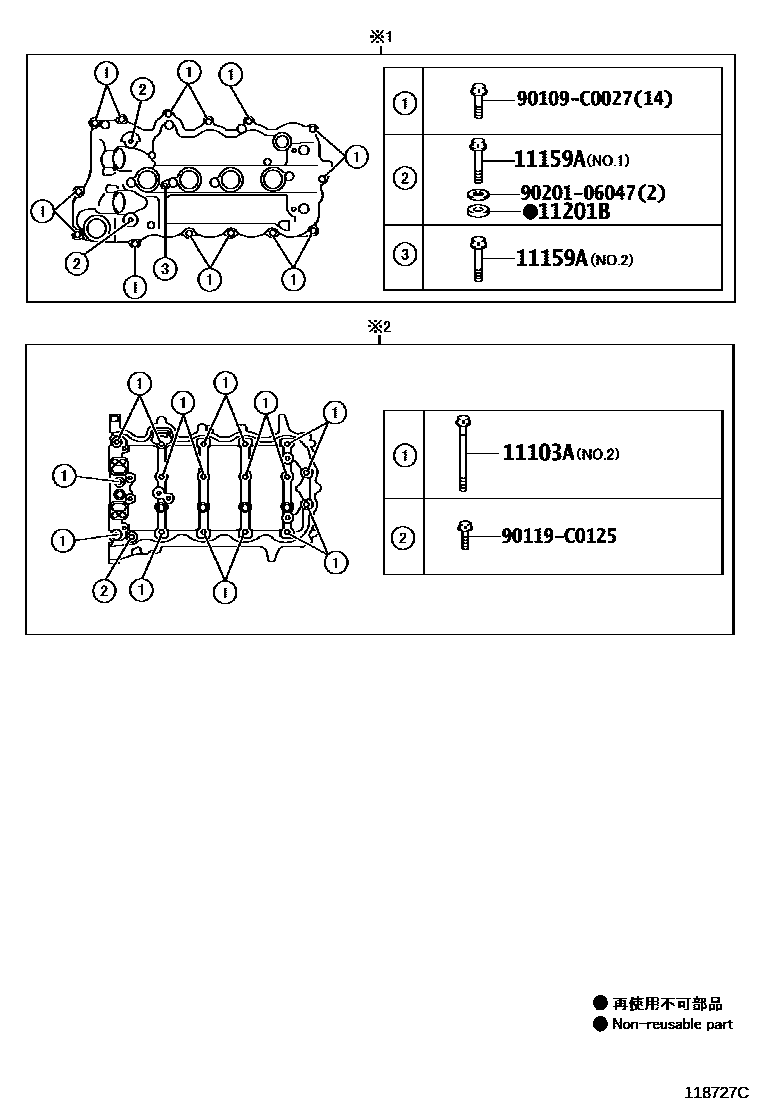

Toyota YARIS Cylinder Head — Figure 1104
Toyota YARIS EPC diagram 1104, Cylinder Head, with 4 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-09500 · 11101-09680 · 11101-09750 · 11101-49535 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02174 · 90910-C2007 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-C0002 |
| 11101E | Cam position sensor | 90919-05060 · 90919-C5001 |
| 11101J | Camshaft timing oil control valve assembly | 15330-0Y010 · 15330-0Y020 |
| 11103 | Camshaft housing sub-assembly | 11103-0Y030 · 11103-0Y031 · 11103-0Y110 · 11103-47041 |
| 11103A | Bolts (for camshaft housing assembly) | 90105-C0167 · 90119-07009 · 90119-C0469 |
| 11115 | GASKET, CYLINDER HEAD | 11115-0Y020 · 11115-0Y021 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-47010 · 11123-47010 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-47010 · 11123-47010 |
| 11131 | intake valve seat | 11131-0Y010 · 11131-47010 · 11132-47010 |
| 11135 | Exhaust valve seat | 11135-0Y010 · 11135-47040 · 11136-47010 |
| 11151A | Ring pin (for securing camshaft bearing cap) | 90253-13005 · 90253-C0004 |
| 11155A | PIN, RING W/HEAD | 90253-C0002 · 90253-C0005 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90105-C0084 · 90105-C0176 |
| 11159H | Camshaft bearing cover oil hole gasket | 11159-0Y010 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-0Y020 · 11201-0Y130 · 11201-0Y140 |
| 11201B | Gasket (for cylinder head cover) | 90210-12011 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-0Y020 · 11213-0Y050 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-0T010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-35001 |
| 12281A | Engine No. 1 hanger | 12281-0Y021 · 12281-0Y050 |
| 12282D | ENGINE HANGER, NO.2 | 12282-0Y031 |
| 12611 | Engine hood No. 1 | 12611-0Y070 · 12611-0Y121 · 12611-0Y180 · 12611-0Y260 |
| 15330A | O-ring (for camshaft timing oil control valve) | 90068-14032 |
| 15678A | Oil control valve filter | 15678-0Y040 · 15678-31020 |
