Toyota YARIS Engine Overhaul Gasket Kit — Figure 1103

Toyota YARIS EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

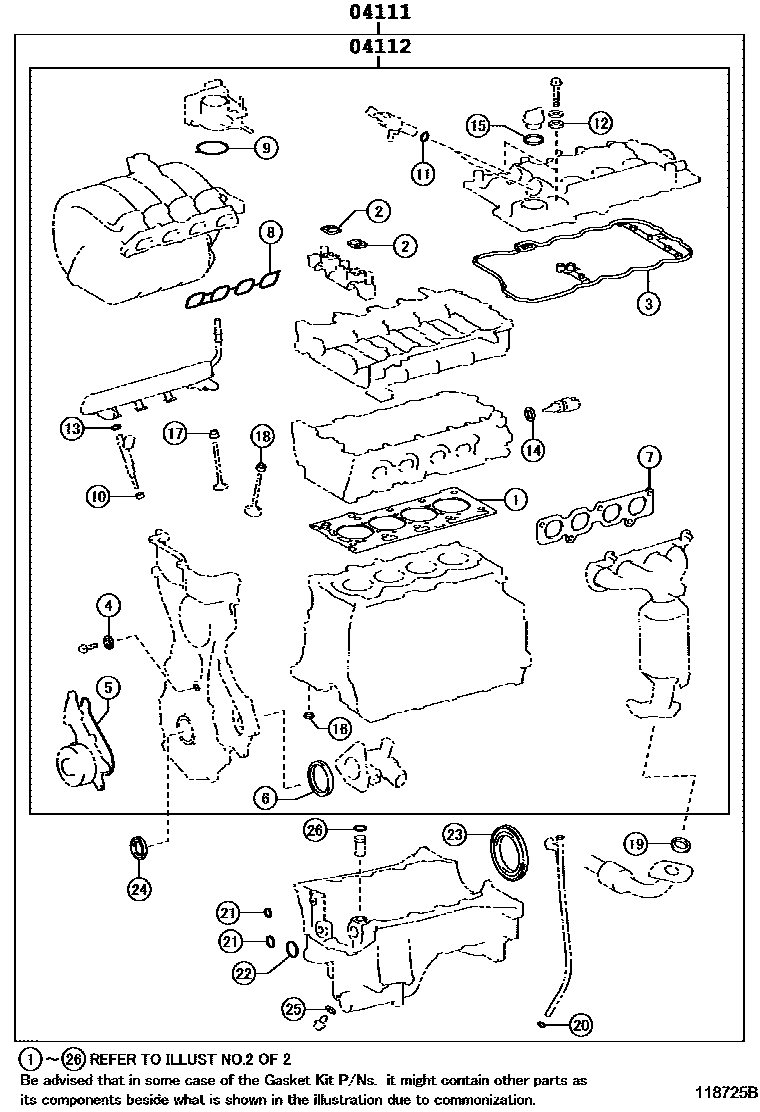

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 118725B
Engine Overhaul Gasket Kit — 118725B (201312 – 201608)

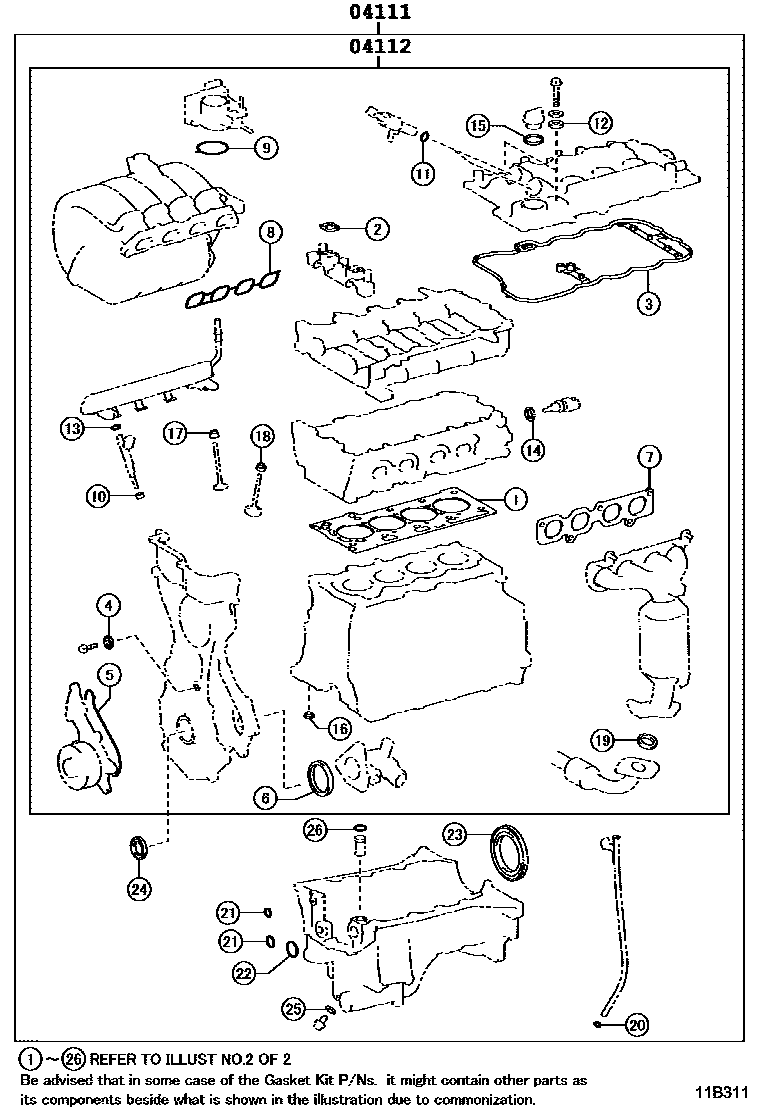

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11B311A
Engine Overhaul Gasket Kit — 11B311A (201608 – 999999)

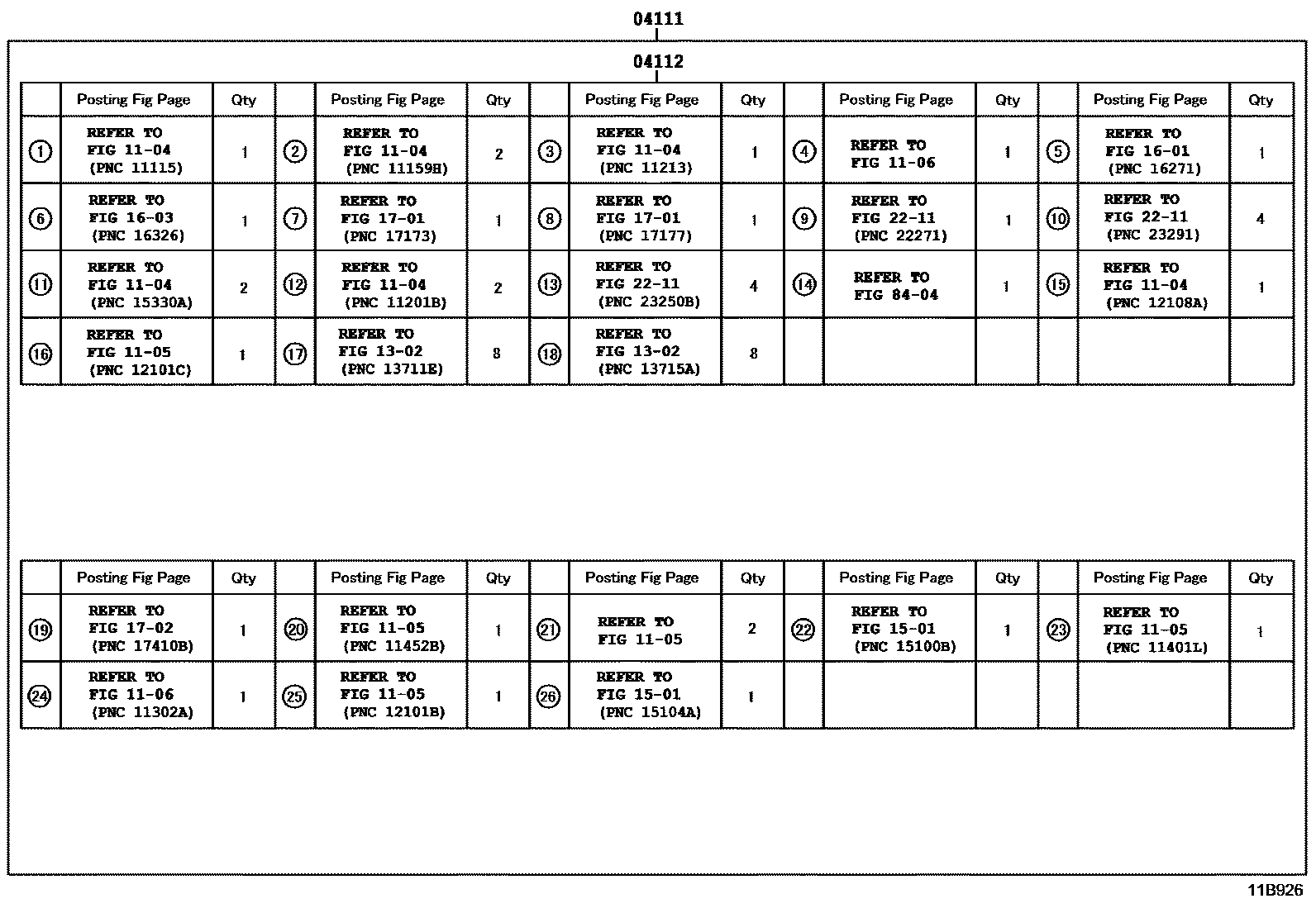

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11B926
Engine Overhaul Gasket Kit — 11B926 (201312 – 201608)

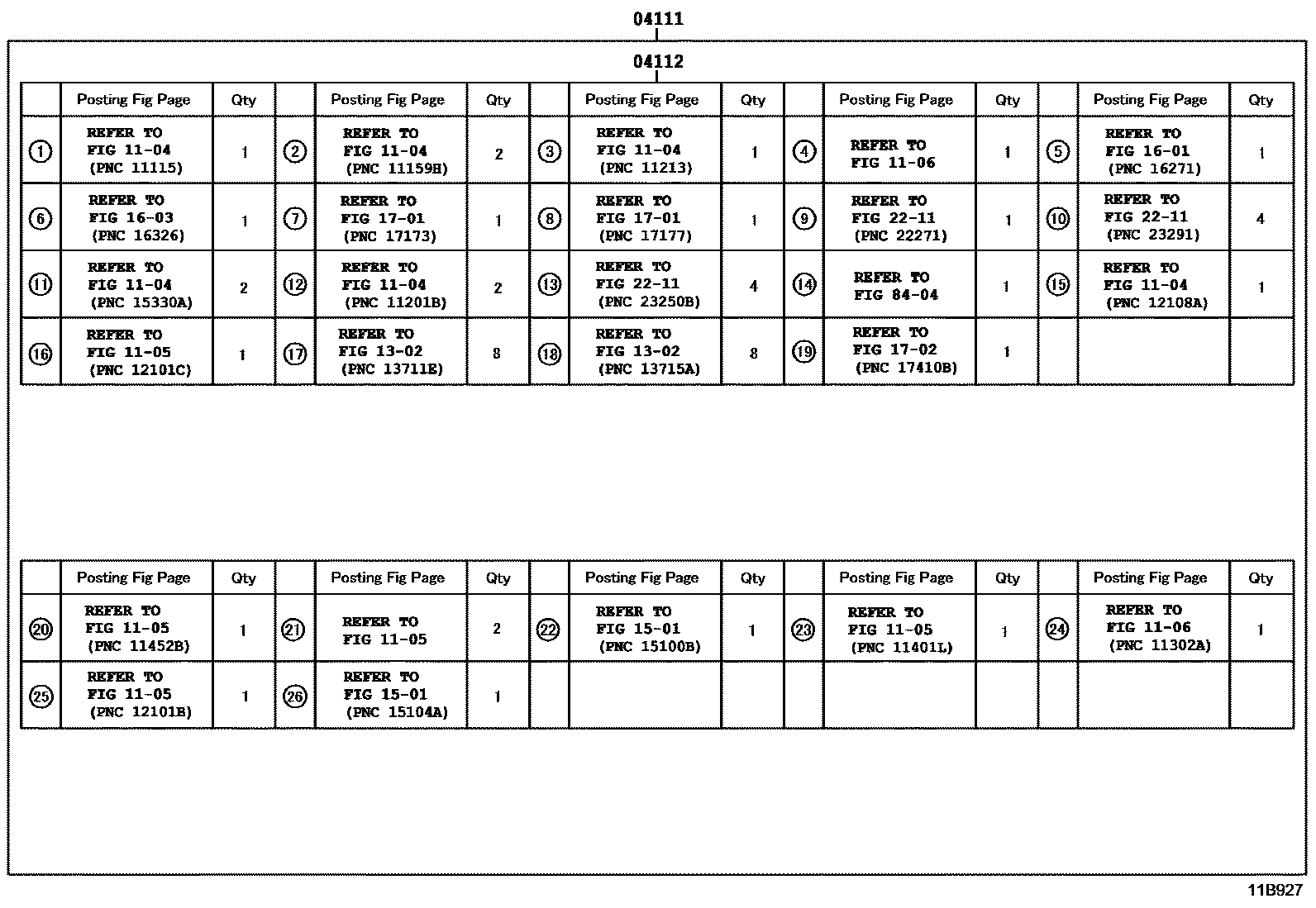

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11B927
Engine Overhaul Gasket Kit — 11B927 (201608 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0Y020 · 04111-0Y090 · 04111-0Y091 · 04111-0Y140 · 04111-0Y141
04112Engine valve grinding pad assembly04112-0Y020 · 04112-0Y090 · 04112-0Y091 · 04112-0Y140 · 04112-0Y141
