Toyota YARIS Short Block Assembly — Figure 1102

Toyota YARIS EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

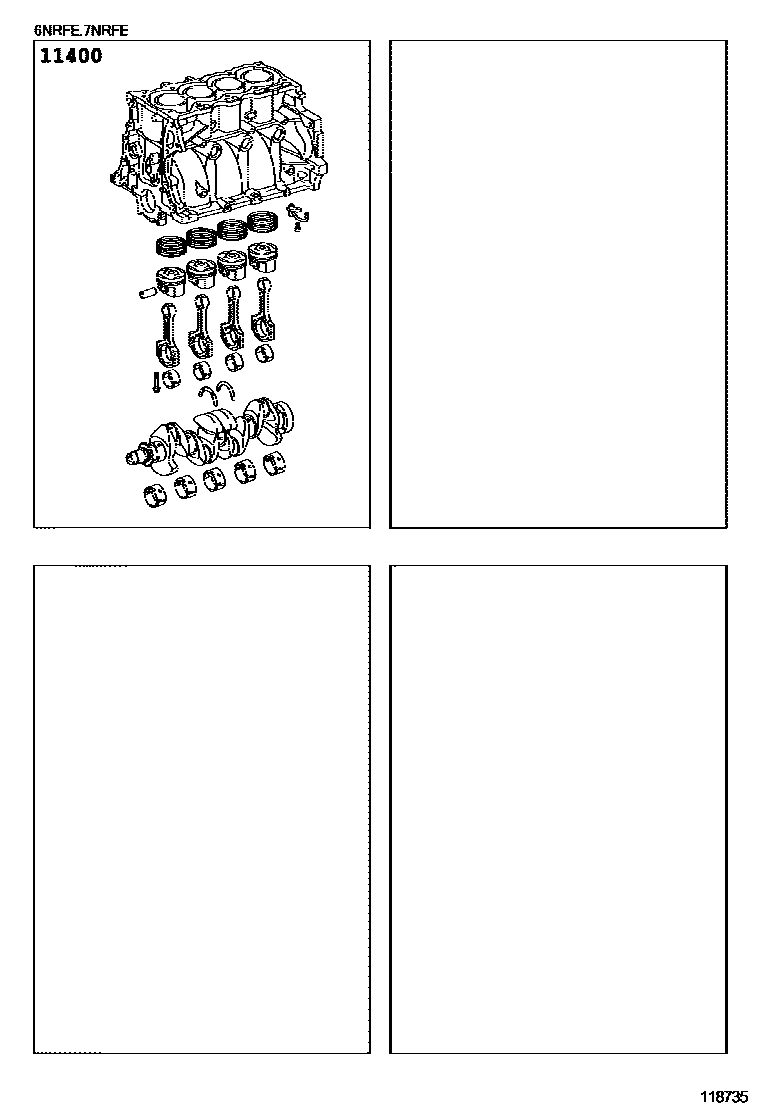

Toyota YARIS Short Block Assembly EPC diagram — 118735
Short Block Assembly — 118735 (201312 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-0Y080 · 11400-0Y090 · 11400-0Y190 · 11400-0Y250
