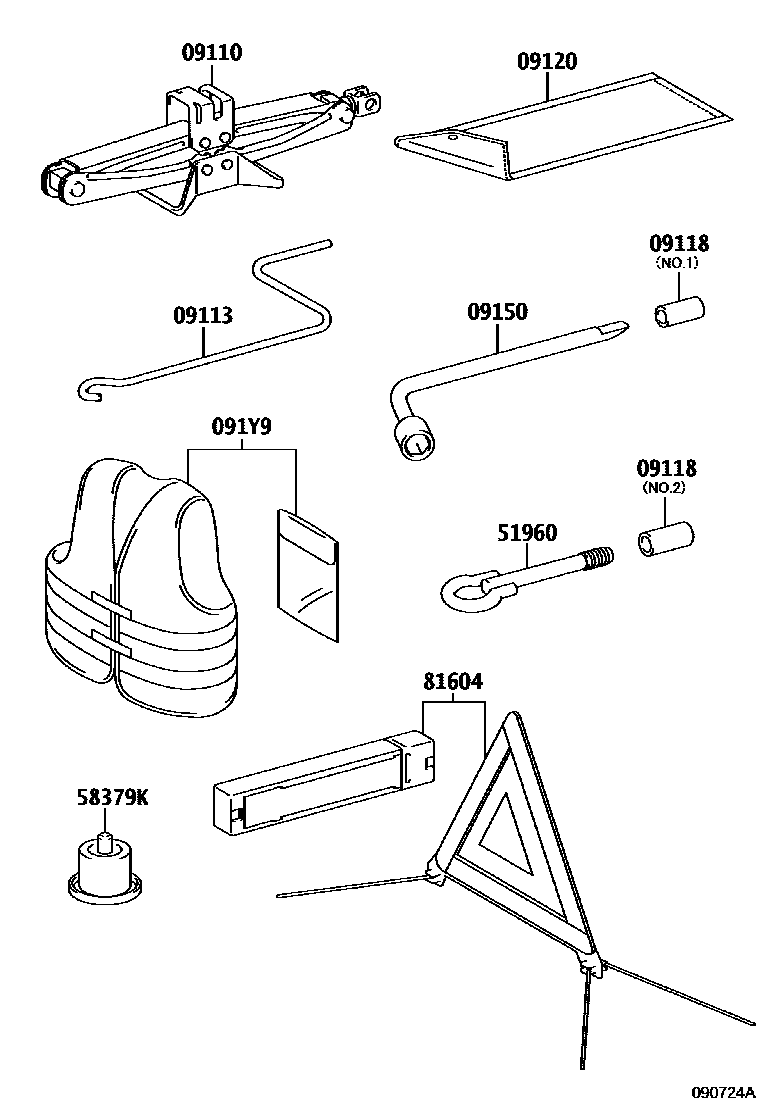

Toyota YARIS Standard Tools — Figure 0901
Toyota YARIS EPC diagram 0901, Standard Tools, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-0D150 |
| 09113 | Jack Handle | 09113-0D021 |
| 09118 | jack cover | 09118-0D050 · 09118-0D060 |
| 09120 | Tool Bag | 09120-0D170 |
| 09150 | Wheel Nut Wrench Case | 09150-0D020 |
| 091Y9 | Sheath with reflector | 091Y9-02010 |
| 51960 | Front Towing Hook Assembly | 51960-0D200 |
| 58379K | Body lower back panel protection parts | 58379-0D050 |
| 81604 | Triangular reflector assembly | 81604-0E010 |
