Toyota YARIS Heating & Air Conditioning - Cooler Piping — Figure 8718

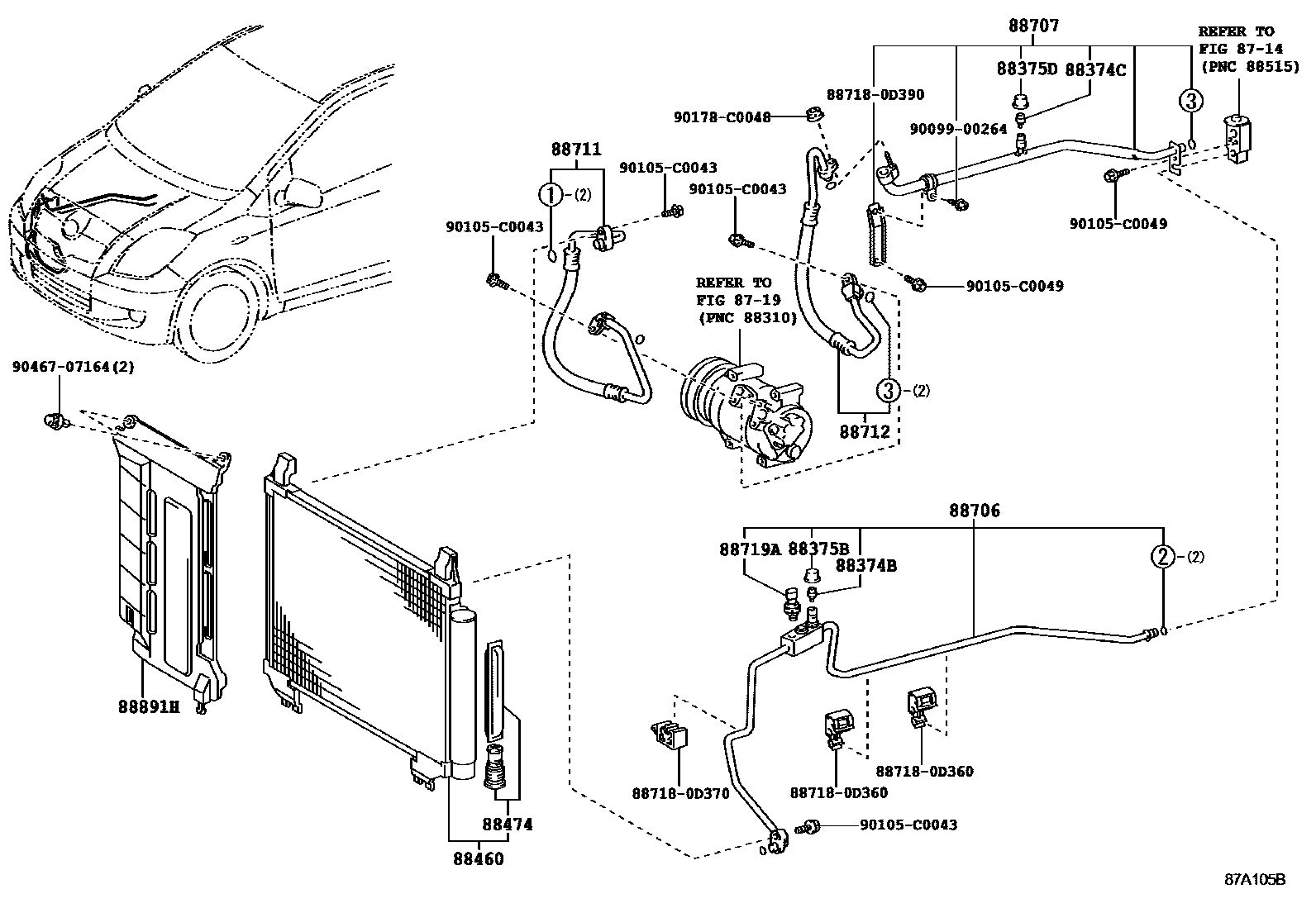

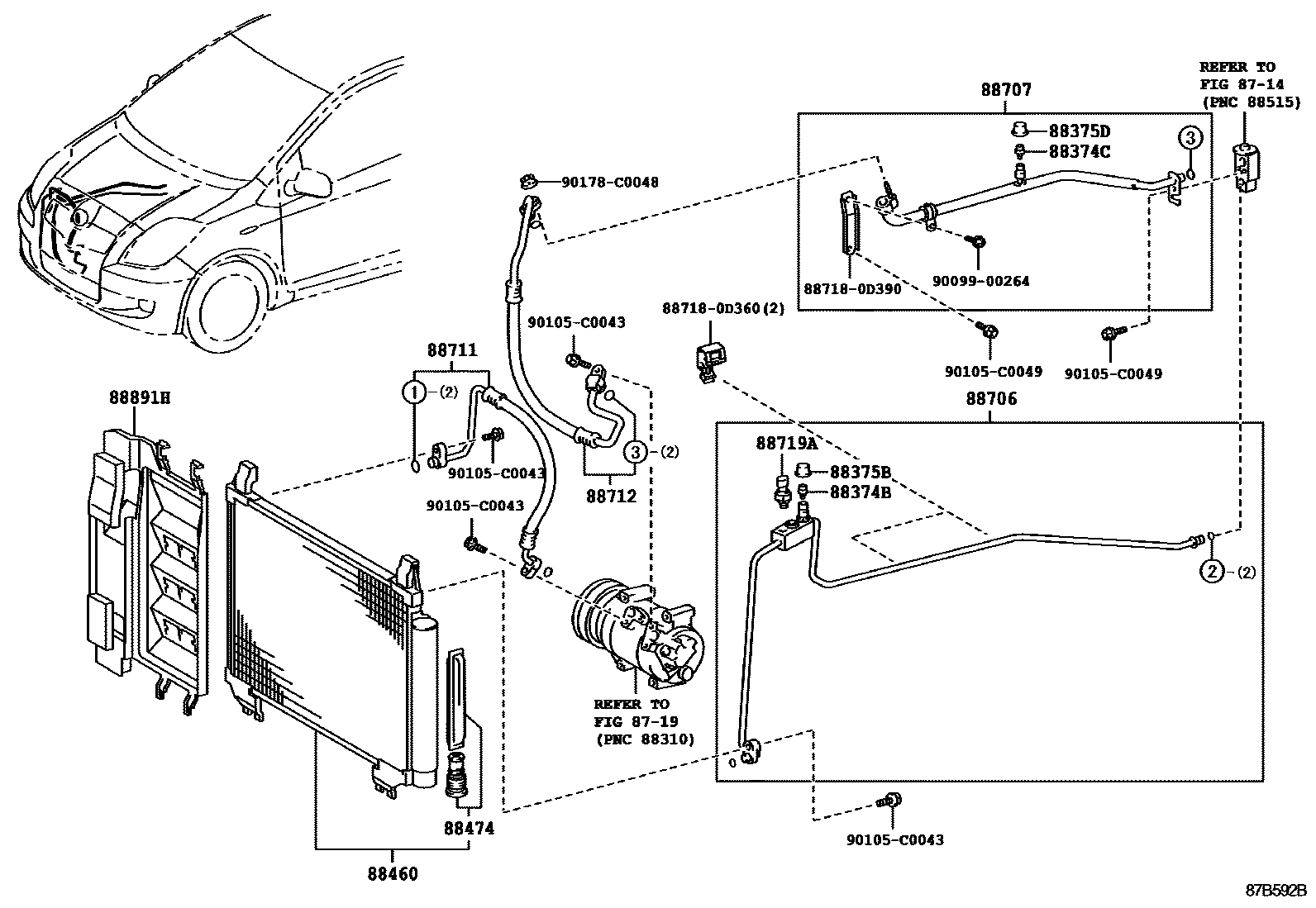

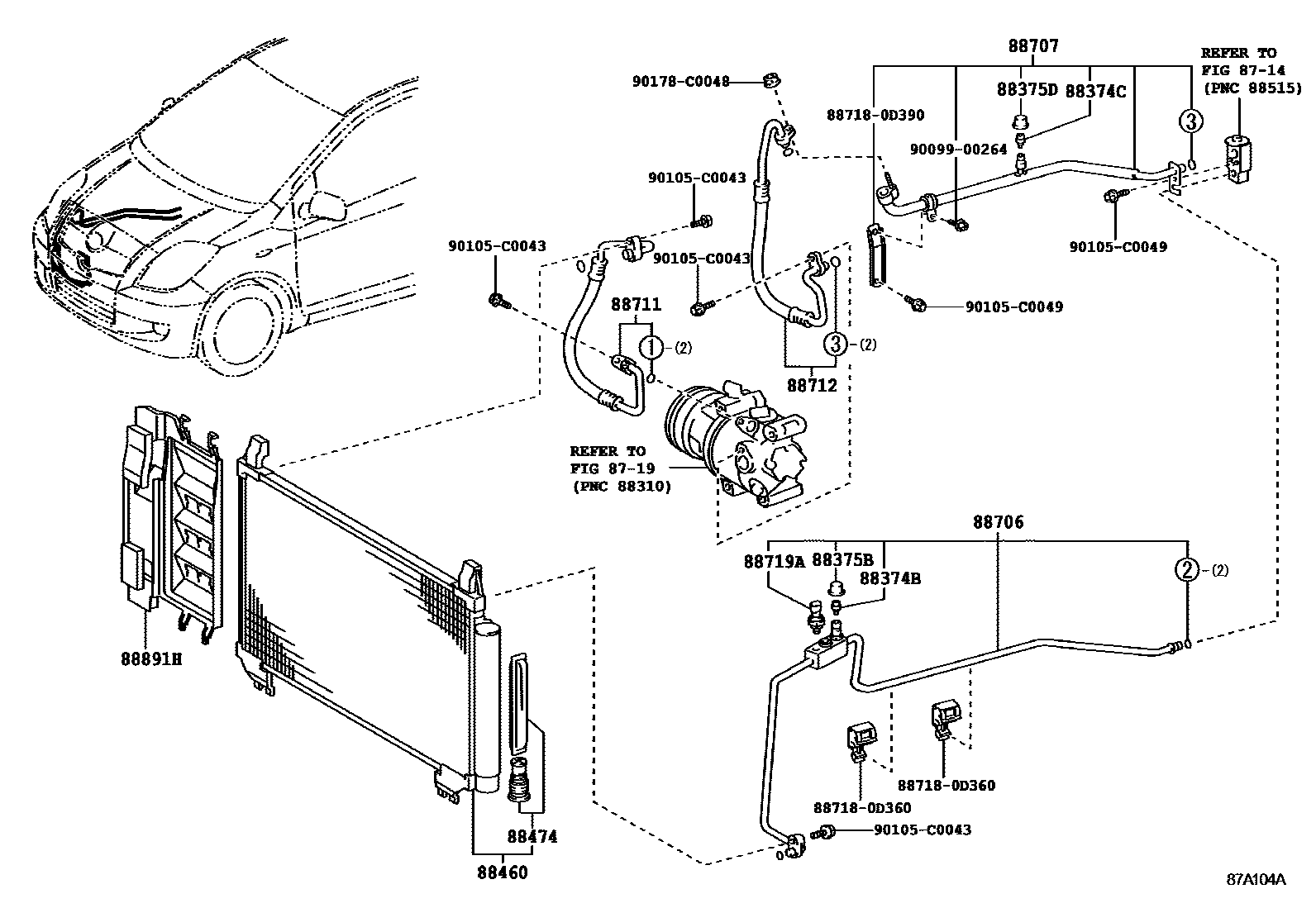

Toyota YARIS EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 4 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30280 |
| 88375D | No. 2 maintenance valve cover | 88375-30290 |
| 88460 | Air conditioning condenser assembly | 88460-0D140 · 88460-0D150 |
| 88474 | cooler dryer | 88474-17010 |
| 88706 | Liquid pipe sub-assembly | 88706-0D320 · 88706-0D321 · 88706-0D330 · 88706-0D430 |
| 88707 | Suction pipe sub-assembly | 88707-0D170 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-0D230 · 88711-0D240 · 88711-0D360 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-0D291 · 88712-0D300 · 88712-0D460 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
| 88891H | Cooler cover No. 1 | 88891-0D140 · 88891-0D150 |
