Toyota YARIS 暖风和空调系统 - 水管 — Figure 8716

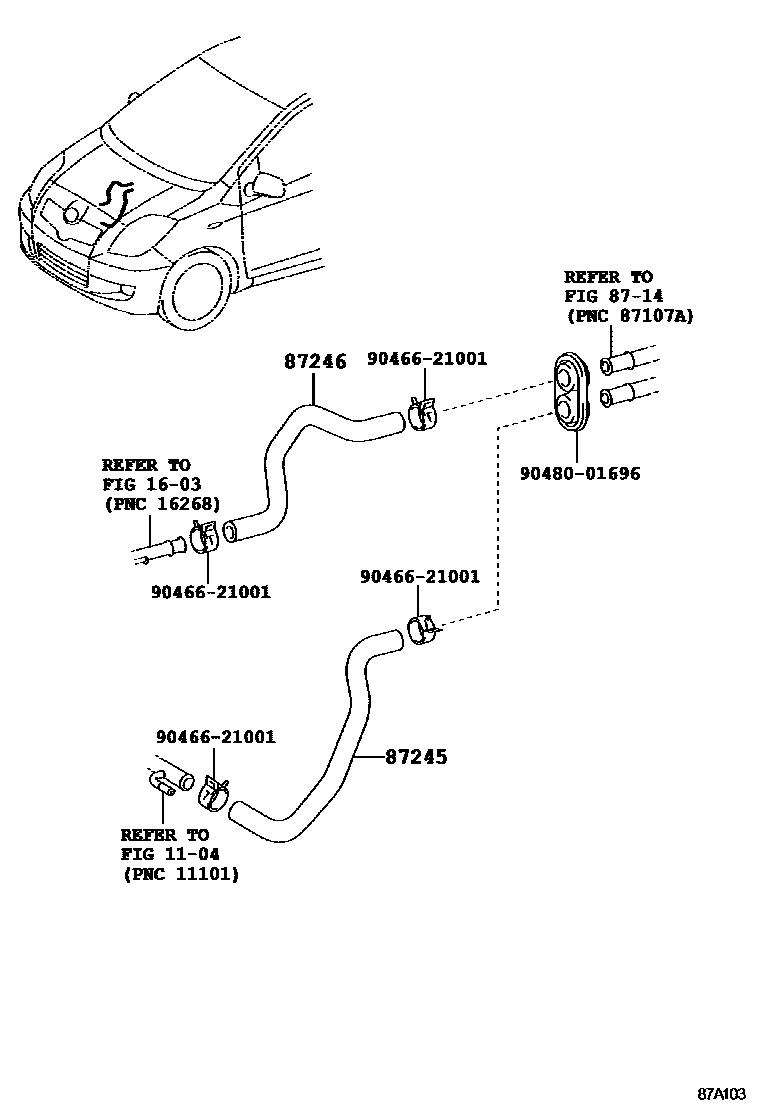

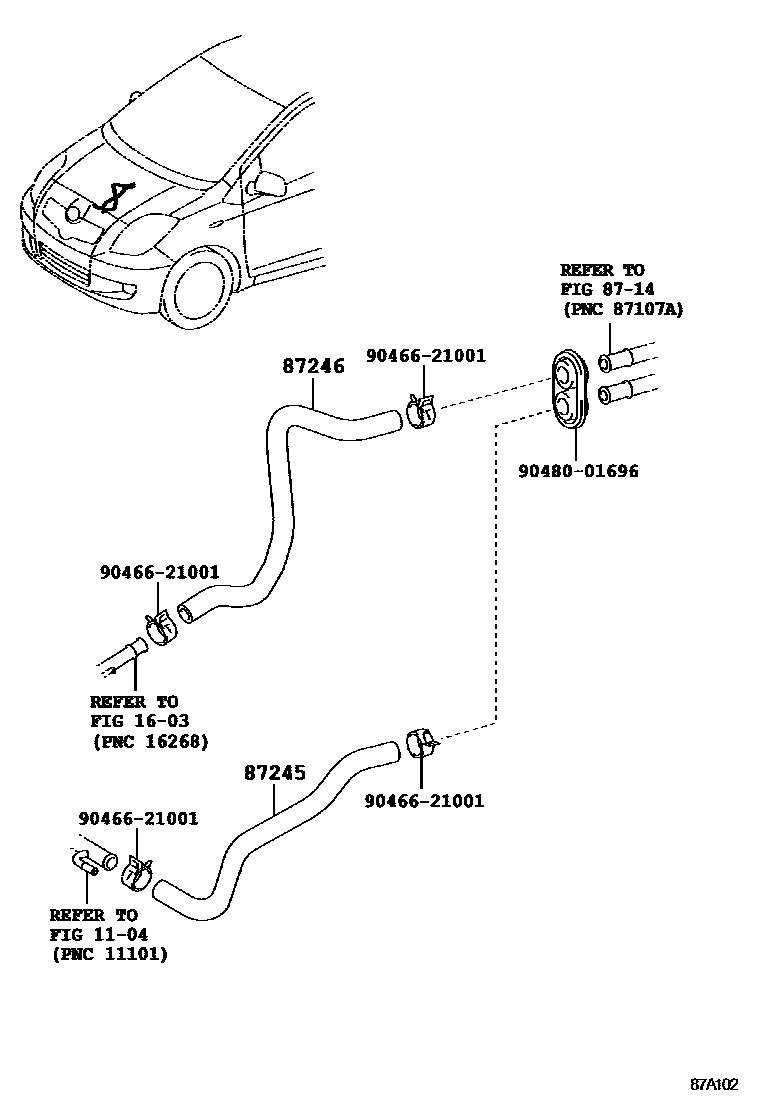

Toyota YARIS EPC diagram 8716, 暖风和空调系统 - 水管, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87245 | Heater water inlet hose | 87245-0D210 · 87245-0D230 |
| 87246 | Heater outlet hose | 87245-0D220 · 87245-0D240 |
