Toyota YARIS 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota YARIS EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

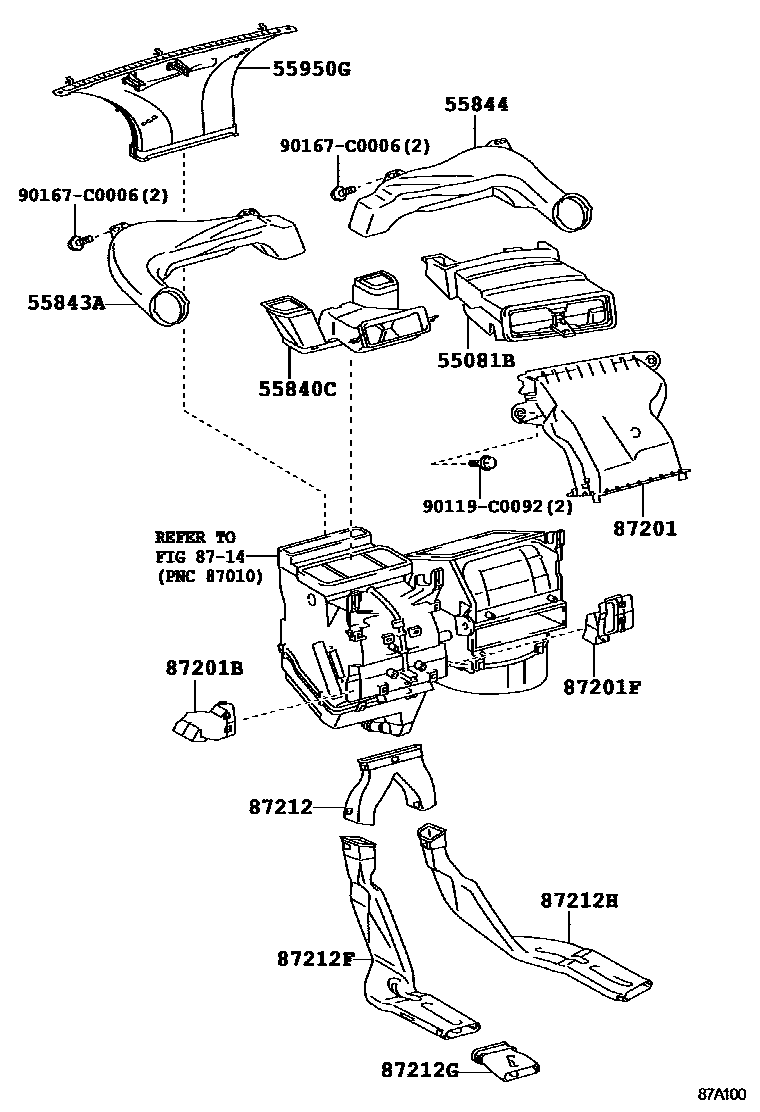

| 55081B | Air duct sub-assembly from cowl to air register | 55081-0D060 |
| 55840C | Air duct assembly from heater to air regulator No. 6 | 55840-0D070 |
| 55843A | Air duct No. 1 from heater to air register | 55843-0D140 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-0D140 |

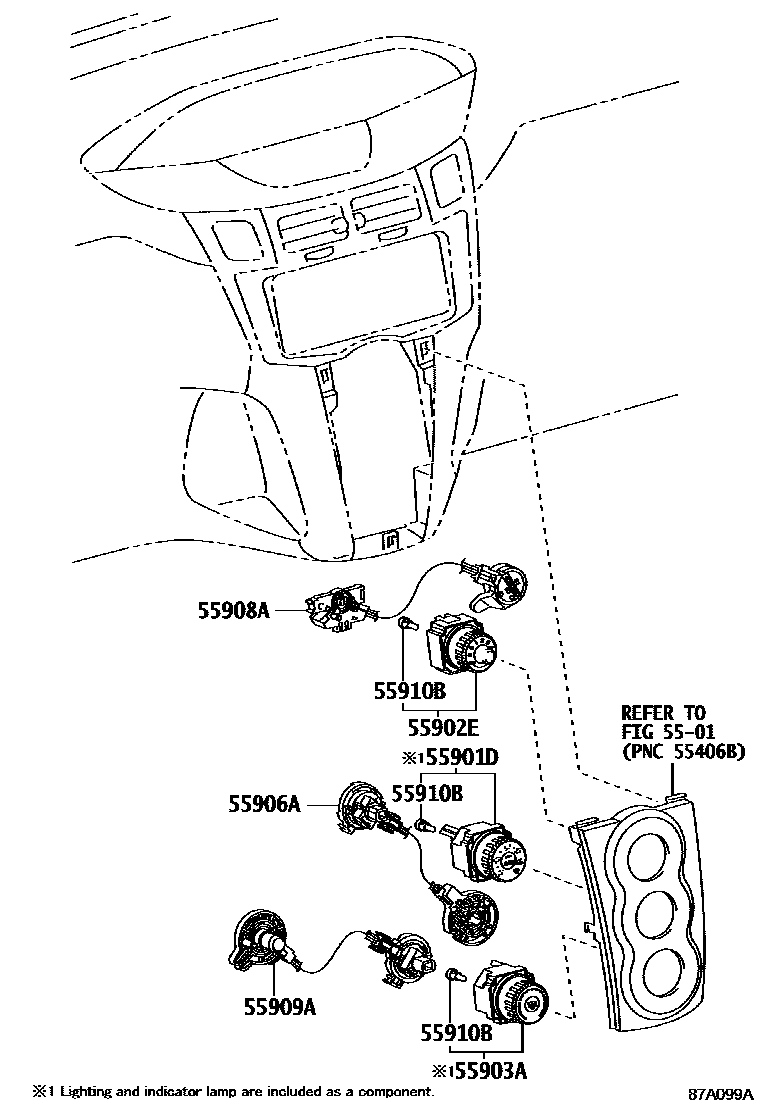

| 55901D | No. 1 heater control sub-assembly | 55901-0D110 · 55901-0D120 |
| 55902E | No. 2 heater control sub-assembly | 55902-0D100 · 55902-0D110 |
| 55903A | No. 3 heater control sub-assembly | 55903-0D110 · 55903-0D120 |
| 55906A | Defroster damper control cable sub-assembly | 55906-52132 |
| 55908A | Intake air valve control cable sub-assembly | 55908-52120 |
| 55909A | Air mix damper control cable sub-assembly | 55909-52120 |
| 55910B | heater control light bulb | 90010-01112 |
| 55950G | Defroster nozzle assembly | 55950-0D100 |
| 87201 | No. 1 air duct sub-assembly | 87201-0D100 |
| 87201B | No. 2 air duct sub-assembly | 87211-0D170 · 87211-0D171 |
| 87201F | No. 3 air duct sub-assembly | 87211-0D180 |
| 87212 | No. 1 rear air duct | 87215-0D040 |
| 87212F | No. 2 rear air duct | 87213-0D070 |
| 87212G | No. 3 rear air duct | 87216-0D040 |
| 87212H | No. 4 rear air duct | 87212-0D070 |

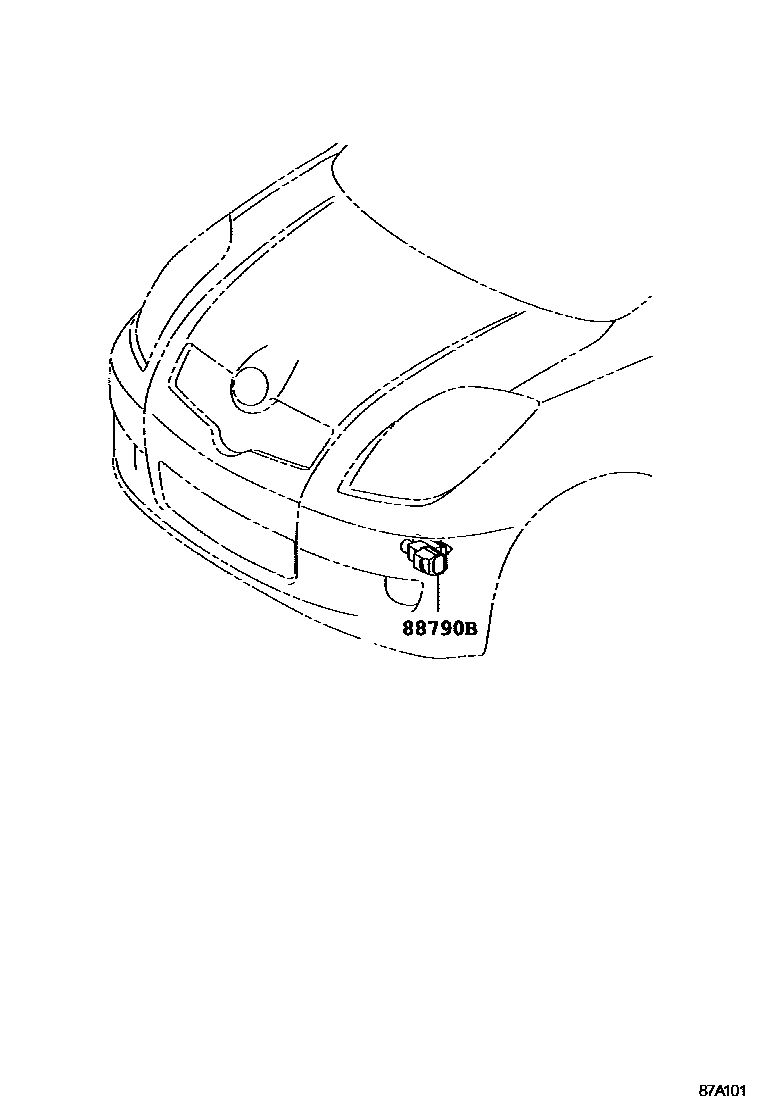

| 88790B | Thermistor assembly | 88790-22131 |
