Toyota YARIS 暖风和空调系统 - 冷却器组件 — Figure 8714

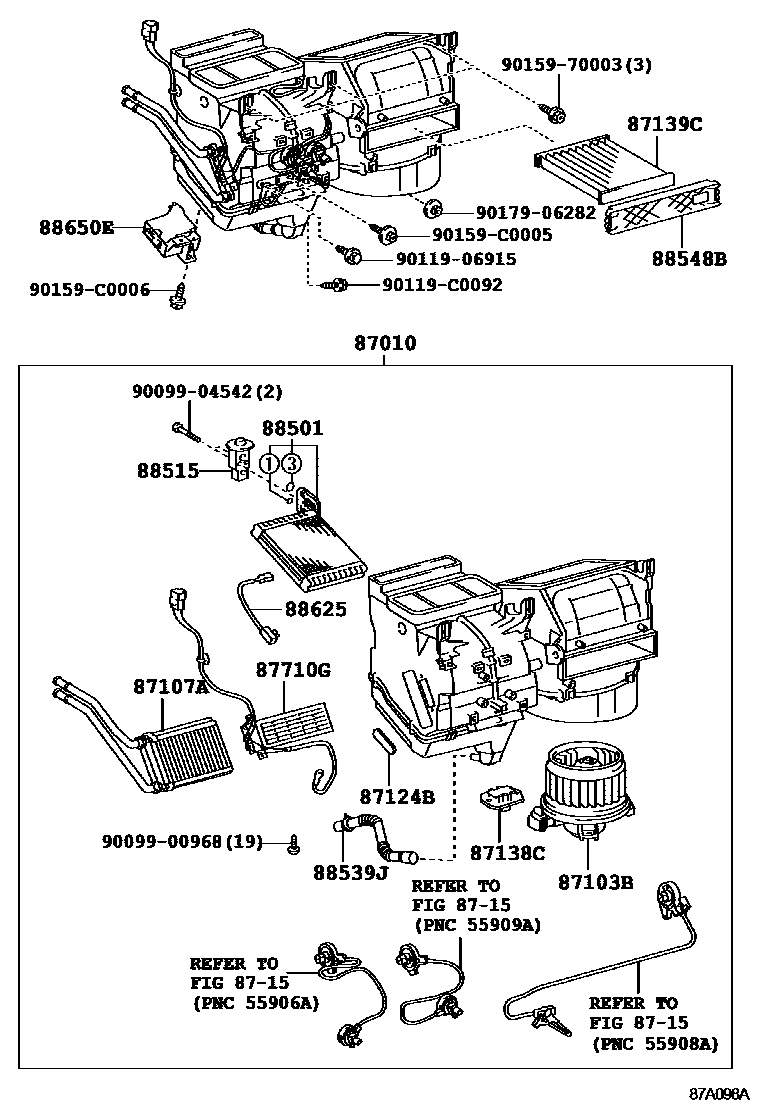

Toyota YARIS EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87010 | Air conditioning unit assembly | 87010-0D470 |
| 87103B | Blower motor sub-assembly with fan | 87103-0D180 · 87103-0D181 |
| 87107A | Heater radiator device sub-assembly | 87107-0D110 |
| 87124B | heater clip | 87124-0D020 |
| 87138C | Blower resistor | 87138-0D110 |
| 87139C | air purification filter | 87139-0D040 · 87139-50100 |
| 87710G | Rapid heater assembly | 87710-0D020 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-0D160 · 88501-0D161 · 88501-0D162 |
| 88515 | Cooler expansion valve | 88515-0D110 · 88515-0F010 |
| 88539J | Cooler drain hose | 88539-0D120 · 88539-0D250 |
| 88548B | air filter housing | 88548-0D090 |
| 88625 | Cooler No. 1 Thermistor | 88625-0D100 · 88625-26090 |
| 88650E | No. 1 air conditioning amplifier assembly | 88650-0D240 |
