Toyota YARIS 后视镜 — Figure 8701

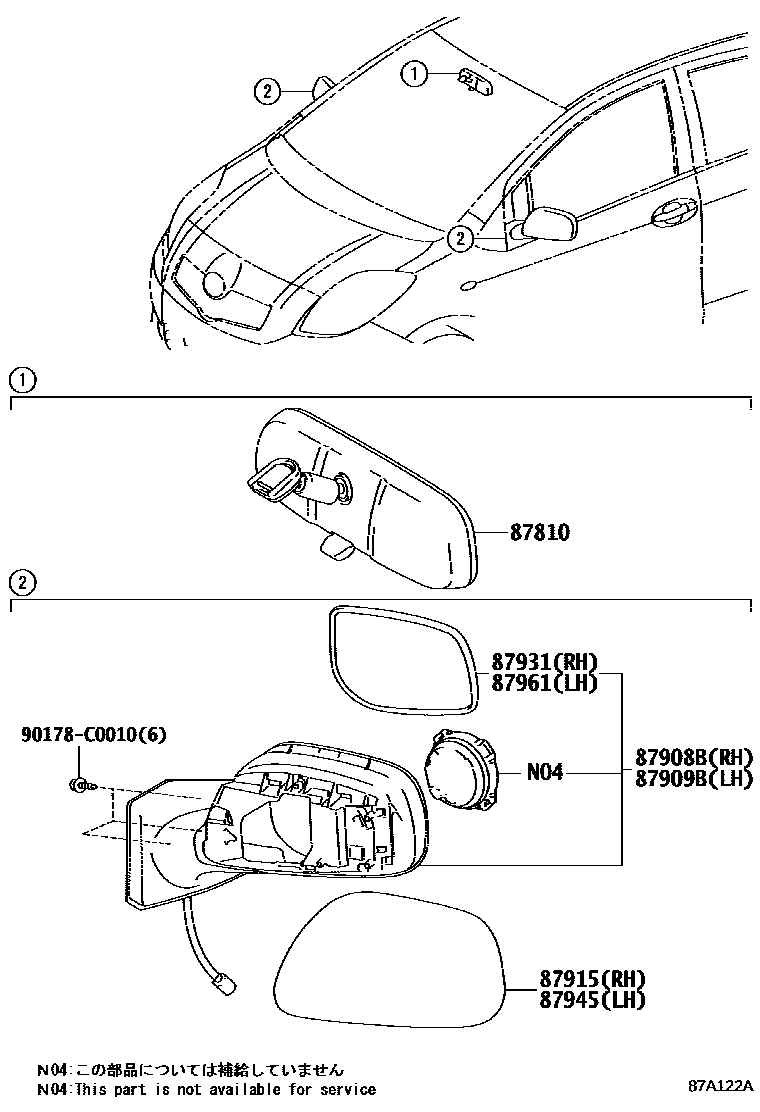

Toyota YARIS EPC diagram 8701, 后视镜, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-06061 · 87810-06062 · 87810-0D070 |
| 87908B | Right rearview mirror sub-assembly | 87908-0D440 · 87908-0D450 |
| 87909B | Left rearview mirror sub-assembly | 87909-0D440 · 87909-0D450 |
| 87915 | Right exterior rearview mirror cover | 87915-0D907 |
| 87931 | Right exterior rearview mirror | 87931-0D440 |
| 87945 | Left exterior rearview mirror cap | 87945-0D907 |
| 87961 | Left exterior rearview mirror | 87961-0D440 |
