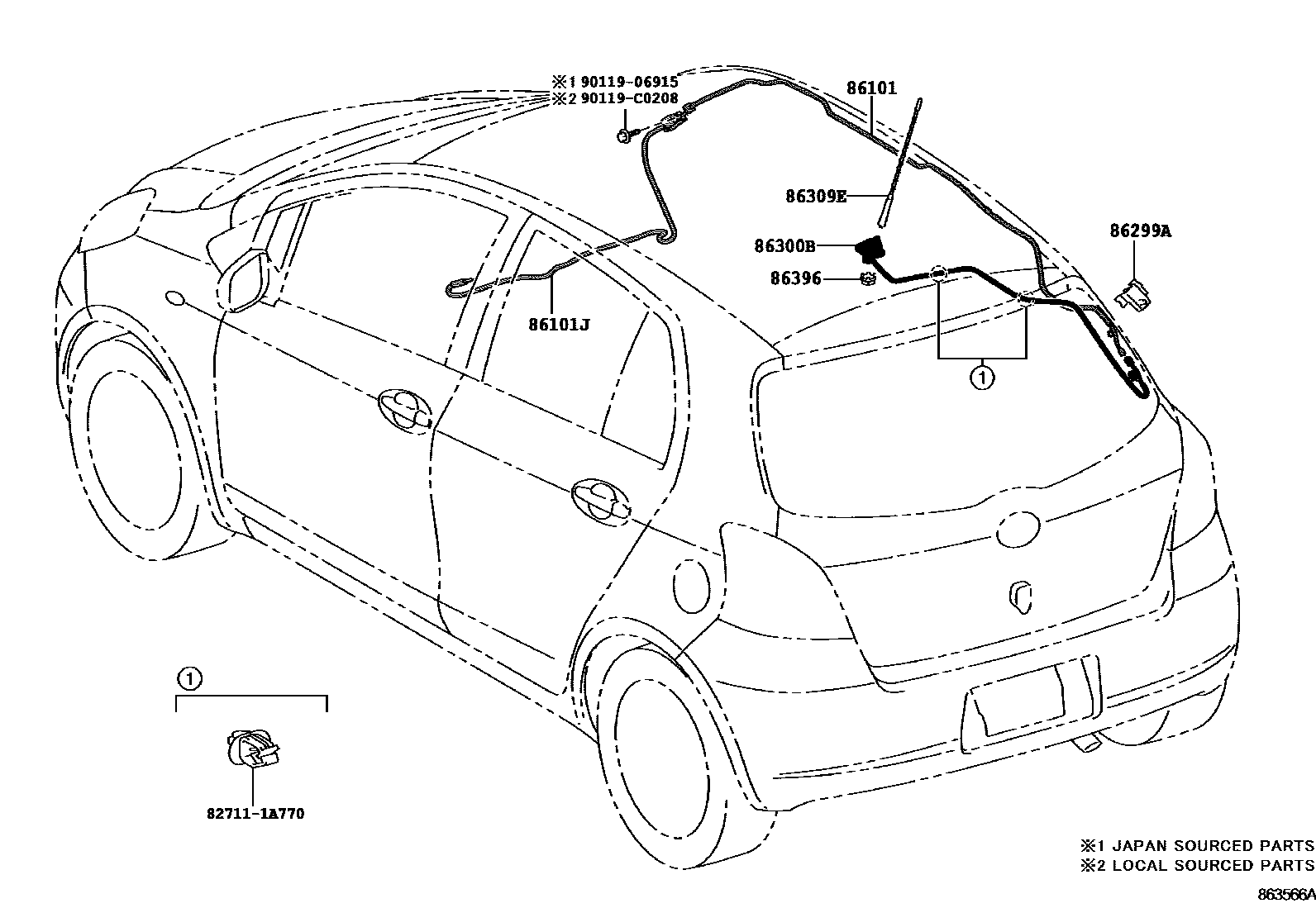

Toyota YARIS antenna — Figure 8604
Toyota YARIS EPC diagram 8604, antenna, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-0D310 · 86101-0D430 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-0D320 |
| 86299A | Clip (radio to antenna lead) | 86299-0D010 |
| 86300B | No. 1 amplifier antenna assembly | 86300-0D170 · 86300-0D240 |
| 86309E | Roof antenna sub-assembly | 86309-0D080 |
| 86396 | Antenna nut | 86396-0D050 |
