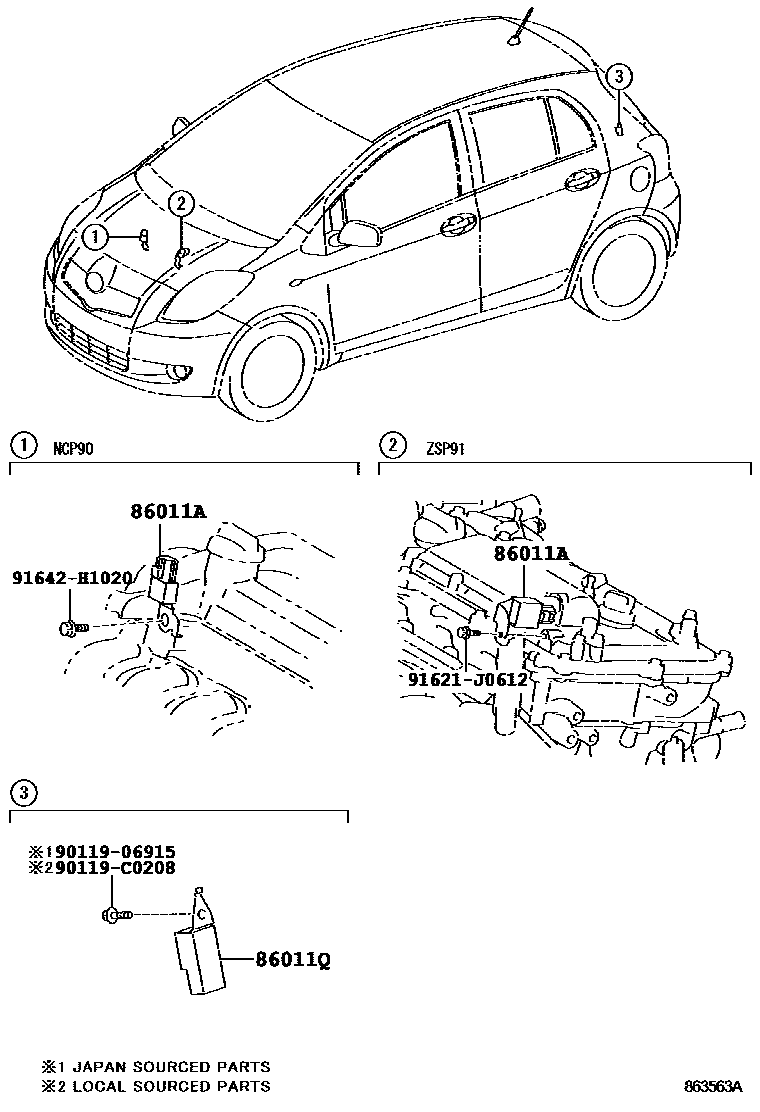

Toyota YARIS 收音机、放大器和冷凝器 — Figure 8601
Toyota YARIS EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04141 · 90980-04194 · 90980-04196 |
| 86011Q | radio settings phase modulator | 90980-04148 |
| 86120 | Radio assembly | 86120-0D470 · 86120-0D480 |
| 86120A | Radio switch knob | 90011-25155 |
| 86190C | Stereo socket connector assembly No. 1 | 86190-0D020 · 86190-52040 |
| 86211 | No. 1 radio bracket | 86211-0D090 |
| 86212 | No. 2 radio bracket | 86212-0D090 |
