Toyota YARIS 后清洗器 — Figure 8504

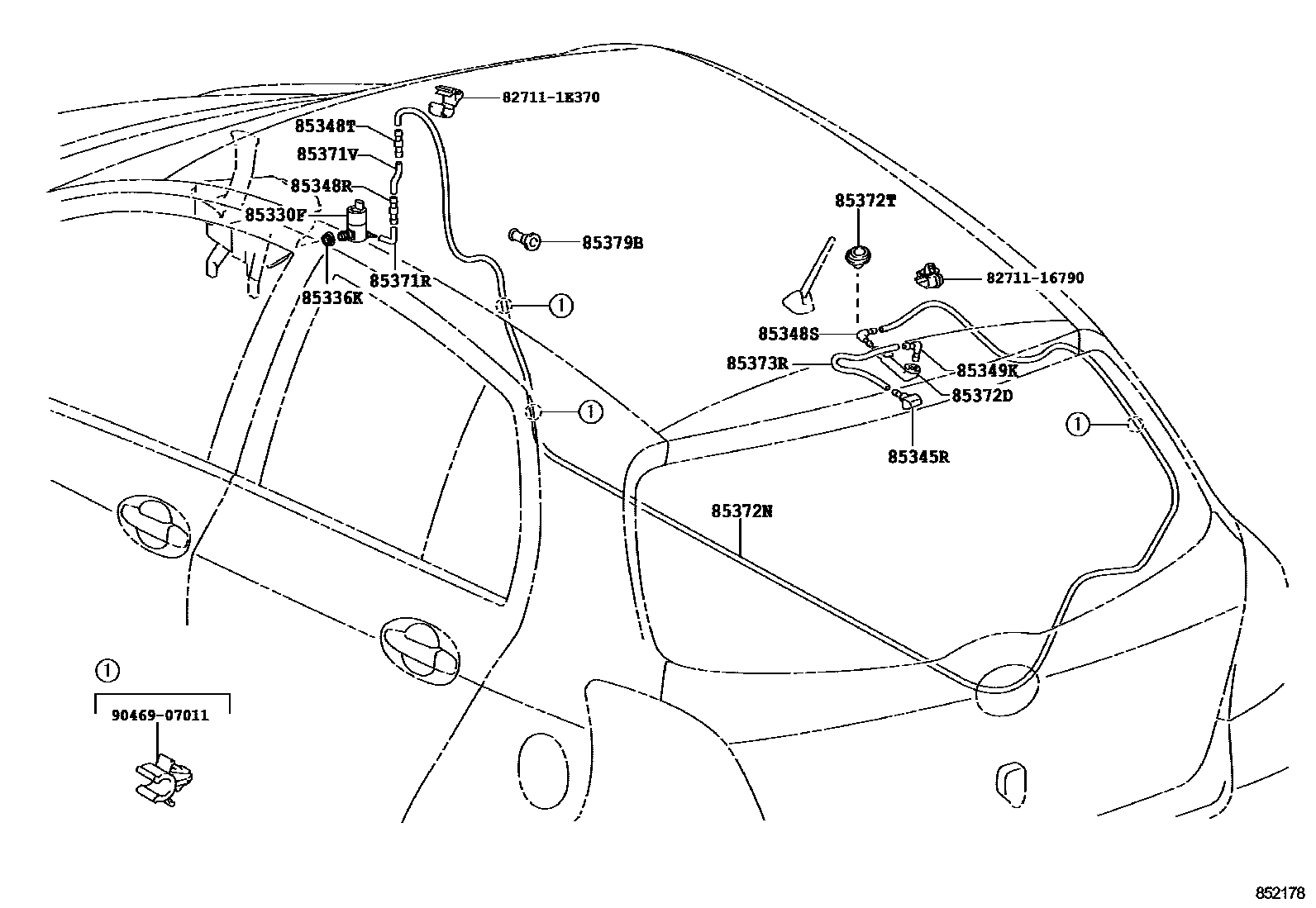

Toyota YARIS EPC diagram 8504, 后清洗器, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85330F | Rear washer motor and pump assembly | 85330-0D070 |
| 85336K | Cleaning fluid tank protection device | 90099-32089 |
| 85345R | Rear washer nozzle | 85391-52010 |
| 85348R | No. 1 rear washer hose connector | 85375-06120 |
| 85348S | No. 1 rear cleaner elbow joint | 85377-0D030 |
| 85348T | No. 2 rear washer hose connector | 85375-06120 |
| 85349K | No. 2 rear cleaner elbow joint | 85377-0D030 |
| 85371R | Rear washer hose (from motor to connector) | 85317-0D120 |
| 85371V | Rear washer hose (from fitting to fitting) | 90068-33077 |
| 85372D | Rear washer hose seal | 85372-20040 |
| 85372N | No. 1 rear washer hose (from connector to connector) | 90068-59062 |
| 85372T | Cleaner seal | 85372-20020 |
| 85373R | Rear washer hose (from connector to nozzle) | 90068-33076 |
| 85379B | Cleaner seal A | 85379-52351 |
