Toyota YARIS 挡风玻璃清洗器 — Figure 8503

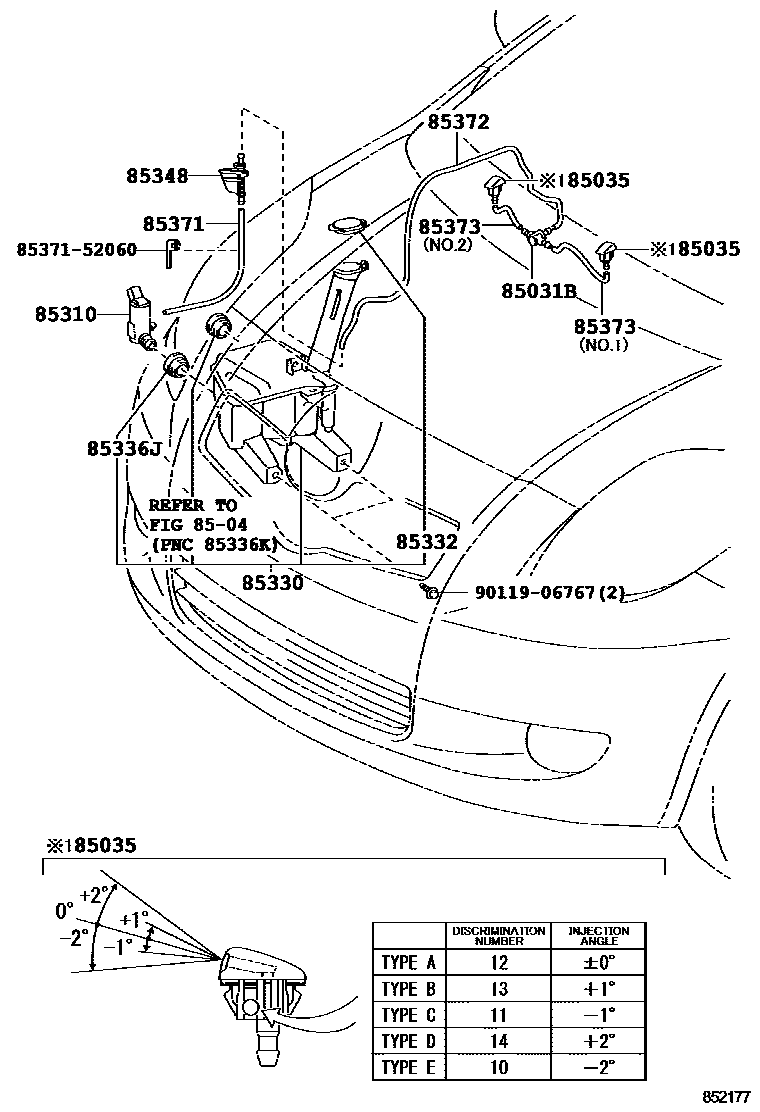

Toyota YARIS EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031B | Cleaner valve sub-assembly | 85321-30080 |
| 85035 | Cleaner nozzle sub-assembly | 85381-52250 · 85381-52280 · 85381-52290 · 85381-52300 · 85381-52310 |
| 85310 | Windshield washer motor and pump assembly | 85330-0D010 |
| 85330 | Windshield washer fluid tank assembly | 85315-0D120 |
| 85332 | Windshield washer fluid tank cap | 85316-02200 |
| 85336J | Cleaning fluid tank protection device | 90099-32089 |
| 85348 | Windshield washer hose connector No. 1 | 85385-52361 |
| 85371 | Windshield washer hose (from motor to connector) | 90068-33049 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90068-33079 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-33078 · 90068-33080 |
