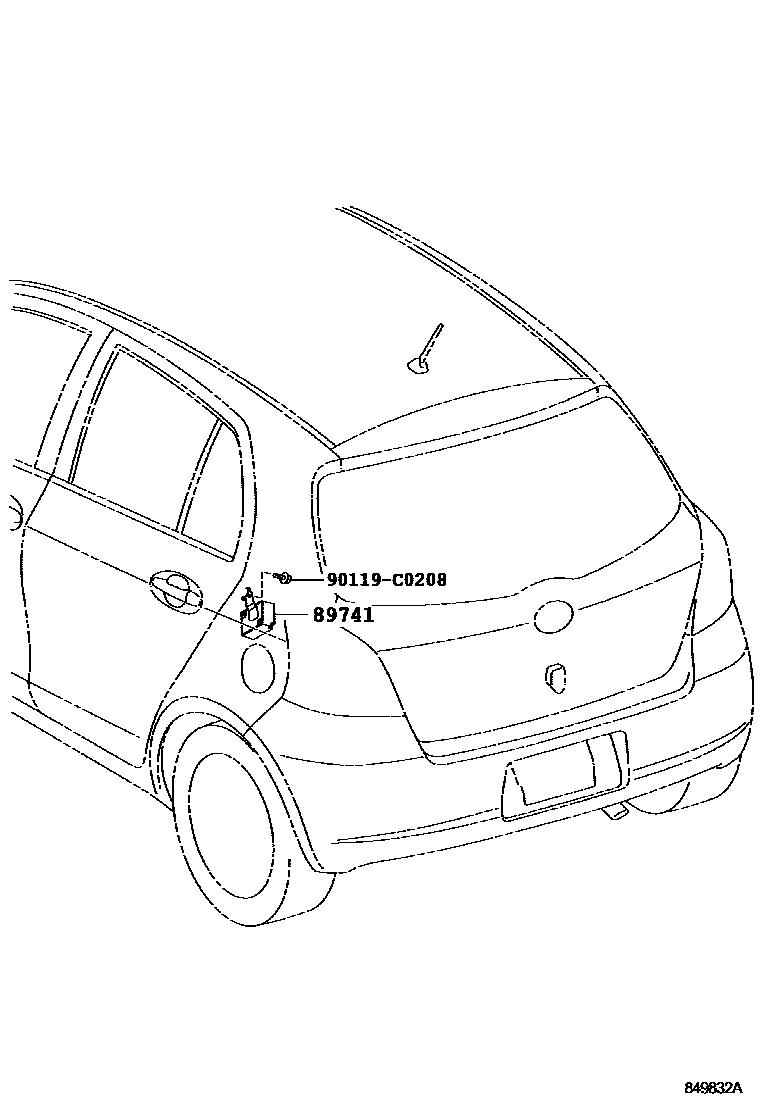

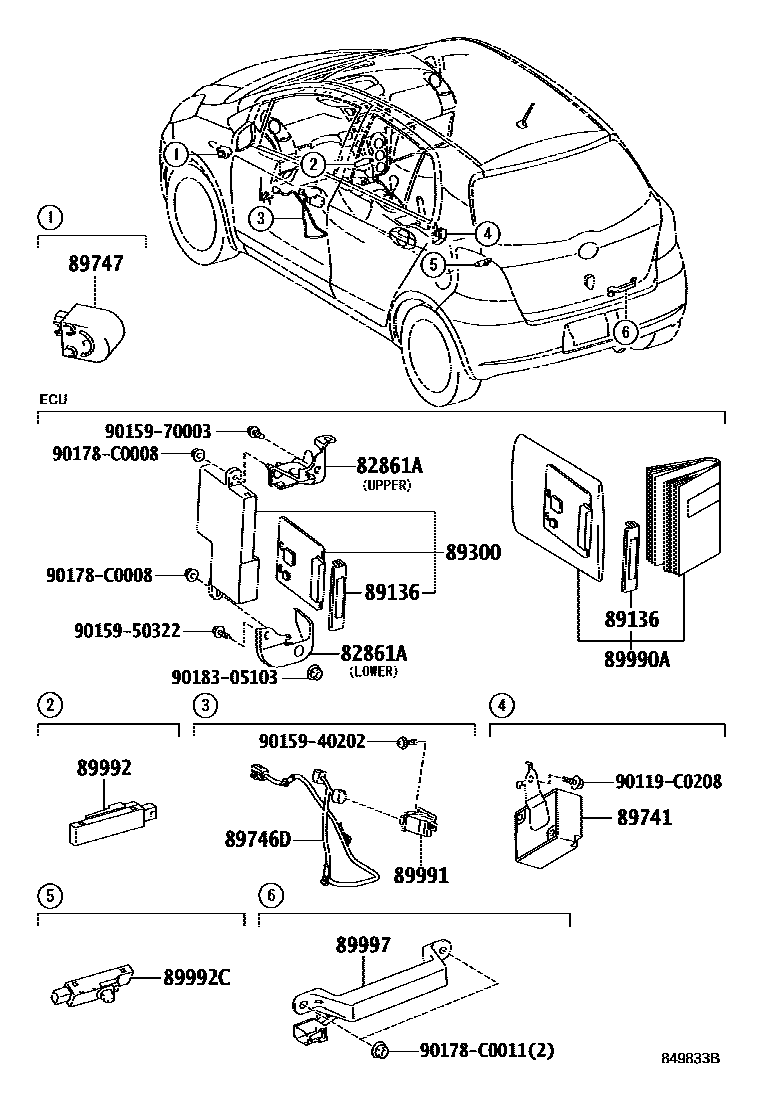

Toyota YARIS 遥控门锁 — Figure 8420
Toyota YARIS EPC diagram 8420, 遥控门锁, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82861A | No. 1 ECU integrated bracket | 82861-52030 · 82861-52040 |
| 89136 | No. 1 ECU integrated box cover | 89136-52010 |
| 89300 | ECU integrated box assembly | 89300-52100 · 89300-52101 |
| 89741 | door control receiver | 89740-0D030 · 89741-0D060 |
| 89746D | No. 2 electronic key wiring harness | 89746-0D030 |
| 89747 | Remote door lock buzzer | 89747-52010 |
| 89990A | Smart key ECU assembly | 89990-52220 |
| 89991 | Door electronic key oscillator | 89991-30050 |
| 89992 | Car electronic key oscillator | 89992-0D030 |
| 89992C | Electronic key oscillator in car No. 2 | 89992-0D040 |
| 89997 | electronic key antenna | 89997-52010 |
