Toyota YARIS ABS 和 VSC — Figure 8414

Toyota YARIS EPC diagram 8414, ABS 和 VSC, with 1 images and 4 PNC and OE references.

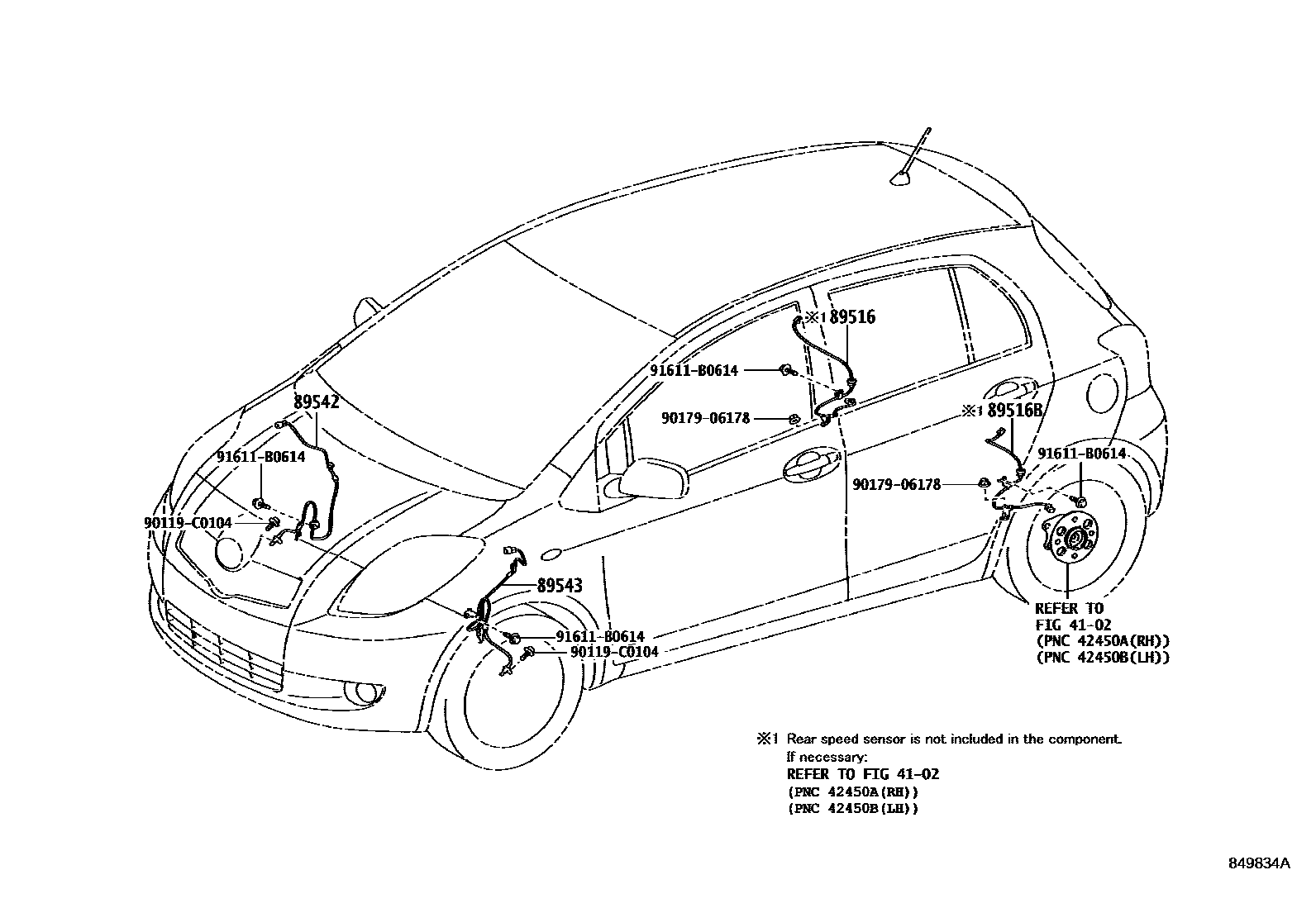

Toyota YARIS ABS 和 VSC EPC diagram — 849834A
ABS 和 VSC — 849834A (200805 – 999999)

PNC and OE references

PNCPart nameOE numbers
89516Anti-skid control sensor wiring harness89516-0D110
89516BAnti-skid control sensor wiring harness89516-0D120
89542Right front wheel speed sensor89542-0D030
89543Left front wheel speed sensor89543-0D030
