Toyota YARIS 电子燃油喷射系统 — Figure 8404

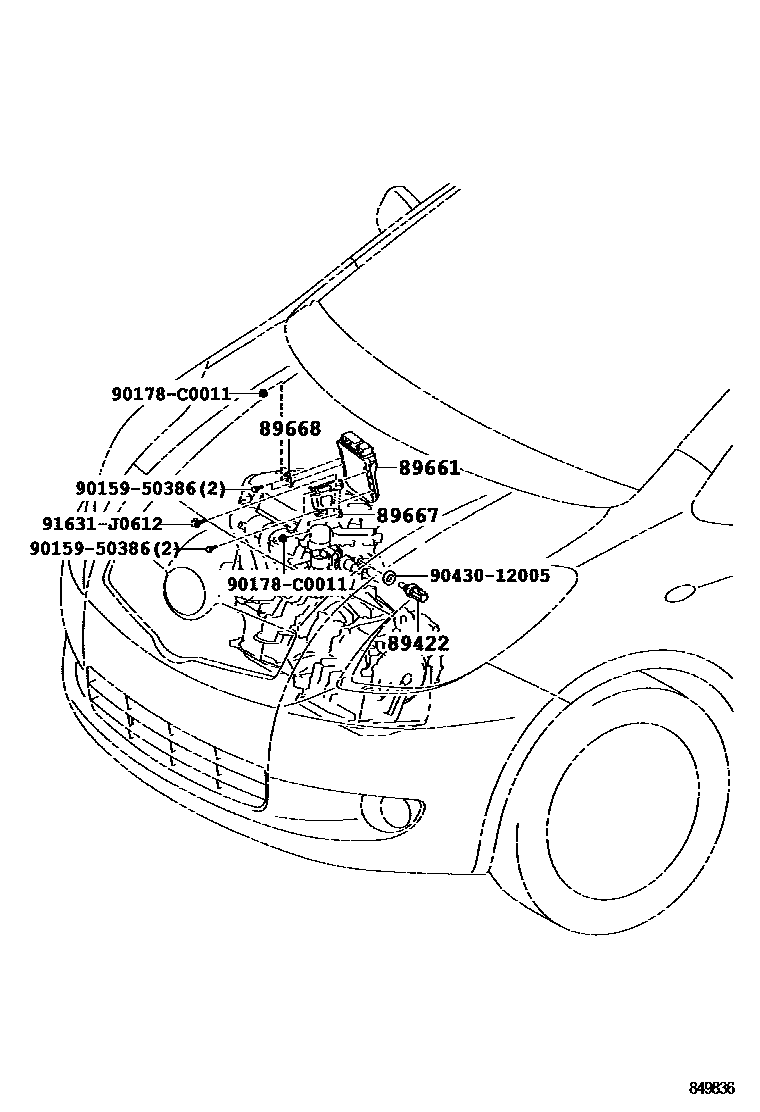

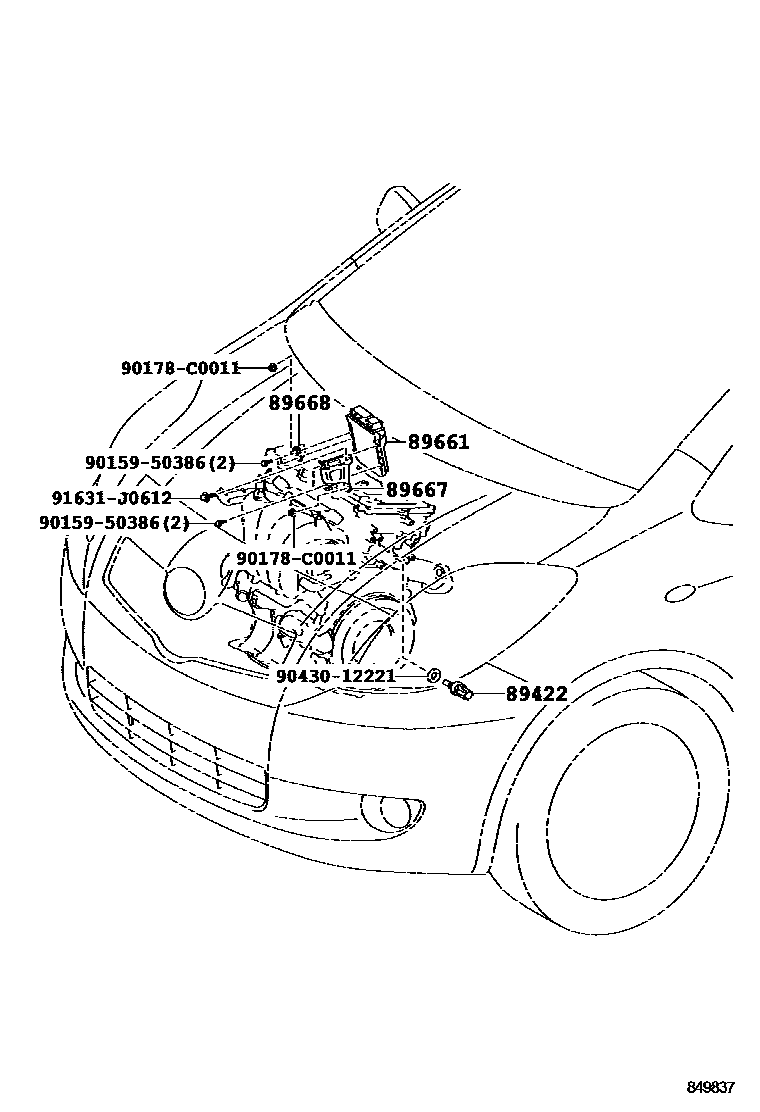

Toyota YARIS EPC diagram 8404, 电子燃油喷射系统, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89422 | Water temperature sensor (for E.F.I.) | 89422-0D010 · 89422-33030 |
| 89661 | Engine control ECU | 89661-0D850 · 89661-0D860 · 89661-0D870 · 89661-0D880 · 89661-0D890 · 89661-0DA00 · 89661-0DA10 · 89661-0DA20 · 89661-0DD00 · 89661-0DD10 · 89661-0DD20 · 89661-0DD30 |
| 89667 | Engine control ECU bracket | 89667-52200 |
| 89668 | No. 2 engine control ECU bracket | 89668-52220 |
