Toyota YARIS 开关和继电器和ECU — Figure 8401

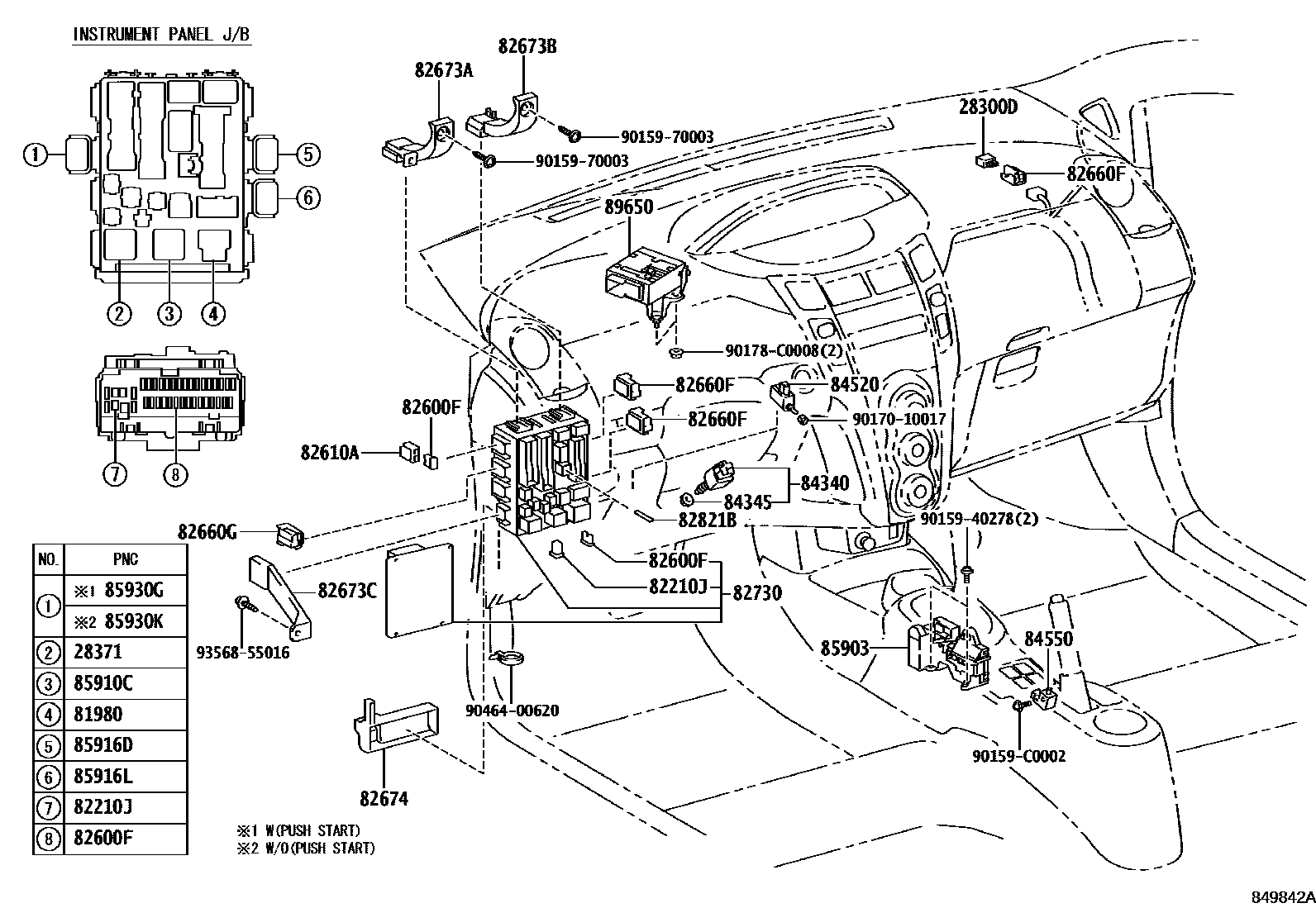

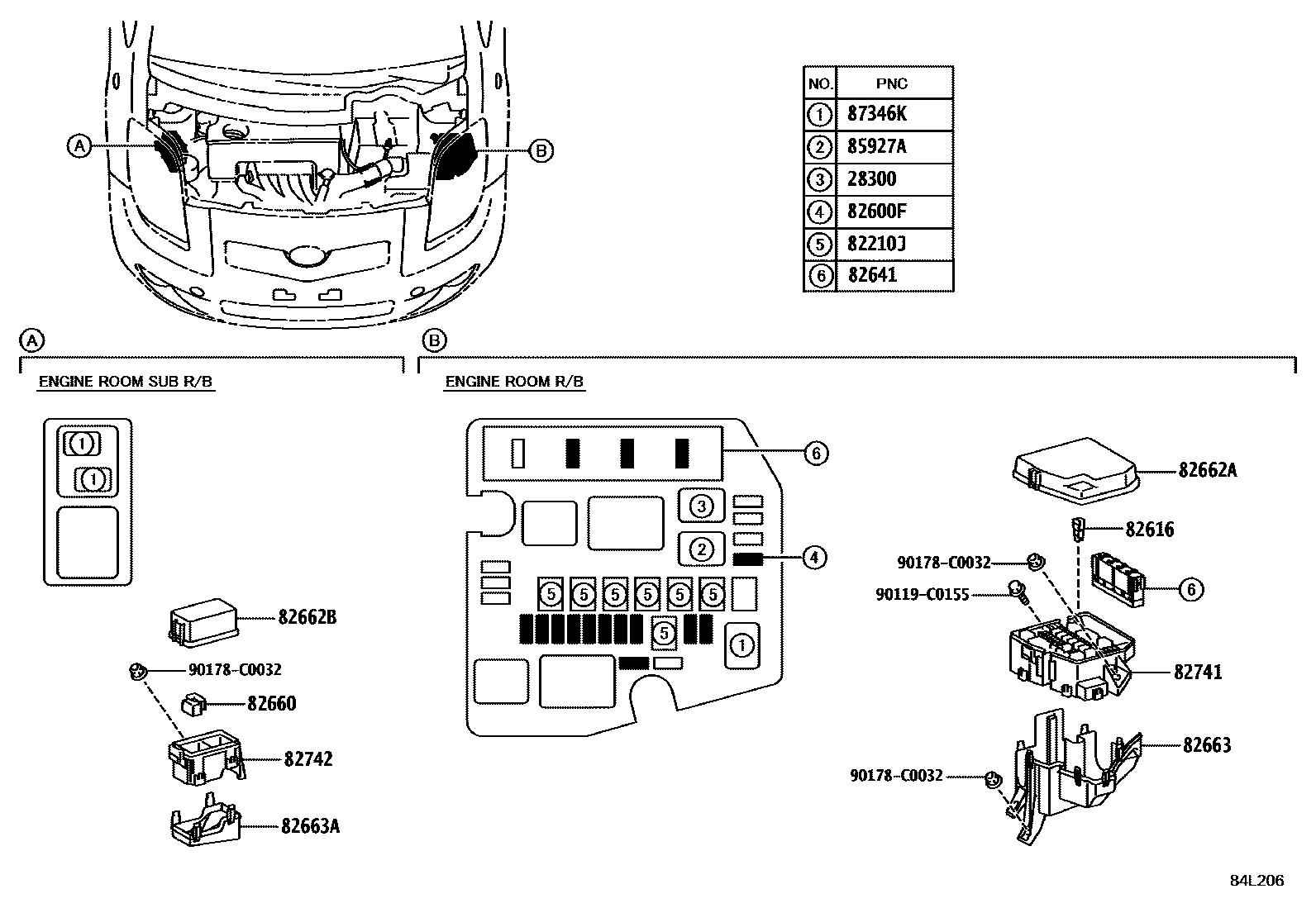

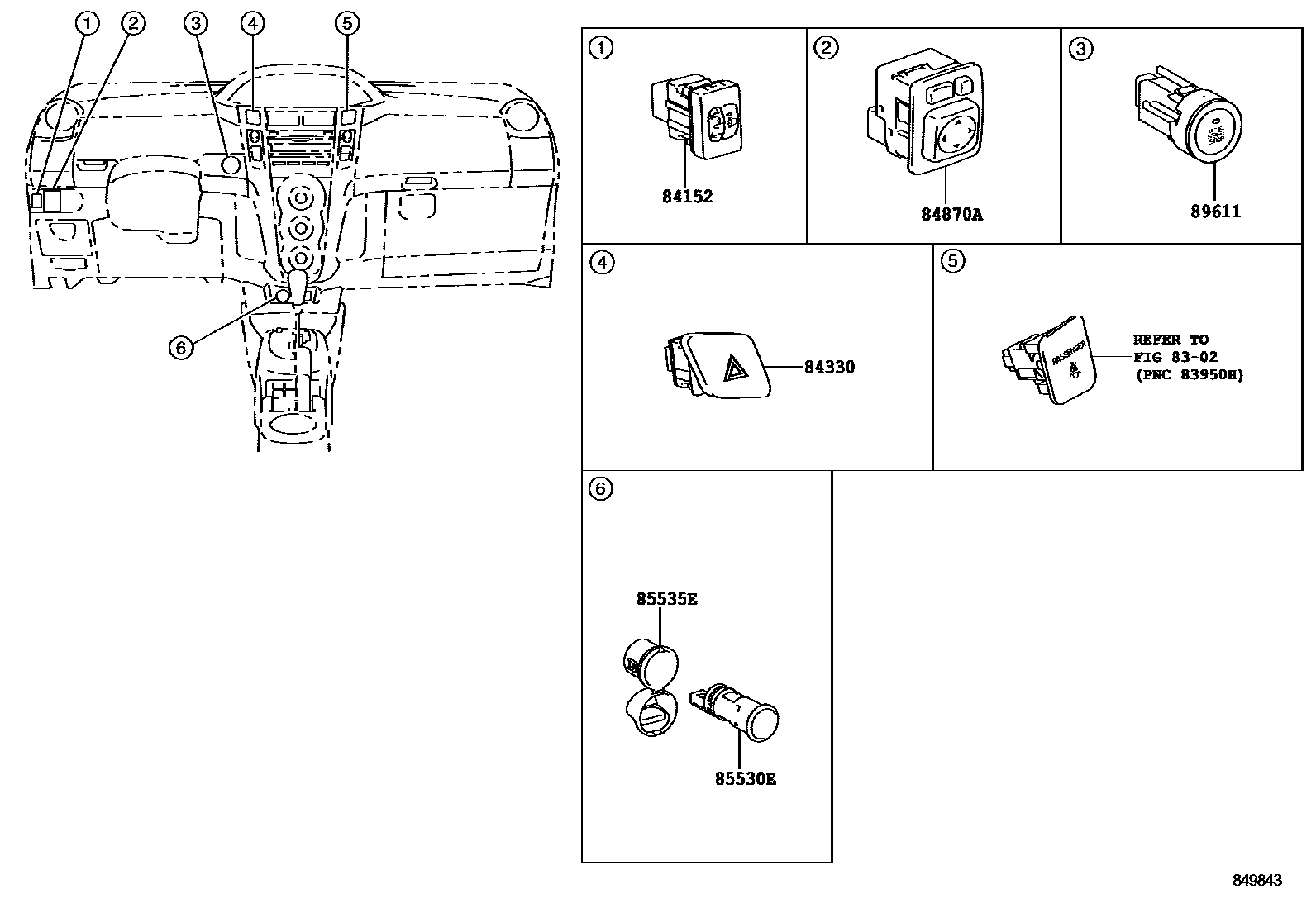

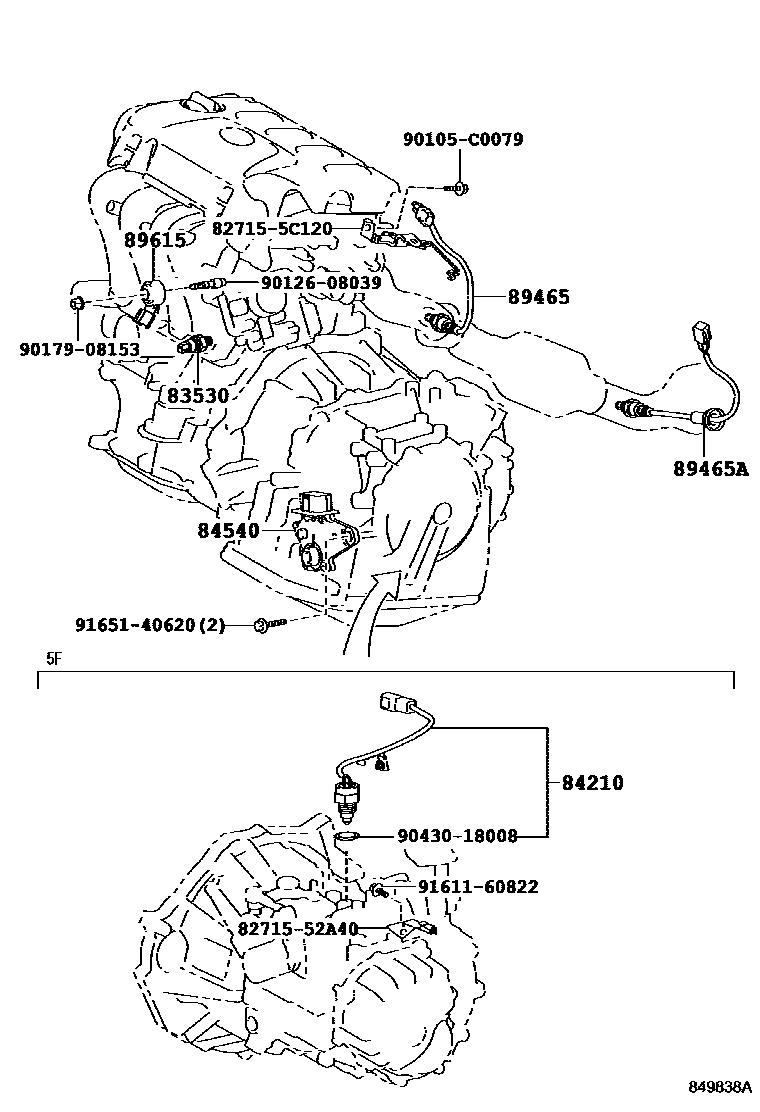

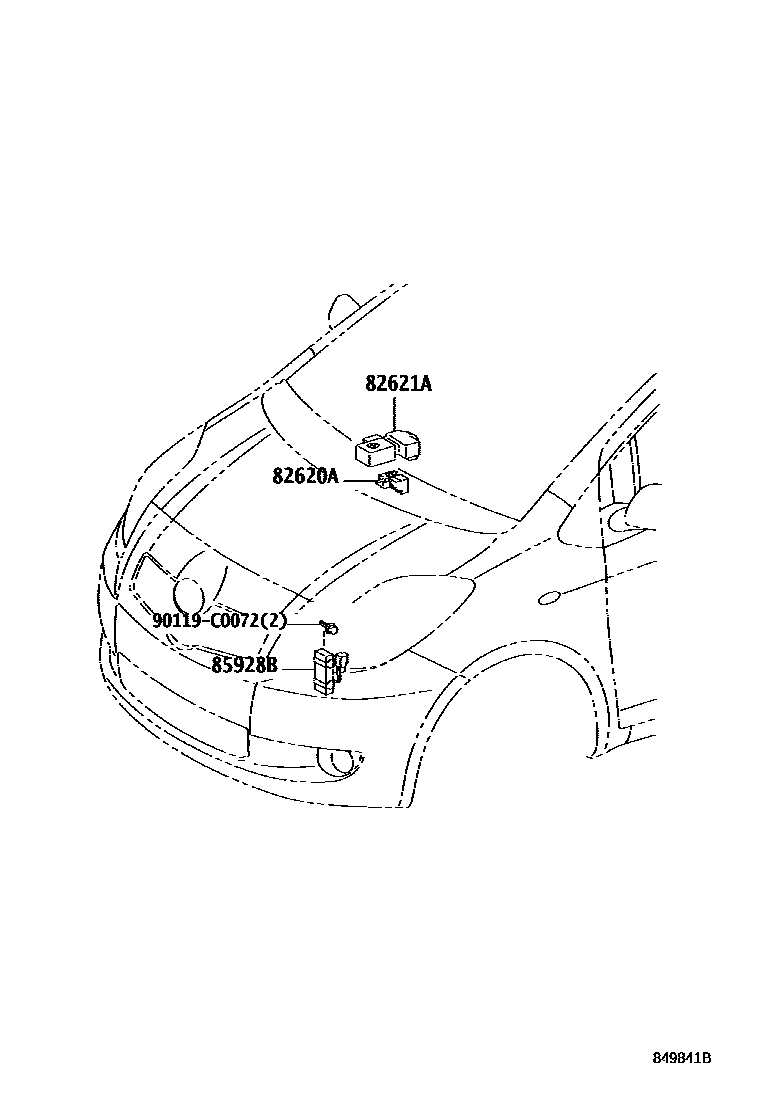

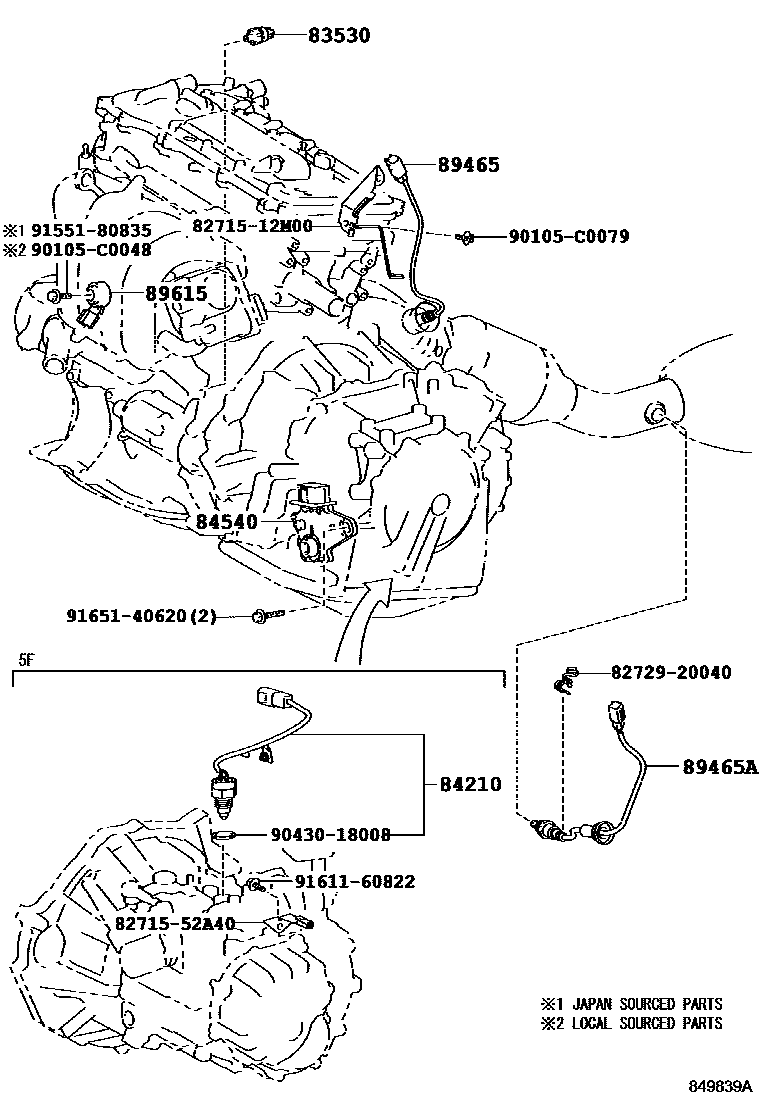

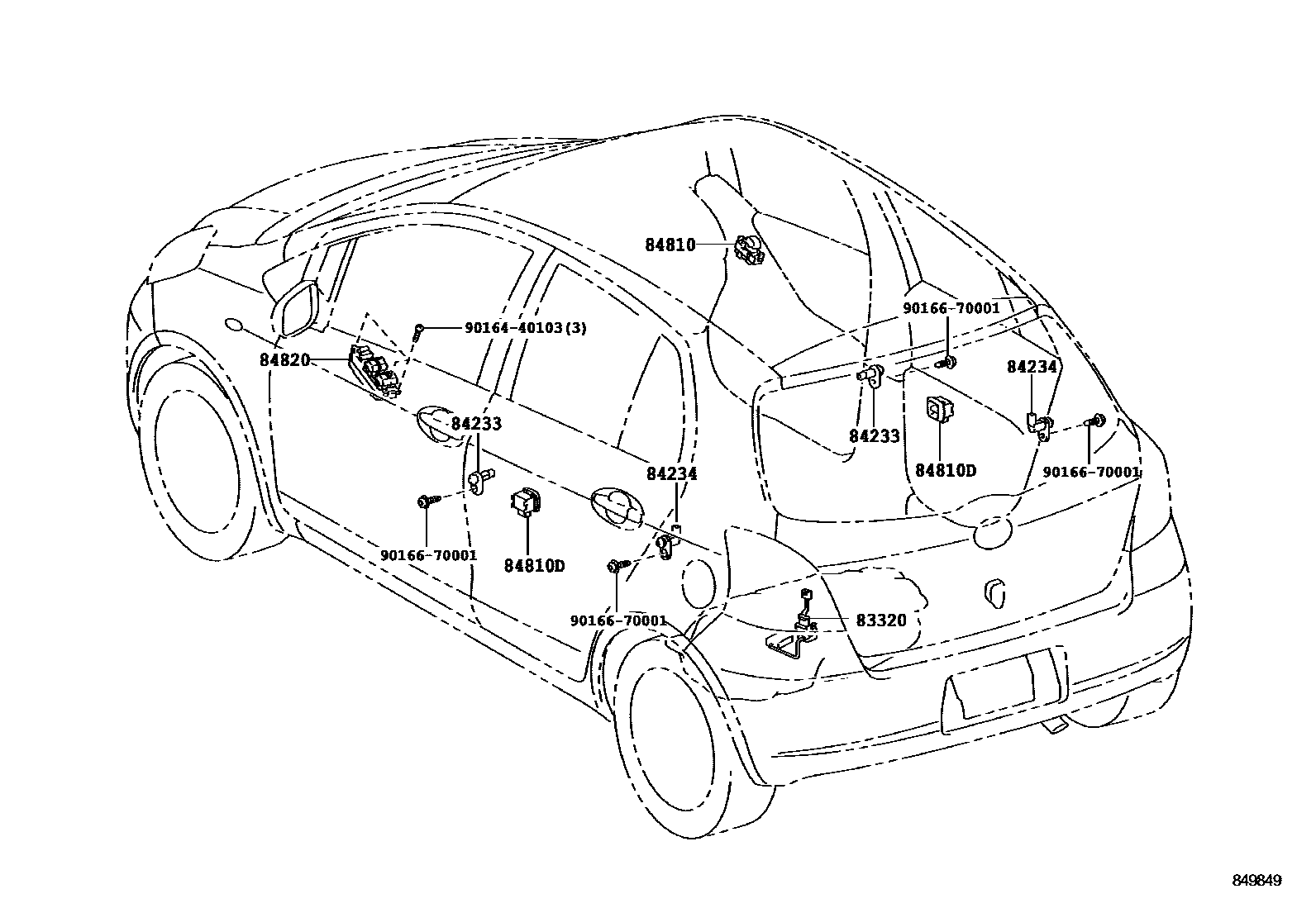

Toyota YARIS EPC diagram 8401, 开关和继电器和ECU, with 8 images and 63 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-28010 |
| 28300D | starter cutoff relay | 90987-T2005 |
| 28371 | No. 1 ignition relay | 90987-C2001 |
| 81980 | Turn signal flasher relay assembly | 81980-0D030 |
| 82210J | fuse | 90982-08294 · 90982-08295 · 90982-08296 |
| 82600F | Spare fuse | 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82610A | Fuse box assembly | 82610-52010 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-52050 |
| 82621A | Fuse cover | 82621-52120 |
| 82641 | Integrated relay No. 1 | 82641-47020 |
| 82660 | Engine room relay box assembly | 82660-52010 |
| 82660F | Relay assembly | 82660-52030 |
| 82660G | Relay assembly | 82660-52030 · 82660-52040 |
| 82662A | No. 1 relay box upper cover | 82662-52540 |
| 82662B | No. 2 relay box upper cover | 82662-52550 |
| 82663 | Relay box lower cover | 82663-52031 |
| 82663A | No. 2 relay box lower cover | 82663-52060 |
| 82673A | Junction box bracket | 82673-52050 |
| 82673B | Junction box bracket | 82673-52060 |
| 82673C | Junction box bracket | 82673-52070 |
| 82674 | Junction box lower cover | 82674-46010 |
| 82730 | Instrument panel junction box assembly | 82730-0D210 · 82730-0D220 · 82730-0D230 · 82730-0D231 |
| 82741 | Engine room relay box | 82741-52031 |
| 82742 | Engine room No. 2 relay box | 82741-52050 |
| 82821B | Connector cover | 82821-52020 |
| 83320 | Fuel gauge sensor assembly | 83320-0D070 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-06010 |
| 84140 | Headlight dimmer switch assembly | 84140-0D280 · 84140-0D281 · 84140-0D290 · 84140-0D291 |
| 84152 | Headlight beam height adjustment switch | 84152-0D060 |
| 84210 | Reversing light switch assembly | 84210-52010 |
| 84233 | Door control light switch assembly (for front door) | 84231-0D090 · 84231-52010 |
| 84234 | Door control light switch assembly (for rear door) | 84231-0D100 · 84231-52020 |
| 84306 | Spiral cable sub-assembly | 84306-02190 |
| 84330 | Hazard warning signal switch assembly | 84332-0D040 |
| 84340 | brake light switch assembly | 84340-19025 · 84340-69025 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-06010 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84540 | Neutral start switch assembly | 84540-46010 · 84540-52080 |
| 84550 | Parking brake switch assembly | 84550-33010 |
| 84650D | Windshield wiper switch assembly with wiper control relay | 84652-0D160 · 84652-0D161 |
| 84810 | Electric window lift switch assembly | 84810-06060 |
| 84820 | Electric window lift main switch assembly | 84820-0D180 |
| 84870A | Exterior rearview mirror switch assembly | 84870-0D060 · 84870-0D070 |
| 85432 | Key interlock solenoid valve | 85432-02010 |
| 85530E | No. 3 power socket assembly | 85530-06040 |
| 85535E | No. 2 power outlet cover | 85535-0D040 |
| 85903 | Shift lock control ECU sub-assembly | 85903-60020 |
| 85910C | Relay assembly (for heater blower motor) | 90987-T4002 |
| 85916D | fog light relay | 90987-T2005 |
| 85916L | Rear fog light relay | 90987-T2005 |
| 85927A | Cooling fan relay No. 2 | 90987-T4001 |
| 85928B | Cooling fan resistor | 85928-52030 |
| 85930G | ACC relay | 90987-T2005 |
| 85930K | No. 2 ACC relay | 90987-T4001 |
| 87346K | PTC heater relay | 90987-T2005 |
| 89465 | oxygen sensor | 89465-12880 · 89465-52380 · 89467-12210 · 89467-52060 |
| 89465A | Oxygen sensor No. 2 | 89465-0D200 · 89465-52370 · 89465-52480 |
| 89611 | One-button start switch | 89611-0D020 · 89611-0D021 · 89611-0D022 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-0D150 · 89650-0D151 |
