Toyota YARIS 仪表 — Figure 8301

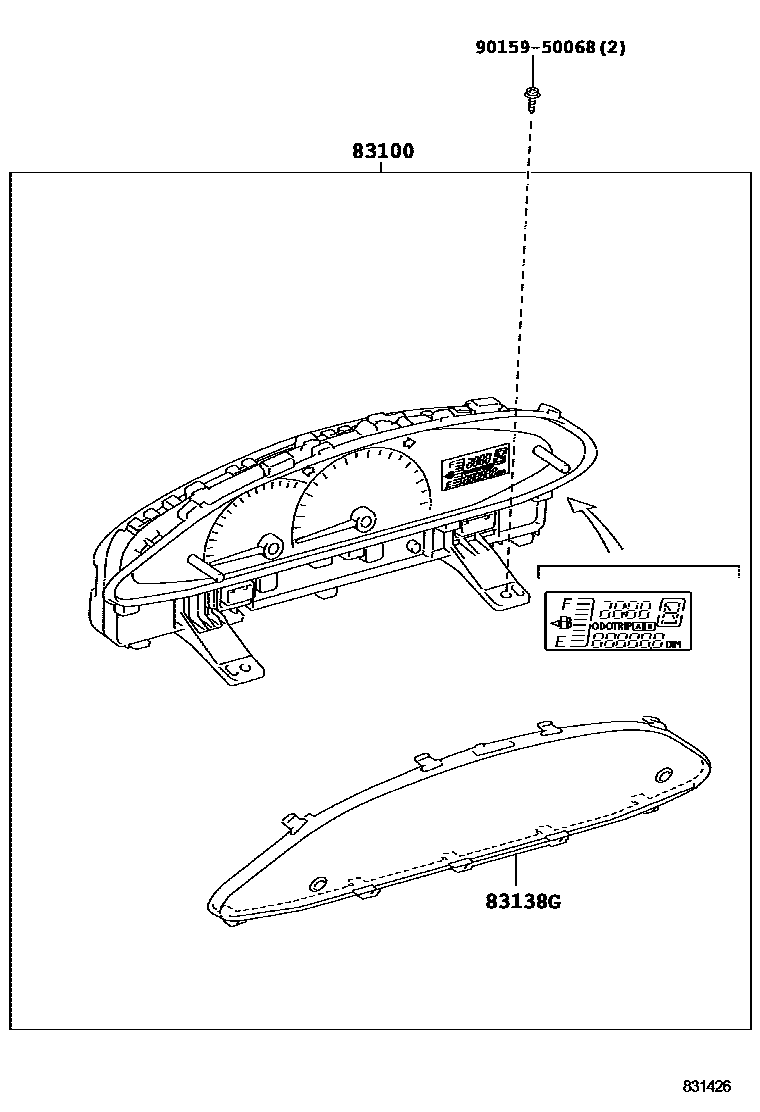

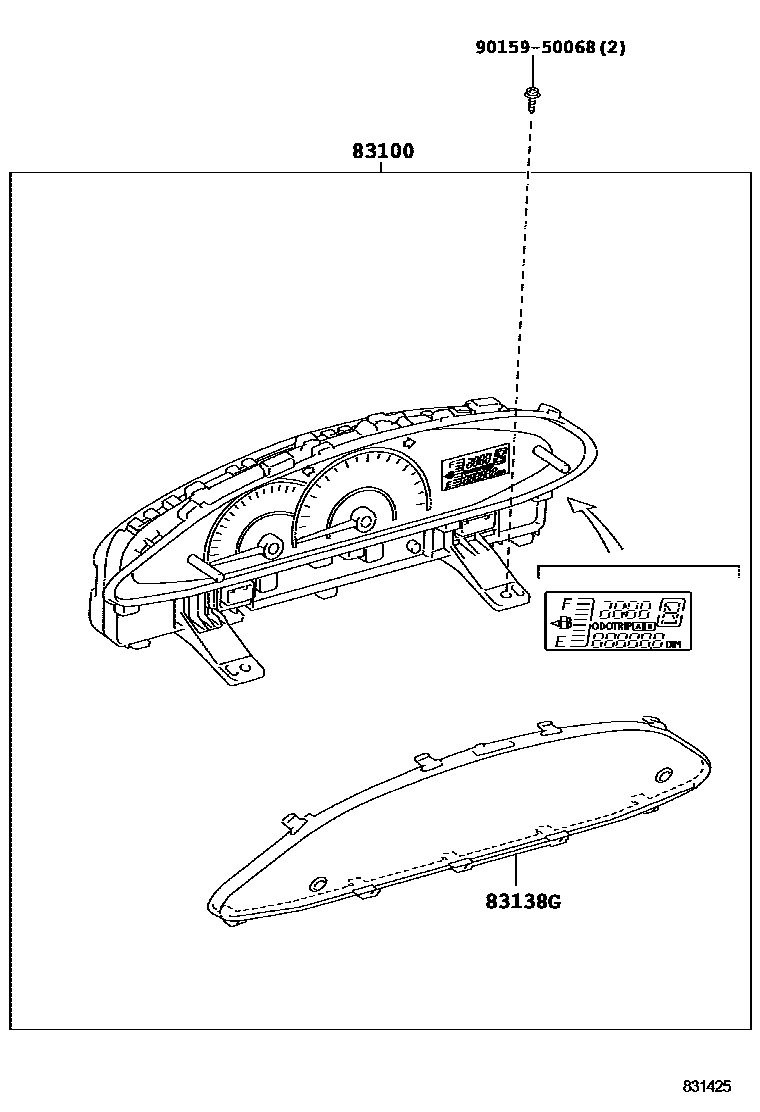

Toyota YARIS EPC diagram 8301, 仪表, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-0DF20 · 83800-0DF30 · 83800-0DF40 · 83800-0DF50 · 83800-0DL00 · 83800-0DL10 · 83800-0DX20 |
| 83138G | Instrument cluster glass | 83852-0DF20 |
