Toyota YARIS 线束和卡夹 — Figure 8202

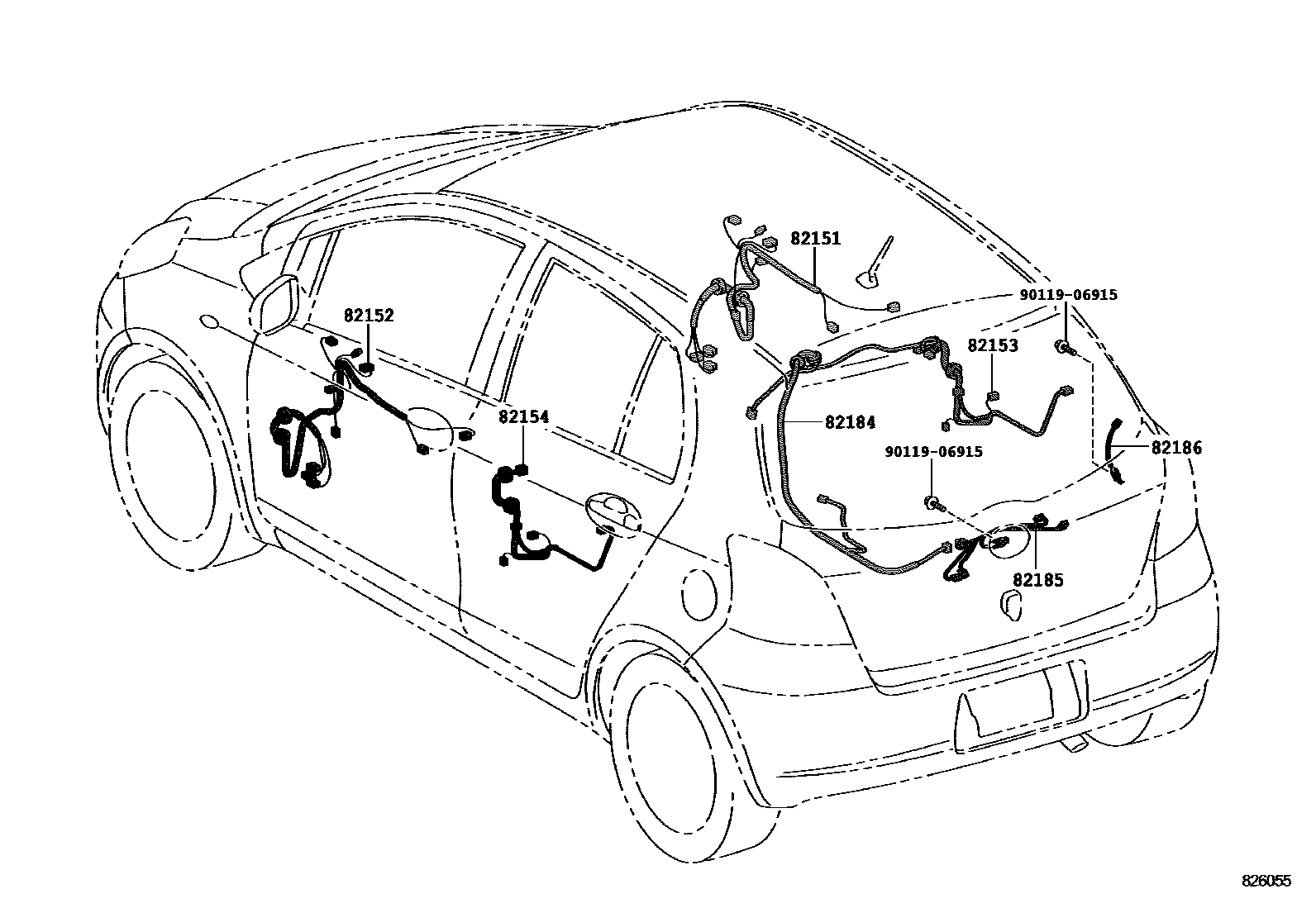

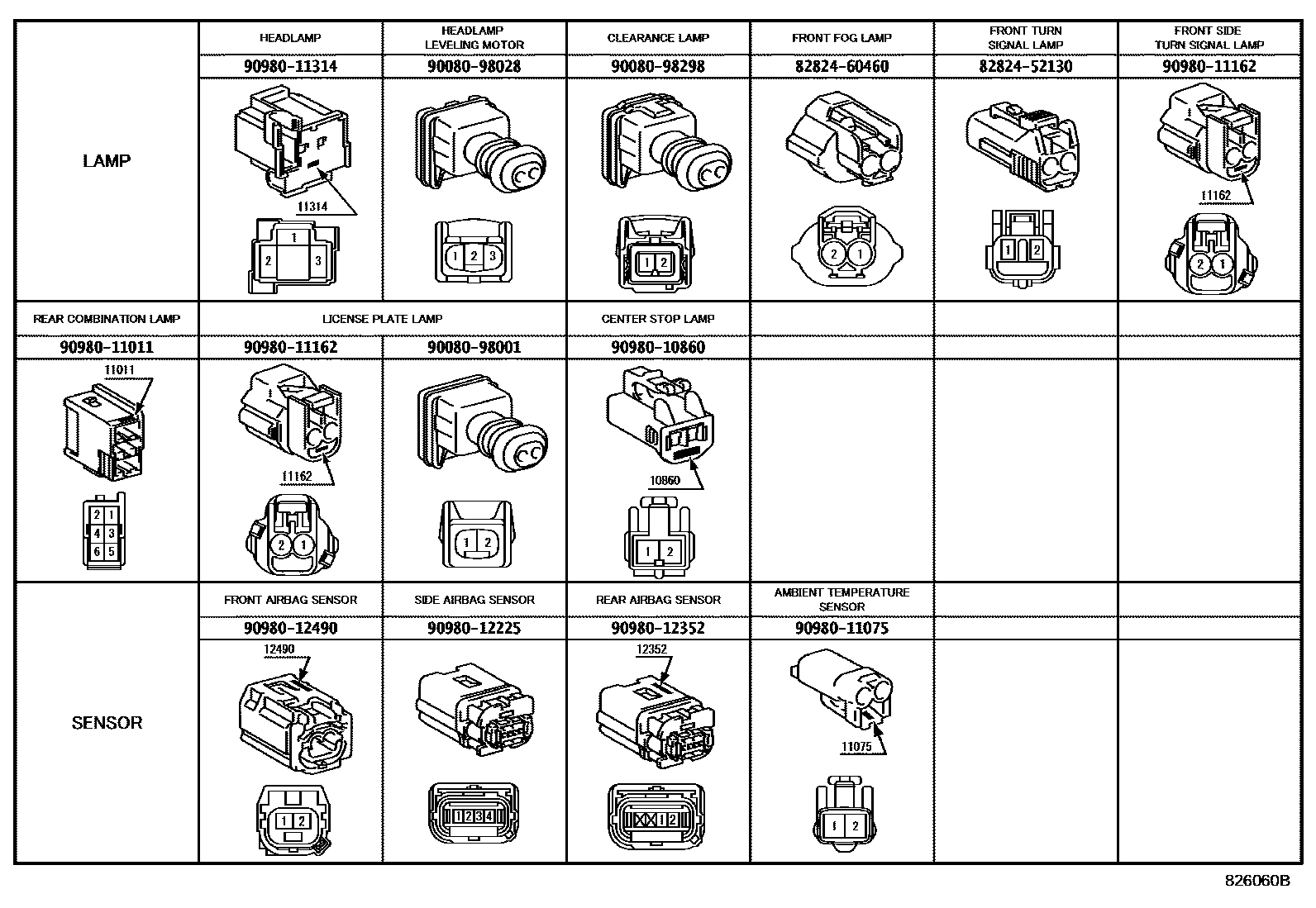

Toyota YARIS EPC diagram 8202, 线束和卡夹, with 10 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

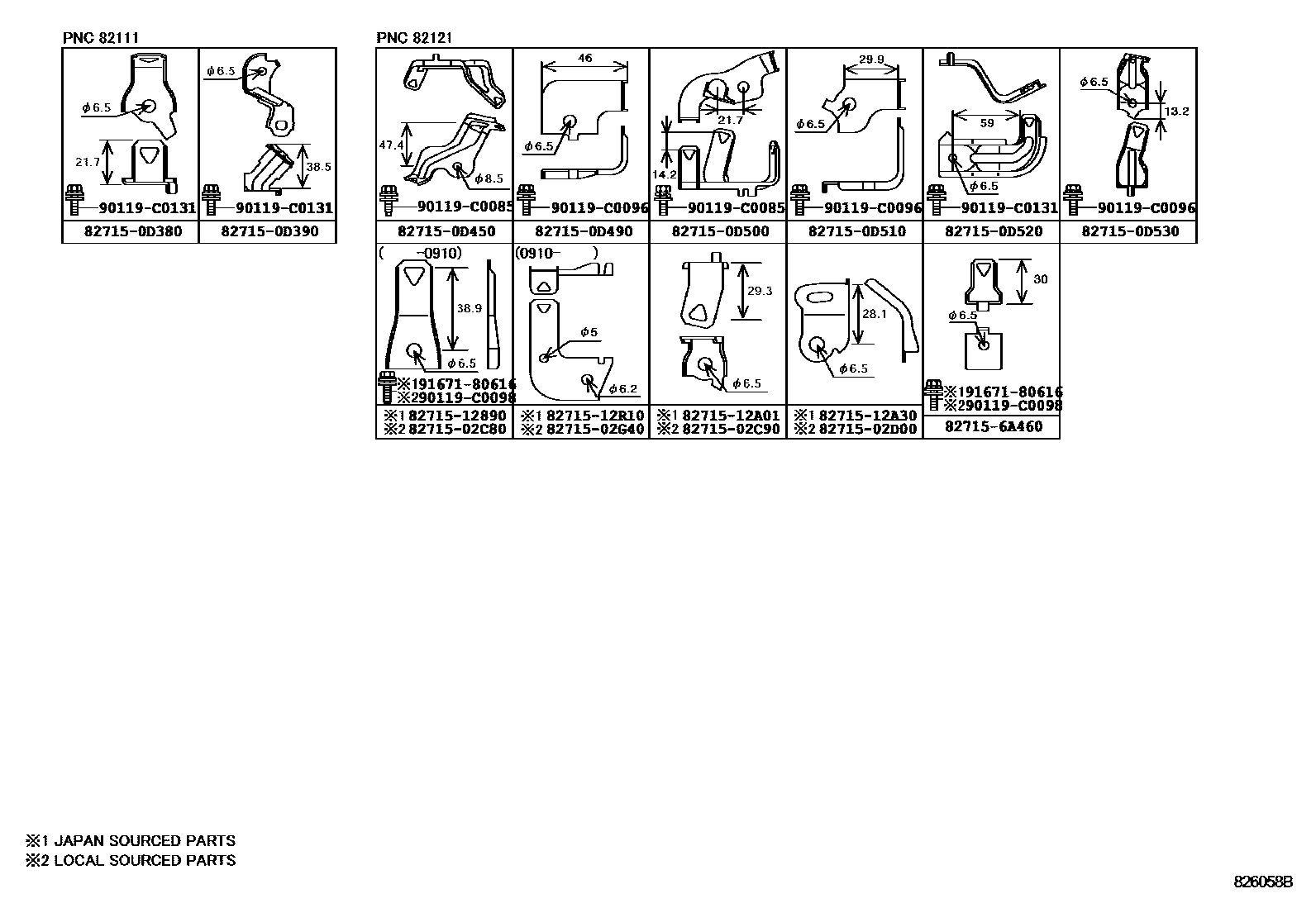

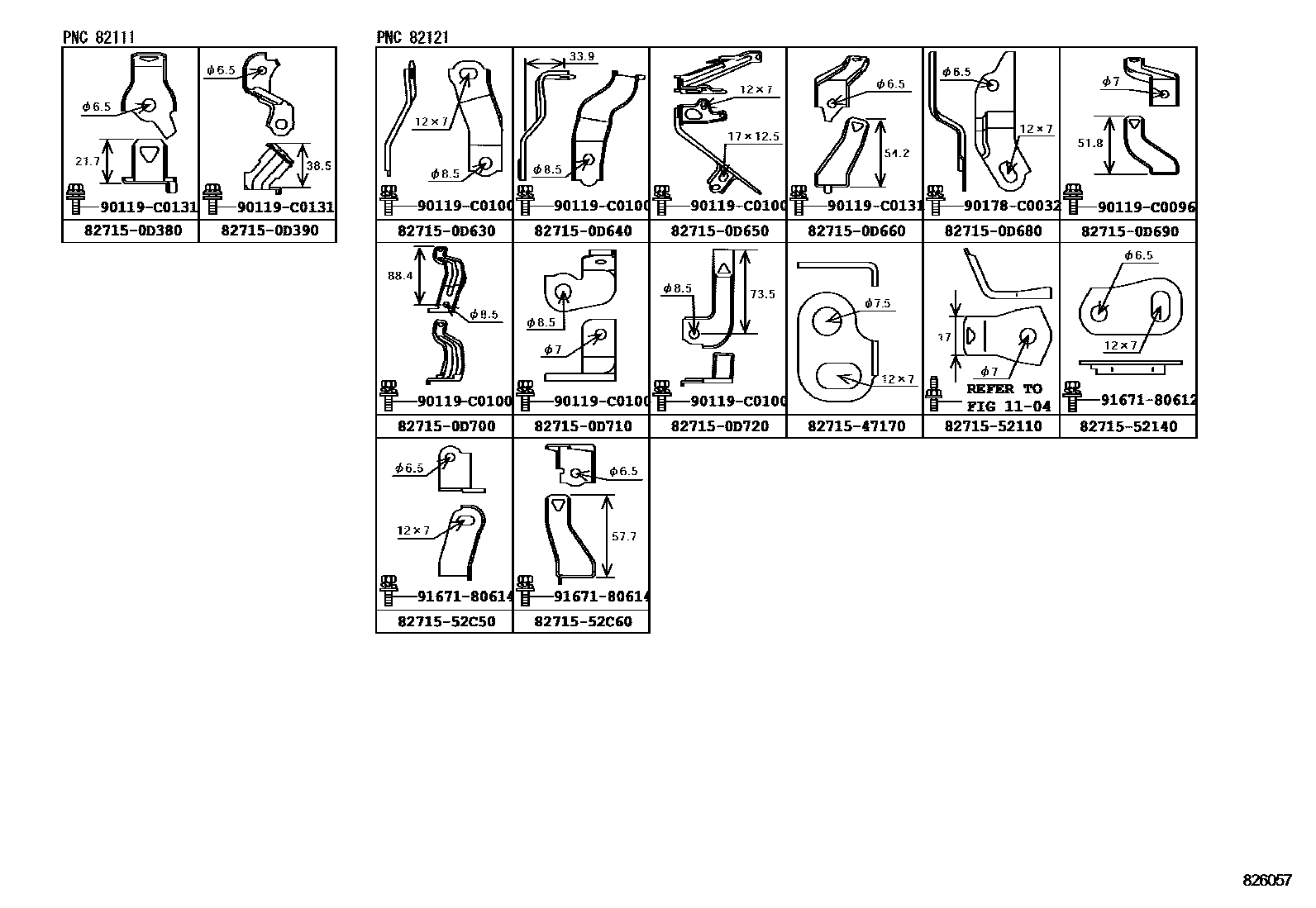

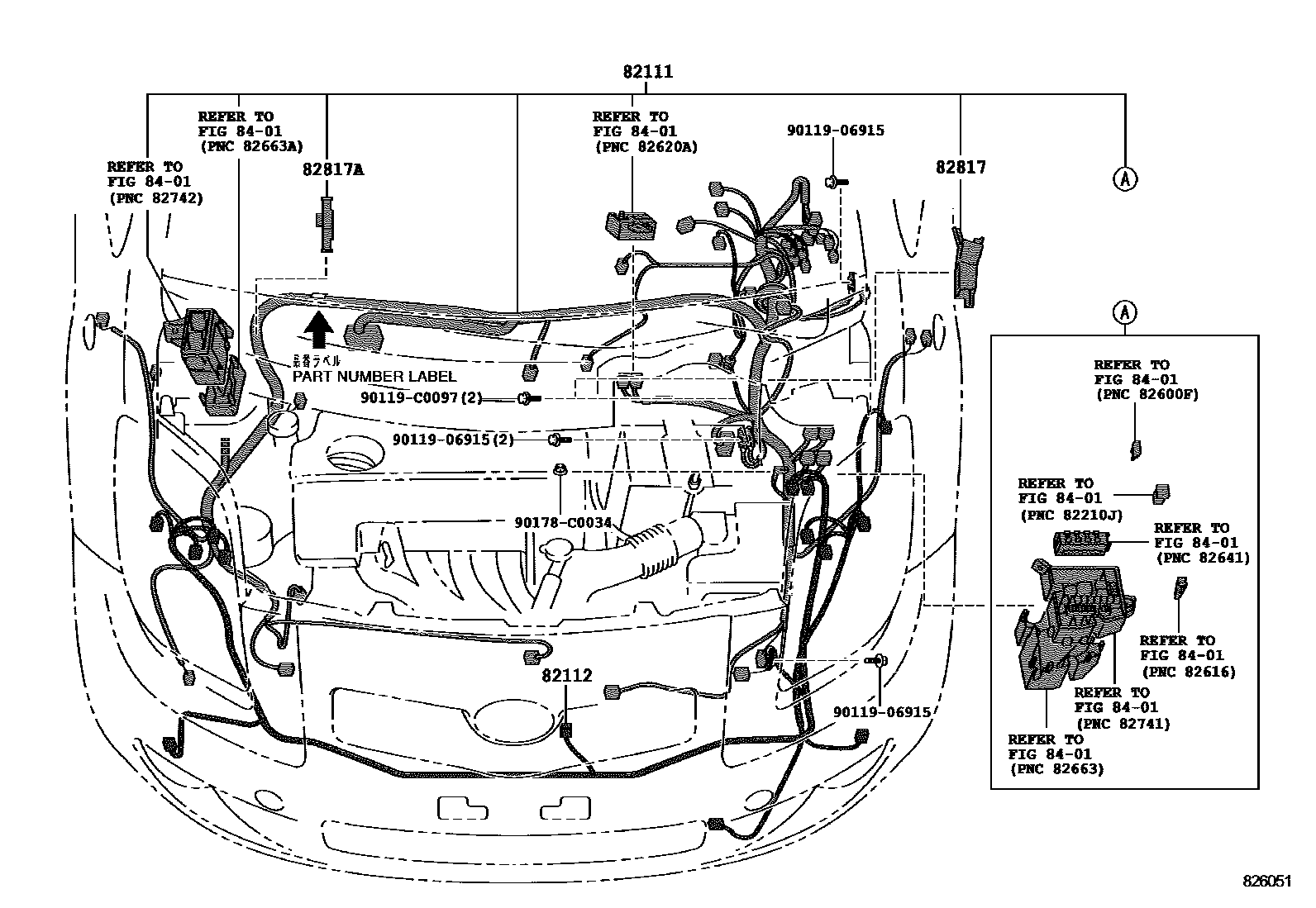

| 82111 | Engine room main wiring harness | 82111-0DK40 · 82111-0DK41 · 82111-0DK42 · 82111-0DK50 · 82111-0DK51 · 82111-0DK52 · 82111-0DK70 · 82111-0DK71 · 82111-0DZ60 · 82111-0DZ70 · 82111-0DZ71 |
| 82112 | Engine room wiring harness No. 2 | 82112-0D170 · 82112-0D180 |

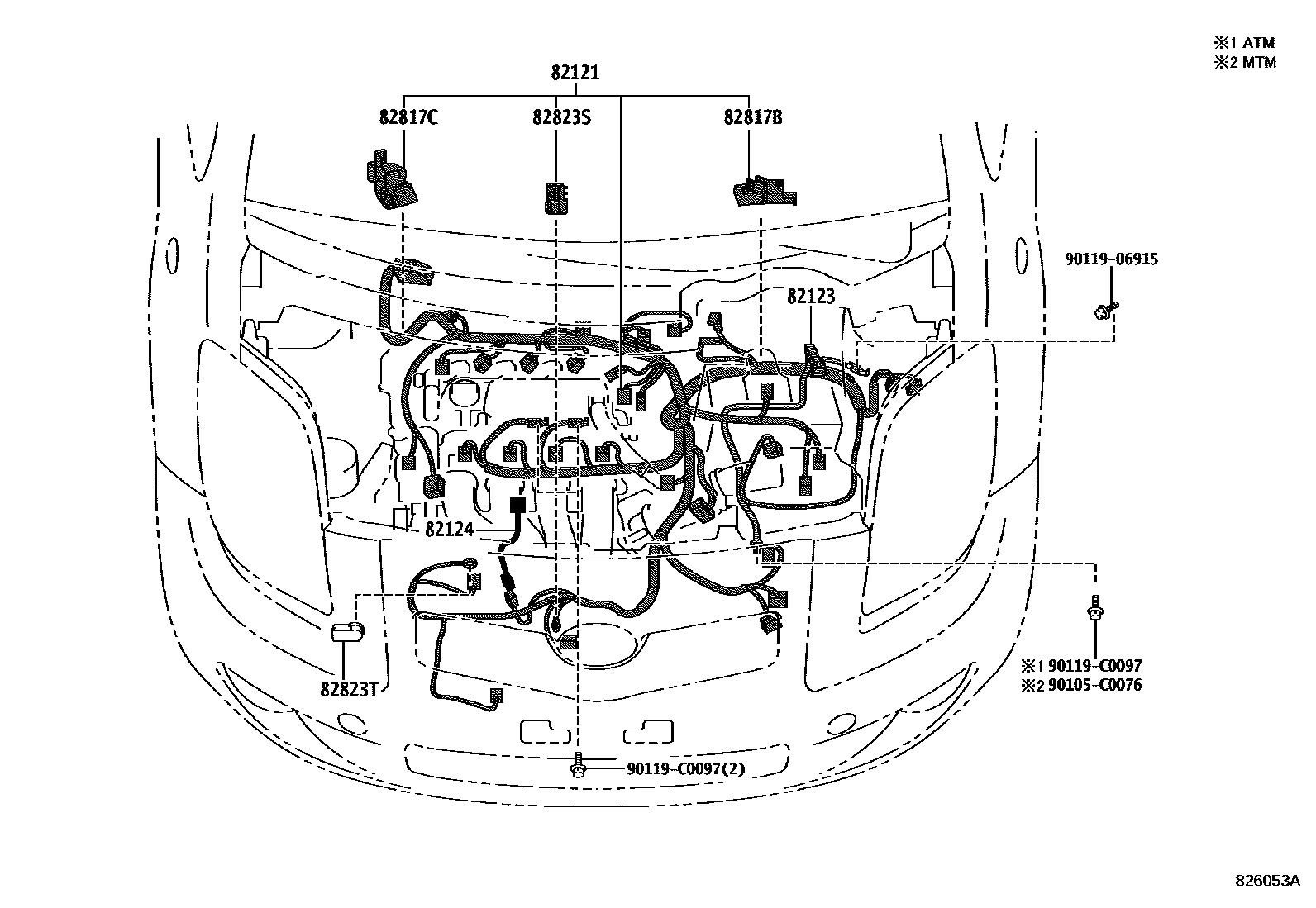

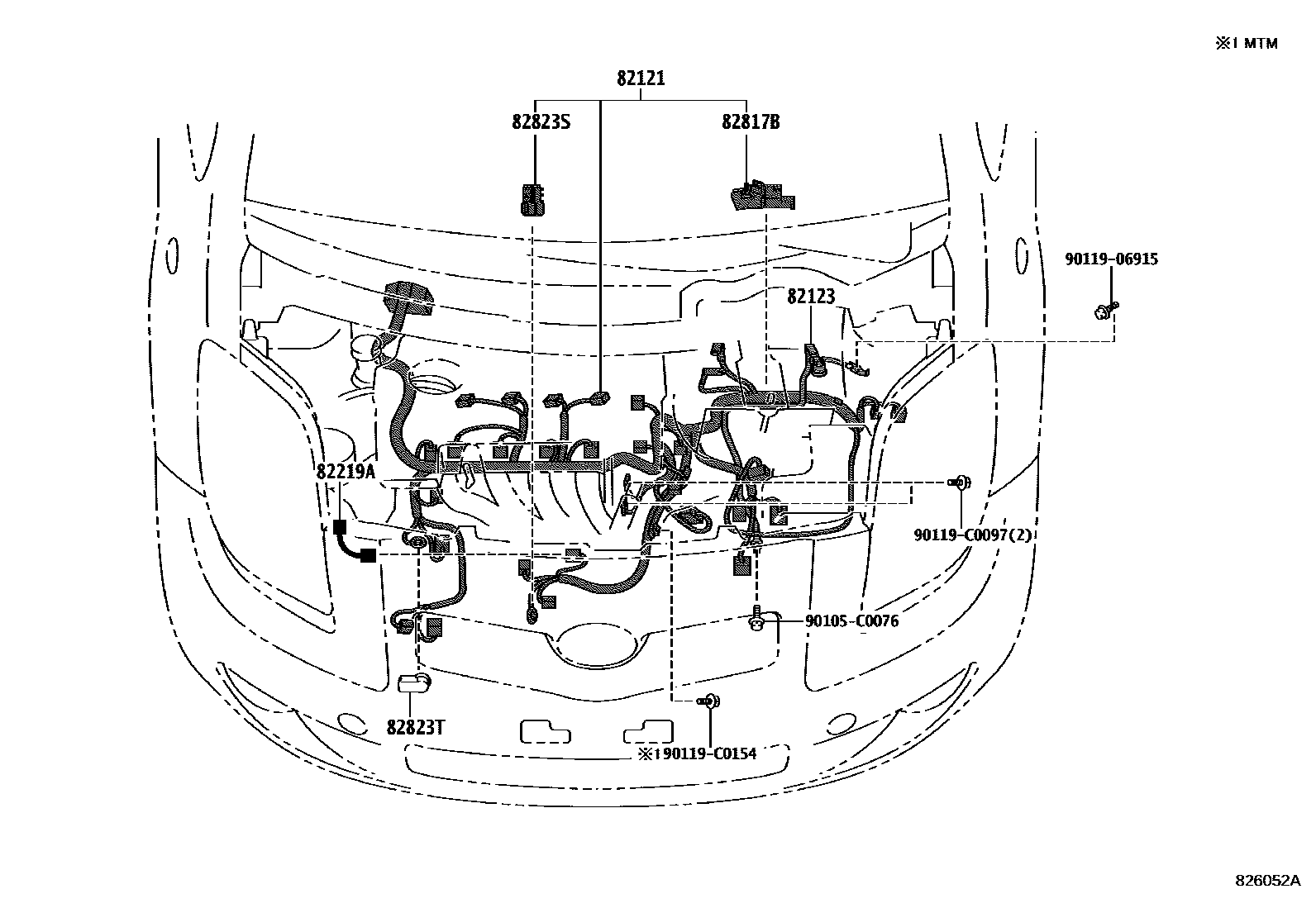

| 82121 | Engine wiring harness | 82121-0DA10 · 82121-0DA20 · 82121-0DA30 · 82121-0DA40 · 82121-0DD80 · 82121-0DD90 · 82121-0DE00 · 82121-0DE10 |
| 82123 | Engine No. 3 wiring harness | 82123-0D330 · 82123-0D340 · 82123-0D350 · 82123-0D360 |
| 82124 | Engine No. 4 wiring harness | 82124-02090 · 82124-02100 |

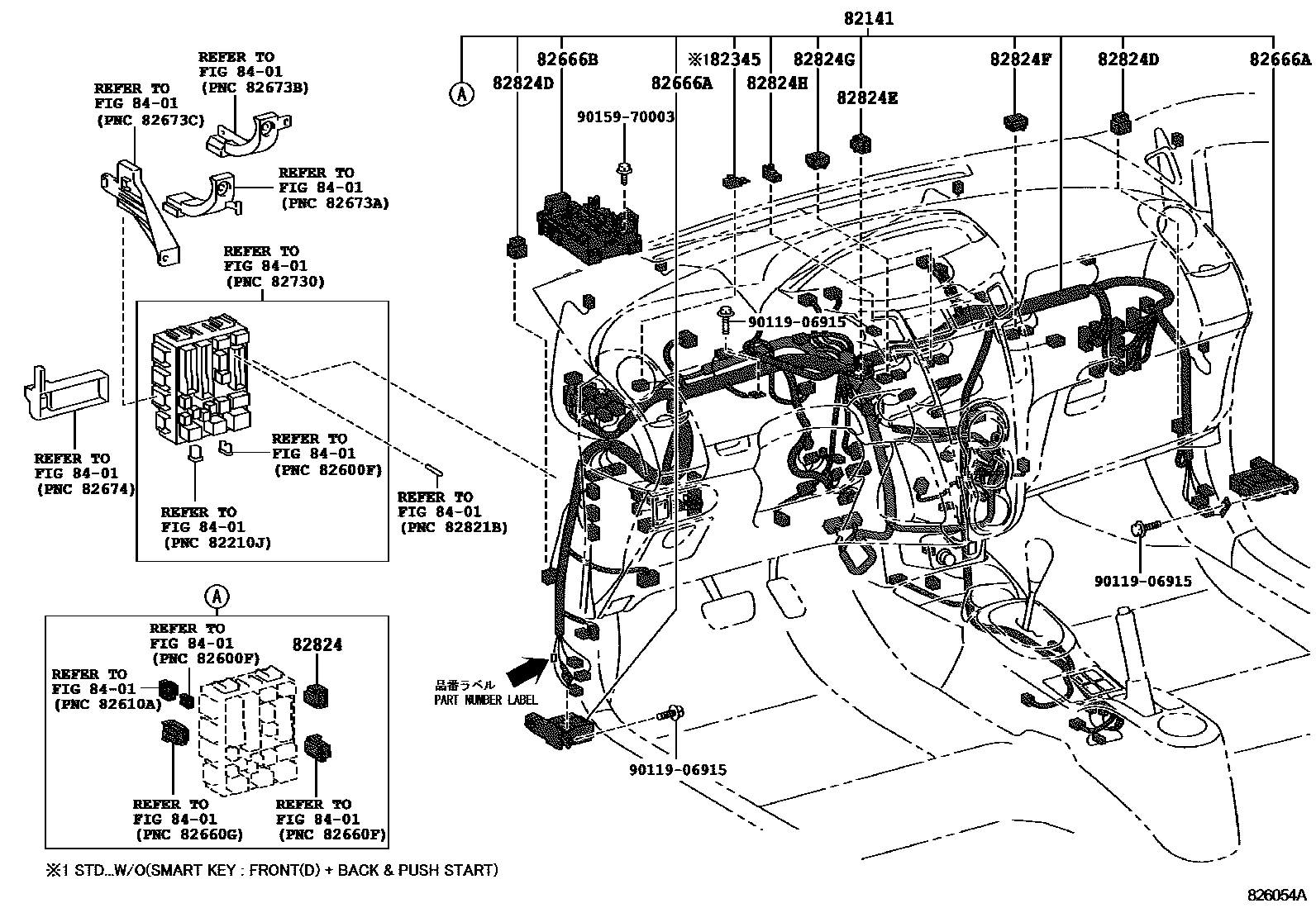

| 82141 | Dashboard wiring harness | 82141-0U870 · 82141-0U871 · 82141-0U872 · 82141-0U880 · 82141-0U881 · 82141-0U882 · 82145-0D170 · 82145-0D180 |
| 82151 | Right front door wiring harness | 82151-0D880 · 82151-0D881 · 82151-0D882 · 82151-0DE90 |
| 82152 | Left front door wiring harness | 82152-0D890 · 82152-0D891 · 82152-0D892 · 82152-0DA10 · 82152-0DA11 · 82152-0DA12 |
| 82153 | Rear door wiring harness No. 1 | 82153-0D230 · 82153-0D231 · 82153-0D240 |
| 82154 | Rear door wiring harness No. 2 | 82153-0D230 · 82153-0D231 · 82153-0D240 |
| 82161 | floor wiring harness | 82161-0DC90 · 82161-0DC91 · 82161-0DD10 · 82161-0DD11 · 82161-0DD12 · 82161-0DD20 · 82161-0DD21 · 82161-0DD22 |

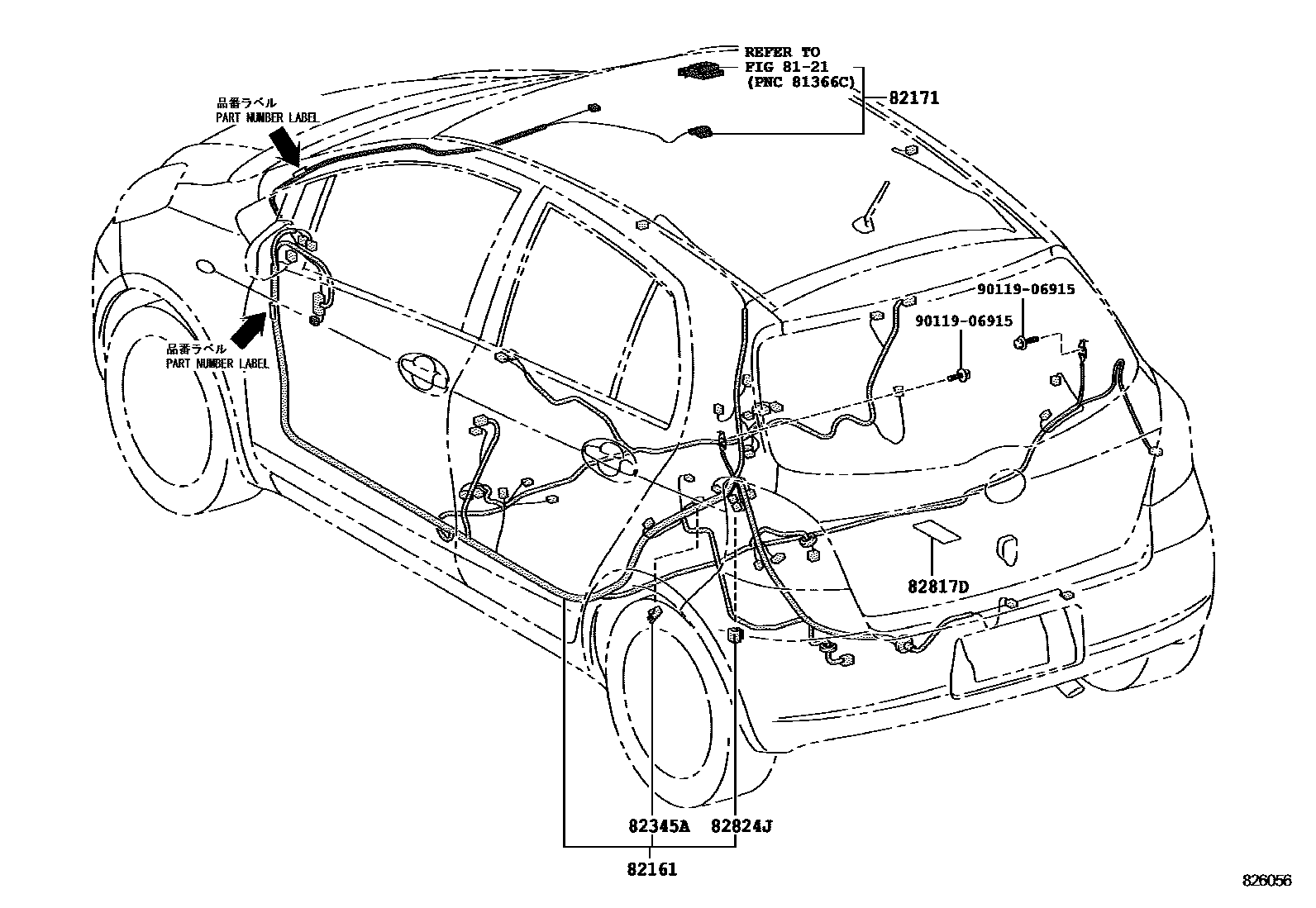

| 82171 | Roof No. 1 wiring harness | 82171-0D120 |
| 82184 | Rear door No. 1 wiring harness | 82184-0D100 · 82184-0D101 · 82184-0D110 |
| 82185 | Rear door wiring harness No. 2 | 82185-0D160 · 82185-0D170 · 82185-0D180 |
| 82186 | Rear window wiring harness No. 1 | 82186-0D080 |
| 82219A | sensor harness | 82219-52040 |
| 82345 | diode | 82345-32010 |
| 82345A | diode | 82345-32010 |
| 82666A | Connector holder No. 2 | 82666-52080 |
| 82666B | No. 3 connector holder | 82666-52090 |
| 82817 | No. 1 wire harness protection device | 82817-52511 · 82817-52580 |
| 82817A | No. 2 wire harness protection device | 82817-52750 |
| 82817B | No. 3 wire harness protection device | 82817-52620 |
| 82817C | No. 4 wire harness protection device | 82817-52740 |
| 82817D | No. 5 wire harness protection device | 82817-16100 |
| 82823S | starter terminal cover | 82823-20080 |
| 82823T | Generator terminal cover | 82823-22050 |

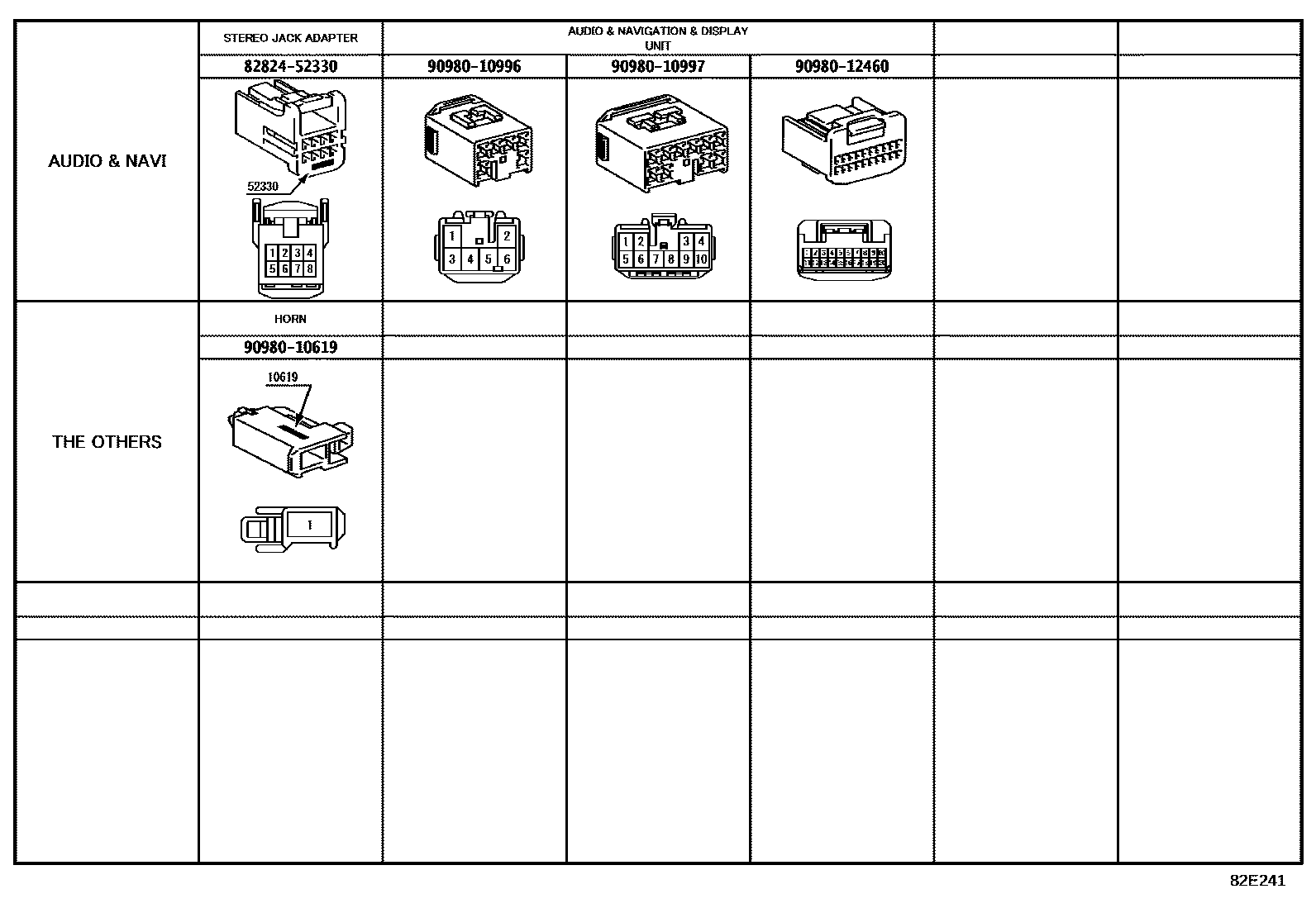

| 82824 | Harness connector | 82824-22070 |
| 82824D | Harness connector | 82824-47210 |
| 82824E | Harness connector | 82824-52080 |
| 82824F | Harness connector | 82824-52280 |
| 82824G | Harness connector | 82824-52290 |
| 82824H | Harness connector | 82824-21030 |
| 82824J | Harness connector | 82824-44030 |
